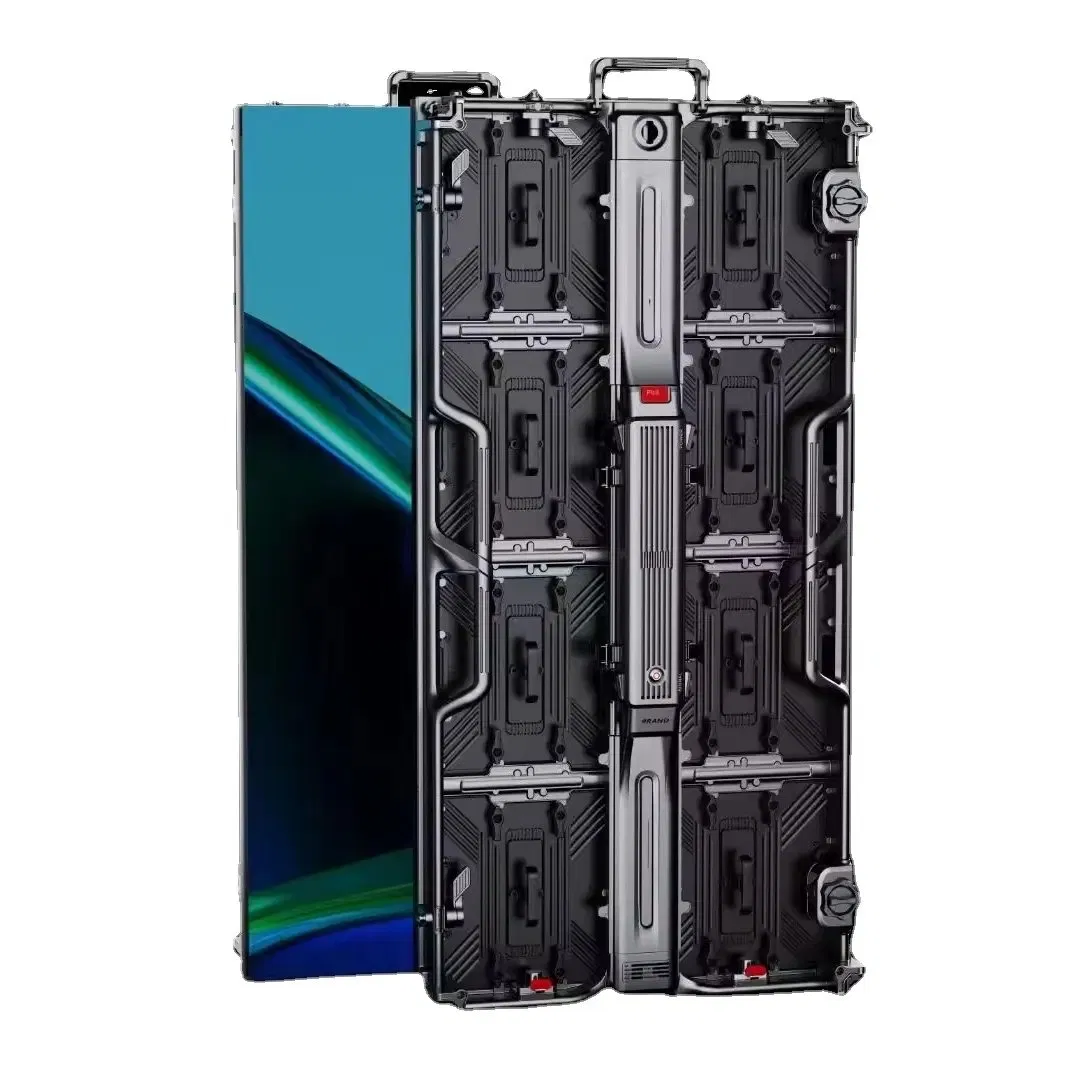

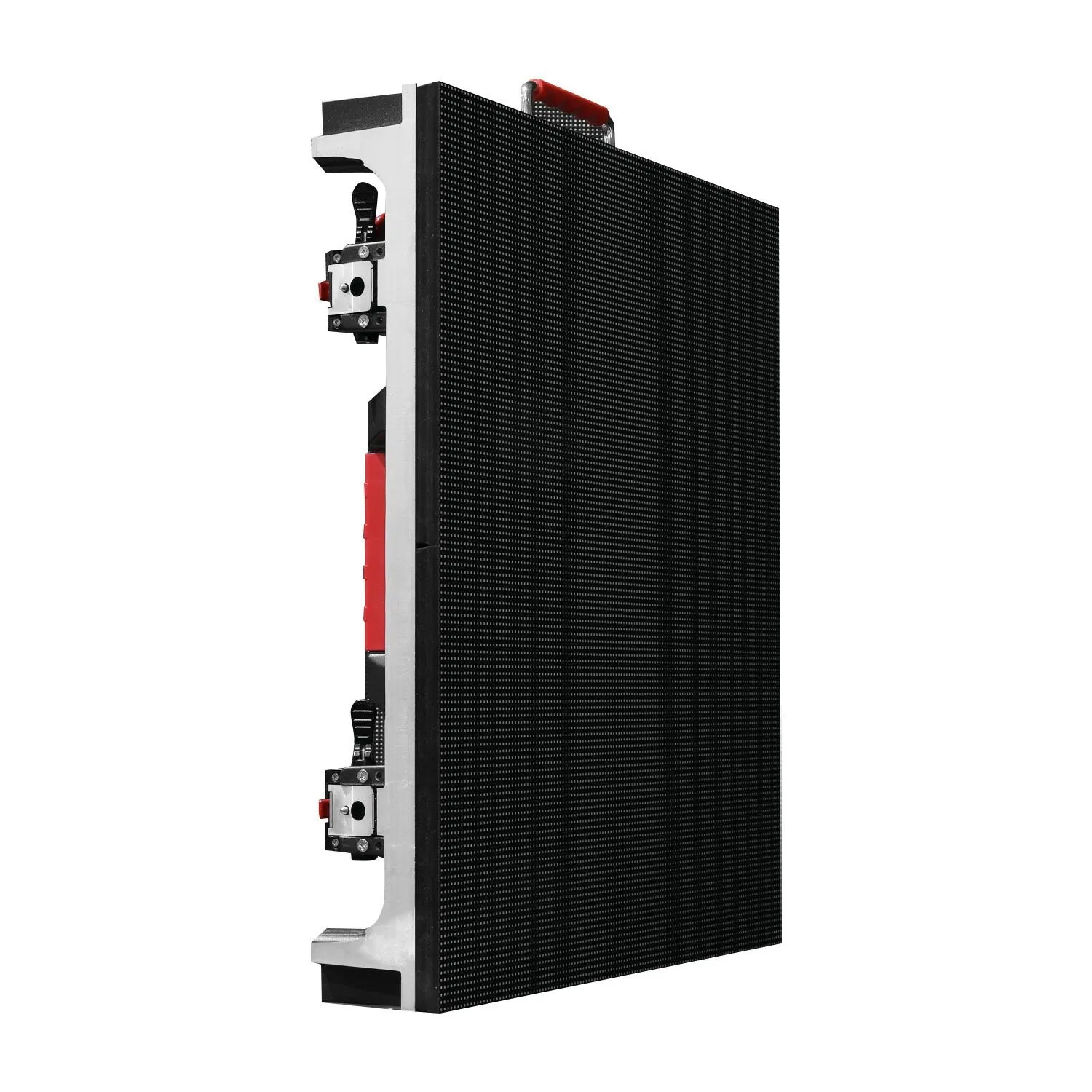

Stage Rental or Fixed Indoor/Outdoor LED Screen Panel 3D Advertising Digital Billboard

Overview & Basic Info

Model NO.

AB2.97

Pixel Pitch

2.97mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image & Text Display

Power Consumption

235W (Average)

Pixel Density

112896 Dots

Scanning Mode

1/21s

Application

Stage Performance

Certification

CE, RoHS, CCC

Contrast Ratio

5000: 1

Refresh Frequency

3840Hz

Package Size

50.00cm * 100.00cm * 8.50cm

Key Features & Technology

Four-level Energy-Saving Technology

Level I: Dynamic energy saving when signals are not displayed.
Level II: Black screen energy saving reduces chip current from 6mA to 0.6mA.
Level III: Full-screen energy saving triggered after 300ms of low level.
Level IV: Shunt power supply reduces forward voltage drop and internal resistance.

High-Definition Visual Display

Features a refresh rate up to 3840Hz and 16-bit grayscale. The screen provides realistic, delicate visuals without graininess. Wide viewing angles exceed 140° due to consistent SMD LED beads.

Structural Optimization

Supports floor standing, hanging, and wall mounting. Modular design for modules and power boxes allows for easy front and rear maintenance without high structural costs.

High Protection & Stability

IP66 protection grade with an all-aluminum design. Corrosion-resistant, flame retardant, and moisture resistant. Operates reliably in seaside environments and temperatures from -40ºC to 80ºC.

Technical Parameters

Parameter Name	P1.95	P2.604	P2.97	P3.91	P4.81
Pixel Pitch (mm)	1.95	2.604	2.97	3.91	4.81
Module Size (mm)	25025018	25025018	25025018	25025018	25025018
Cabinet Resolution	256*512	192*384	168*336	128*256	104*208
IP Rating	IP66
Brightness (cd/m²)	4500	4500	4500	4500	4500
Refresh Rate (Hz)	3840
Maintenance	Front / Rear

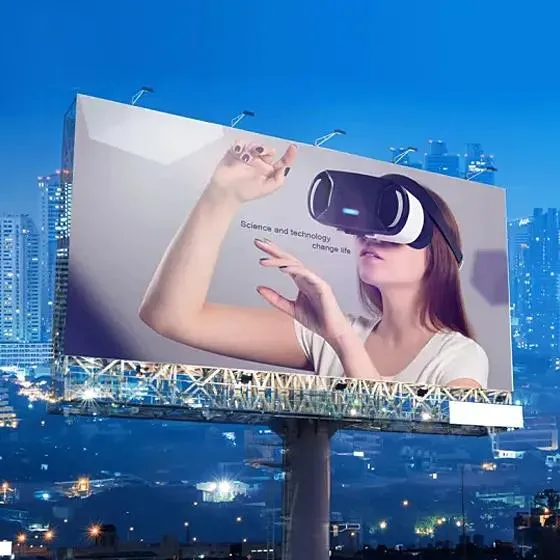

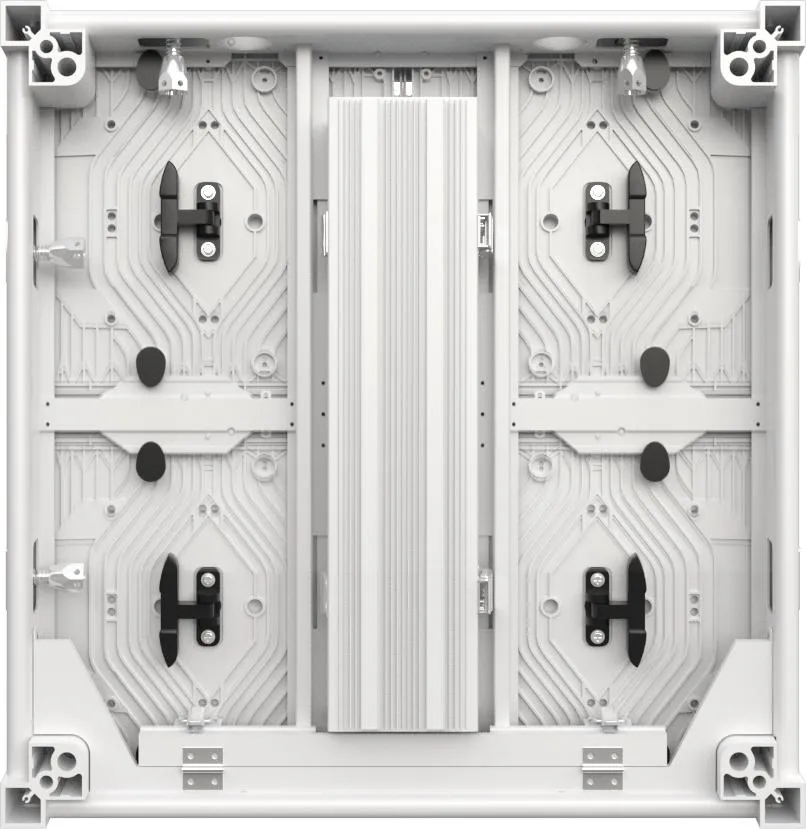

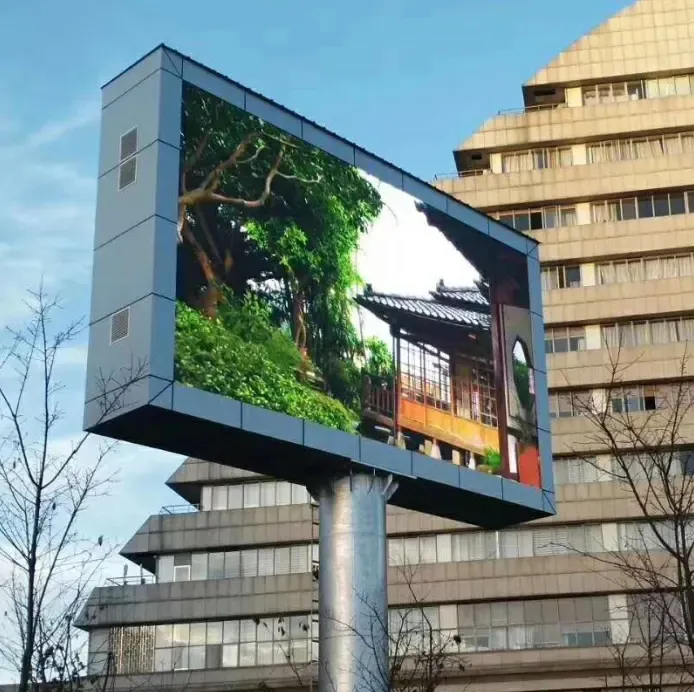

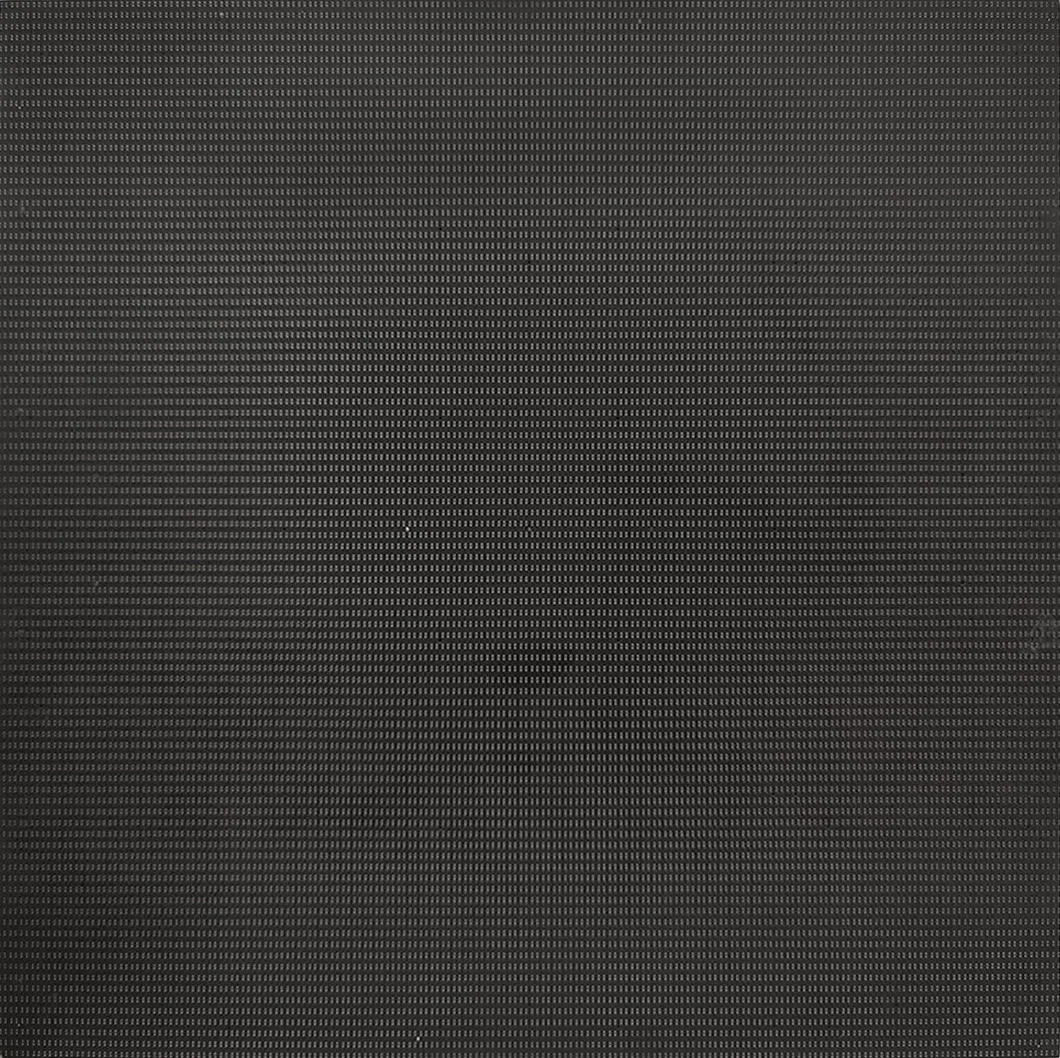

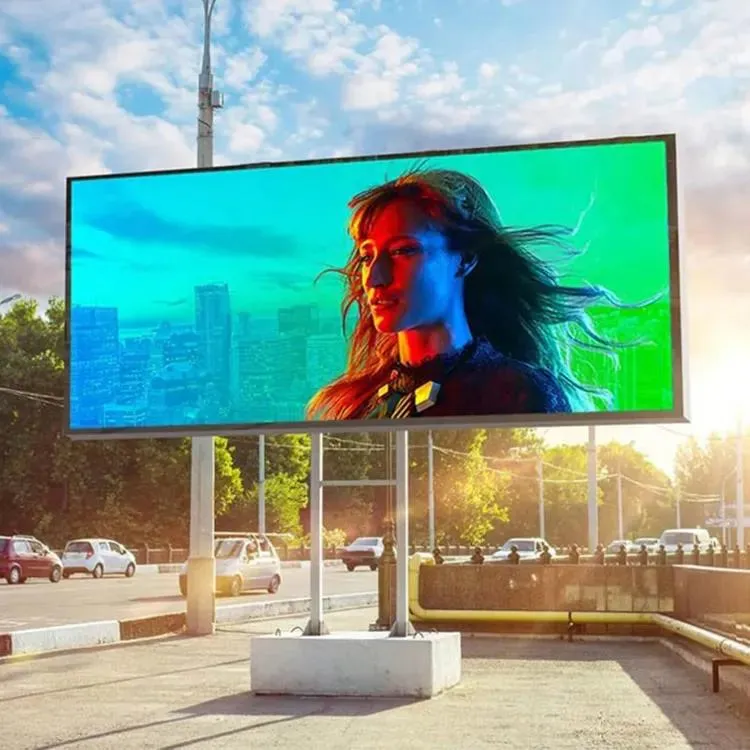

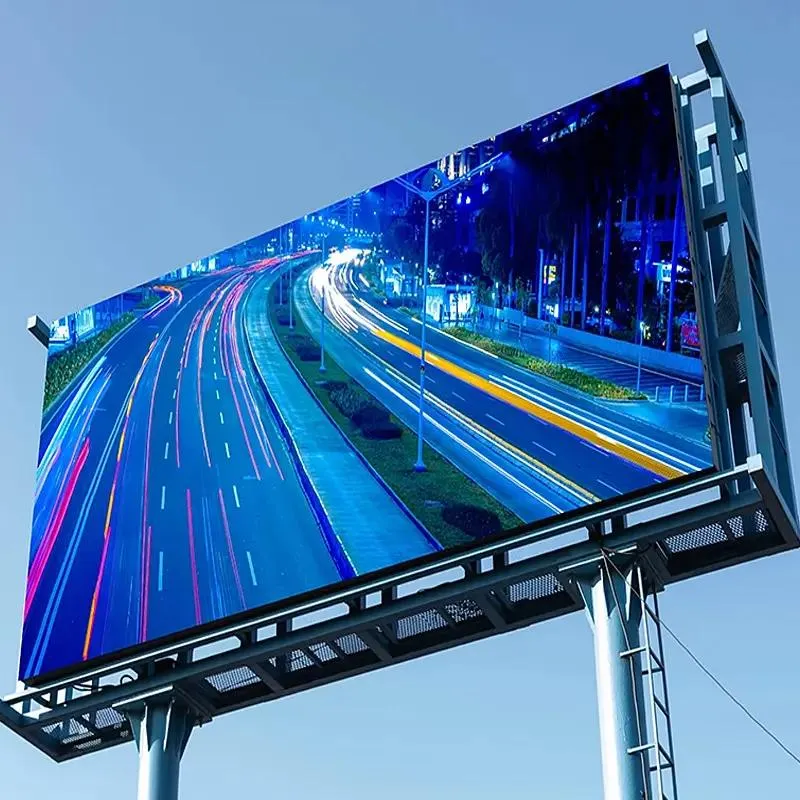

Product Pictures

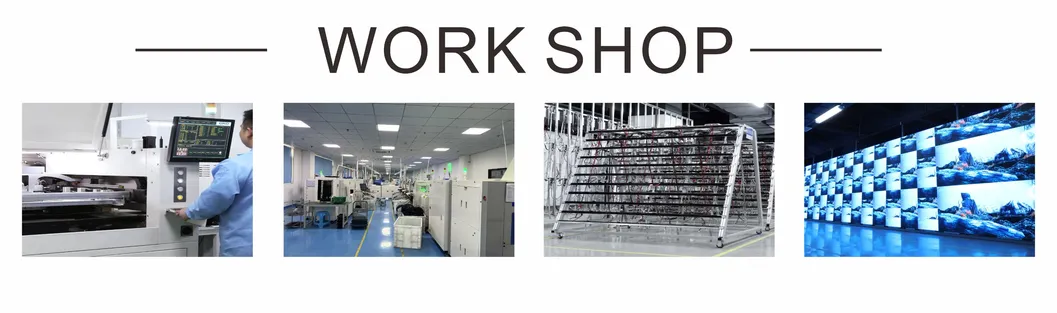

Production & Factory

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a dedicated LED display manufacturer.

What kind of LED displays do you offer?

Our products include LED full-color displays for indoor/outdoor use, rental displays, advertisement billboards, stage displays, sports displays, and customized irregular-shape solutions.

How is the freight cost calculated?

Shipping costs depend on the weight of the order. We always select the most cost-effective and safest method based on your specific requirements.

What is the energy-saving capability of these screens?

Our screens use a four-level energy-saving technology, including dynamic circuit shutdown and black screen current reduction from 6mA down to 0.6mA.

Can these screens be used in coastal environments?

Yes, with an IP66 protection grade and all-aluminum corrosion-resistant design, they are built to operate reliably in seaside locations and harsh weather.

What maintenance options are available?

The modular design supports both front and rear maintenance, making it highly flexible for various installation structures like wall mounting or hanging.
