| NO. | Product Name | Technical Parameter |
|---|---|---|
| 1 | Pixel Pitch(mm) | 8mm |
| 2 | Pixel configuration | 1R1G1B / SMD3535 |
| 3 | Pixel density | 15526 dots / Square meter |
| 4 | Brightness | ≥6500 cd / Square meter |
| 5 | Module size (W*H) | 320mm × 160mm |
| 6 | Module Resolution | 40 dots x 20 dots |

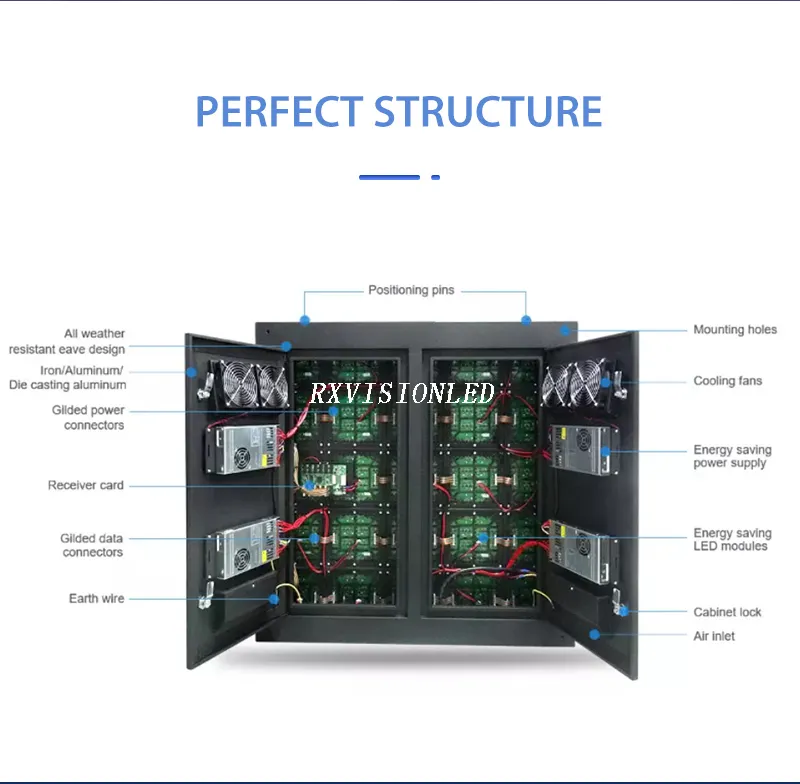

| 7 | Cabinet size (W*H) | 960mm × 960mm |
| 8 | LED lamp | National Star LED Lamp |
| 9 | Drive IC | MBI5124 |
| 10 | Drive mode | 1/4 scan |
| 11 | Viewing Angle (V/H) | 140º |
| 12 | Life time | >100,000 Hours (50%) |
| 13 | Operating Voltage | AC110V/220V±10% |
| 14 | Refresh Rate | ≥1920HZ |
| 15 | Control Method | Synchronized with computer monitor |
1. Payment Term: 30% T/T in advance and balance before delivery.
2. Delivery Time: Within 15-20 working days after 30% advance payment.
3. Installation: Professional guidance provided to install the screen via remote control.
4. After-sales Service: Quick response within 24 hours for any inquiries or technical issues via mail or call, providing effective solutions.
