| Model NO. | OXIII-P5 | Pixel Pitch | 5mm |
| Pixel Configuration | 1R, 1G, 1B | Display Function | Video, Image, Text, Market Display |
| Avg. Power Consumption | 200W/M2 | Pixel Density | 40000DOT/M2 |
| Scanning Mode | 1/16 Scan | Display Type | LED Video Display |

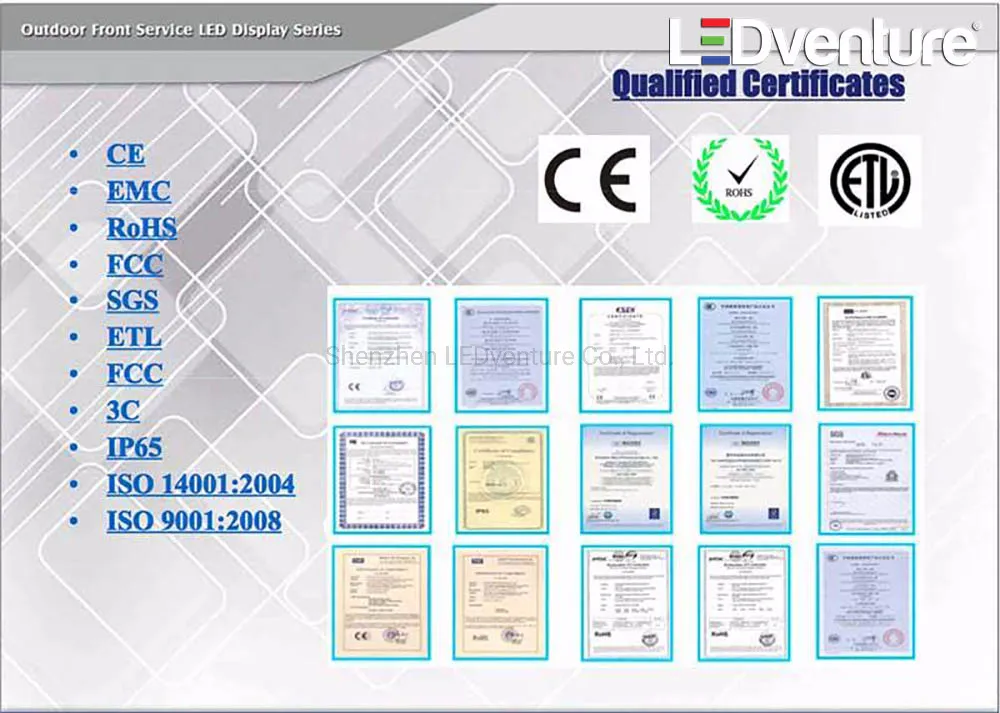

| Application | Advertising | Certification | CE, RoHS, CCC, ETL |
| Cabinet Material | Aluminum | Weight | 24kg/M2 |
| Brightness | >6000nits | Refresh Rate | 3840Hz |
| Viewing Distance | 5m | Contrast Rate | 3000:1 |
| LED Lamps | SMD 3 in 1 | PSU | 5V 60A |
| System | Nova | Origin | China |

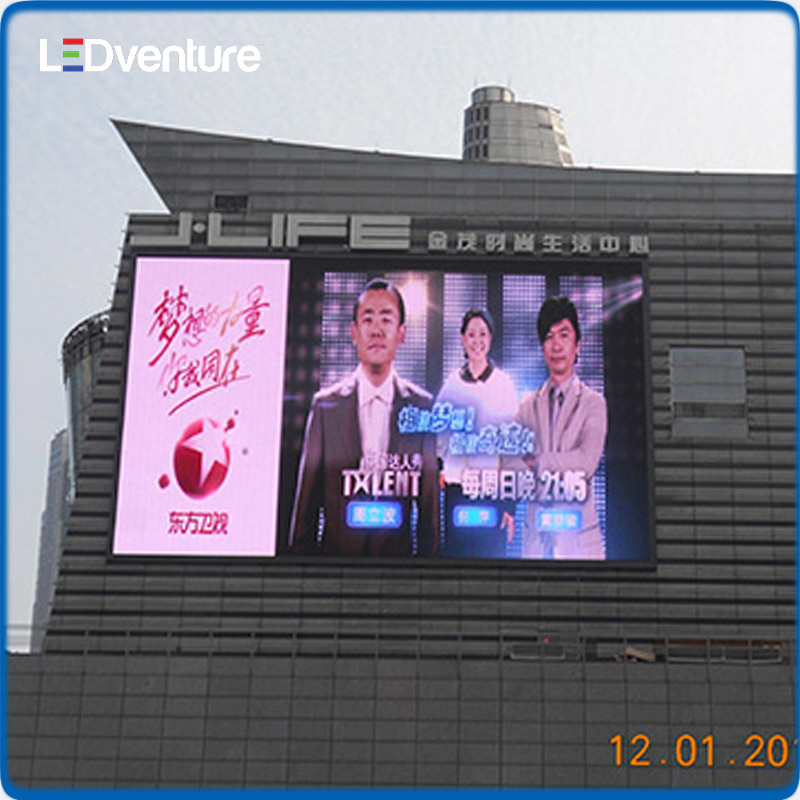

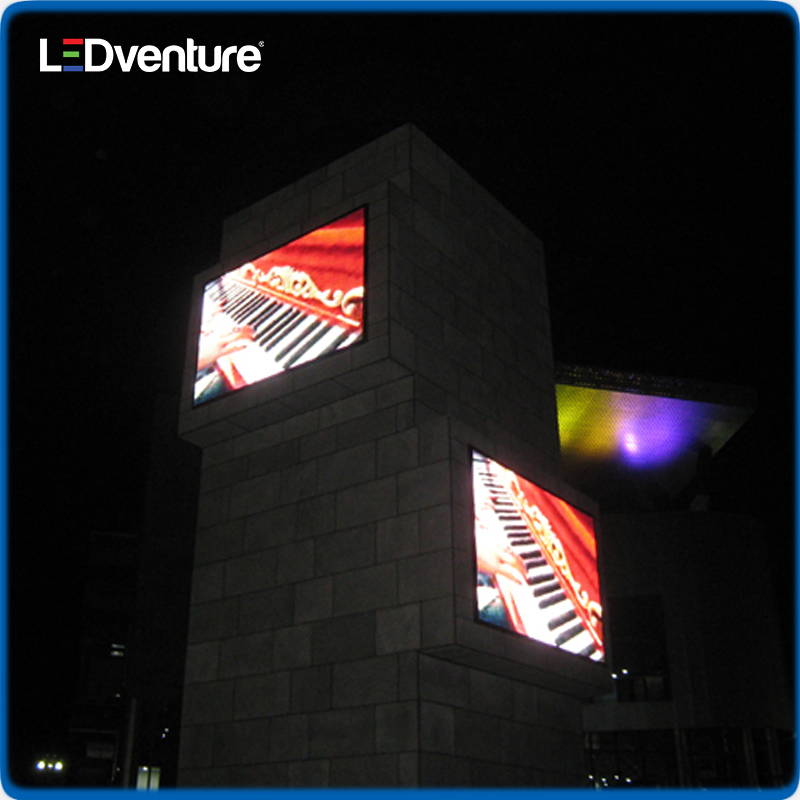

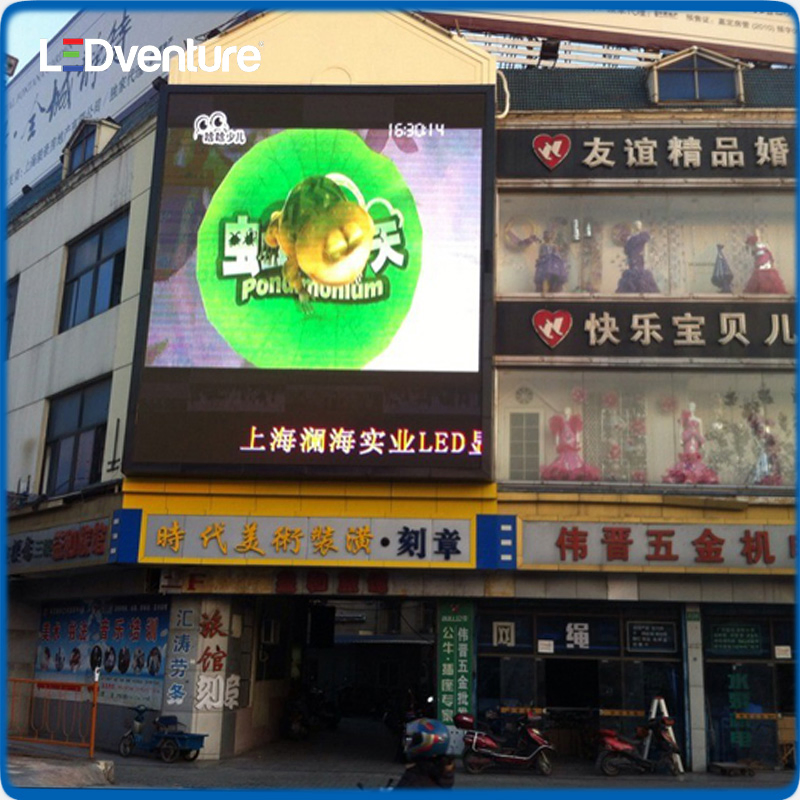

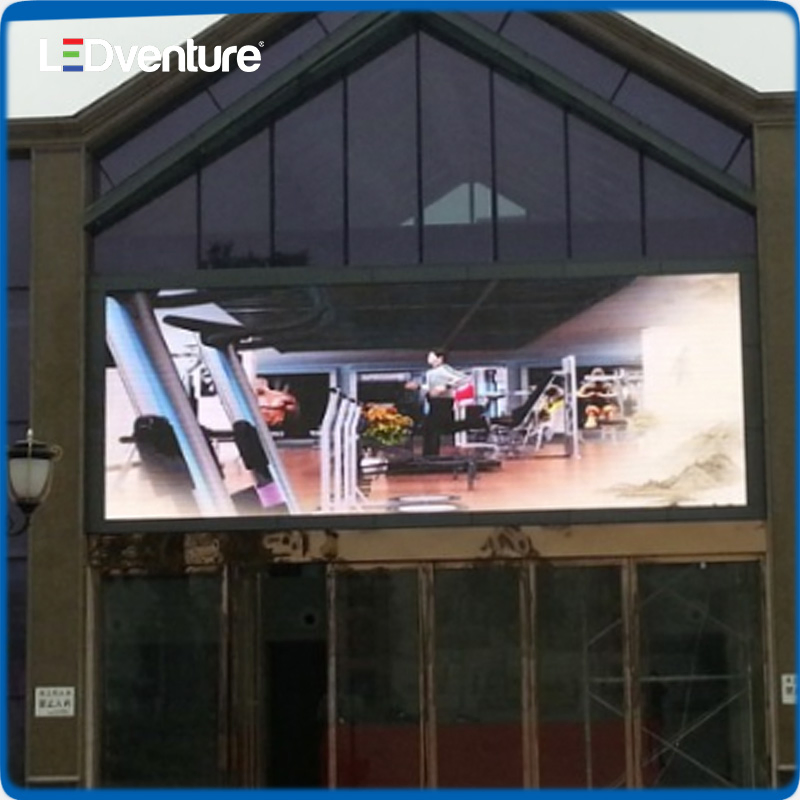

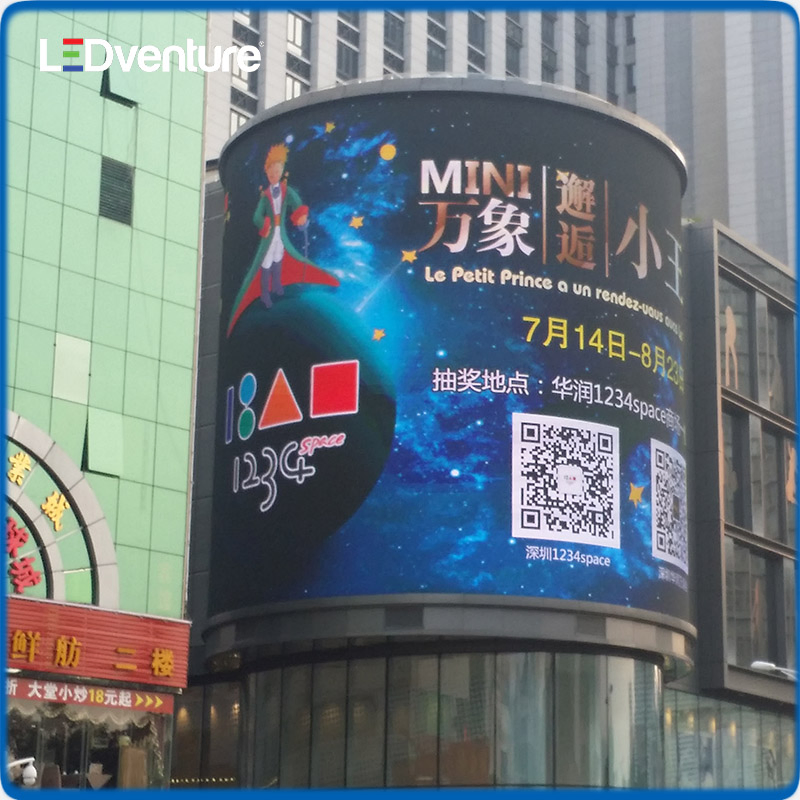

Full Color Outdoor Fixed P5 LED Advertising Digital Display Billboard
This solution focuses on high-quality outdoor media, offering a cost-effective choice with a high refresh rate exceeding 1920Hz (up to 3840Hz). Designed with a lightweight cabinet, it delivers top-tier image quality, stable operation, and high-density resolution. It is a popular choice for both indoor and outdoor media applications due to its simple installation process.

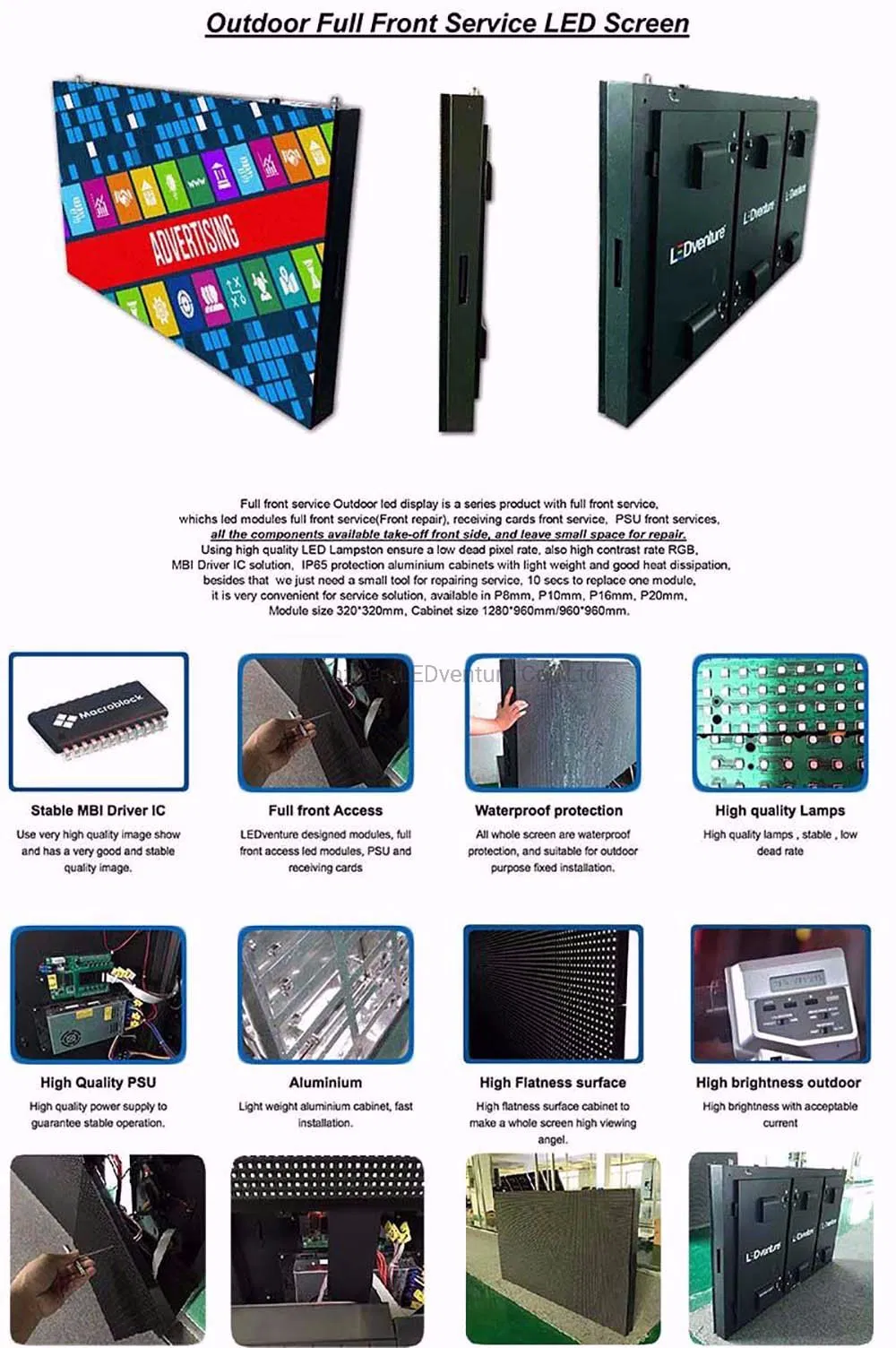

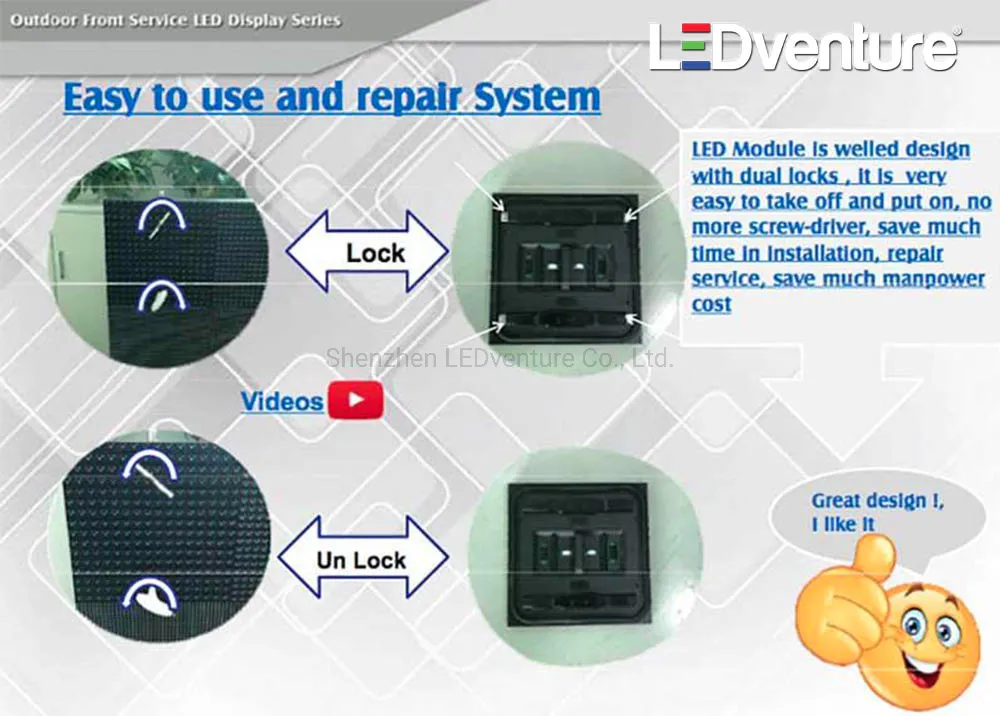

Our outdoor front and back service LED displays are designed for convenience and durability. The locking system ensures a seamless connection between cabinets.
| Item | Full Color Outdoor Fixed P5 LED Video Panel | ||
| Module Size | 480x320mm | Module Resolution | 96*64 pixels |
| Protection Level | IP66 | Cabinet Size | 960x960mm |
| Color Temperature | Adjustable via software (100 levels); R.G.B. brightness adjustable | ||
| Input Voltage | AC110-240V, 50/60Hz | Gray Scale | 16 bits |
| Lifespan | ≥100,000 hours | Blind Spot Rate | <0.0001 |
| Control Mode | Video frequency synchronization | Environment Temp | -20°C~+45°C (Operation) |

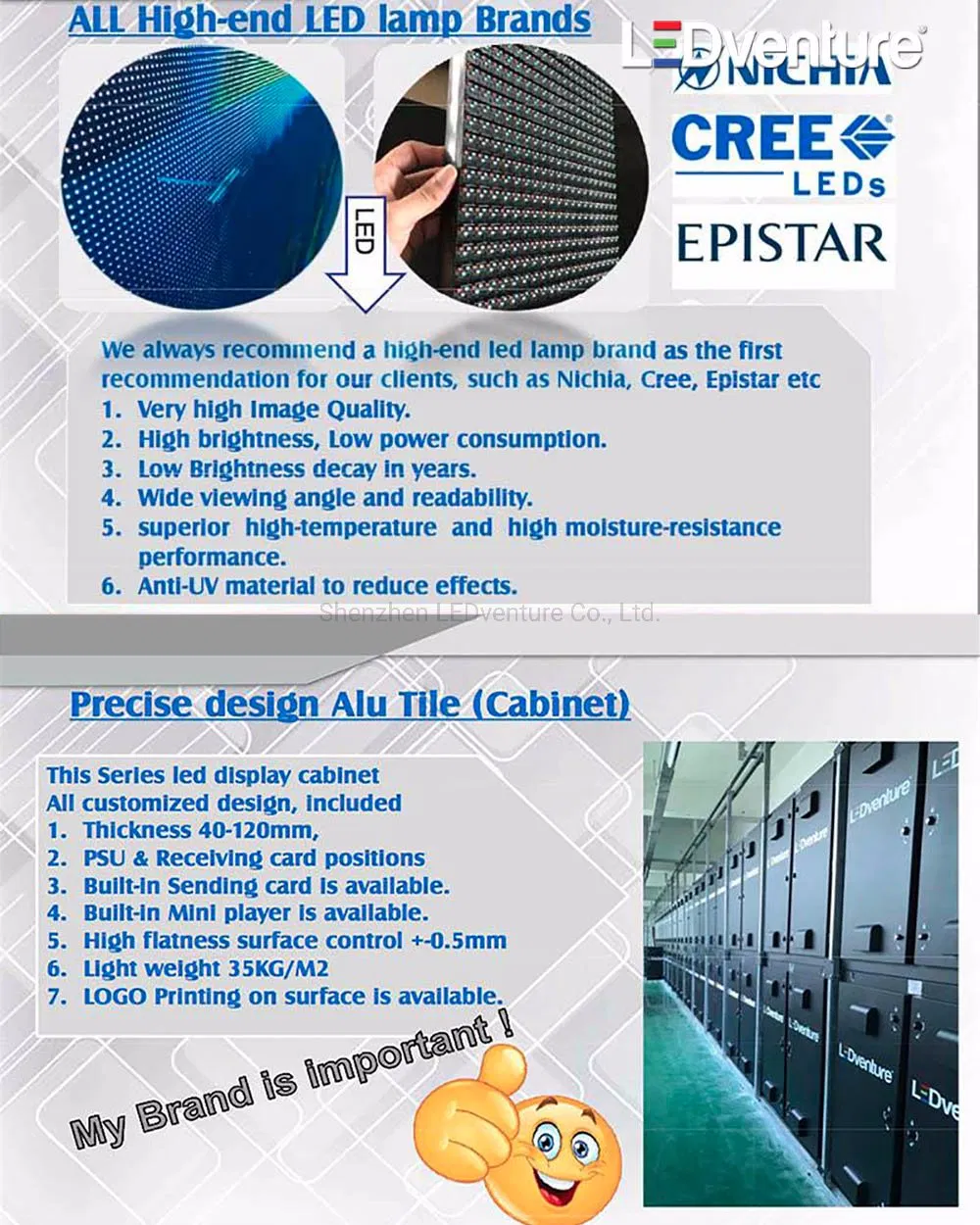

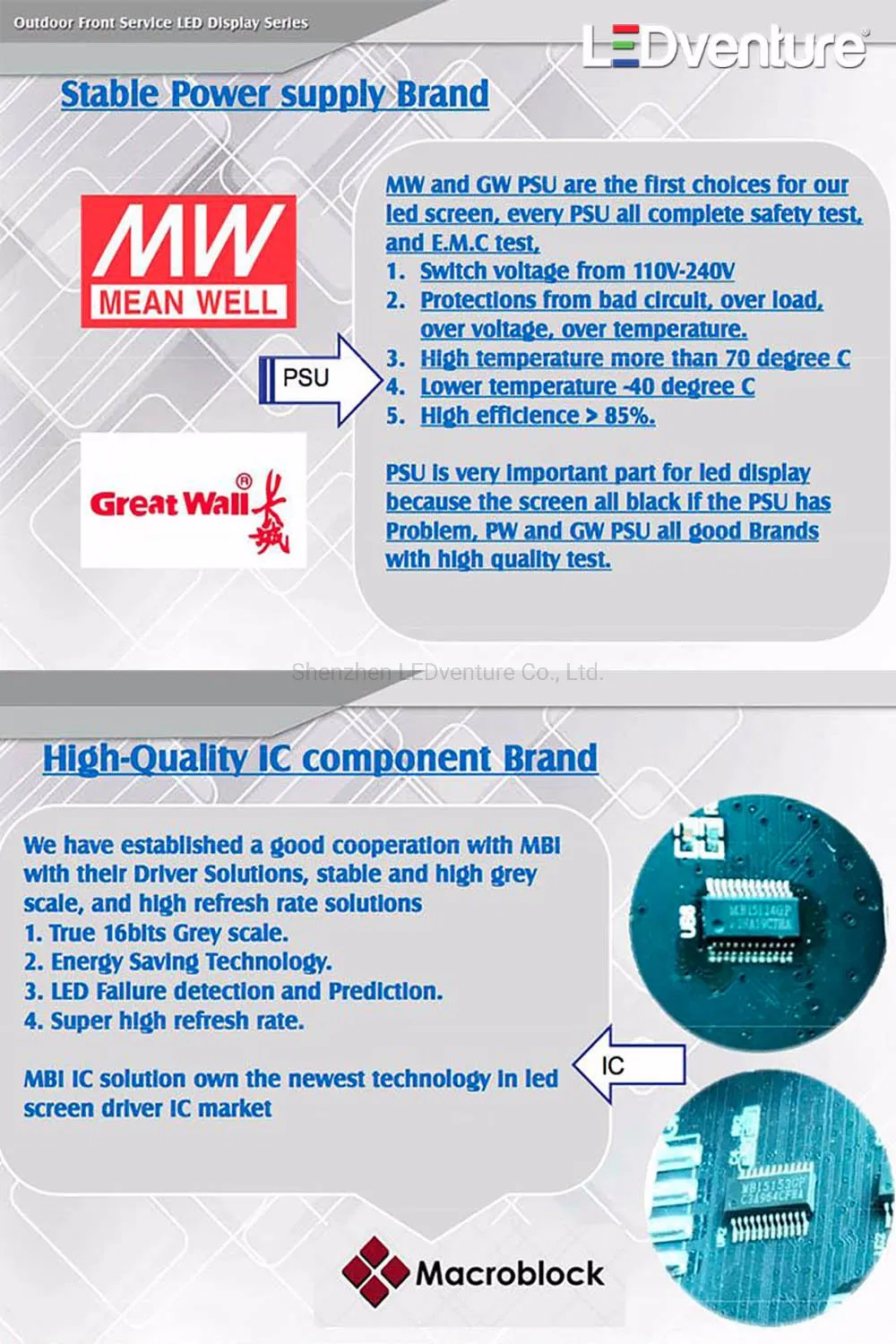

All materials are selected from top-tier suppliers, including SMD components, ICs, PCBs, and power supply units (MW brands). This ensures high stability and minimizes after-sales maintenance costs.

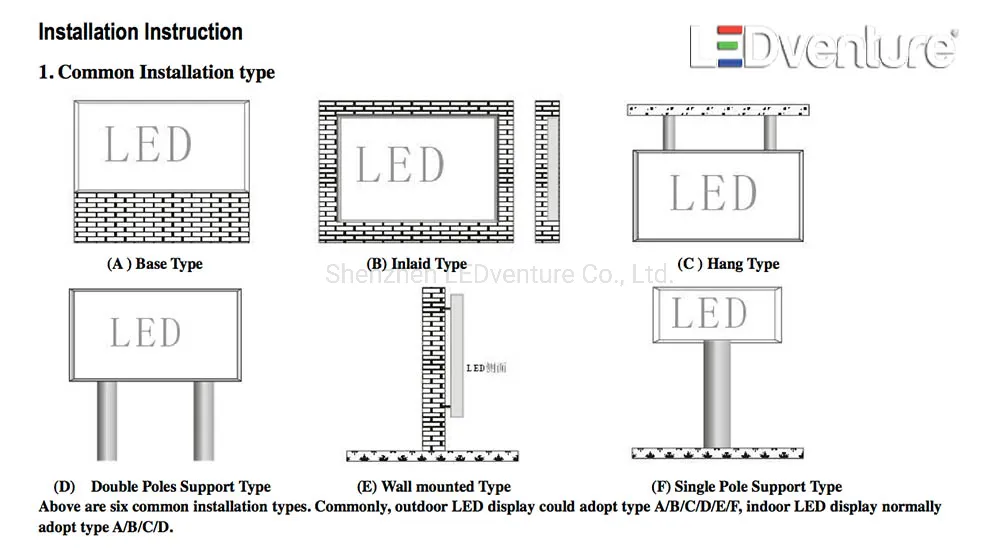

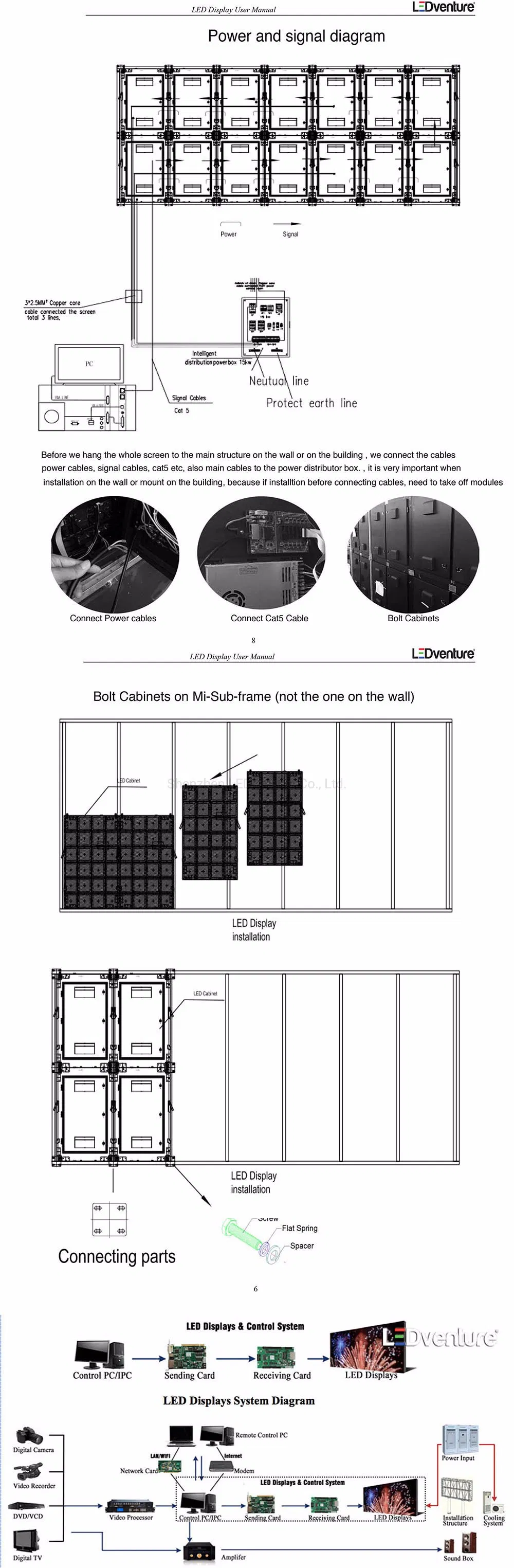

Flexible installation methods include wall mounting, pillar support, and standing structures. Full system hardware includes sending boxes, processors, and receiving cards.
