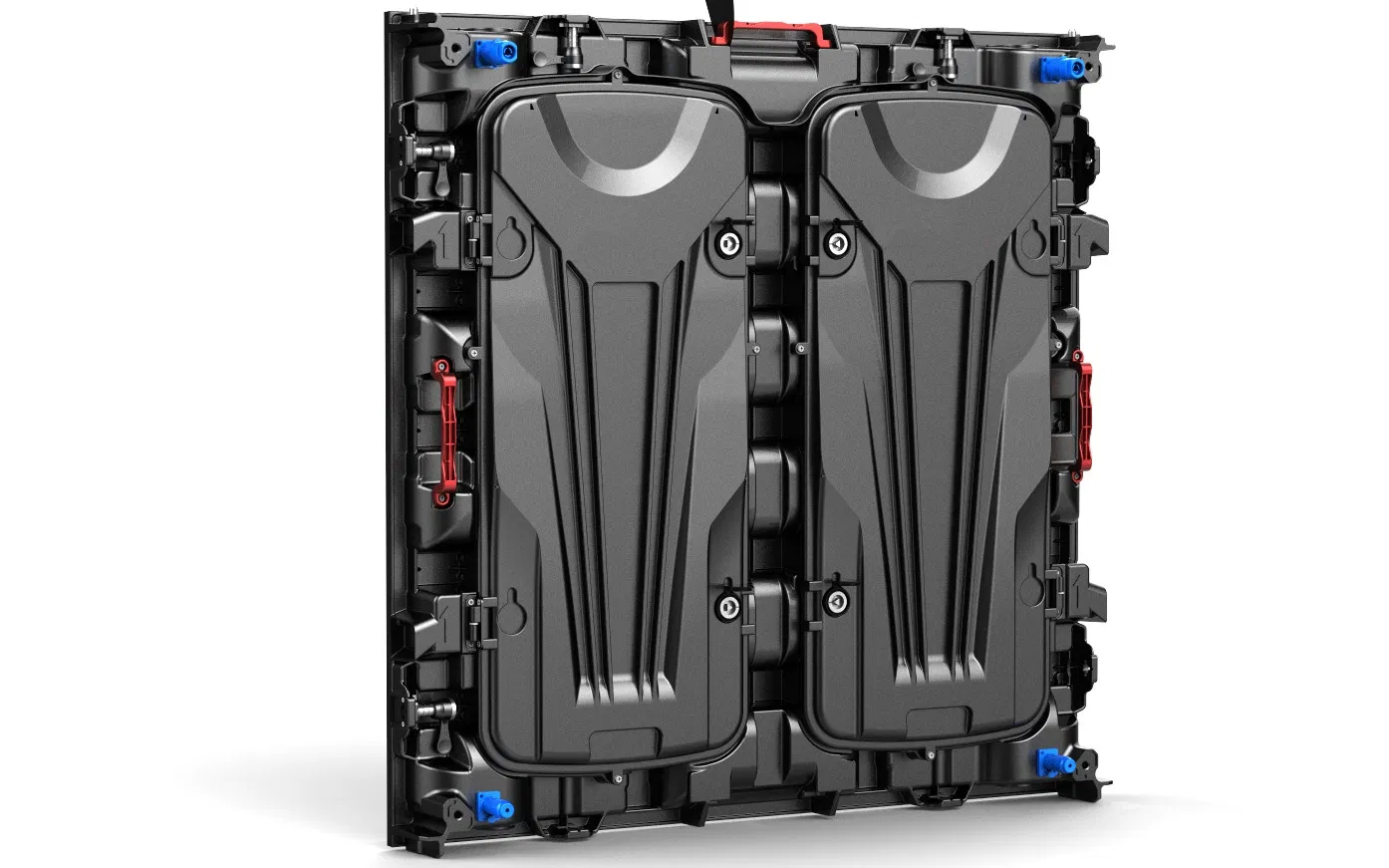

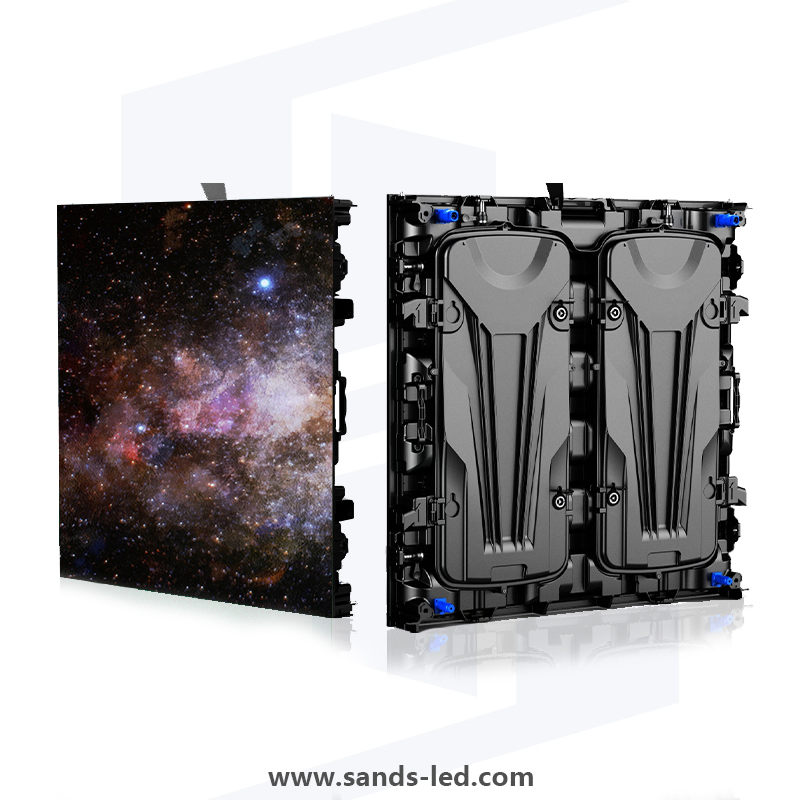

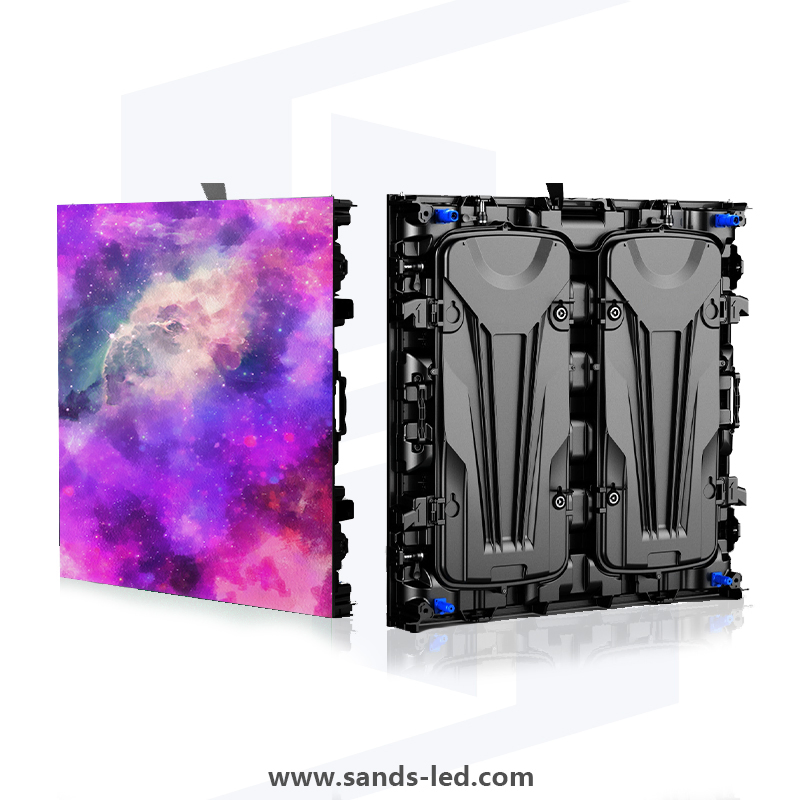

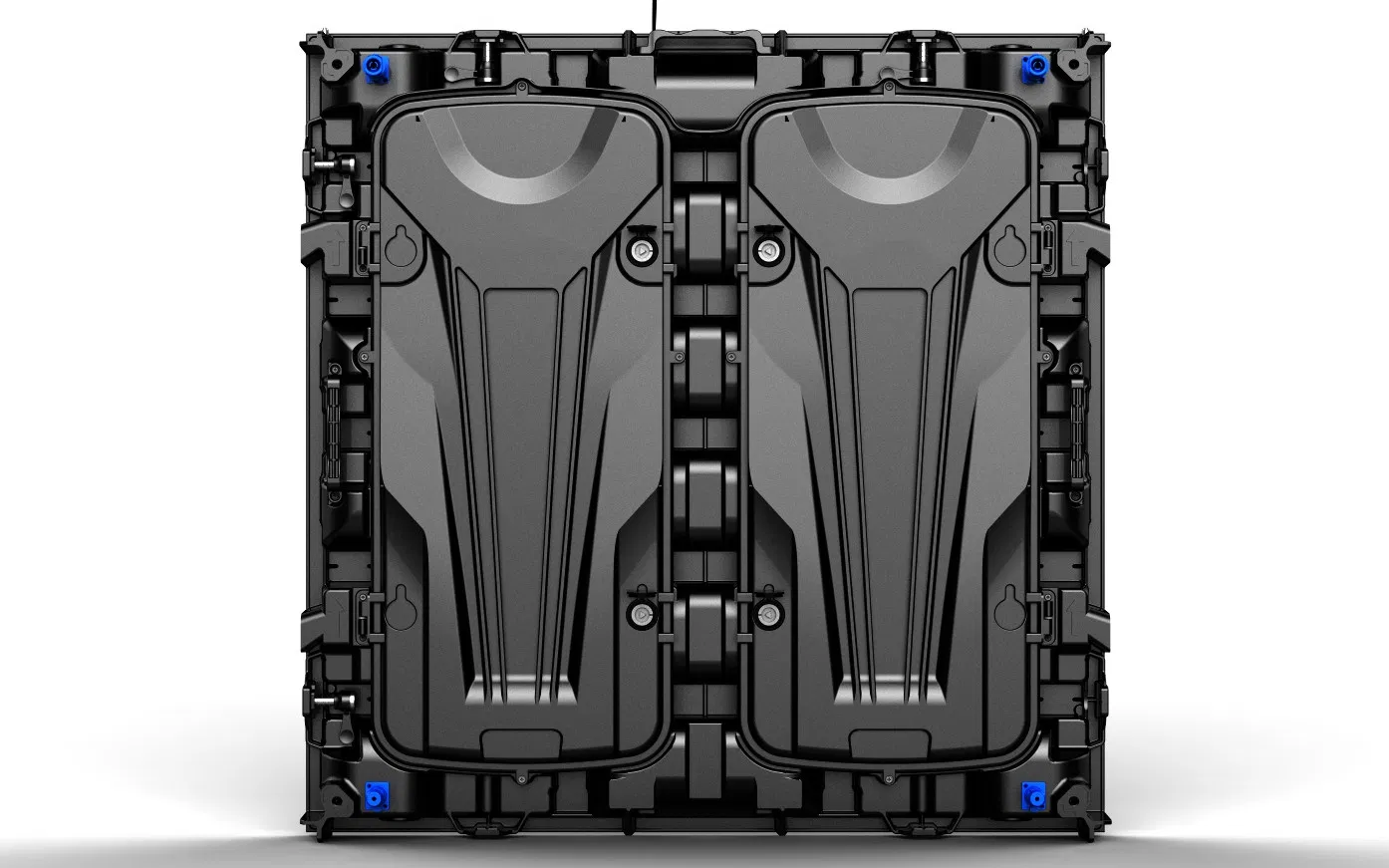

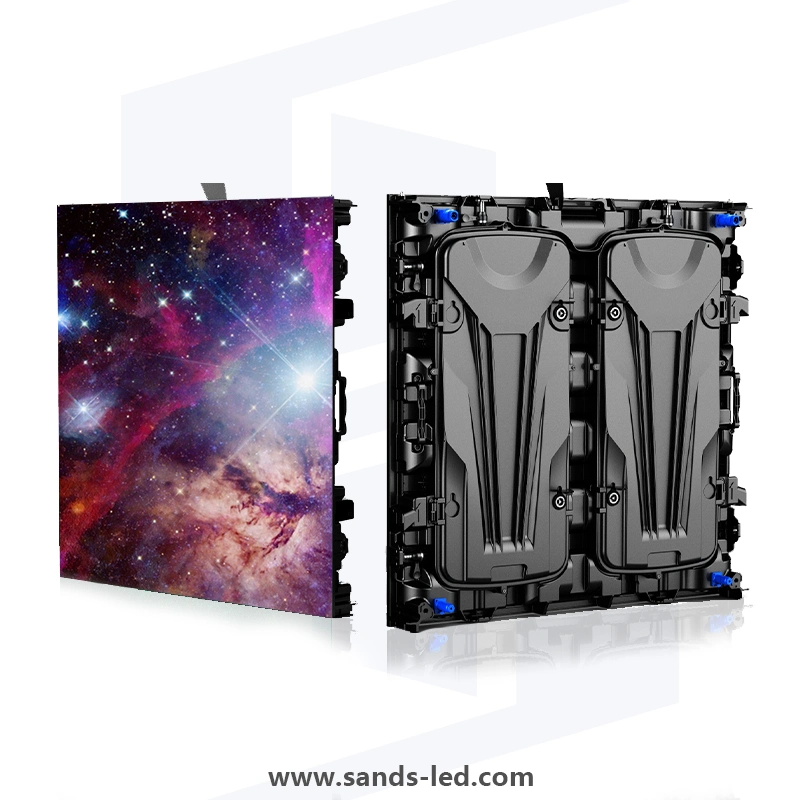

P6.67 32 Scan Fixed Outdoor Waterproof LED Display Panel Screen Billboard for Football Stadium

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
FO-B 960*960
Pixel Pitch
6.67mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text, Market Display
Avg Consumption
300W / m²
Pixel Density
22,478 Dots/M^2
Scanning Mode
32 Scan
Application
Stadium
Certification
CE, RoHS, CCC, ETL, ISO
Cabinet Material
Die-Casting Aluminum
Cabinet Size
960mm*960mm
Cabinet Resolution
192*192 Dots
Brightness
≥5500 CD/M^2
Refresh Frequency
≥1920 Hz
Grey Scale
≥16.7m Color
Life Span
About 100,000 Hours
Product Overview

FO-B Series Stadium LED Displays offer superior heat dissipation, low power consumption, and excellent waterproof effects. Featuring high contrast and a wide color gamut, these displays provide exceptional color reproduction and constant brightness. Designed with a large viewing angle and seamless stitching, they allow for any customized size and modeling, making them a highly cost-effective solution for sports venues.

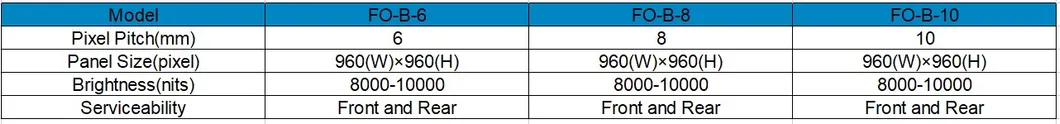

Technical Specification
Excellent Performance

High refresh rate prevents flicker, while 16-bit color processing ensures the highest color gradient levels. Nature gray scale shifting effectively reduces shooting stripes.

Uniform Color

Broadcast-level color gamut and intelligently adjustable brightness/color temperature provide a beautiful, natural, and high-contrast picture.

Product Performance
Easy to Install & Maintain

Cabinets are designed for wall-mounted installation with full front and back access. Quick assembly is achieved through efficient inner cable connections.

Exquisite Craftsmanship

High-precision cabinet plane splicing is controlled within 0.1mm. Magnetic maintenance supports 90-degree splicing for seamless visual connection.

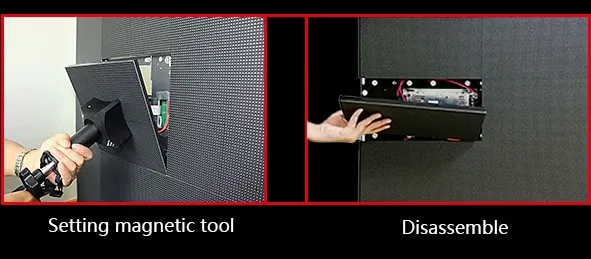

Maintenance Detail

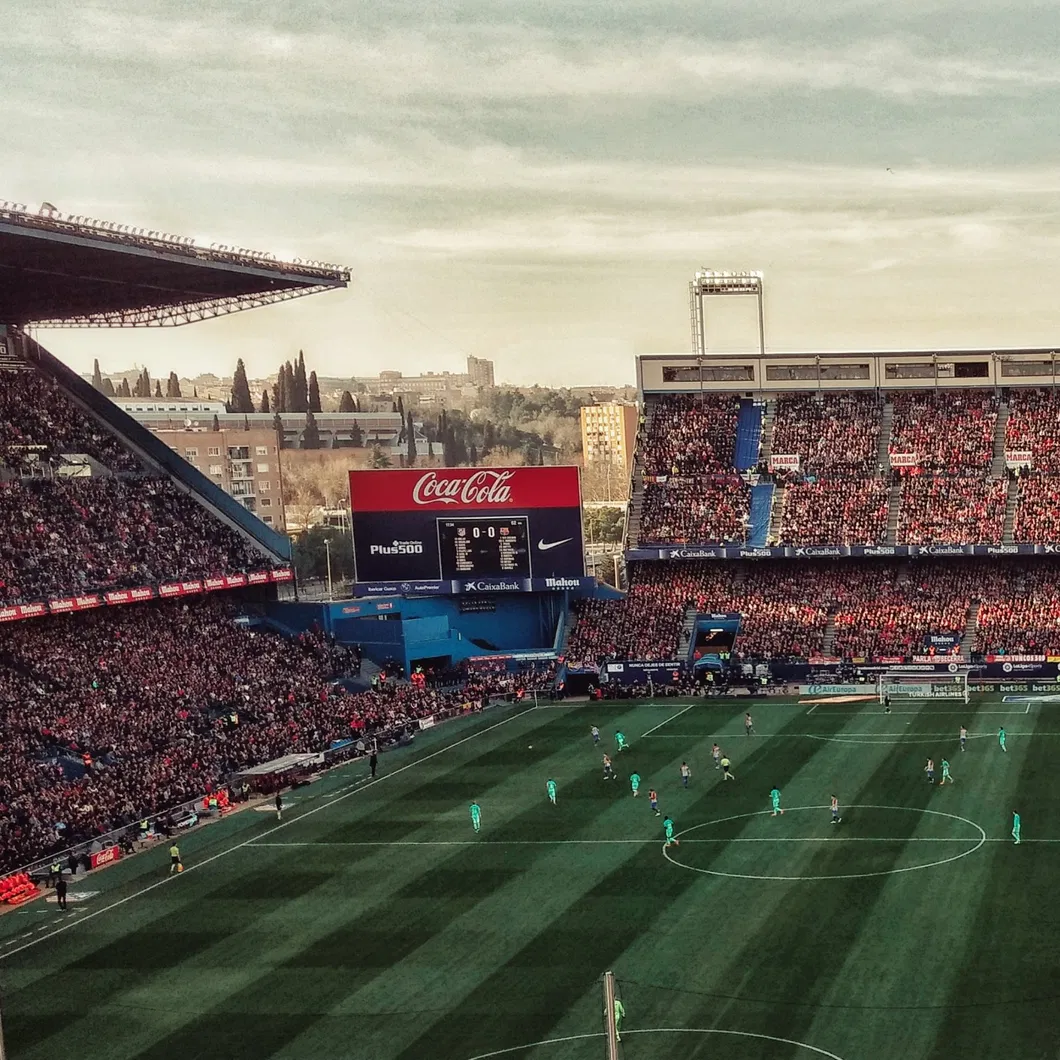

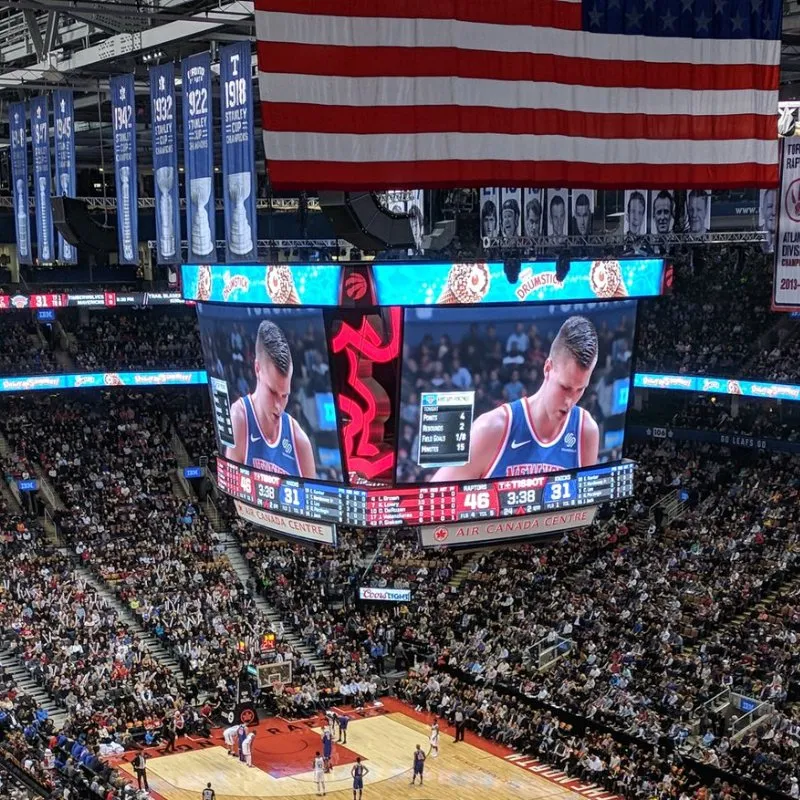

Application Scenarios
Hardware Features
  • Connecting plug-in design without complex arrangement improves stability and facilitates wall modular installation.
  • New die-cast aluminum shell structure: lightweight, high precision, and fast heat dissipation.
  • Point-to-point module design supports both front and back maintenance for maximum flexibility.
  • Seamless connection and precise modules provide a smooth, immersive visual experience.
Attention: It is recommended to purchase enough LED modules for spare replacement in one order. Modules from different batches may have slight color differences.
Distribution Mode
Frequently Asked Questions
Q1. Can I have a sample order for the LED display?
Yes, we welcome sample orders to test and check quality for both individual modules or complete display units.
Q2. What is the standard lead time for orders?
The lead time is approximately 2-3 weeks. For customized LED display solutions, it typically takes around 35 days.
Q3. How are the goods shipped and how long does it take to arrive?
We mostly operate under FOB terms. Sea freight usually takes 20 to 30 days plus a few days for customs clearance.
Q4. What is the process for placing an order?
First, share your requirements. We then provide a quote and suggestions. Once the design is confirmed and the deposit is paid, we proceed to production after the balance is settled.
Q5. Do you offer a guarantee for your products?
Yes, we offer a 1-2 year warranty depending on the specific product type and application.
Q6. Is technical support available for installation?
Yes, we provide technical guidance and support to ensure your stadium LED display is installed and configured correctly for optimal performance.
