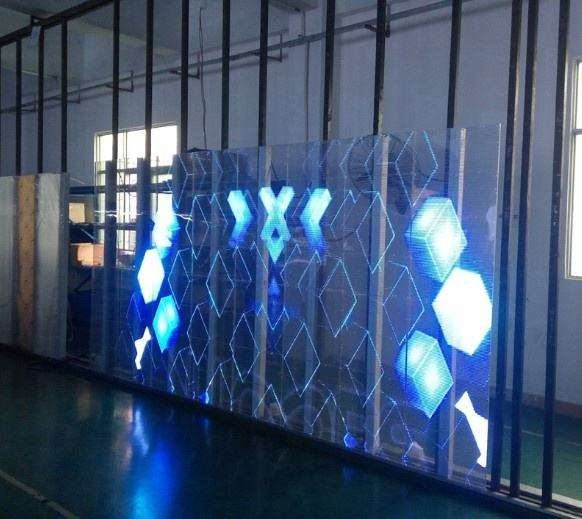

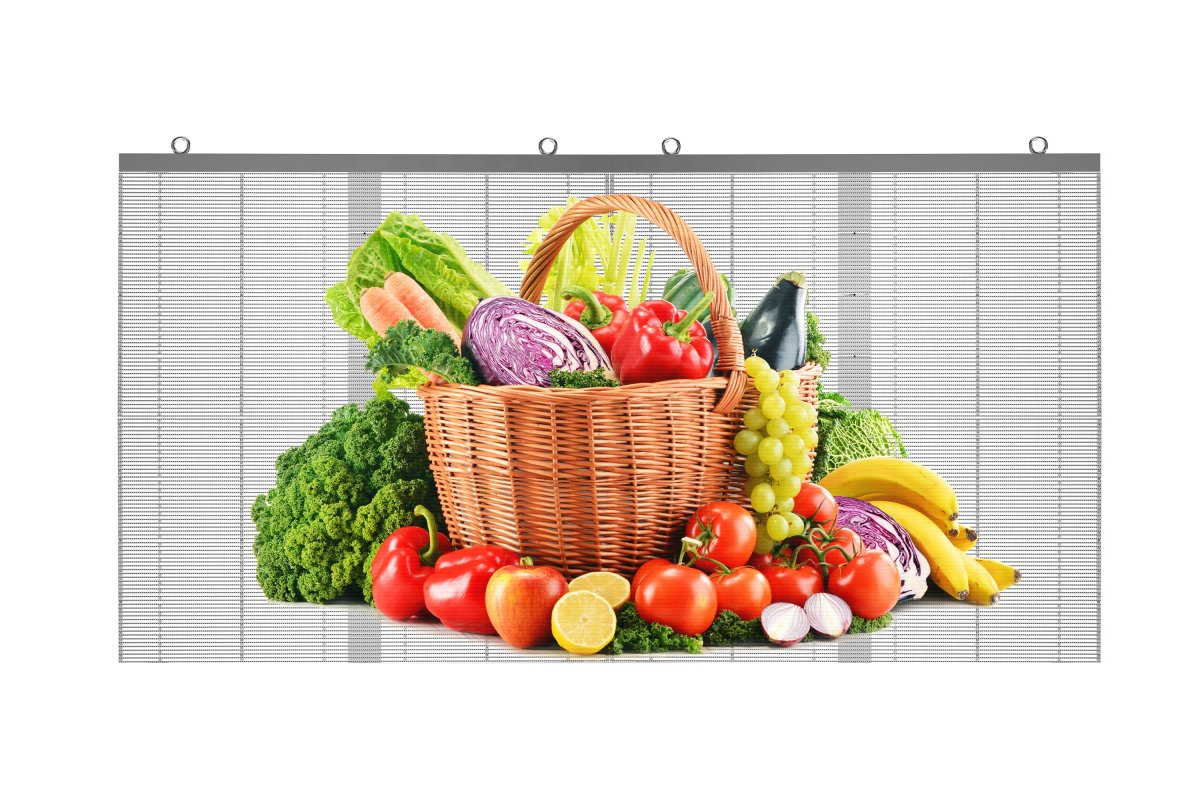

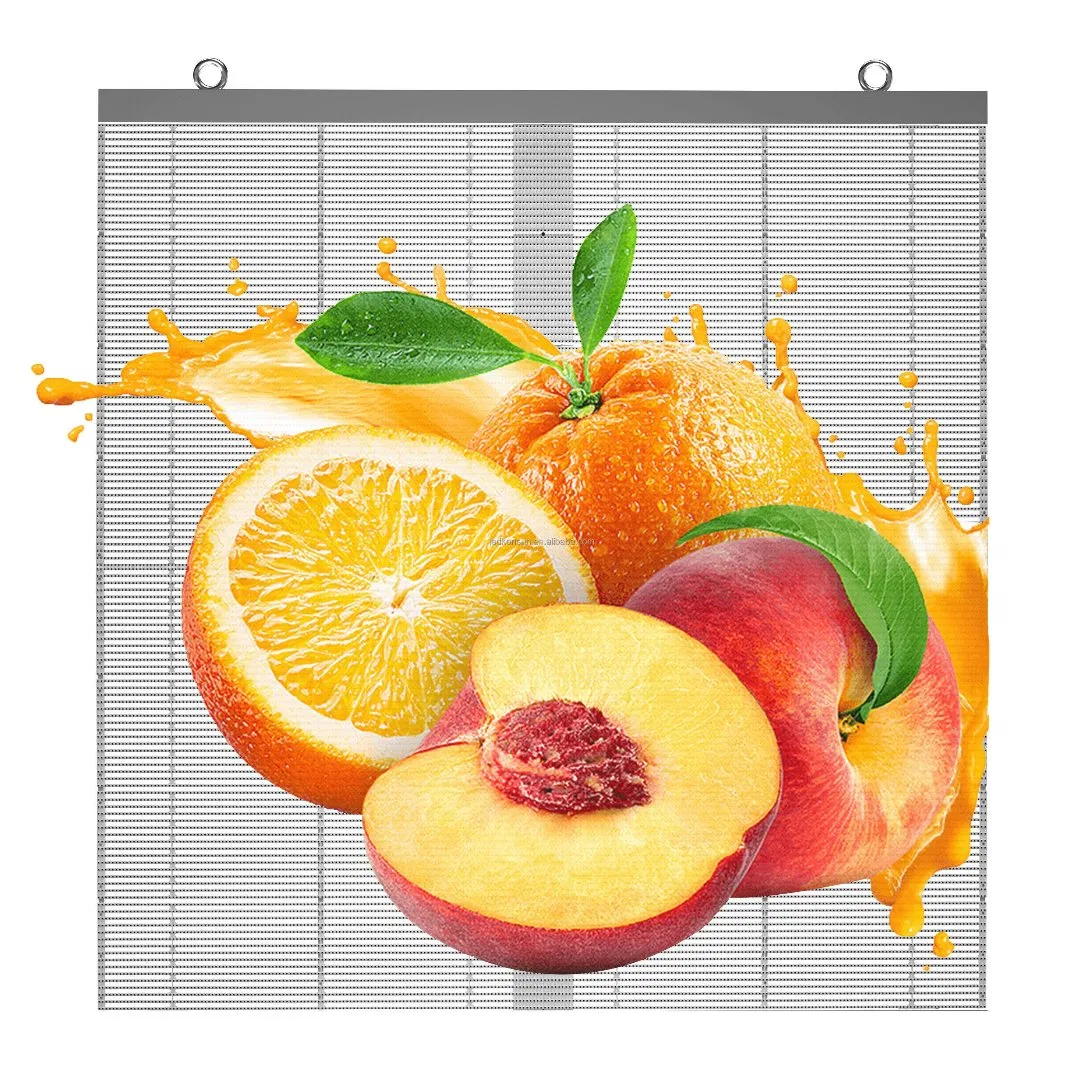

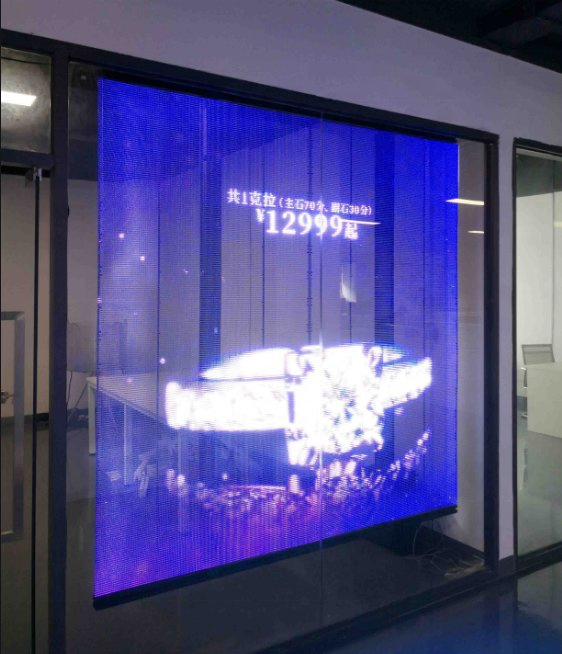

Indoor Outdoor Full Color Rental LED Video Wall Fixed Transparent P3.91-7.81 Glass LED Advertising Digital Billboard

1 / 5

Indoor Outdoor Full Color Rental LED Video Wall Fixed Transparent P3.91-7.81 Glass LED Advertising Digital Billboard

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

KS-GLS-PH3.91-7.8

Beam Angle

180°

Emitting Color

RGB

IP Rating

IP65

Base Material

Aluminum

LED Chips

Epistar

Power

120W

Life

100000h

Brightness

Over 5000nits

Thickness

60mm

Weight

5.9kgs

HS Code

8531200000

💡 Product Description

LED transparent display screens are becoming more and more popular, and market share and customer awareness are rising. They are increasingly being implanted into modern scene designs for a futuristic and seamless visual experience.

⚙️ Technical Parameters

Pixel Pitch	3.9-7.8mm
Model	P3.9-7.8 indoor full color led module
Pixel Configuration	SMD1921 1R1G1B

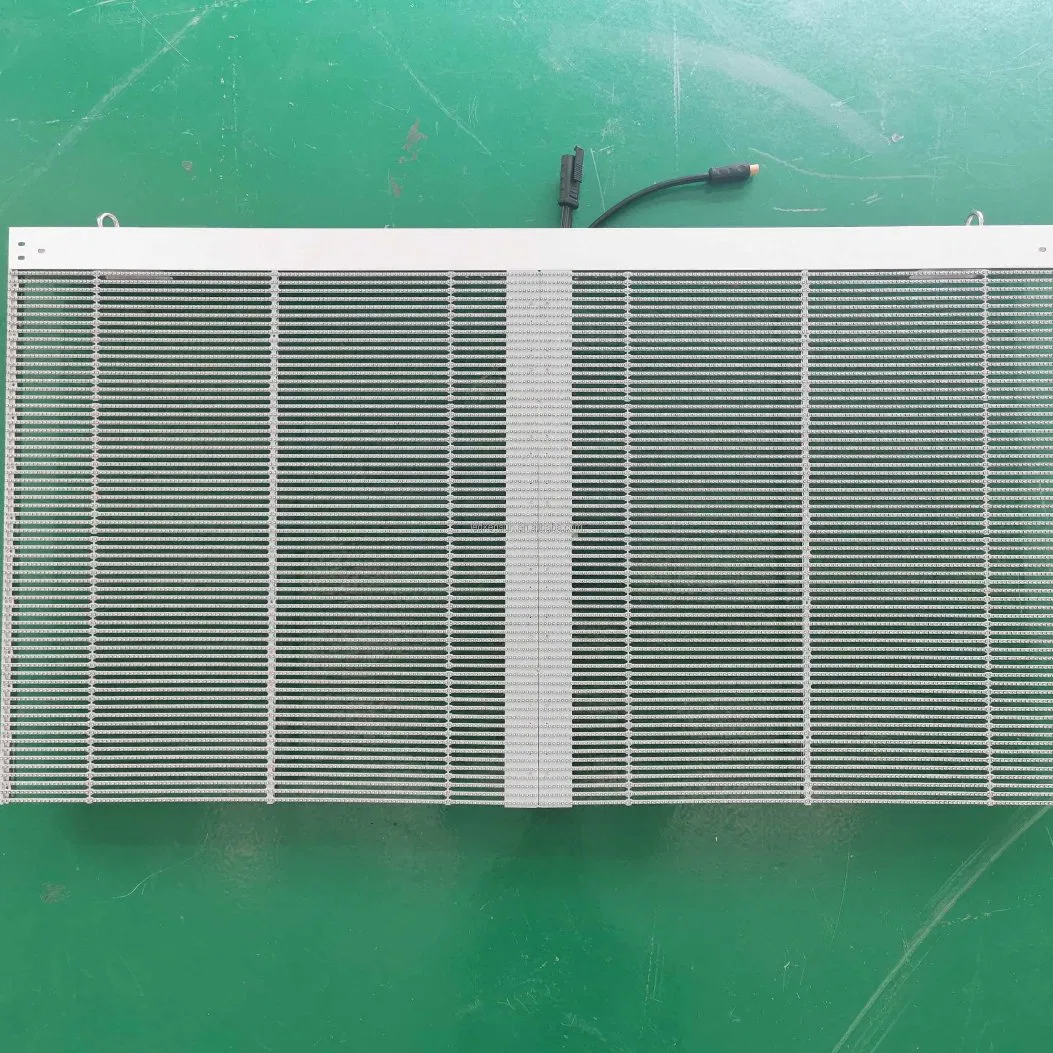

Module Resolution	128dots X 32dots
Module Size	500mm(W) x 250mm(H)
Cabinet Size	500x1000mm or 1000x1000mm
Cabinet Weight	14kg/sq.m
Brightness	≥2000 cd/sq.m
Refresh Rate	≥ 1920 Hz
Power Consumption	MAX 700W; AVE 220W per SQ.M
Operating Temp	-20ºC to +60ºC
Lifetime	100,000 hours

🛠️ Key Features & Installation

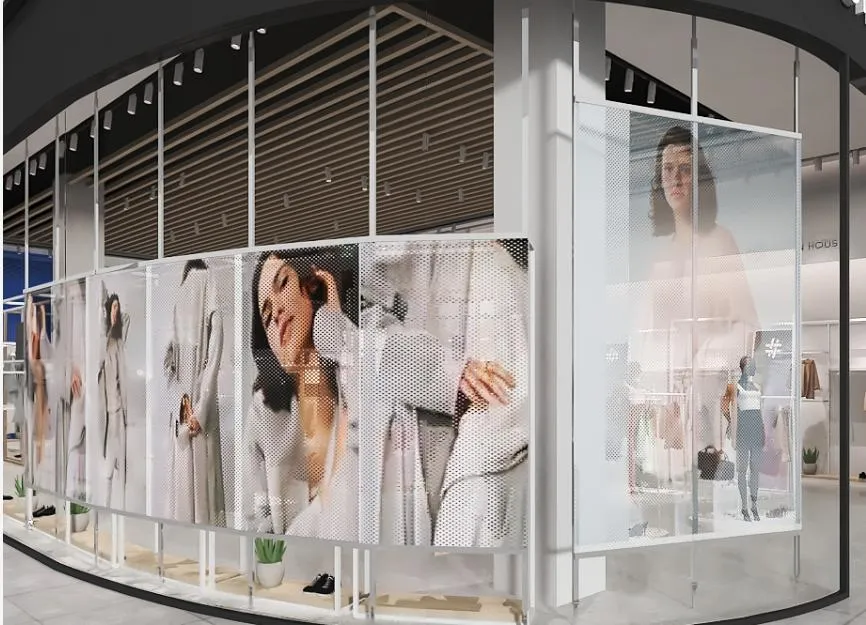

1. High Transparency Effect Light transmittance can reach about 50-90%. The perspective effect allows glass to retain lighting functions, making the LED lights almost invisible from a distance.

2. Lightweight & Compact Design Main board thickness is only 10mm. It occupies minimal space and places very little load on the rear glass curtain wall.

3. Cost-Effective Structure Requires only a simple steel frame, significantly reducing installation and supporting structure costs.

4. Convenient Maintenance Fast and safe indoor maintenance saves manpower and material resources.

5. Energy Saving & Environmentally Friendly Low power consumption (average less than 280W/sq.m) and does not require traditional refrigeration or air conditioning for heat dissipation.

6. Easy Control System Supports connection via computer, graphics card, or remote transceiver. Can be managed wirelessly through remote clusters.

🖼️ Product Gallery

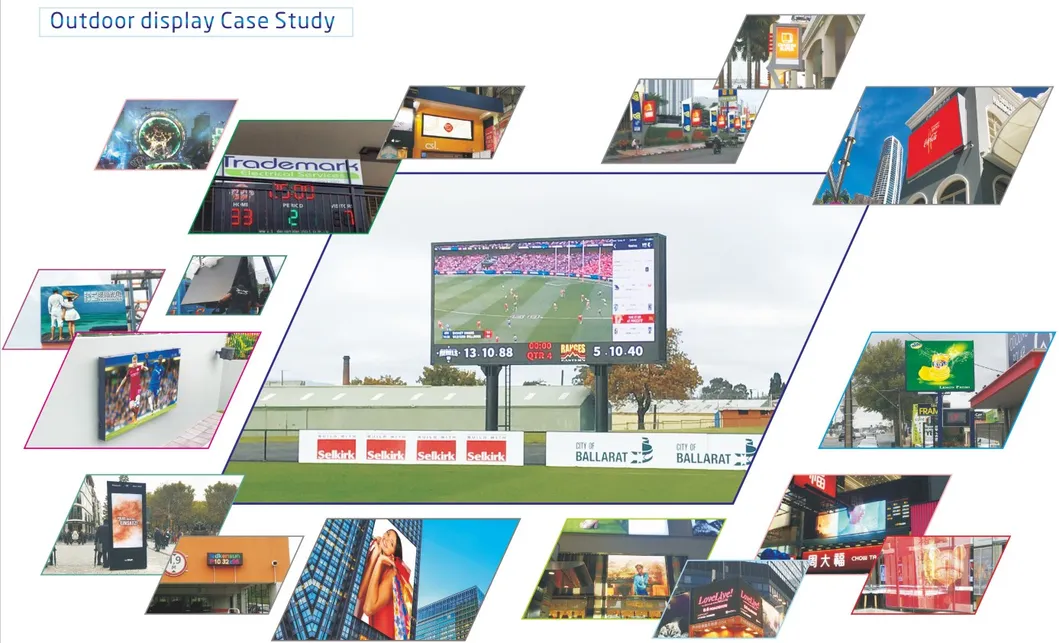

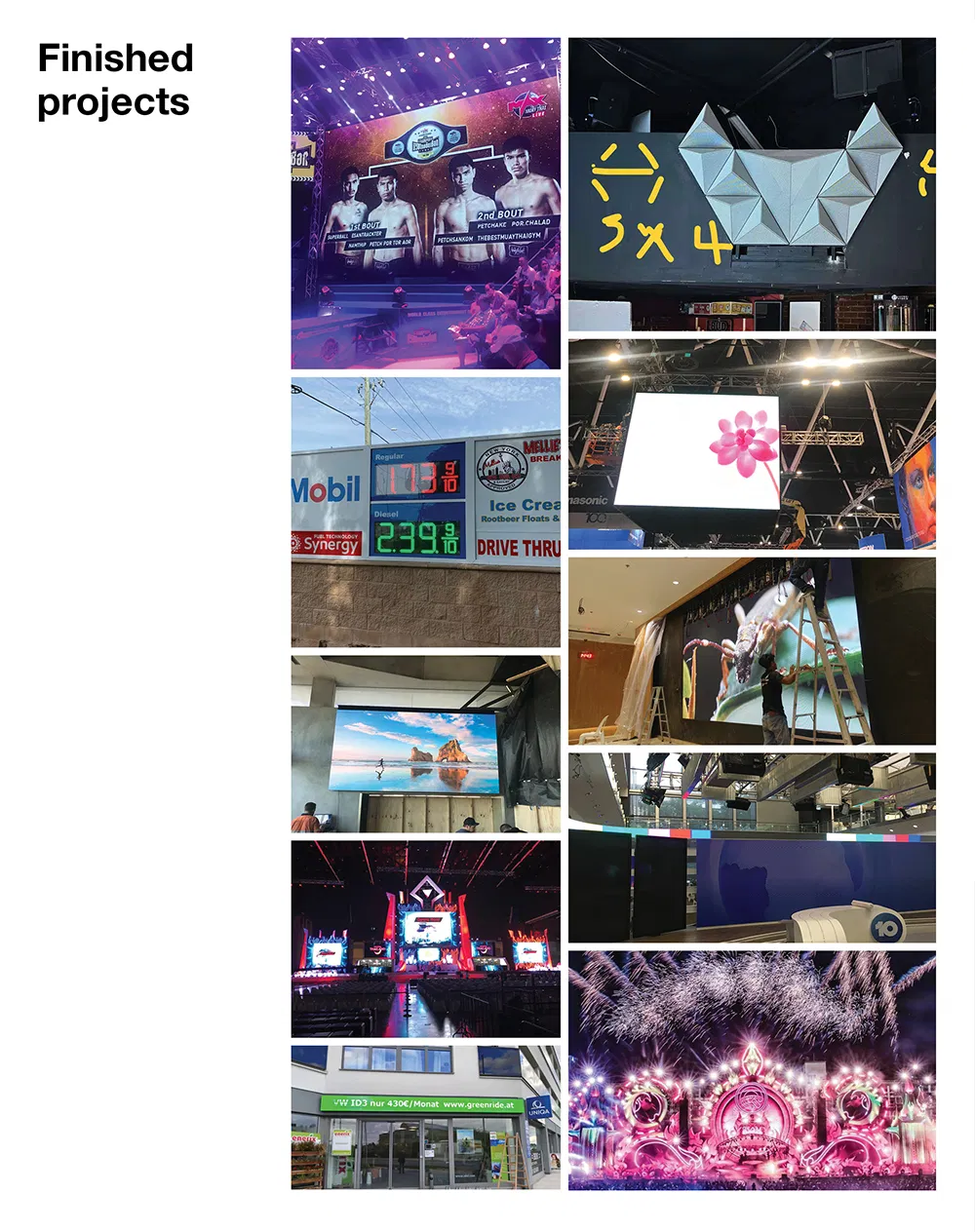

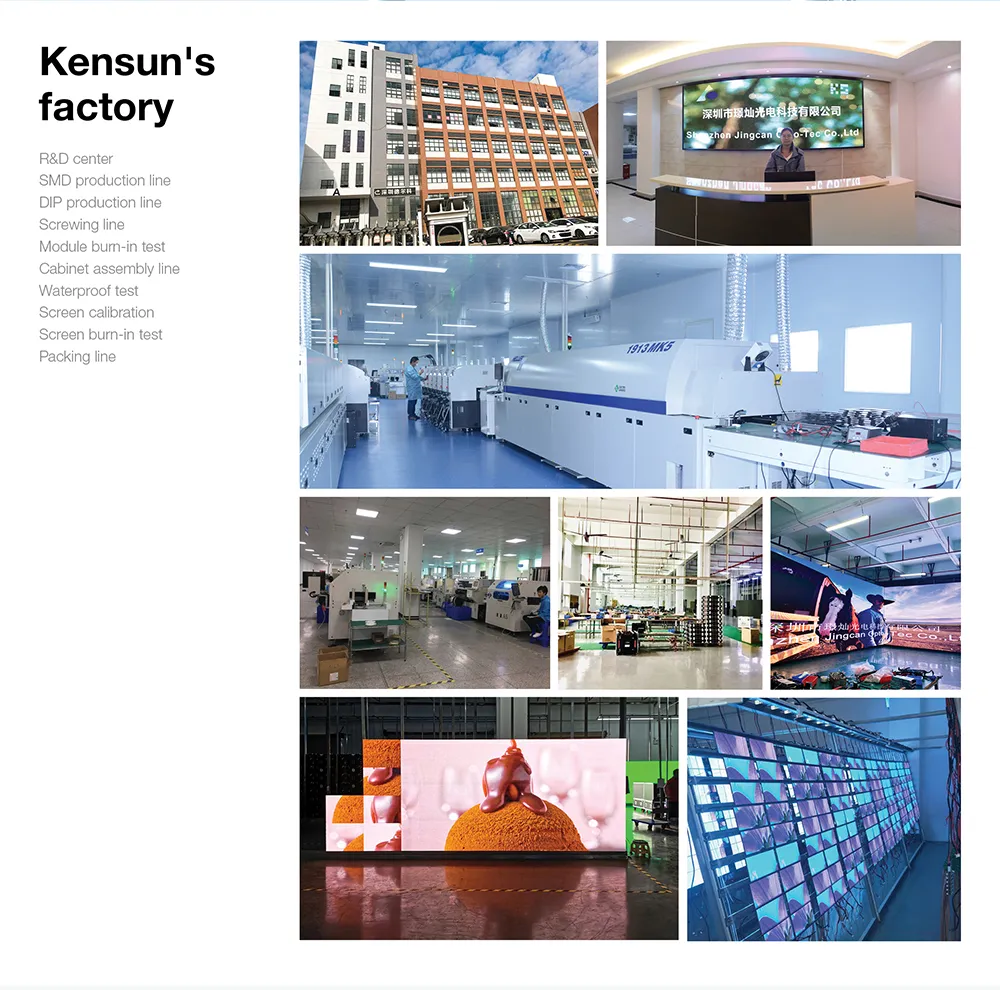

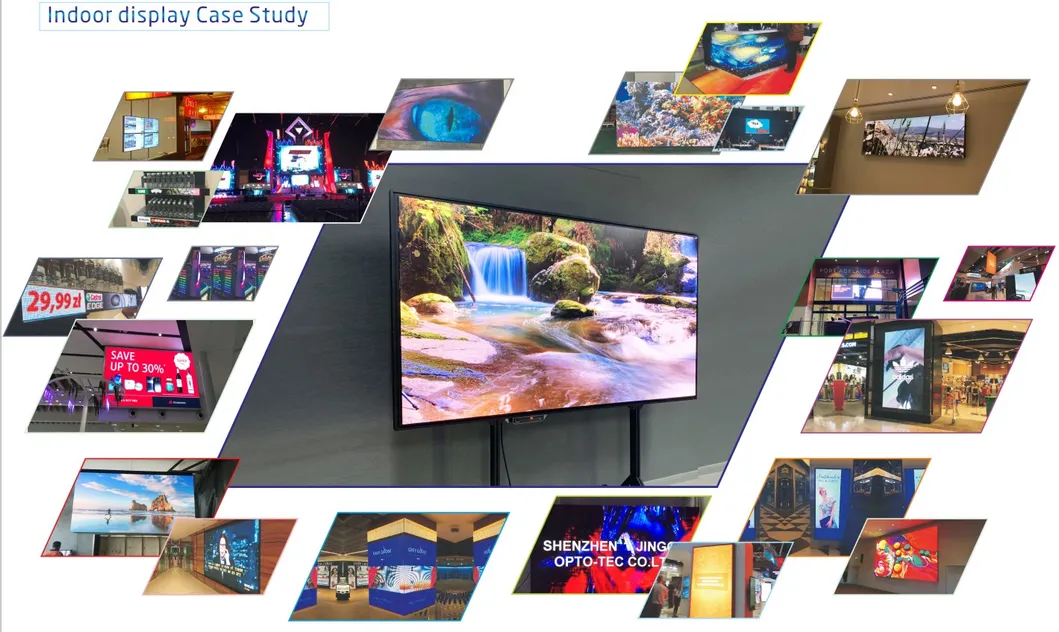

🏢 Applications & Production

❓ Frequently Asked Questions

Q1: What is the transparency of these LED screens? A: Depending on the pixel pitch, transparency ranges from 50% to 90%, allowing natural light to pass through glass walls.

Q2: Can the screen be installed on an existing glass curtain wall? A: Yes, the lightweight design (approx. 14kg/sq.m) and slim profile make it ideal for integration with existing glass structures.

Q3: How is the maintenance handled? A: The system supports both front and rear service, allowing for fast and safe maintenance from inside the building.

Q4: Is the display visible in bright daylight? A: Yes, with a brightness of over 5000 nits for outdoor-facing models, the content remains clear even in direct sunlight.

Q5: What is the typical lifespan of the LED transparent screen? A: Our screens use high-quality Epistar chips with a rated lifespan of up to 100,000 hours.

Q6: Are these screens energy efficient? A: Absolutely. The average power consumption is around 220W per square meter, which is significantly lower than traditional LED billboards.
