| Model NO. | P6 Outdoor LED Display |
| Pixel Pitch | 6 mm |
| Pixel Configuration | 1r1g1b/SMD 3535 Lamp |
| Display Function | Video, Image, Text, Market Display |
| Average Power | 180W / m² |
| Pixel Density | 27777 Dots/M2 |
| Scanning Mode | 1/8 |
| Certification | CE, RoHS, CCC |
| Brightness | 6000 CD/M2 |
| Life Time | More than 100,000 Hours (80%) |
| Warranty | 2-3 Years Warranty |
| Operating Temp | -30°C to +60°C |
| Feature | Specification |
|---|---|

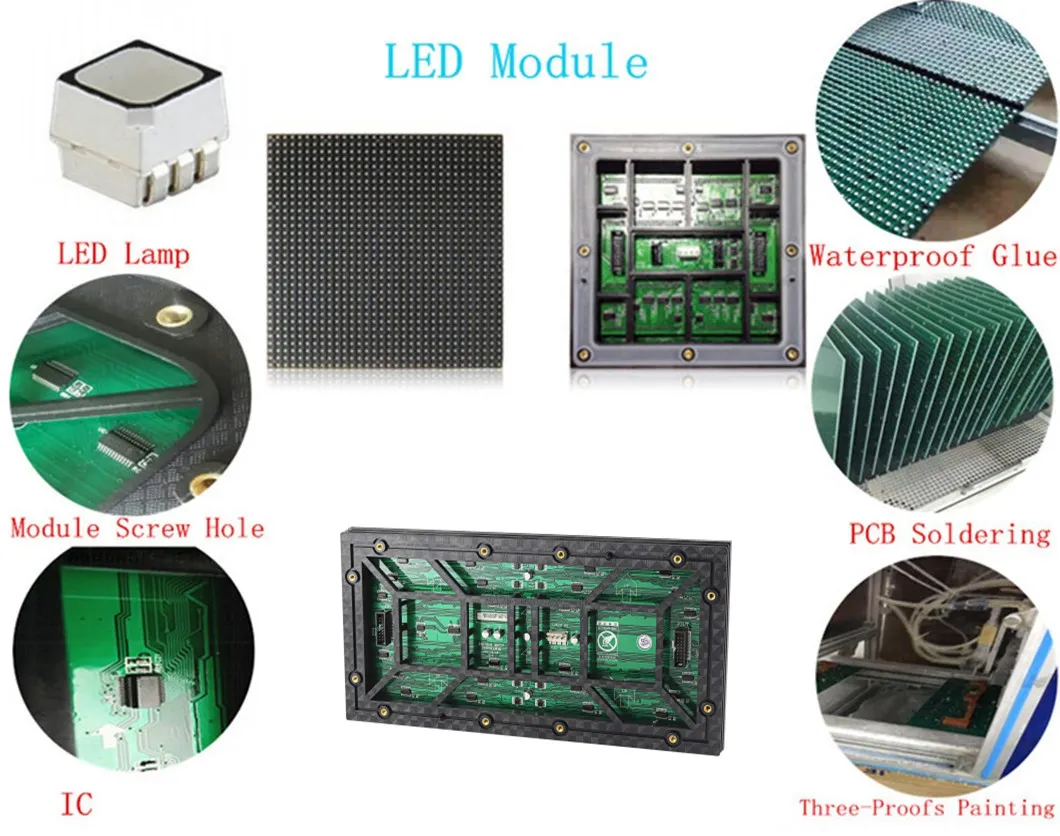

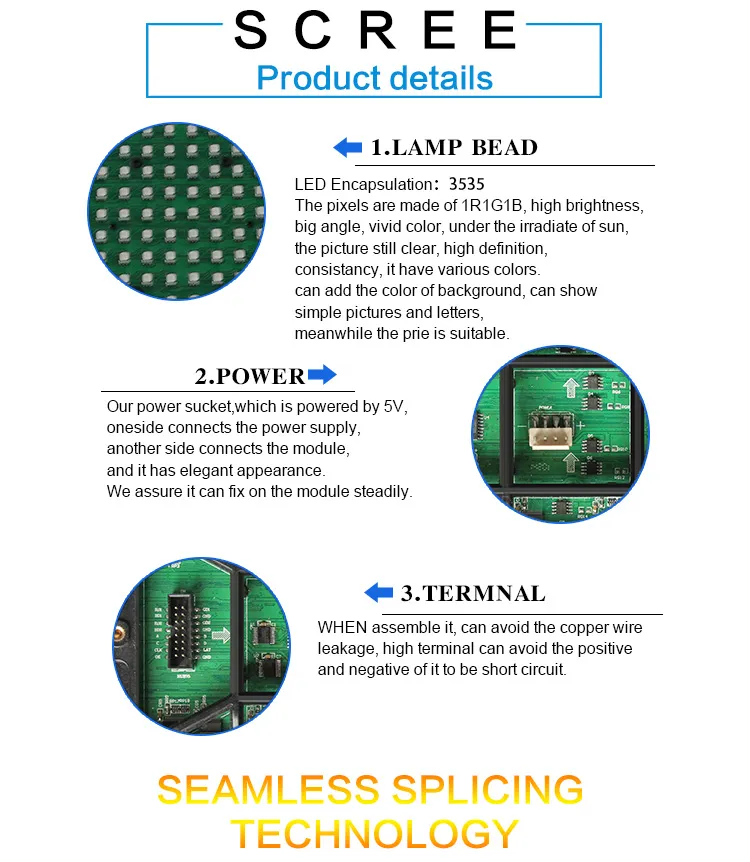

| Pixel configuration | 1R1G1B / SMD3535 |
| Module size (W*H) | 192*192mm |
| Module Resolution | 32*32 dots |

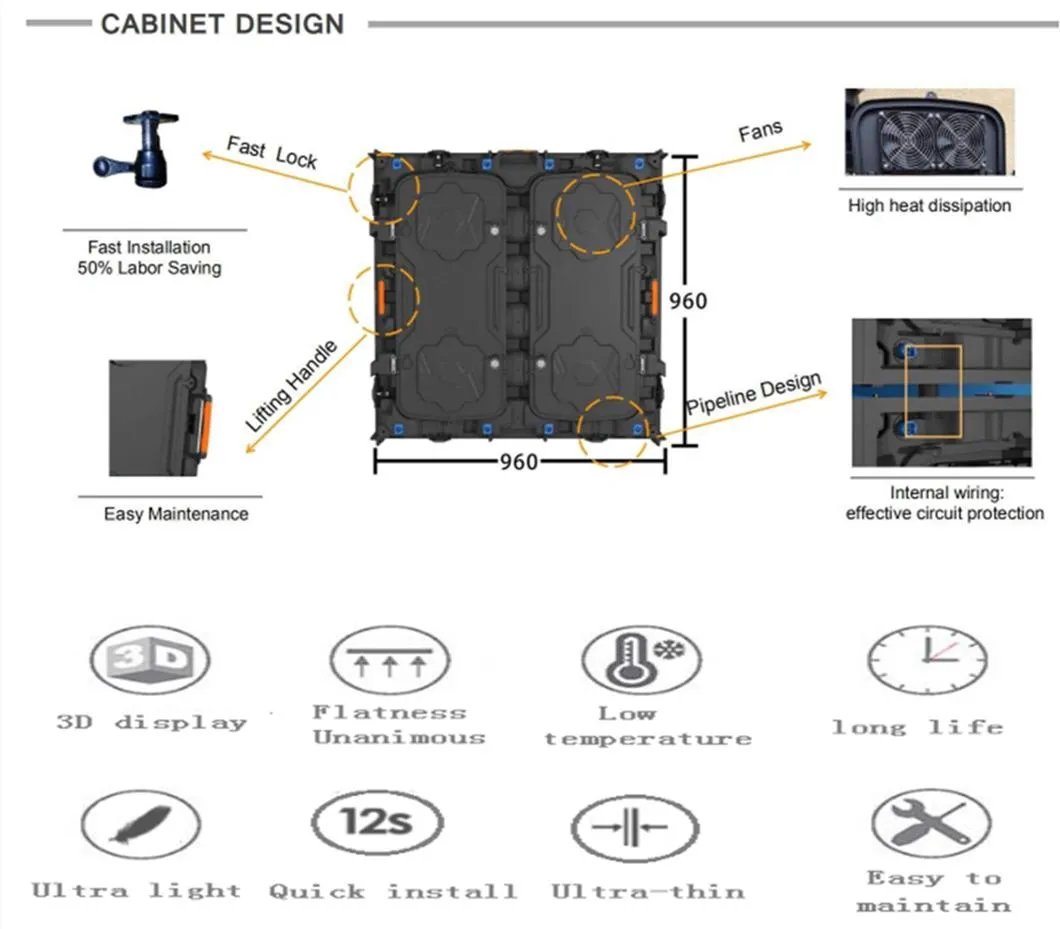

| Cabinet size (W*H) | 576mm x 576mm |
| Drive IC | MBI5124 / High Refresh IC |
| Grey Scale | 65536 degree |
| Refresh Rate | 1920HZ |
| Control Method | Synchronized with computer monitor |
| Operating Voltage | AC110V/220V±10% |

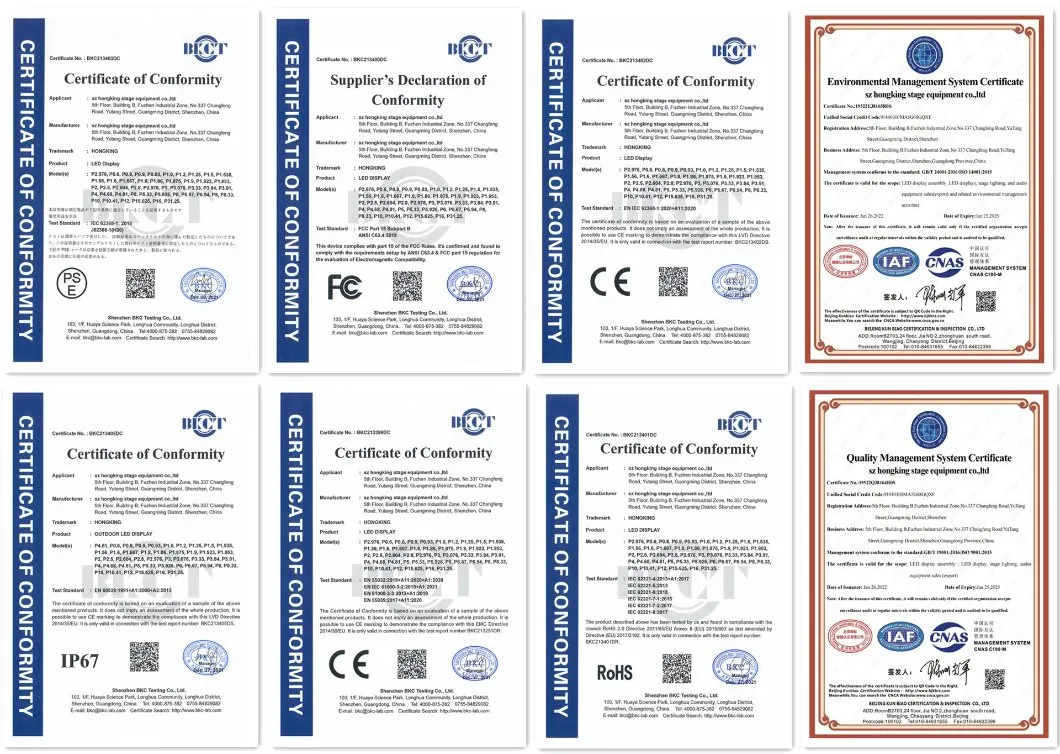

Fully compliant with international standards: EMC, FCC, ROHS, CE, PCE, and ISO certifications.

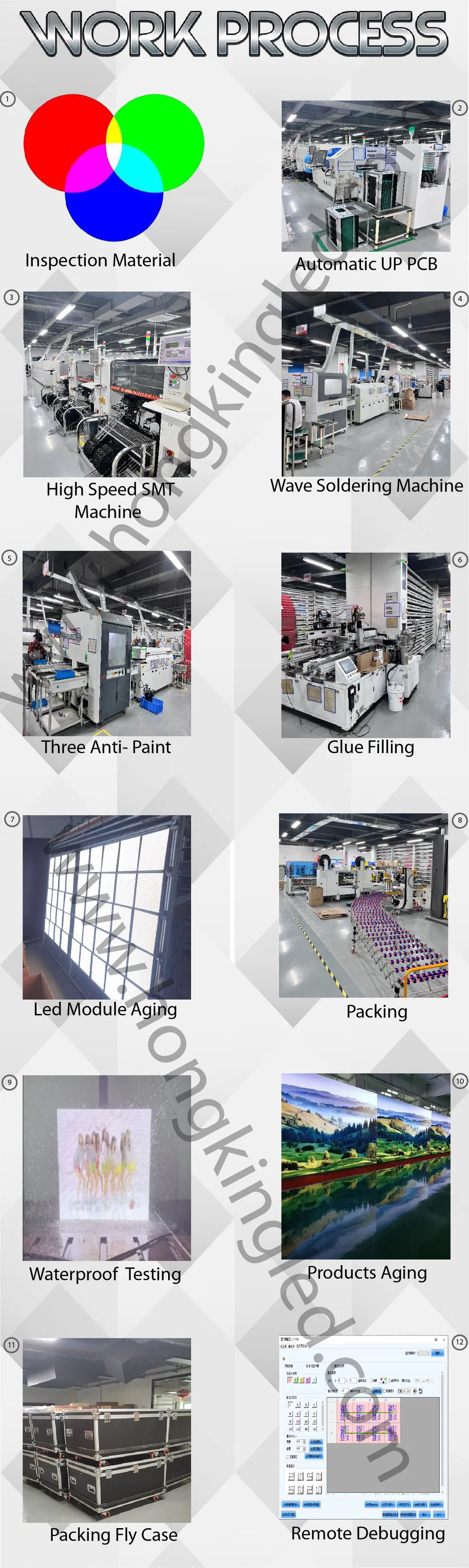

Every step follows strict quality checks: Material Inspection - PCB Printing - SMT - Wave Soldering - 72-hour Module Aging Test - 72-hour Full Screen Aging Test - Final Double Check before delivery.
We maintain a comprehensive service system, supported by professional engineers to assist with any technical requirements.
Pre-sale Service:
With 24-hour after-service and a professional installation team, we provide easy solutions for all project types.
