RGB Full Color Fixed Installation P16 LED Digital Advertising Outdoor LED Sign/Video Wall/Sign/Display/Screen/Billboard

1 / 5

RGB Full Color Fixed Installation P16 LED Digital Advertising Outdoor LED Sign/Video Wall/Sign/Display/Screen/Billboard

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP65

Send Inquiry

Product Description

📌 Basic Information

Model NO.

P16

Pixel Pitch

16mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video Display

Average Power

220W / m²

Pixel Density

3906 DOT/M2

Scanning Mode

Static Scan

Application

Outdoor Advertising

Certification

CE, RoHS, CCC, ETL

Brightness

8500-10000 CD/M2

Control System

Linsn or Nova

Cabinet Material

Iron

🚀 Product Features

✔

High brightness DIP LED ensures visibility even under direct strong sunshine.

✔

Anti-UV ray mask maintains color integrity even after prolonged exposure.

✔

Completely weatherproof design optimized for permanent outdoor use.

✔

High color uniformity and 1920Hz refresh rate for vivid, clear visual effects.

✔

Supports both front and rear access for flexible maintenance.

✔

Cabinet features a double fan design to speed up internal air circulation.

✔

Large viewing angles and low power consumption (220W/m² average).

✔

Static scanning method provides higher brightness for outdoor billboard applications.

📊 Technical Parameters

P16 Full Color LED Display Specifications
Pixel Pitch	16mm
Pixel Configuration	1R1G1B (DIP347)

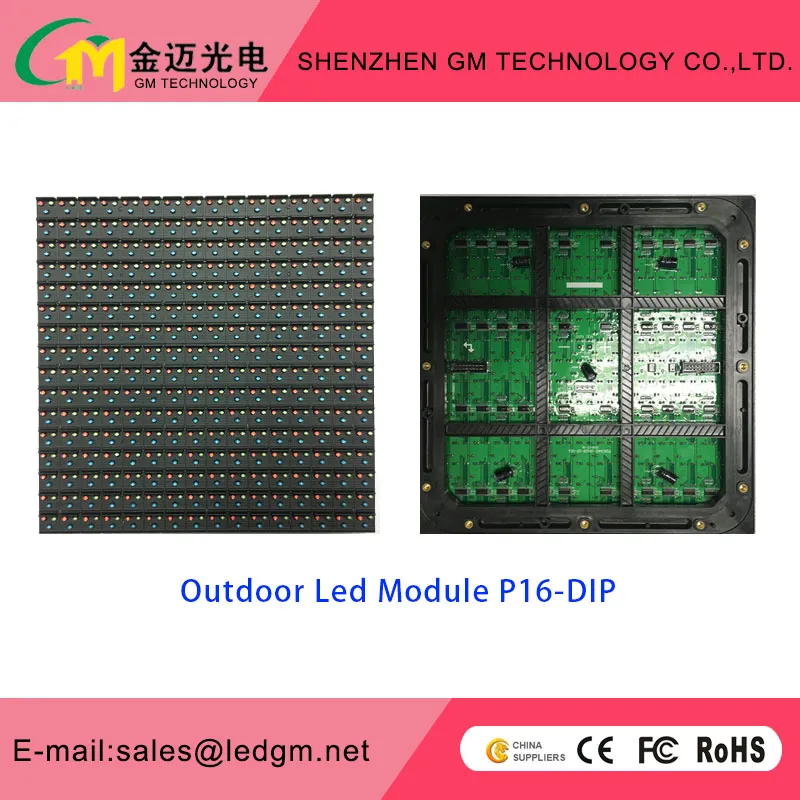

Module Size	256mm X 256mm
Module Resolution	16 x 16 pixels

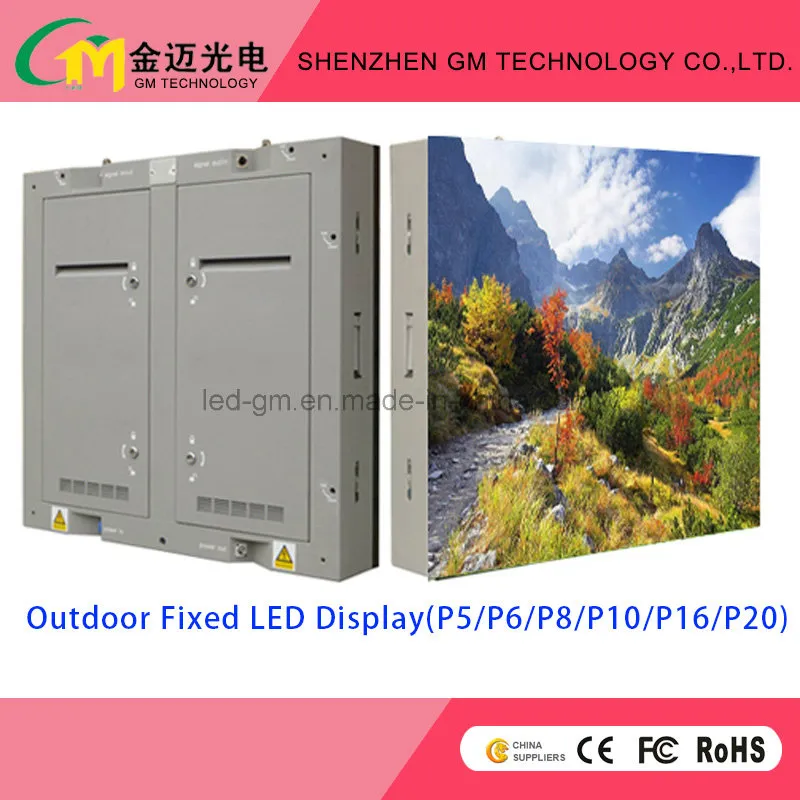

Cabinet Size	1024mm x 1024mm x 120mm
Cabinet Weight	42kg per cabinet
Pixel Density	3906 pixels/m2
Max Brightness	≥8500cd/m2
Gray Level	65536 levels (16 bit)
Refresh Frequency	≥1920Hz
Life-span	≥100,000 hours
Working Temperature	-20 Celsius ~ +60 Celsius
Power Supply	AC220±10% 50Hz / AC110±10% 60Hz

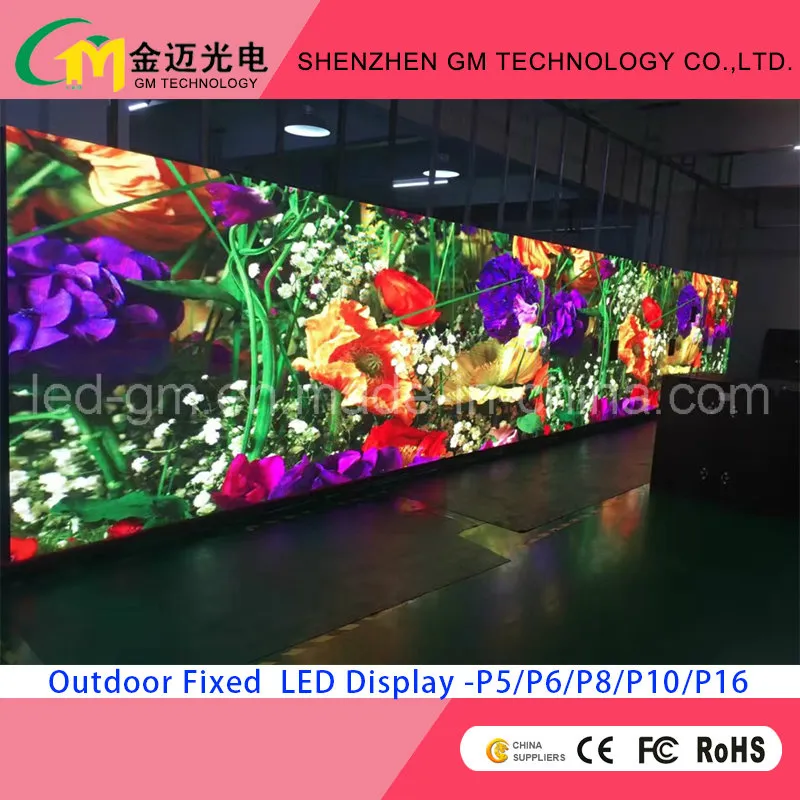

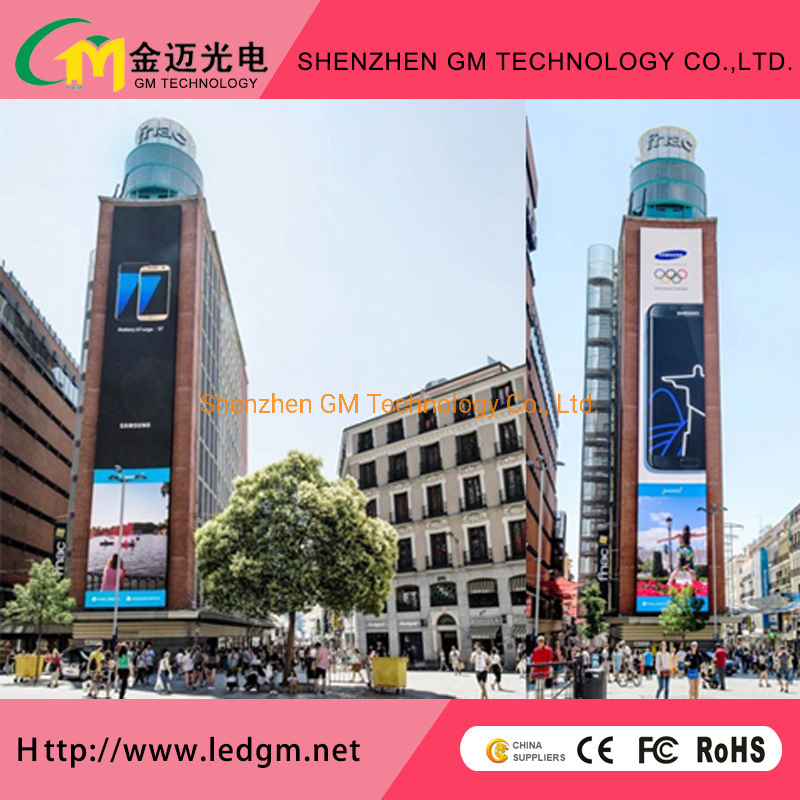

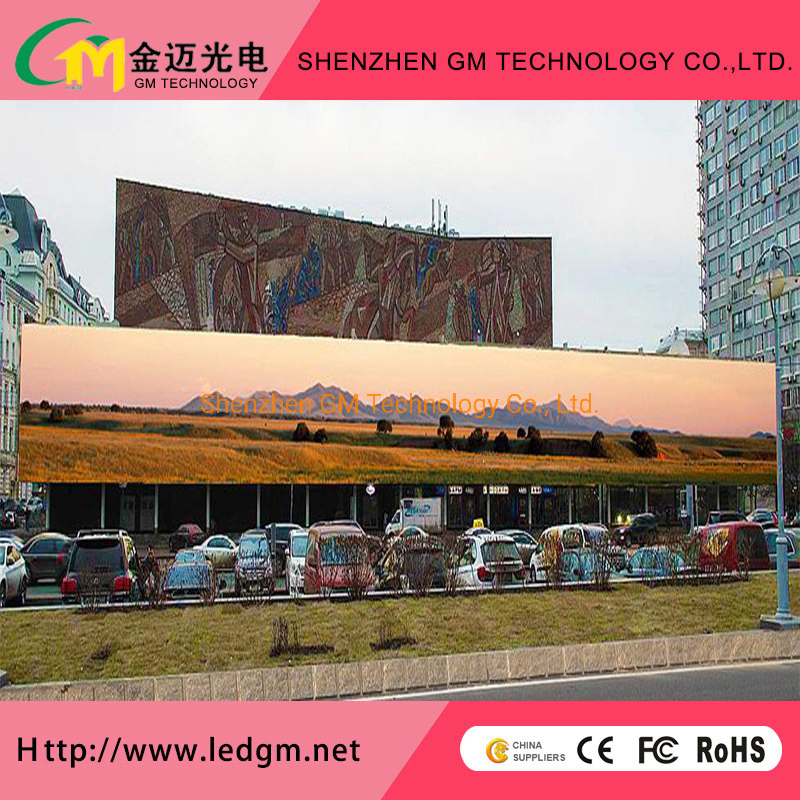

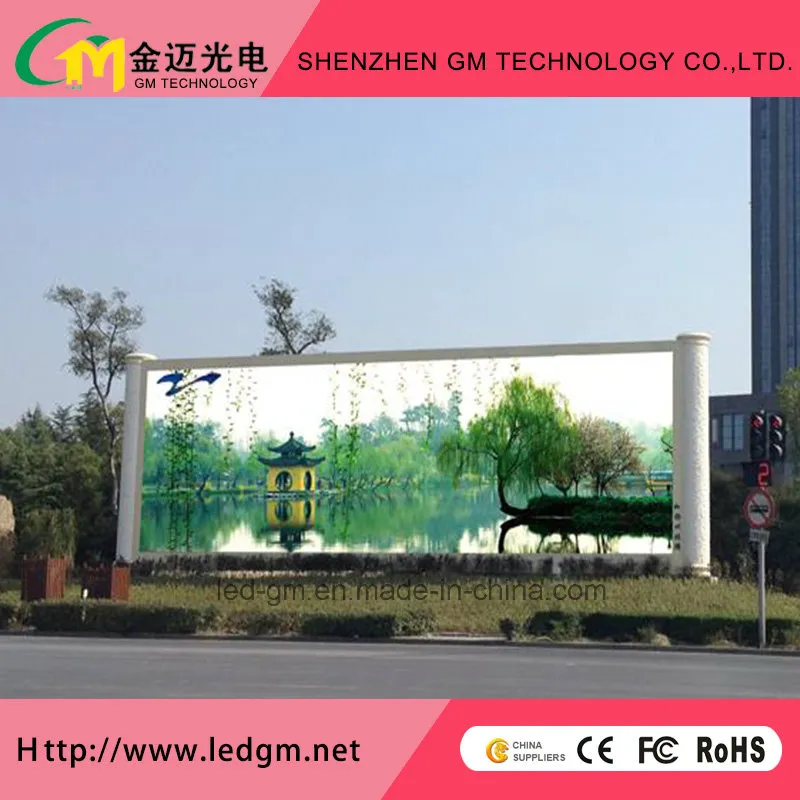

📸 Product Display

🌍 Applications & Services

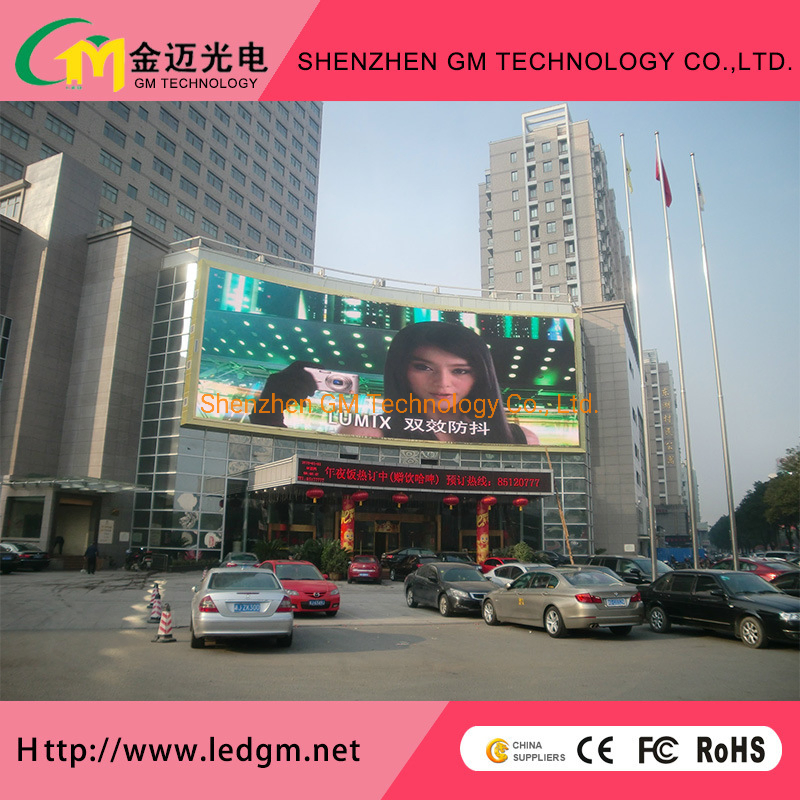

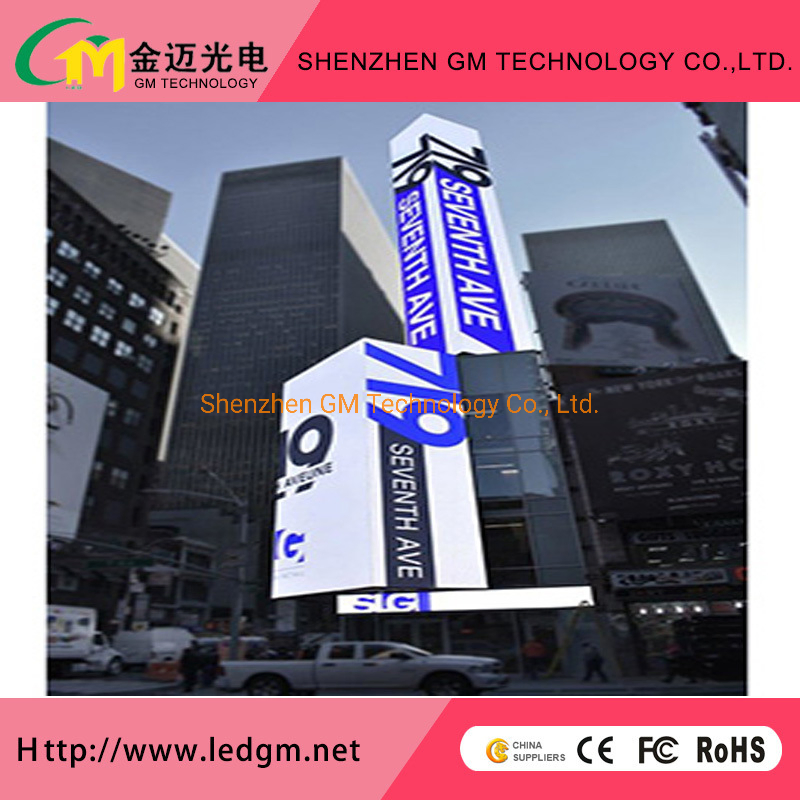

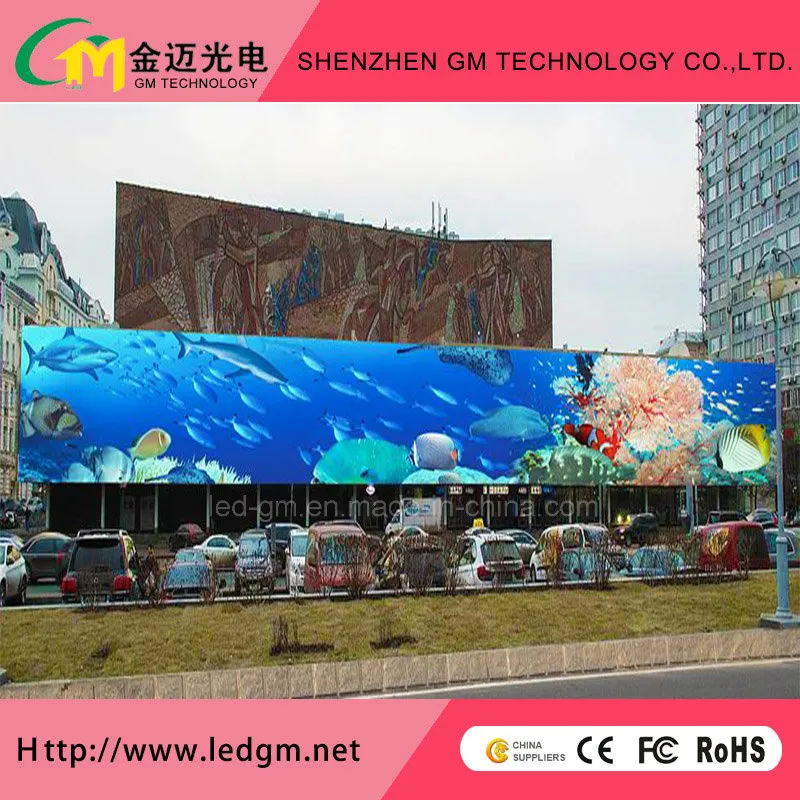

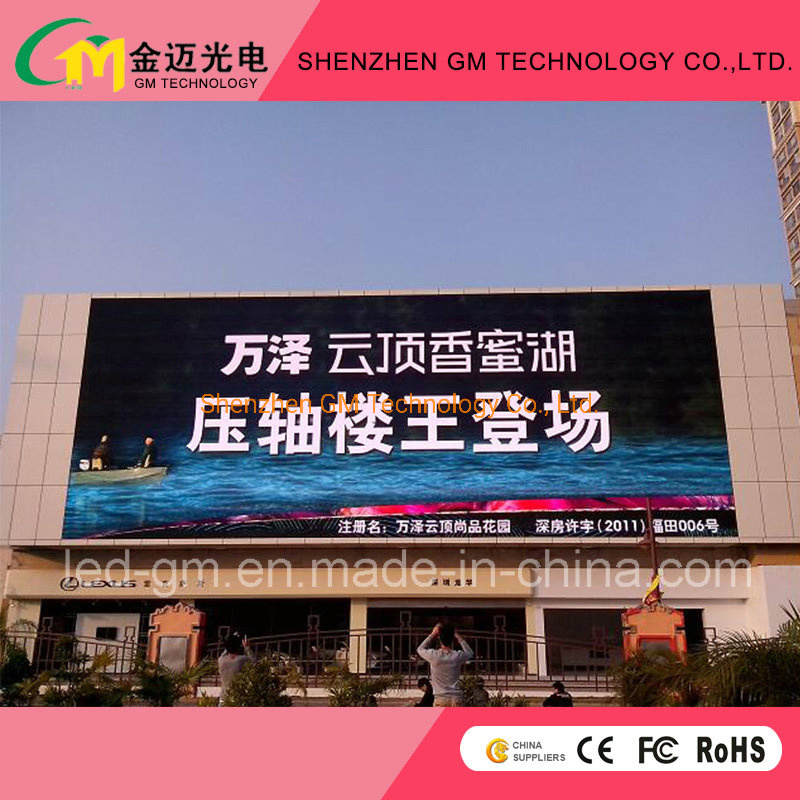

Widely Used In: Shopping malls, entertainment venues, traffic arteries, stations, airports, stadium perimeters, and various public advertising facilities.

🛠 24/7 technical inquiry response.

🛠 OEM & ODM customized lighting solutions.

🛠 Comprehensive protection of design ideas and sales area.

🛠 5-Year warranty with CE, RoHS, and FCC certification.

📦 Packaging & Delivery

Packaging

Wooden case for iron cabinets (2 cabinets/case)

Lead Time

Within 20 days upon prepayment

Shipping Terms

By Sea, Air, or Express (DHL/UPS/Fedex)

Payment Terms

T/T (30% deposit, 70% before shipment), L/C, Western Union

❓ Frequently Asked Questions

Q1: What is the warranty period for the P16 LED display?

We offer a 5-year warranty for the LED display, which has an expected lifespan of over 100,000 hours.

Q2: What are your standard payment terms and delivery times?

We typically accept T/T or L/C with a 30% deposit in advance and 70% before delivery. The standard lead time is approximately 20 days.

Q3: How do you ensure the quality of the LED screens before shipping?

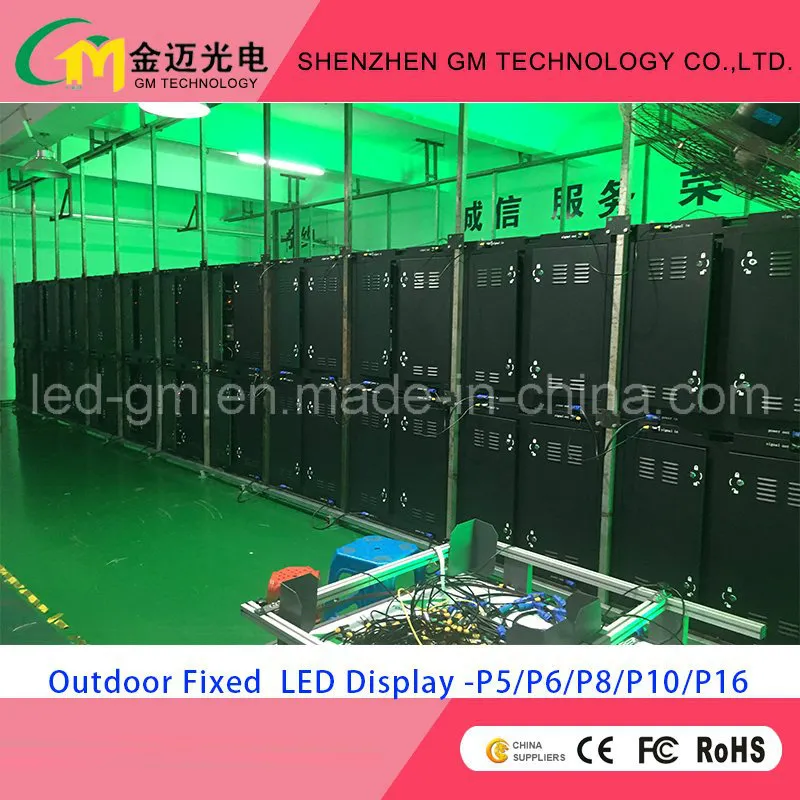

Every screen undergoes a rigorous 72-hour aging test, followed by waterproof and vibration testing to ensure stability during transport and use.

Q4: Do you provide support for installation and maintenance?

Yes, we provide instructions on installation and how to replace modules. For large projects, technical personnel can be dispatched to assist on-site.

Q5: Is this P16 model suitable for all outdoor weather conditions?

Yes, it is designed with a weatherproof iron cabinet and Anti-UV mask, making it suitable for high-temperature and high-humidity outdoor environments.

Q6: What certifications do your products hold?

Our products are fully certified with CE, RoHS, FCC, CCC, and ETL standards for global export.
