OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
1 / 5
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China
OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China

OFC Series Outdoor Front Service Maintenance P6.67/P8/P10 LED Advertising Display Screen Fixed Installation Billboard Made in China

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
OFC-P10
Pixel Pitch
10mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text, Market Display
Power Consumption
Average 280 W/M2
Pixel Density
10000 dot / m²
Scanning Mode
1/2 Scan
Cabinet Material
Steel / Die Cast Aluminum
Protection Level
IP65 (Front/Back)
Certification
CE, FCC

Introduction

  • LED screen supporting complete front service maintenance.
  • Available in P6.67, P8, and P10 pixel pitches.
  • Ideal for locations where rear access is not available.
  • Modules are secured to the frame using a specialized structural lock.

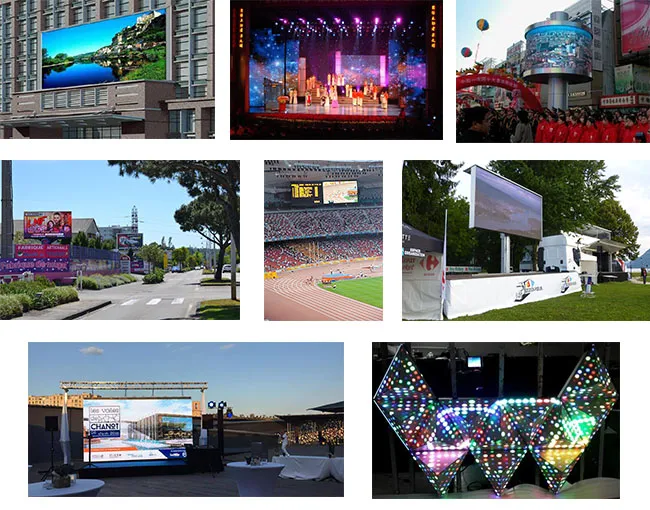

Front Service LED Display

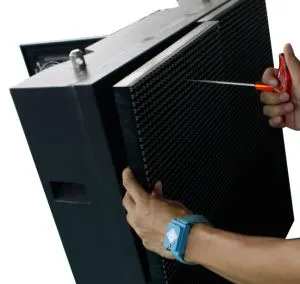

Maintenance Detail

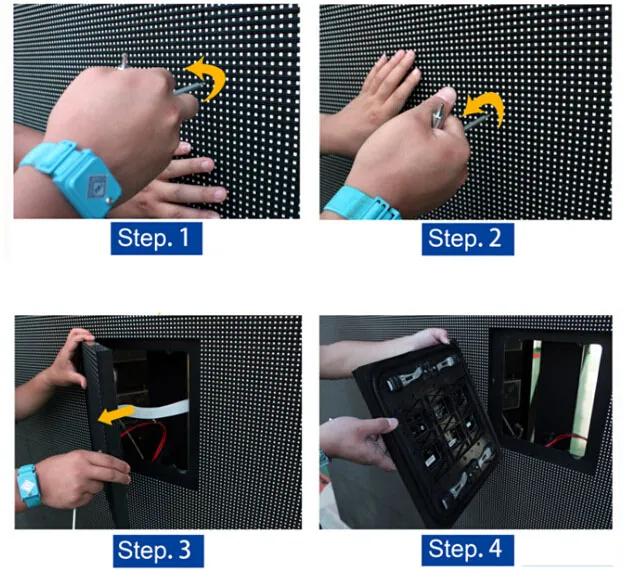

LED Screen Structure

Technical Parameters

1. LED Components

Component Brand Luminous Intensity Wavelength
Red LED ChipNationStar470 mcd622 nm
Green LED ChipNationStar750 mcd525 nm
Blue LED ChipNationStar120 mcd470 nm
LED Chip Detail

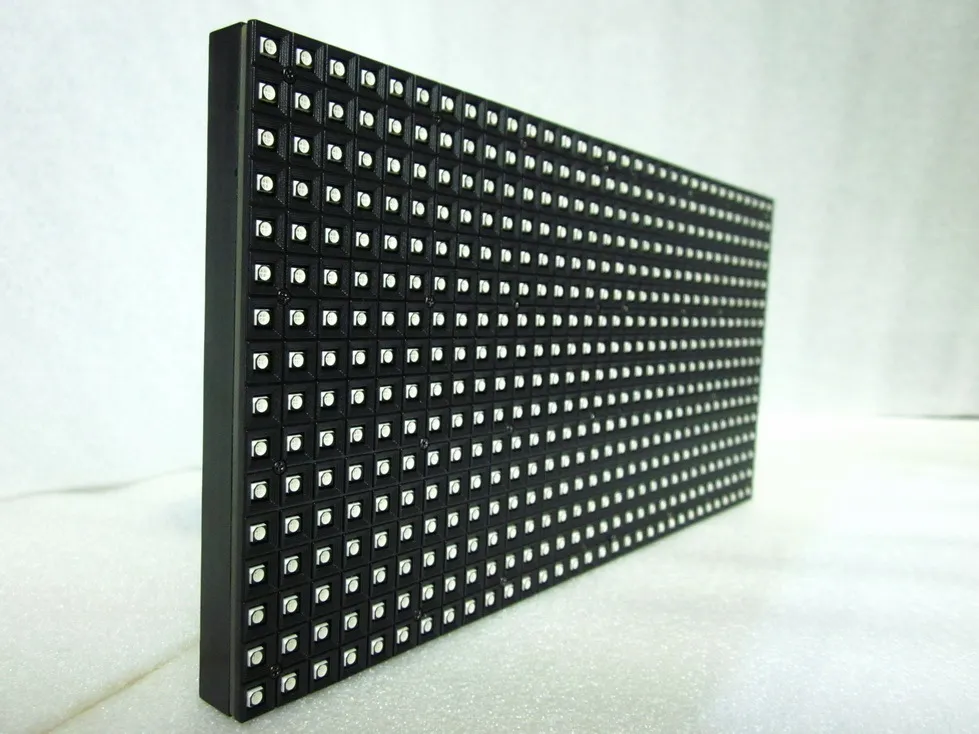

LED Module

2. Cabinet & Screen Performance

Cabinet Size960*960 mm Module Size320*320 mm
Brightness6500 mcd/sqm Refresh Rate>1920 Hz
Viewing AngleH: 140° / V: 105° Best Distance>20m
Input VoltageAC110V-220V Life Span≥100,000 Hours

Quality Control & Manufacturing

Our facility utilizes high-technology automatic machines and conducts rigorous aging and grayscale tests for every module.

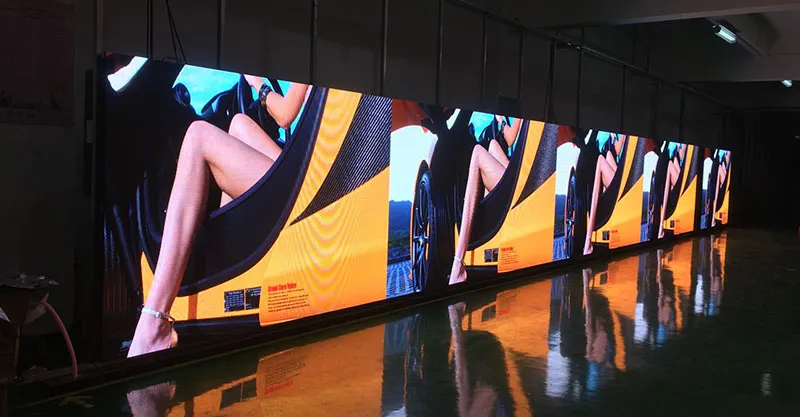

Factory Aging Test

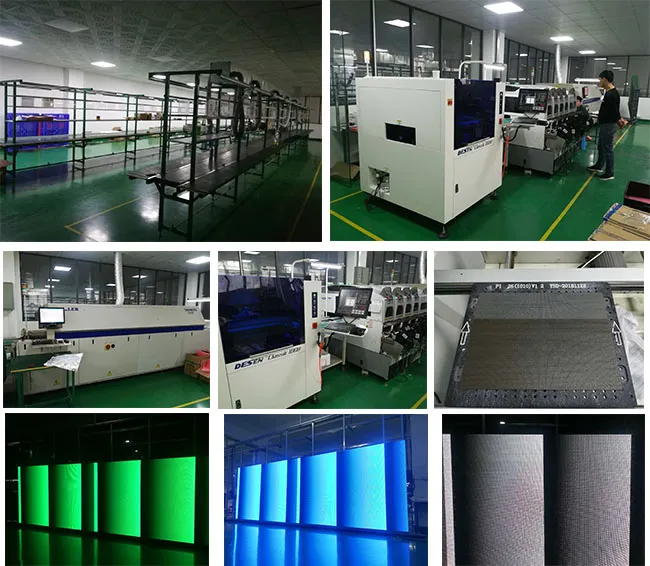

Production Line

Service & Terms

After-sale Support

  • Two-year comprehensive warranty.
  • 24-hour lifetime online technical support.
  • Professional depot repair services.
  • On-site engineer services available upon request.

Packing & Delivery

  • Production Time: Approx. 25 days (including aging test).
  • Payment: T/T 30% advance, 70% before shipping.
  • Packing: High-quality Plywood case or Flight case.
Plywood Case

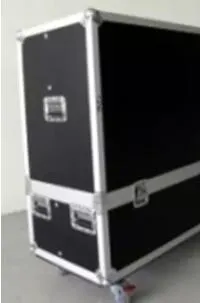

Flight Case

Frequently Asked Questions

What is "Front Service" maintenance for an LED screen?
Front service means the LED modules, power supplies, and receiving cards can be removed and maintained from the front side of the display, eliminating the need for a maintenance walkway behind the screen.
What is the brightness level of the OFC-P10 model?
The OFC-P10 outdoor display features a high brightness of 6500 mcd/sqm, ensuring clear visibility even under direct sunlight.
Is the screen waterproof for outdoor use?
Yes, the cabinet is designed with an IP65 protection level for both front and back, making it fully resistant to rain and dust.
What is the typical production lead time?
For orders up to 200 m², the production time is approximately 25 days, which includes a rigorous 72-hour aging and quality test.
What kind of warranty do you provide?
We provide a standard two-year warranty with free lifetime online technical support. During the warranty period, we offer free labor for repairs.
Which LED chips are used in this product?
This model utilizes high-quality Nationstar SMD3535 LED chips, known for their reliability, high brightness, and excellent color consistency.
