| Model NO. | P3.91 | Pixel Pitch | 3.91mm |
|---|---|---|---|
| Configuration | 1R, 1G, 1B | Display Function | Video, Image, Text |
| Avg. Consumption | 300W / m² | Pixel Density | 65536 dots/sqm |
| Scanning Mode | 1/8s | Display Type | LED Video Display |
| Application | Advertising | Certification | CE, RoHS, CCC |
| Life Span | >100,000 hours | Protect Rate | IP65 |
| Module Size | 500*250mm | HS Code | 8528591090 |

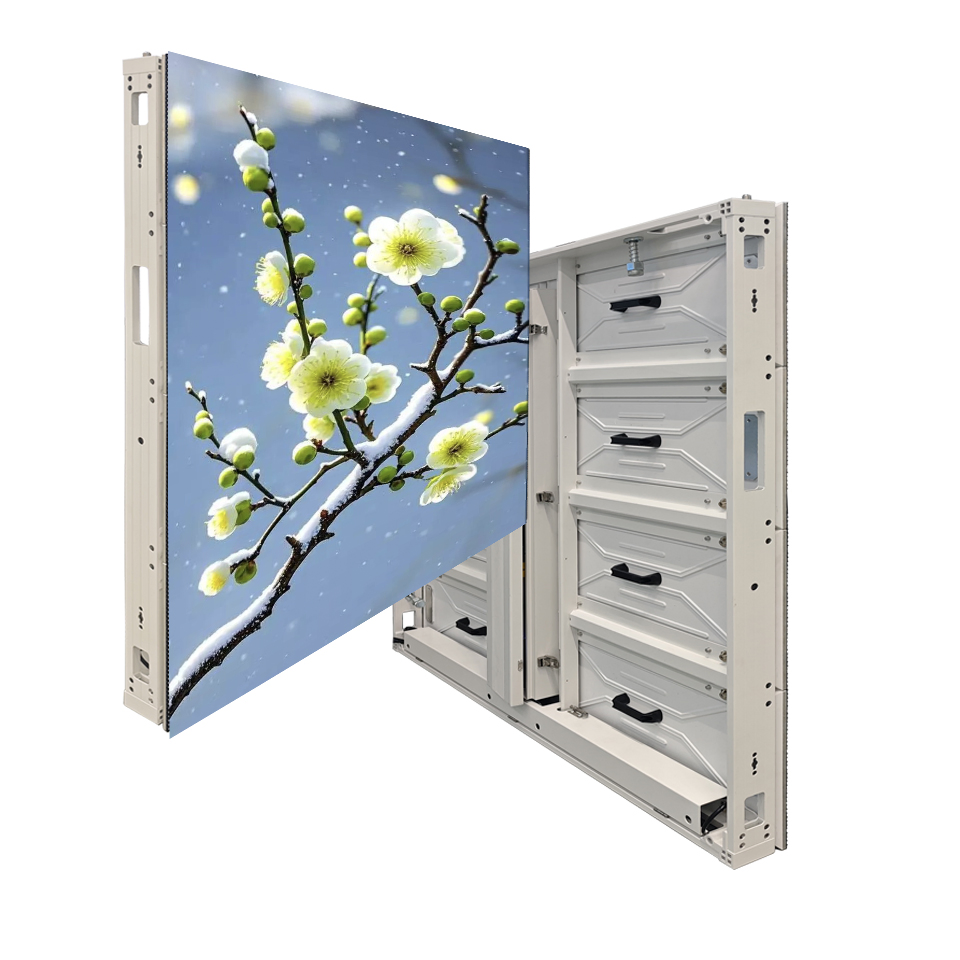

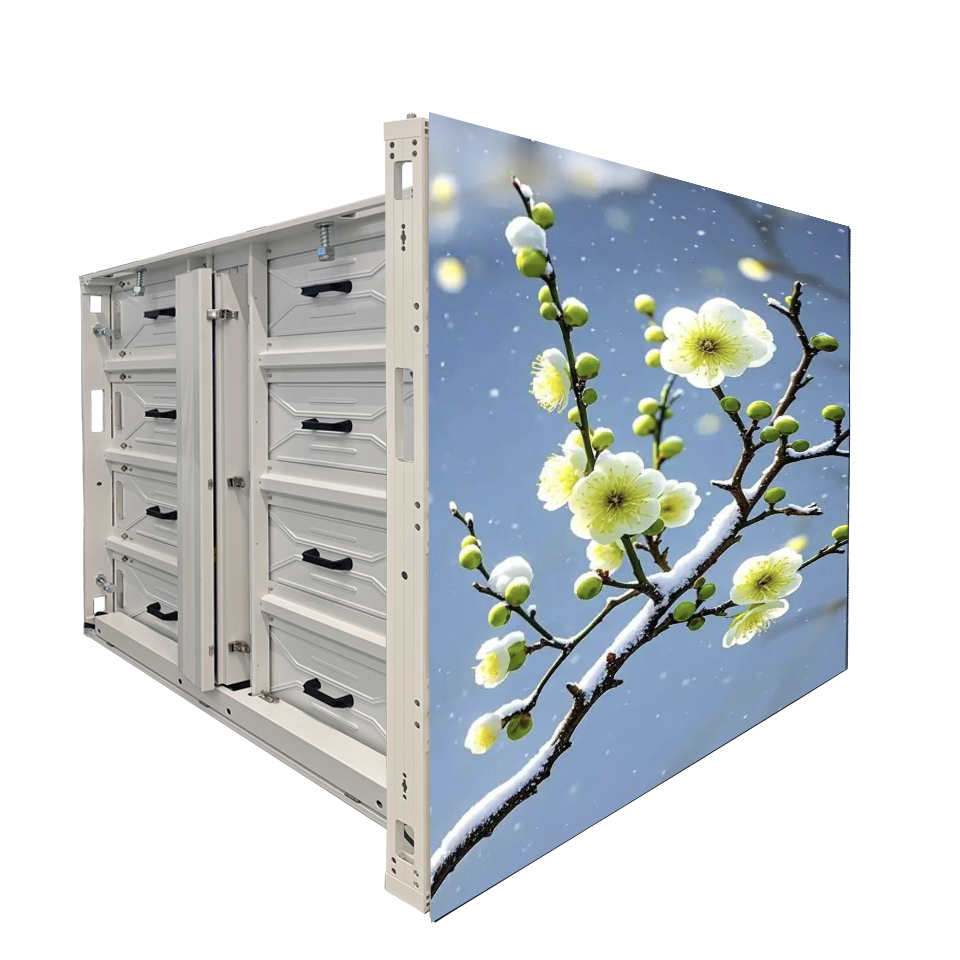

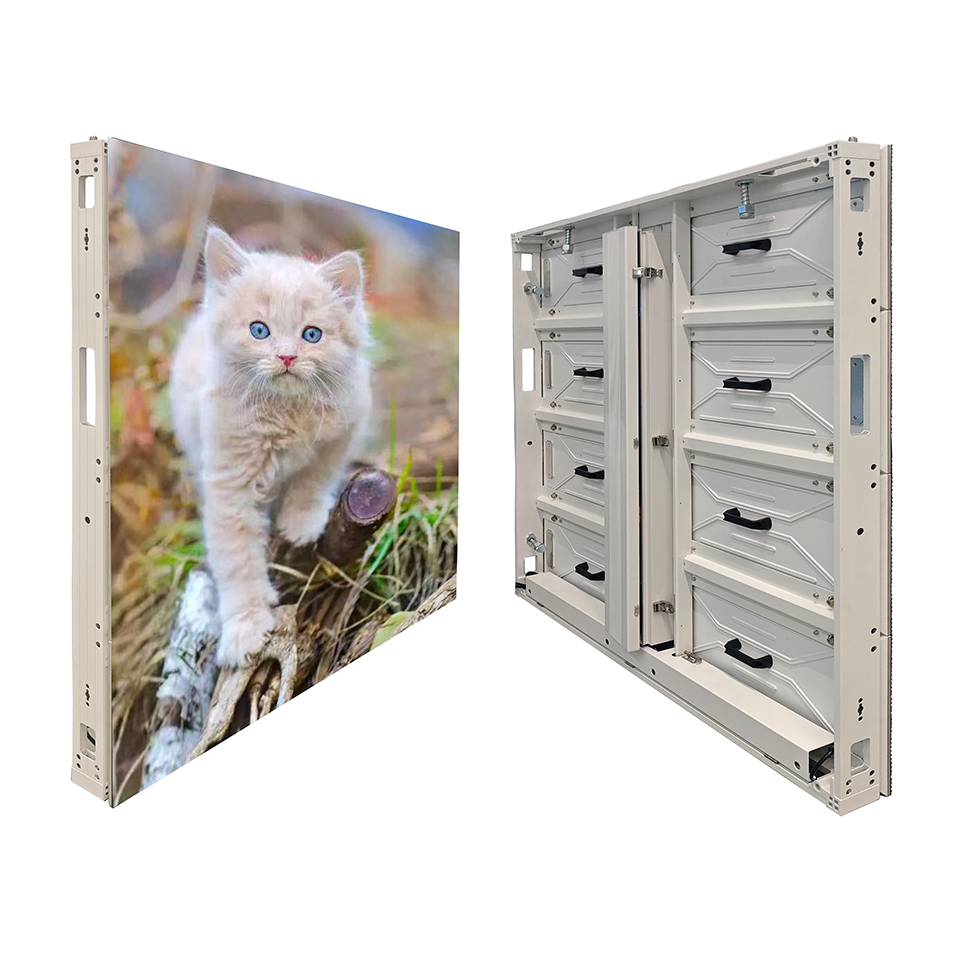

Outdoor Wall Mounted LED Screen
Outdoor LED displays are large-scale devices specifically designed for outdoor environments. High brightness (5000 to 8000 cd/sqm) ensures clear visibility even under direct sunlight. With an IP65 protection rating, these screens are waterproof, dustproof, and corrosion-resistant, capable of operating in temperatures ranging from -30°C to 60°C.
| Model | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
|---|---|---|---|---|---|
| Pixel pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.42mm |
| Module size | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm |
| Density (dots/sqm) | 65536 | 43264 | 25600 | 16384 | 9216 |
| Cabinet Weight | 27kg | 27kg | 27kg | 27kg | 27kg |
| Brightness | >5500 nits | ||||
| Refresh Rate | 3840Hz / 7680Hz | ||||

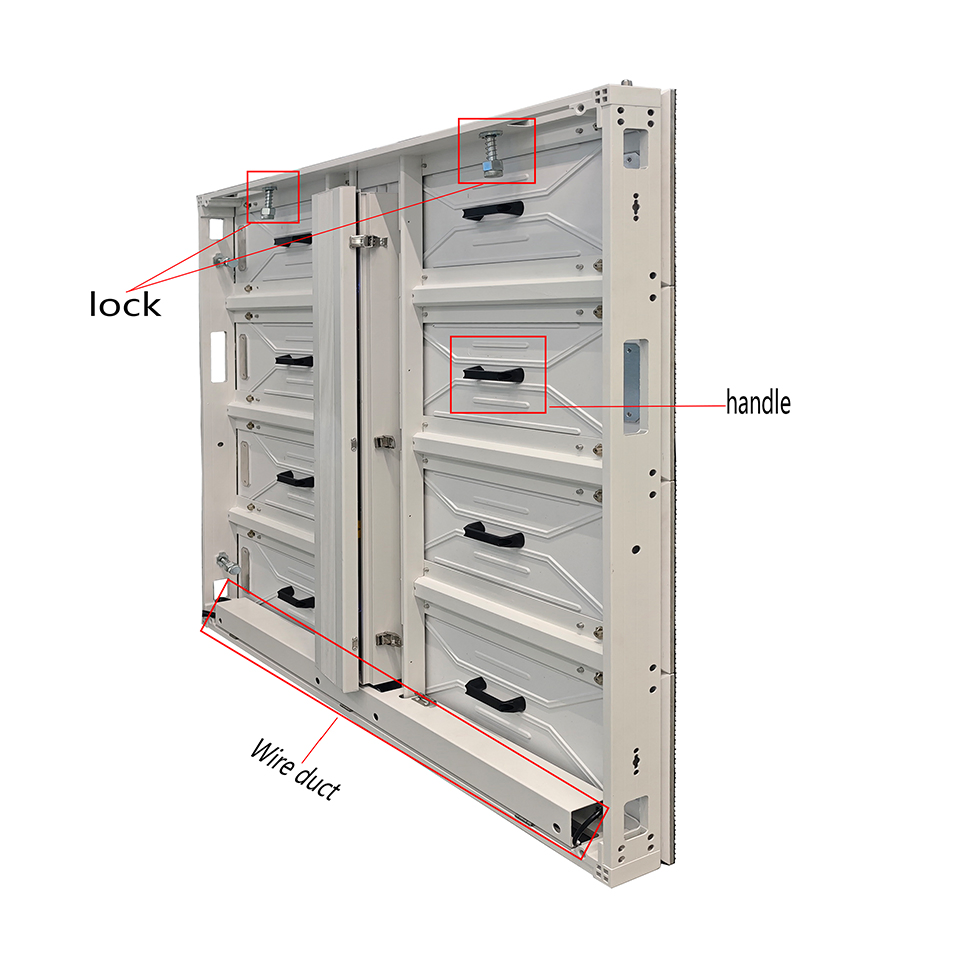

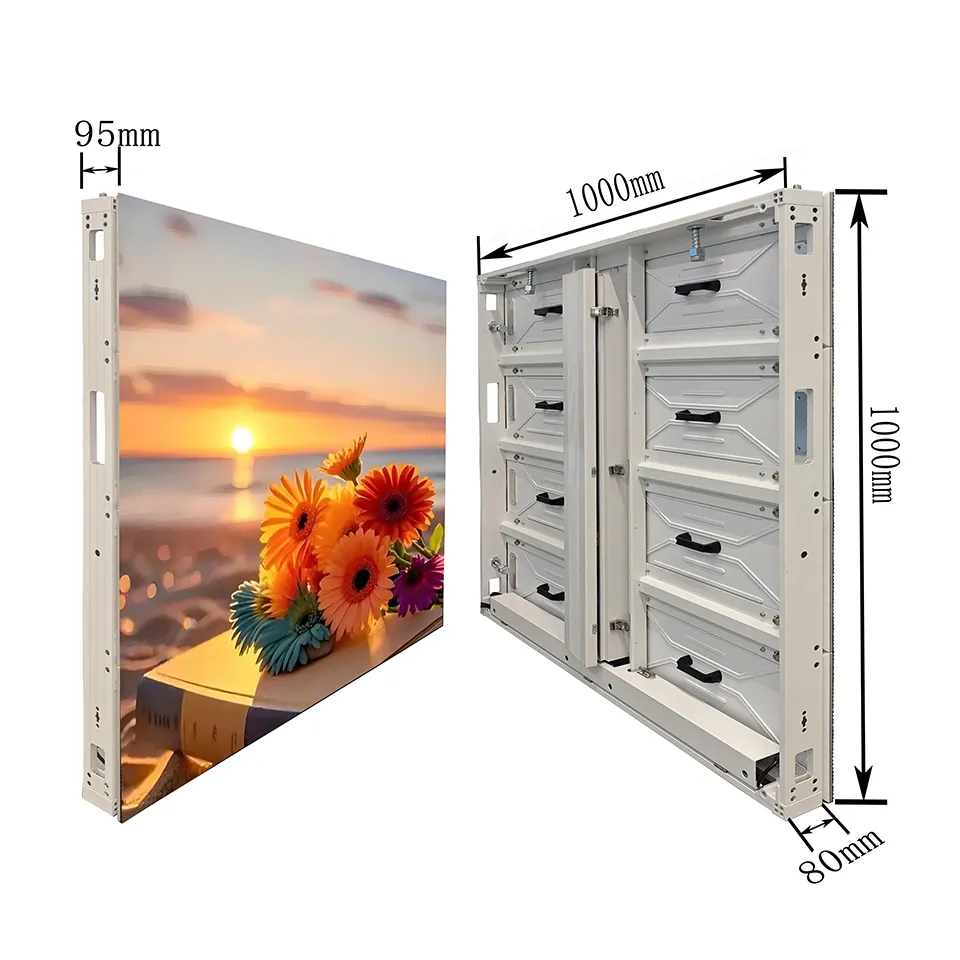

The die-cast aluminum cabinet is exceptionally light at only 27.2kg per unit, making it easy to transport and install, significantly saving manpower.
Featuring tight sealing with waterproof gaskets, the IP65+ rating ensures the screen stays dry and functional in heavy rain or harsh outdoor weather.
Aluminum conducts heat efficiently. The cabinet design includes cooling fins to quickly release heat, cutting down light decay and extending lifespan.

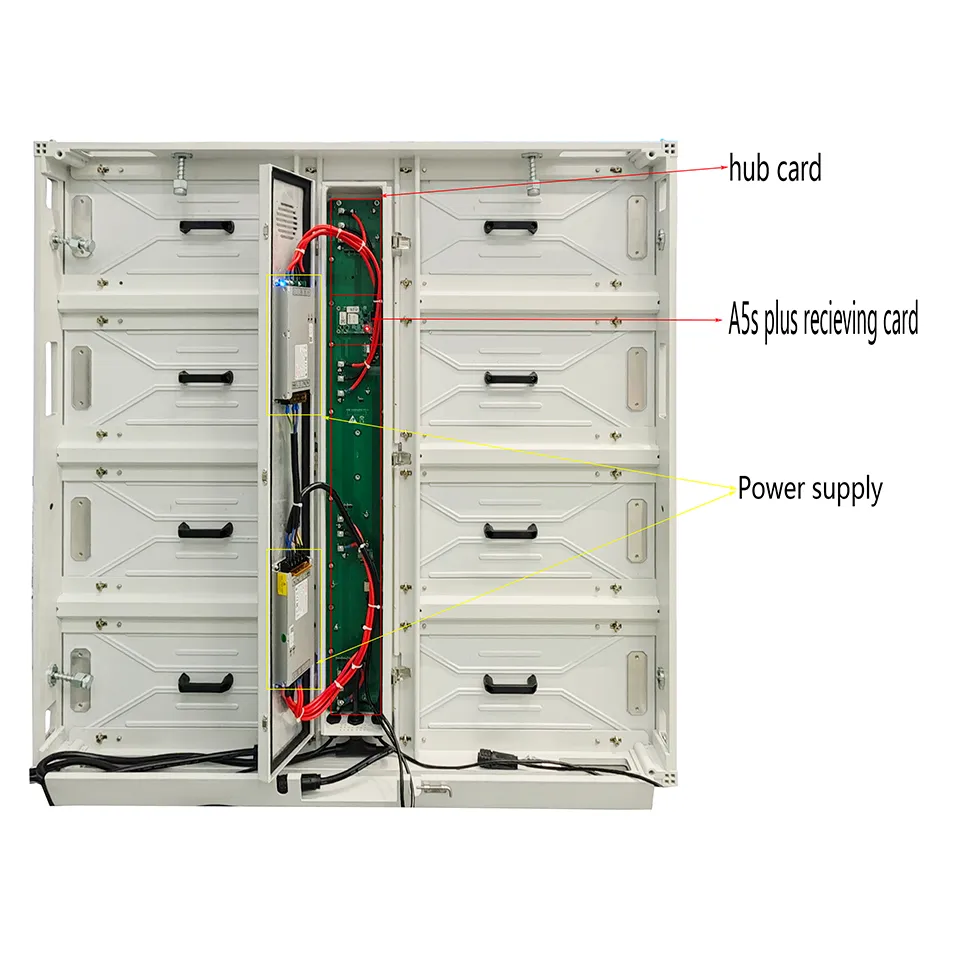

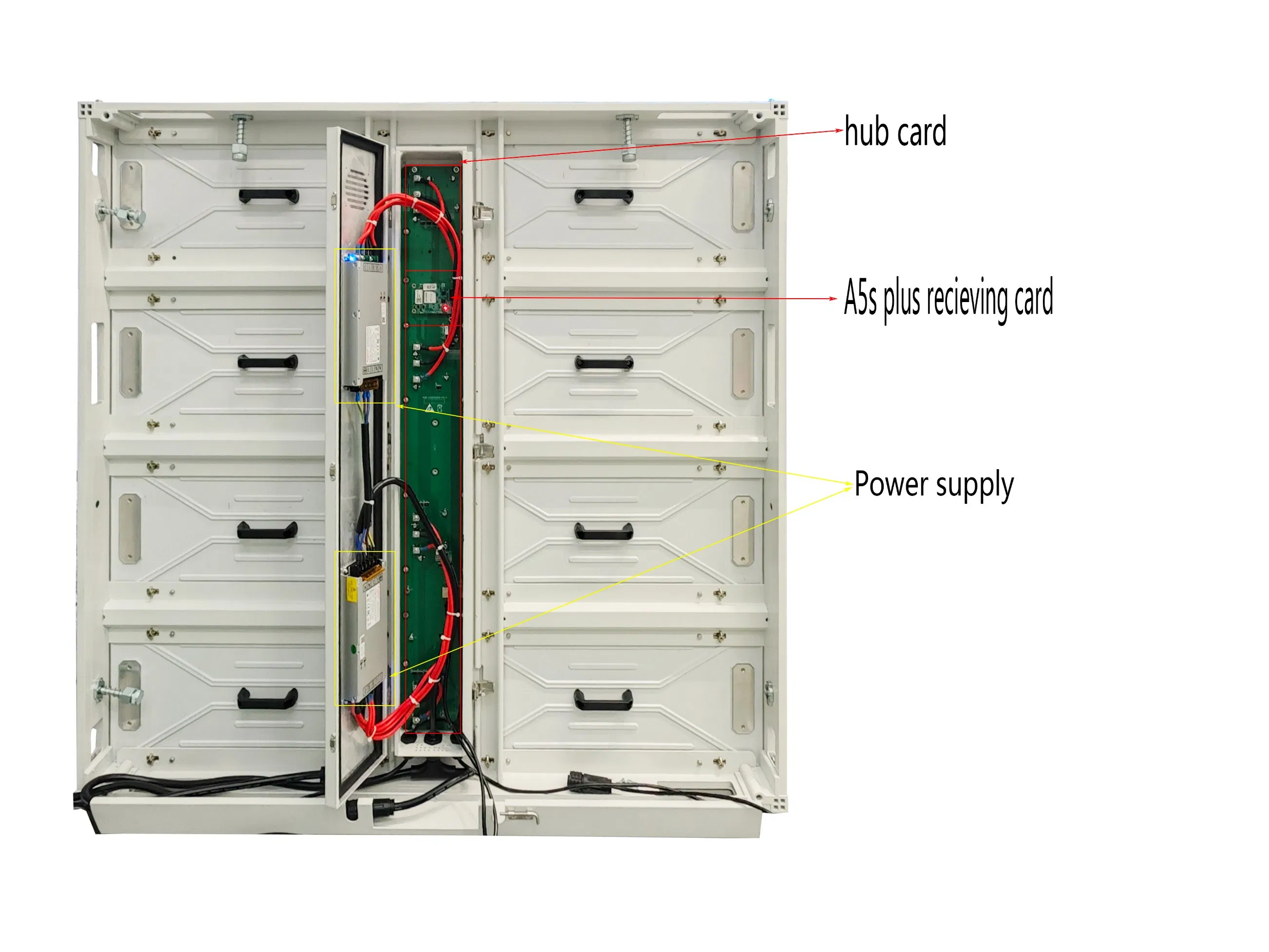

Supports dual-access maintenance. Modules and power supplies can be removed from either side, allowing for fast and convenient repairs.

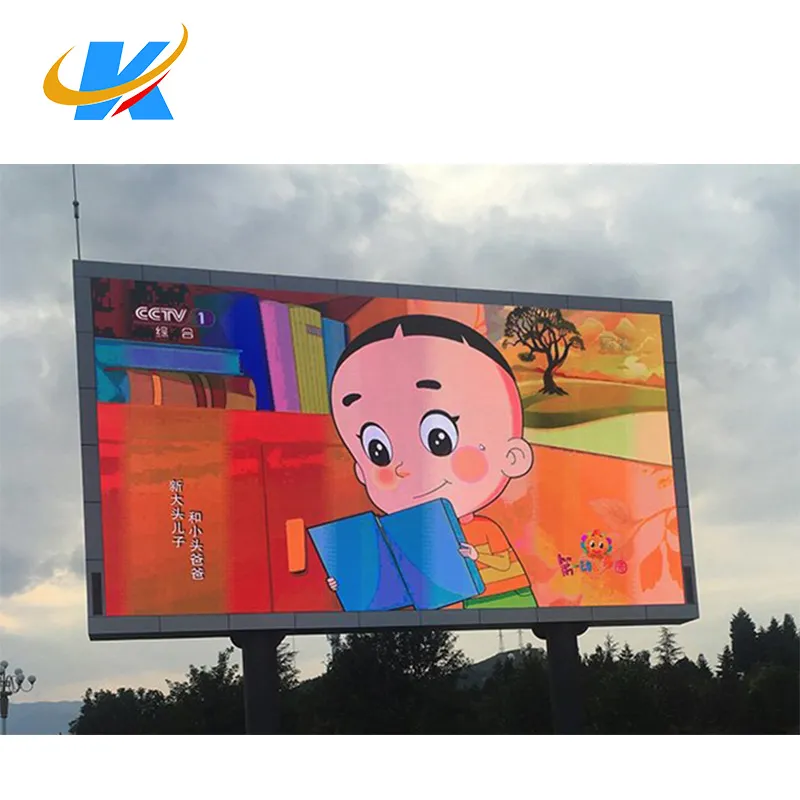

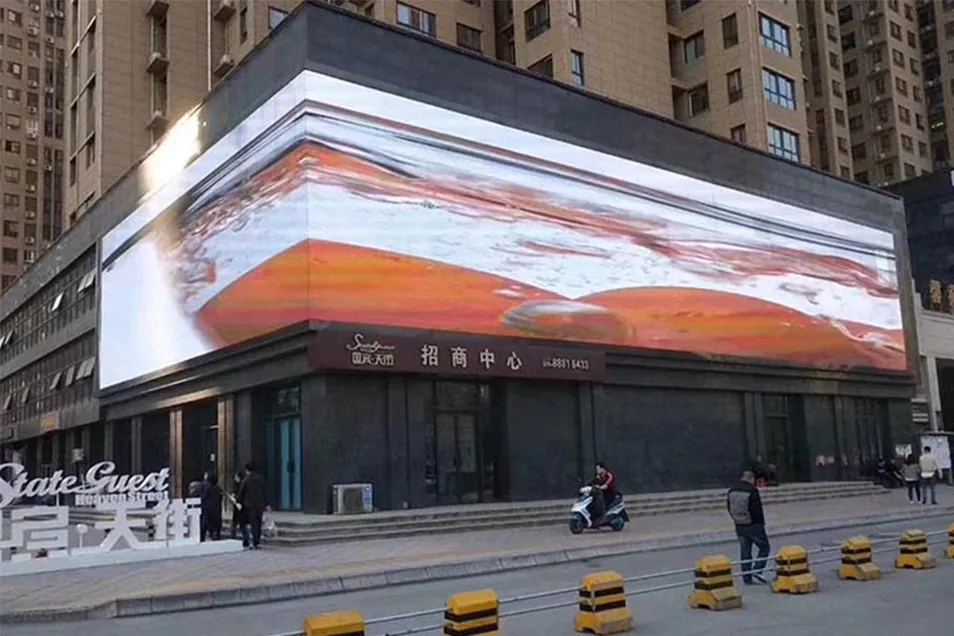

Perfect for urban streets and community areas to display public service advertisements and promotions.
Ideal for performance venues and sports stadiums to enhance the atmosphere with interactive video content.

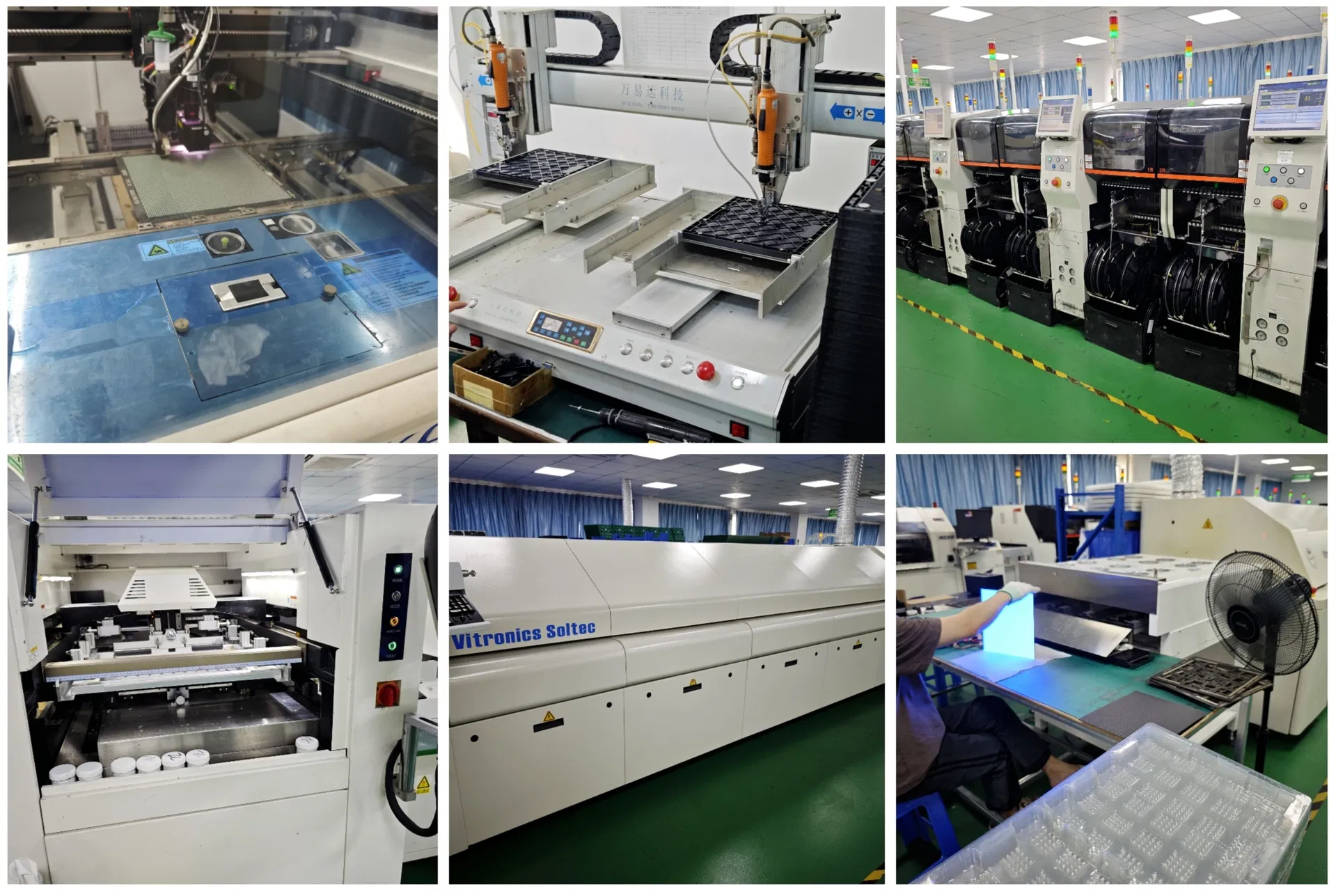

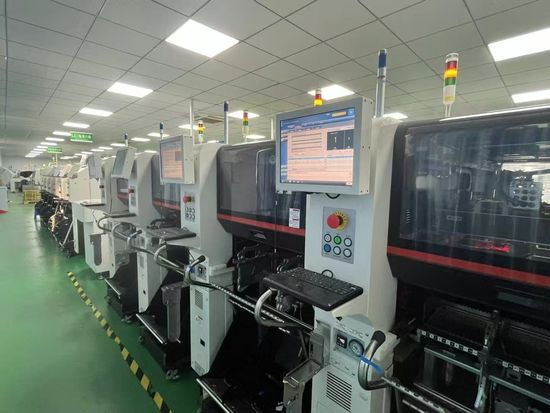

Equipped with high-speed SMT machines, automatic solder paste machines, and reflow soldering equipment. Production capacity reaches 9000sqm per month, ensuring consistent quality and supply.
