We are a dedicated LED display manufacturer with our own high-standard factory. We prioritize manufacturing satisfactory, high-quality products. Our team focuses more energy on quality assurance and providing precise specifications to meet global inquiry needs.

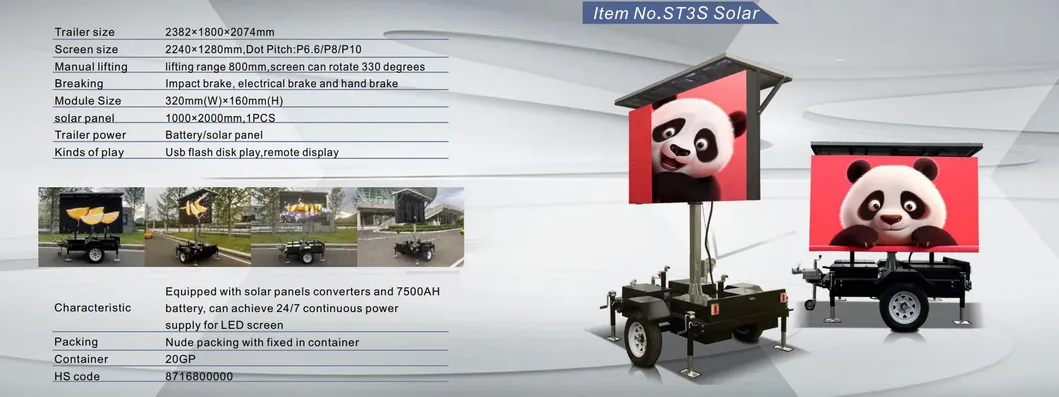

| Detailed Specification | |||
|---|---|---|---|

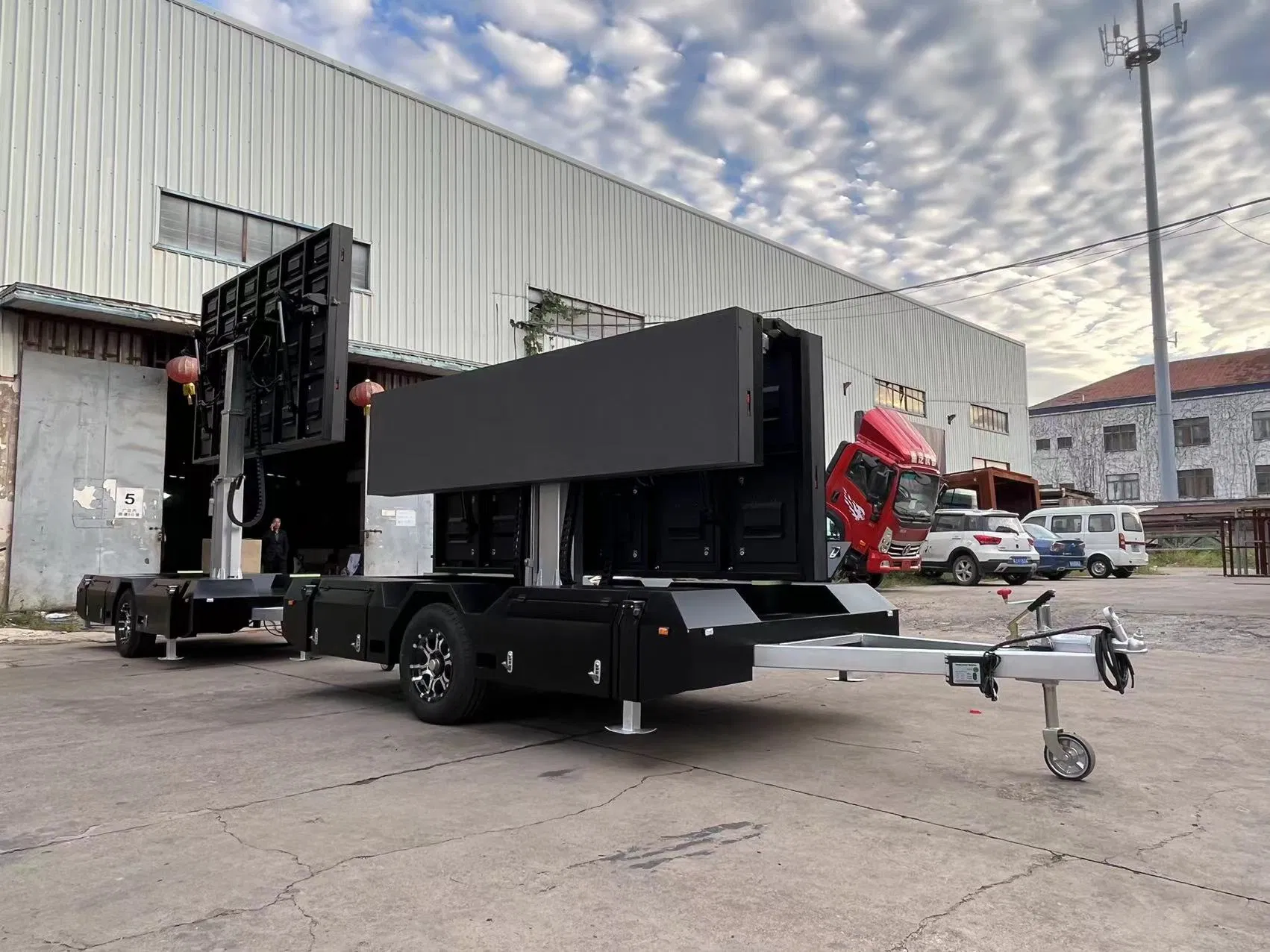

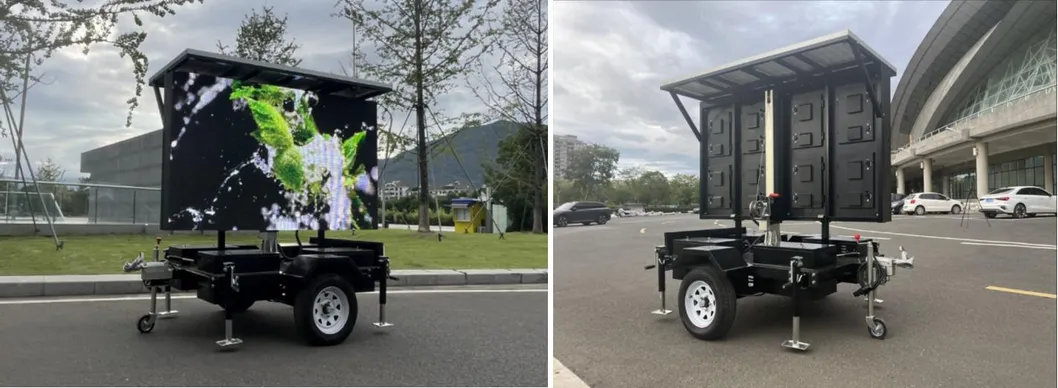

| Trailer Appearance | |||
| Trailer Size | 2382×1800×2074mm | Supporting Leg | 4 PCS (1.5 tons load) |
| Total Weight | 629KG | Tire | 165/70R13 |
| Max Speed | 120Km/h | Connector | 50mm ball head |

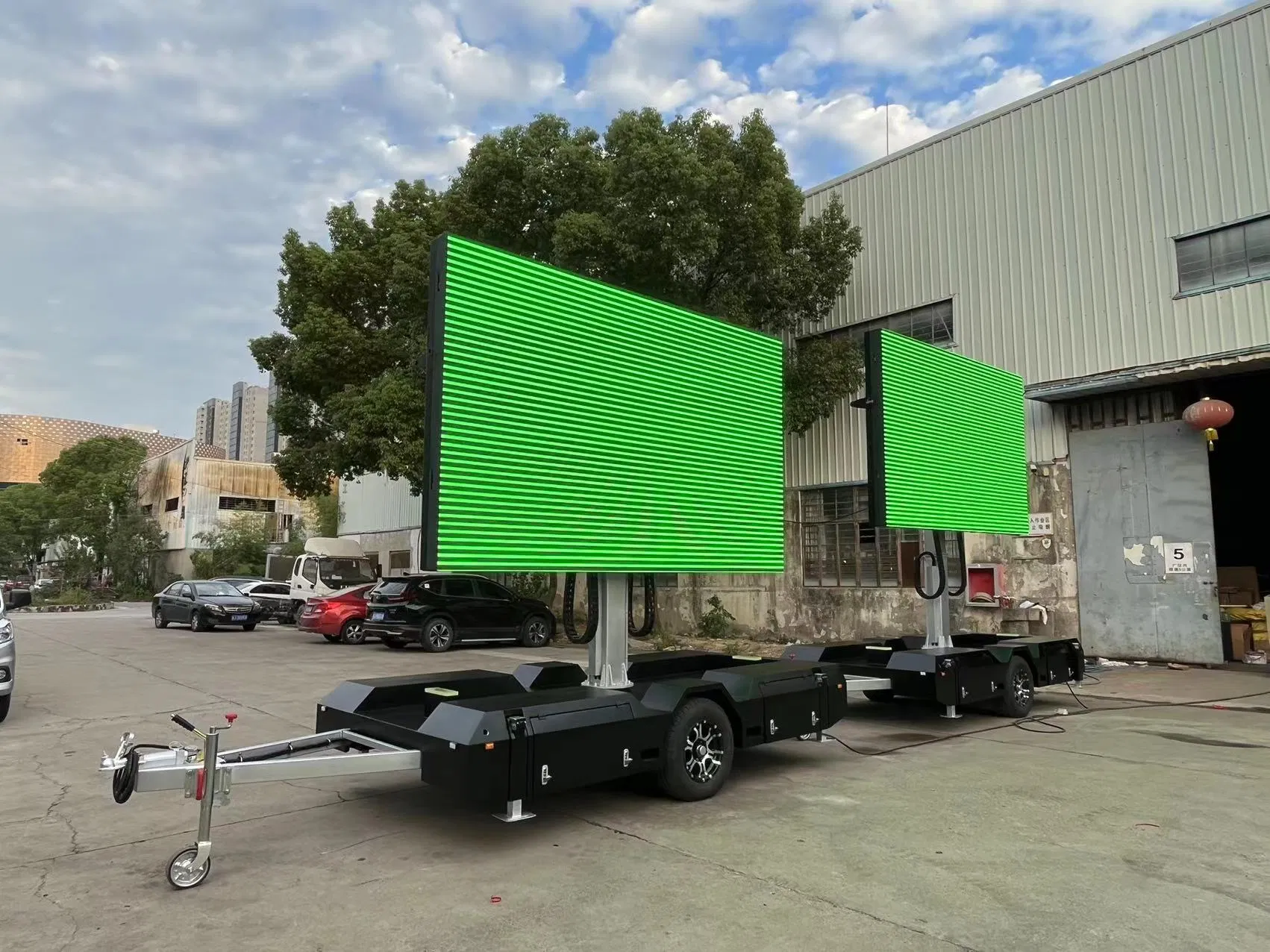

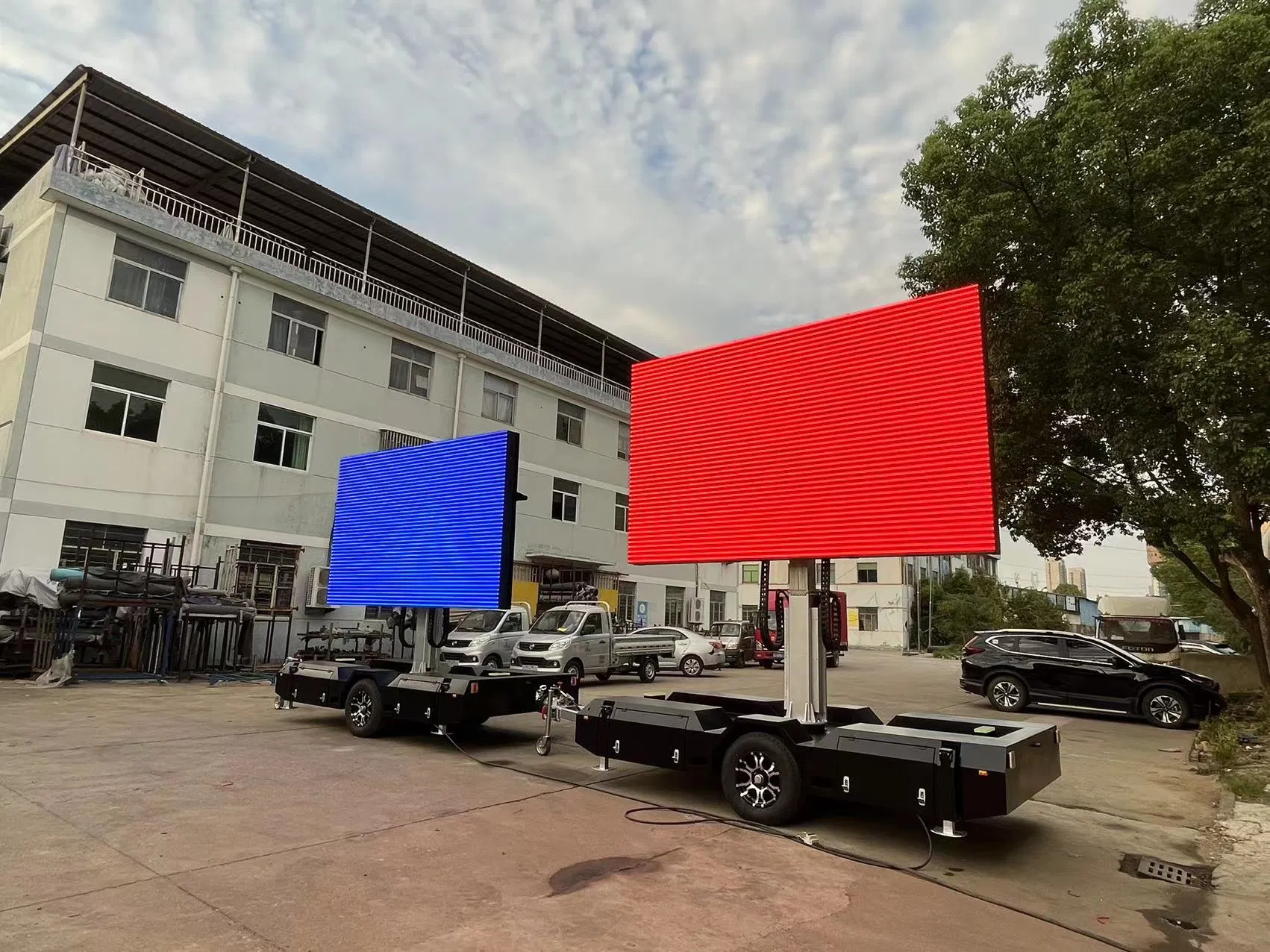

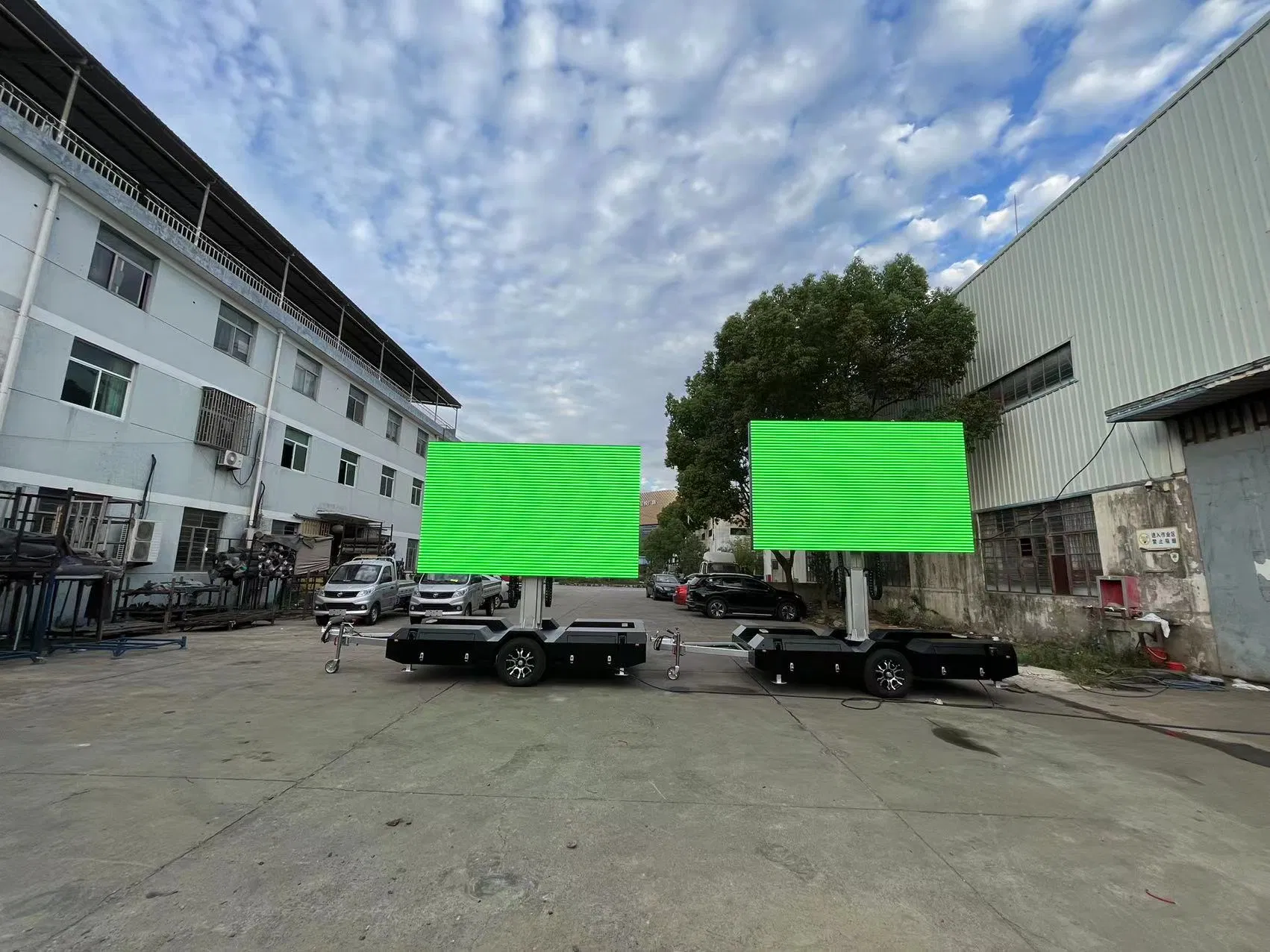

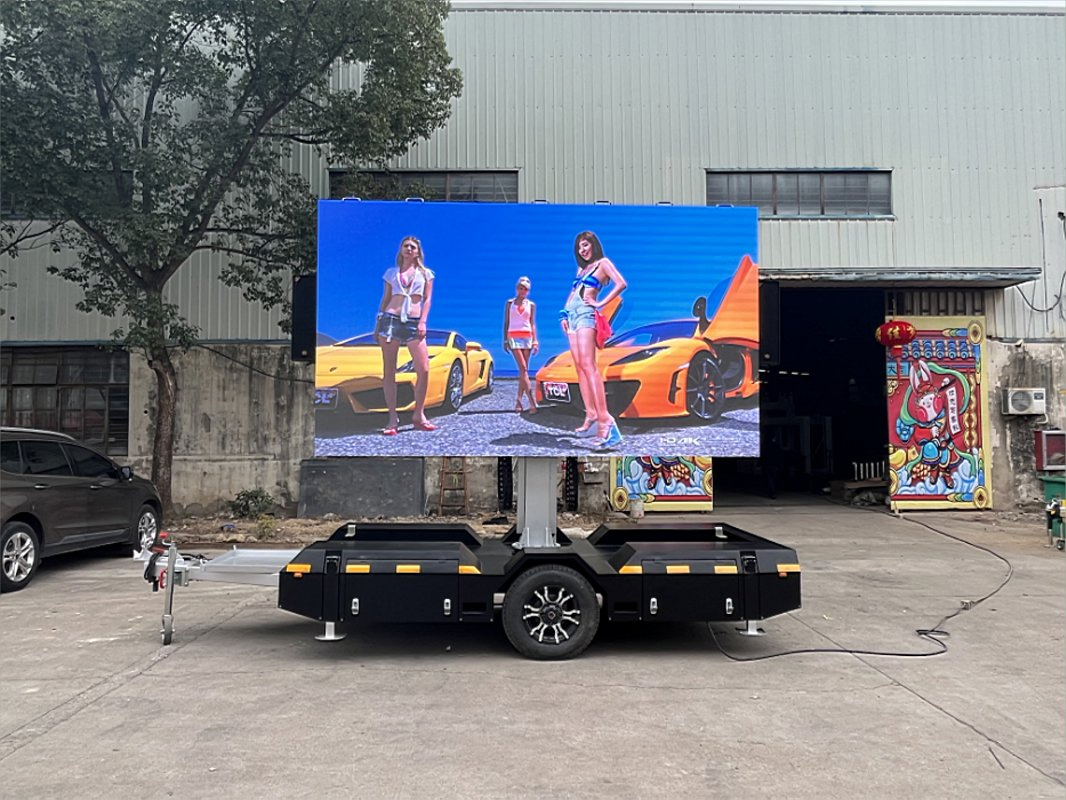

| LED Screen System | |||
| Dimension | 2240mm * 1280mm | Dot Pitch | 8 mm |
| Brightness | ≥5500cd/m² | Lifespan | 100,000 hours |
| Fresh Rate | 3840Hz | Drive IC | ICN2069 |
| Module Size | 320mm * 160mm | Power Supply | HuaYun |
| Solar & Power System | |||
| Solar Panel | 1000*2000mm (410W) | Battery | 12V150AH * 4Pcs (7.2 KWH) |
| Input Voltage | Single phase 220V | Output Voltage | 24V |

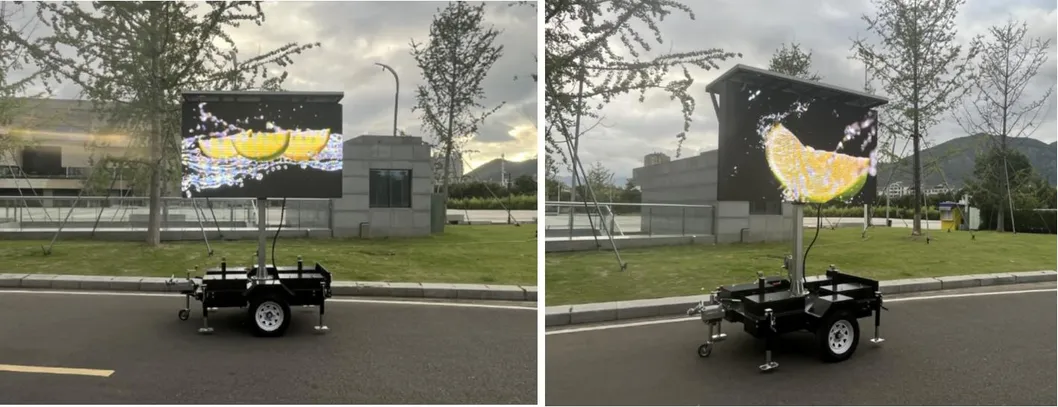

Can lift 800MM and rotate 360 degrees for optimal viewing angles.
Equipped with solar panels and 9600AH battery for 365 days continuous power.
Trailer lights with EMARK certification; includes brake device and safety chains.

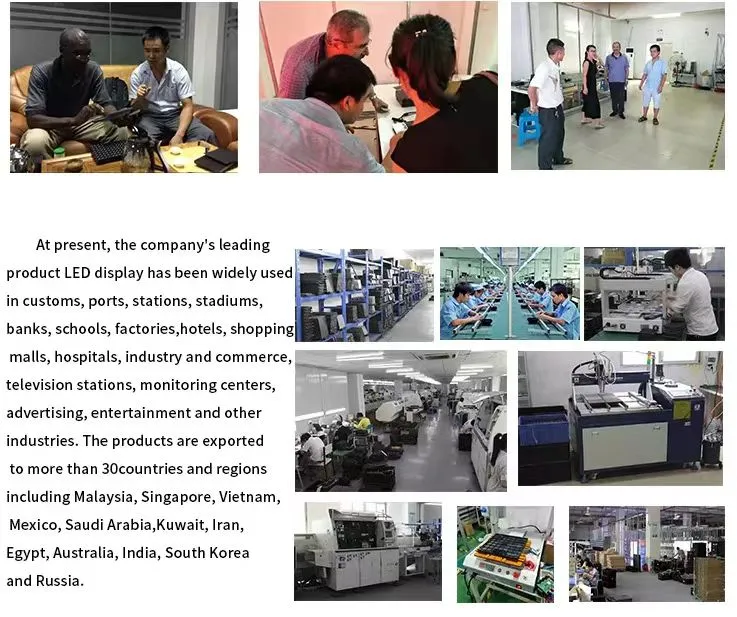

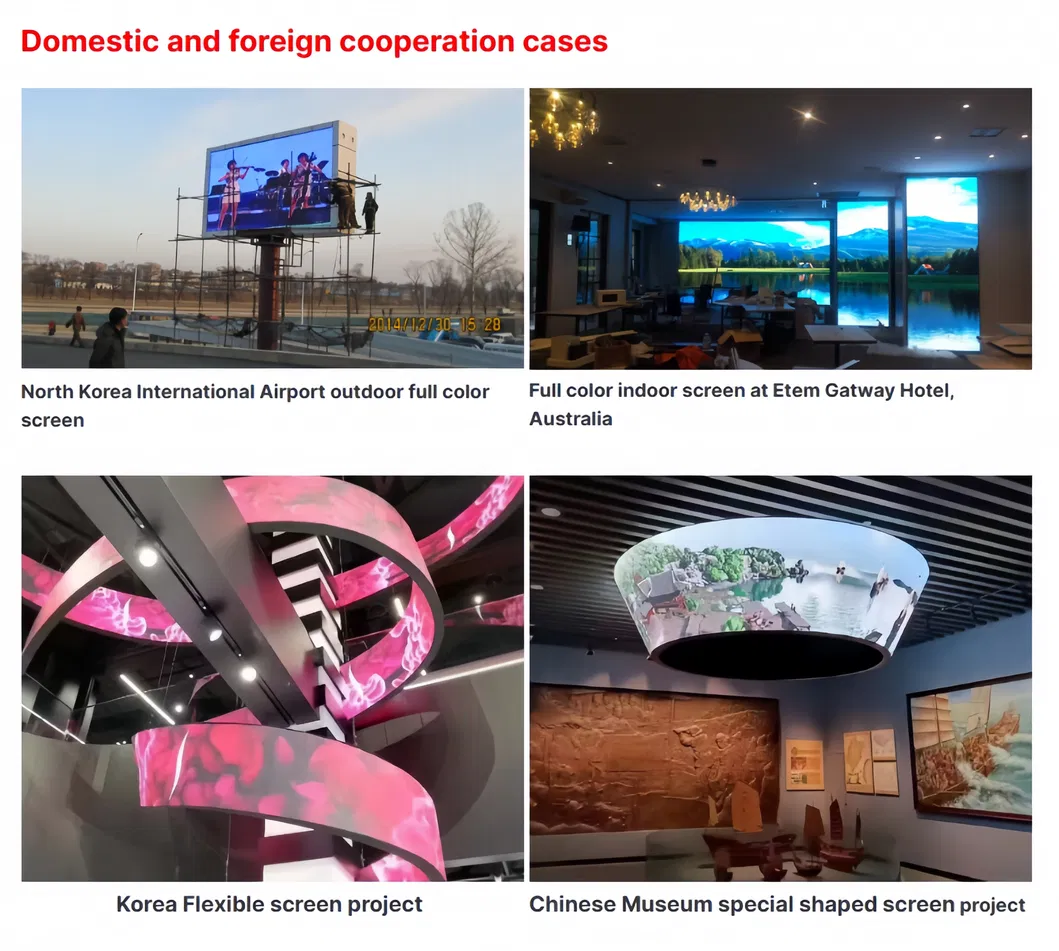

Our manufacturing facility spans over 6,000 square meters of modern, high-standard workshops. We utilize industry-leading imported automation equipment for production and testing. Our products have been successfully deployed in more than 60 countries and regions including airports, stadiums, and shopping malls.
