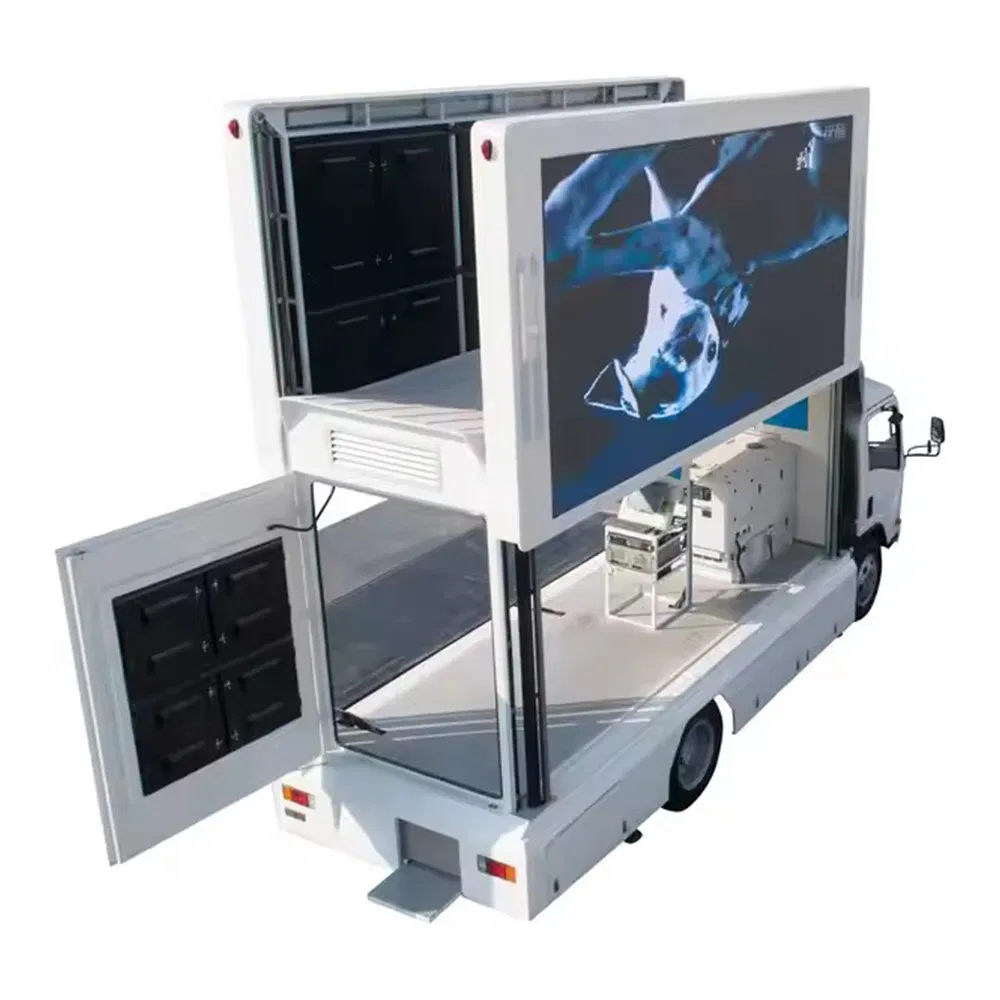

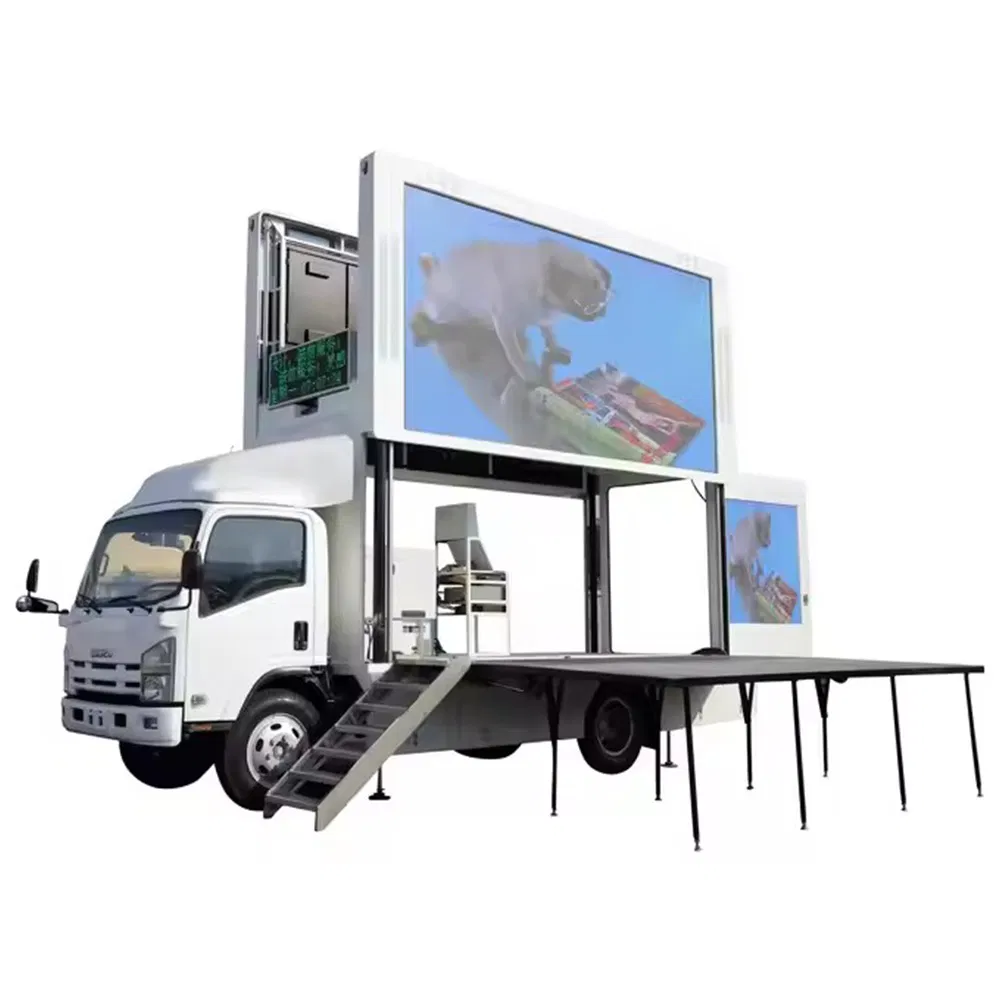

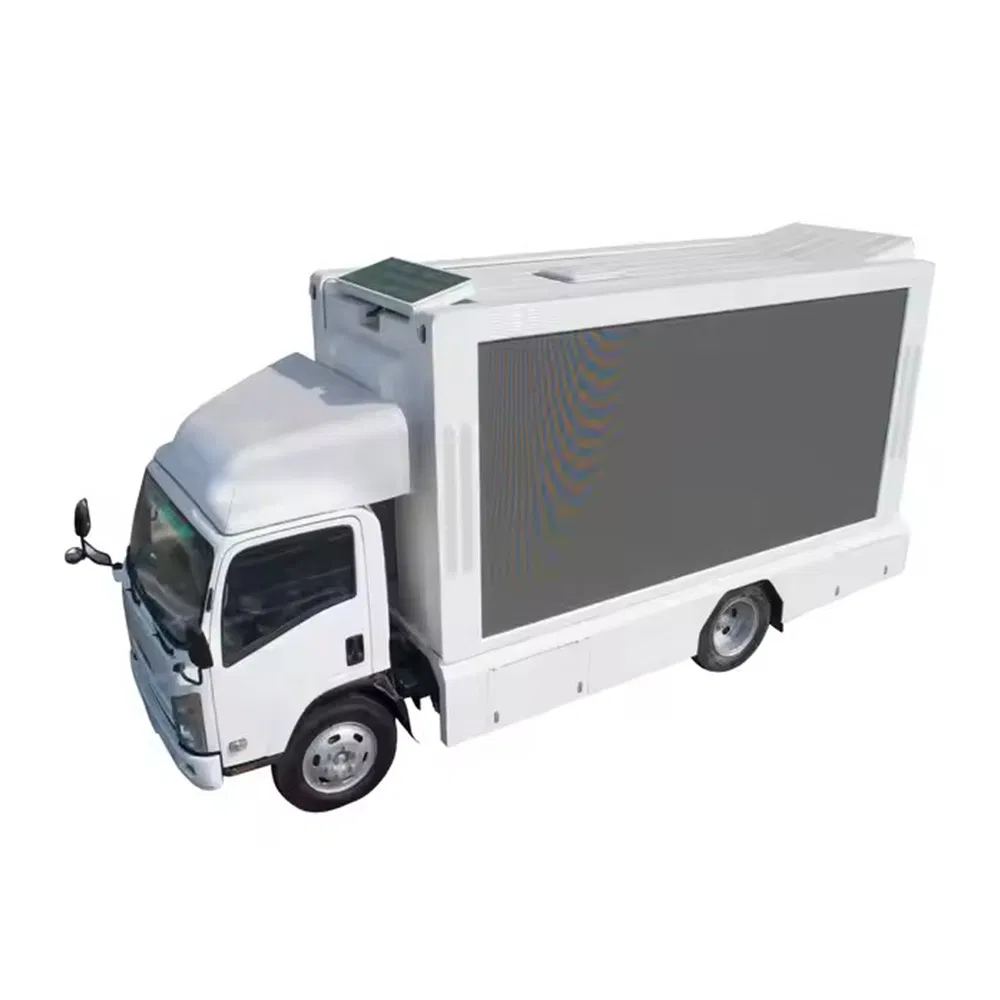

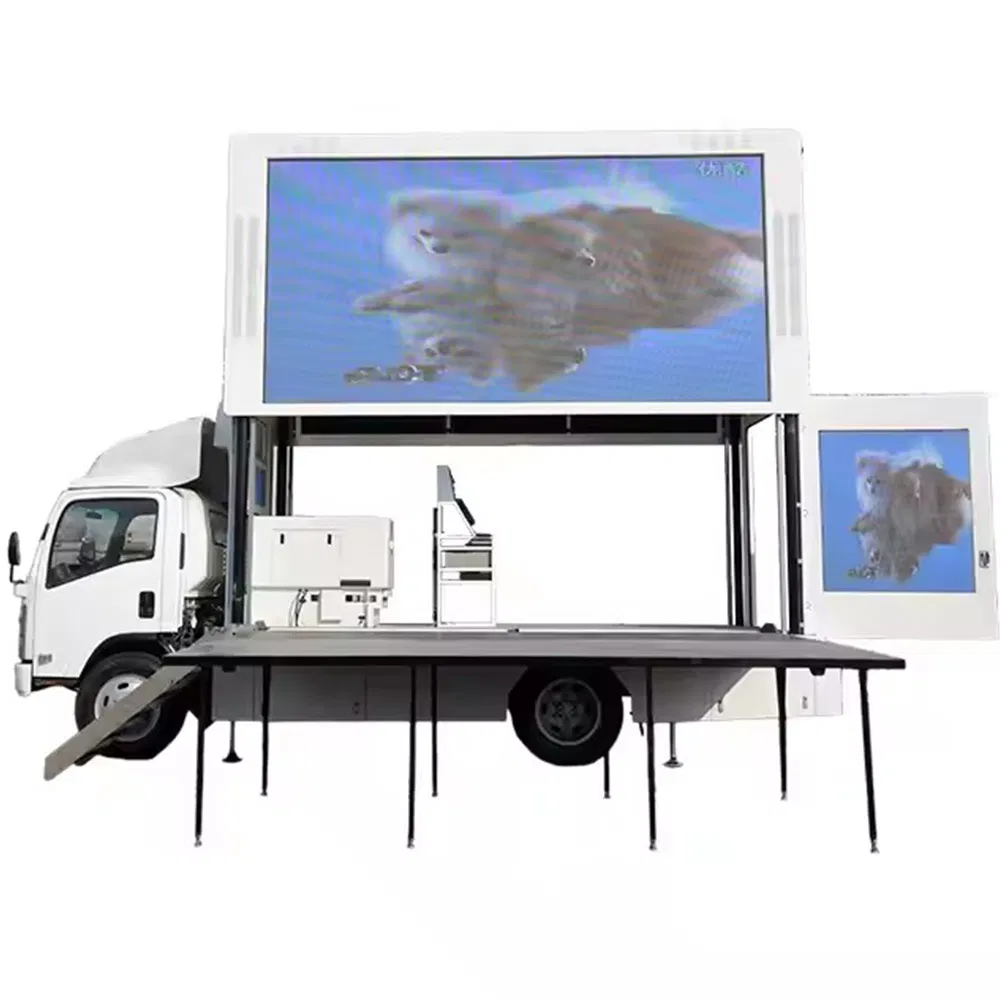

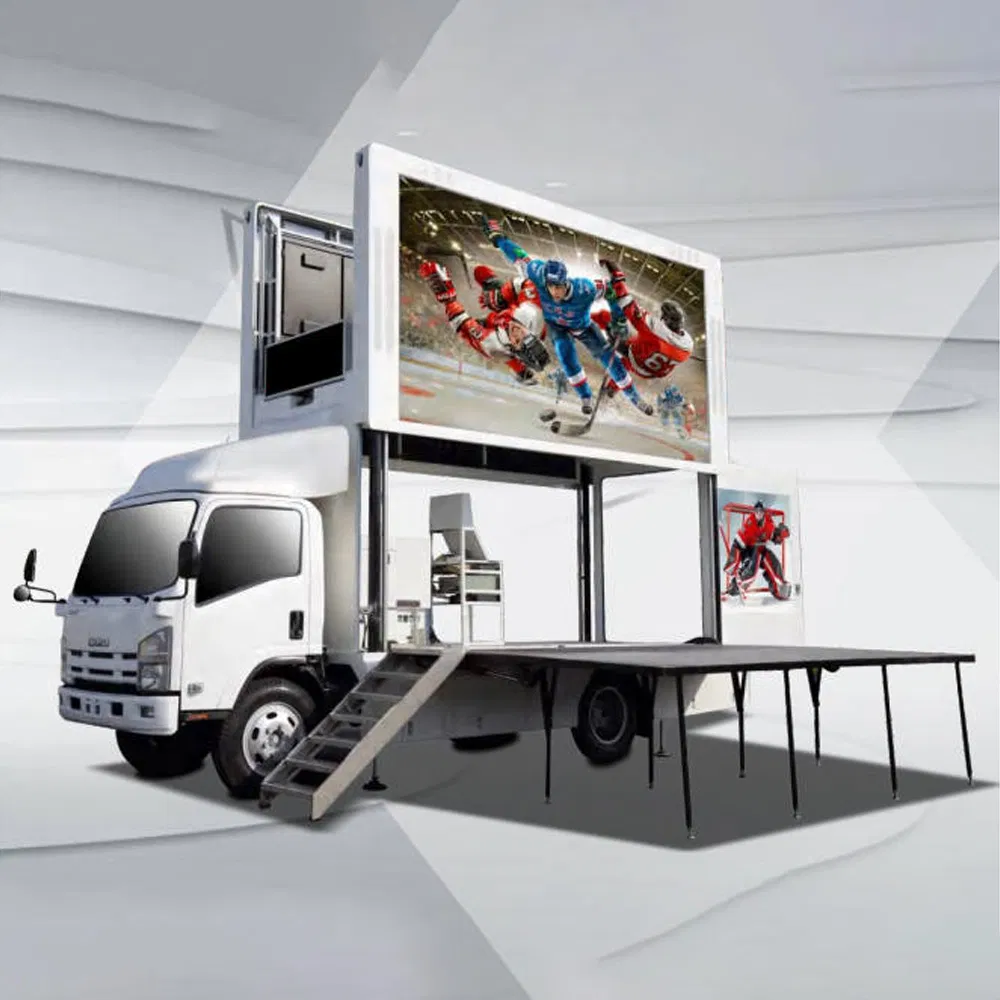

HW-QL3815 outdoor trailer LED display screen is designed for high-impact outdoor marketing and promotion events. Featuring a 3-sided display and integrated silent generator, it offers a mobile advertising solution for any location.
| Chassis & Dimensions | |||
| External Size | 7200mm x 2300mm x 3800mm | Total Weight | 8200kgs |
| Emission Standards | Euro III | Wheelbase | 3815mm |
| Lifting & Support System | |||
| Hydraulic Lifting System: lifting range 2000mm, bearing 3000KGS, Double lift system | |||
| Wind-against Level: Level 8 wind resistance after screen lift | |||
| Power & Sound System | |||
| Generator Power | 24kw Silence generator | Input Voltage | 380V (Three phases) |
| Speaker Max Power | 120W | Power Amplifier | 200W |
| LED Screen Configuration (Left & Right Side) | |||
| Screen Size | 4480mm x 2240mm | Module Size | 320mm x 320mm |
| Brightness | 6500cd/m² - 8000cd/m² | Dot Pitch | 6 mm |
| Hydraulic Stage | |||
| Stage Size | 5000mm x 3000mm | Opening Method | Hydraulic folding |
Our products undergo rigorous testing and comply with international standards including ISO9001, CE, DGM, MSDS, CCC, CB, ETL, GS, and ROHS.
