| Model NO. | OF-P5 |
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R, 1G, 1B (SMD 3 IN 1) |
| Display Function | Video, Image, Text, Market Display |
| Brightness | >6000 nits |
| Refresh Rate | 3840Hz |
| Average Power Consumption | 300W / m² |
| Pixel Density | 40,000 dots/m² |
| Scanning Mode | 1/8 Scan (Constant Current) |
| Protection Level | IP65 Waterproof |
| Cabinet Size | 960x960mm |
| Cabinet Material | Aluminum / Steel |
| Weight | 28kg/m² (Steel) |
| Contrast Rate | 3000:1 |
| LED Type | Epistar / NS SMD |
| Control System | Nova / Video Frequency Synchronization |
| Certification | CE, RoHS, CCC, ETL, FCC |
| Origin | China |
| Package Size | 100.00cm * 100.00cm * 100.00cm |
| Package Gross Weight | 22.000kg |
| Transport Package | Plywood Cases |

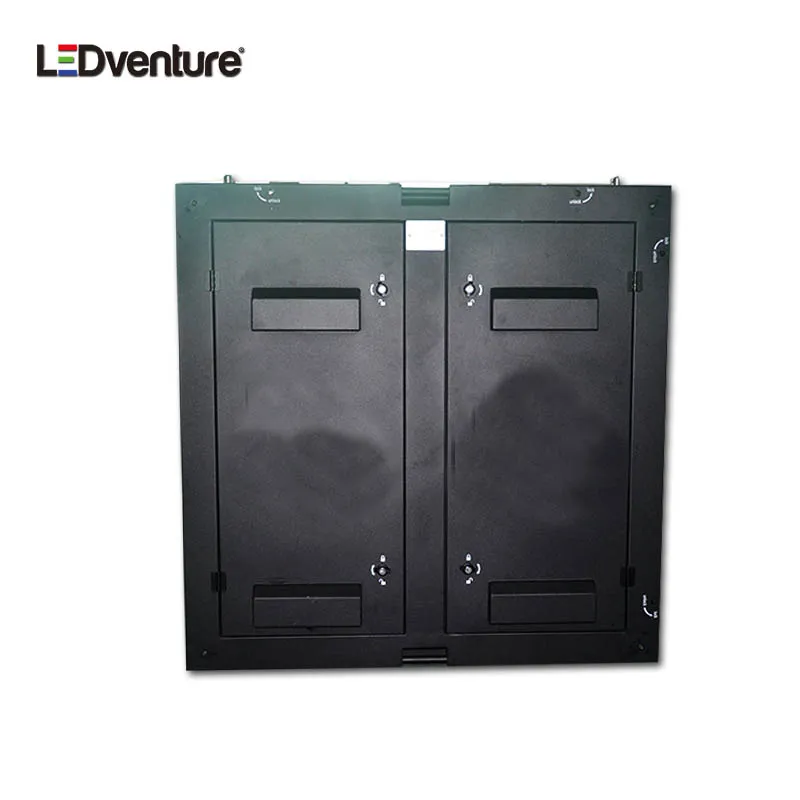

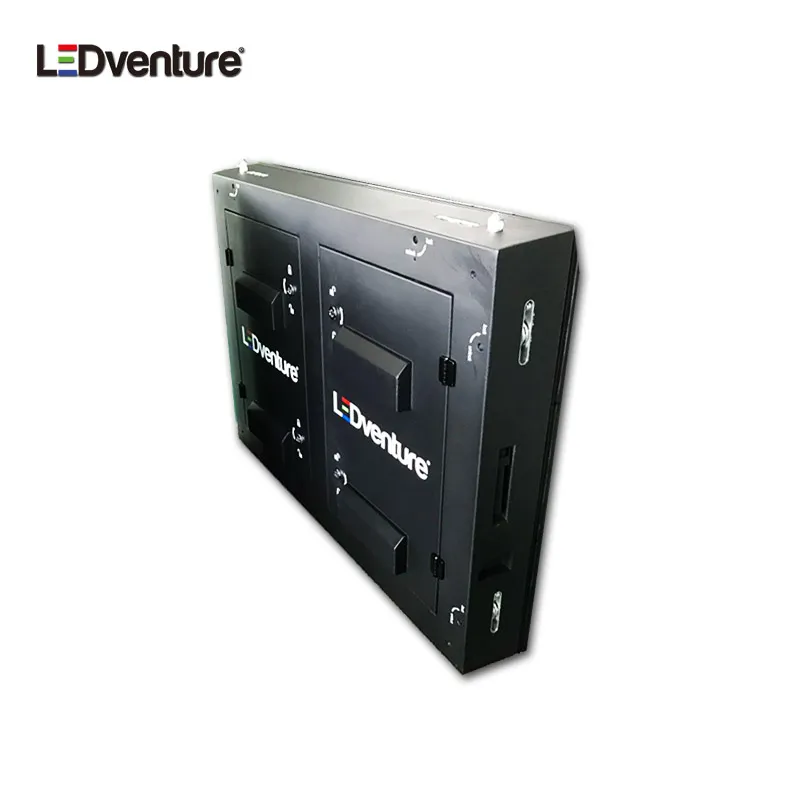

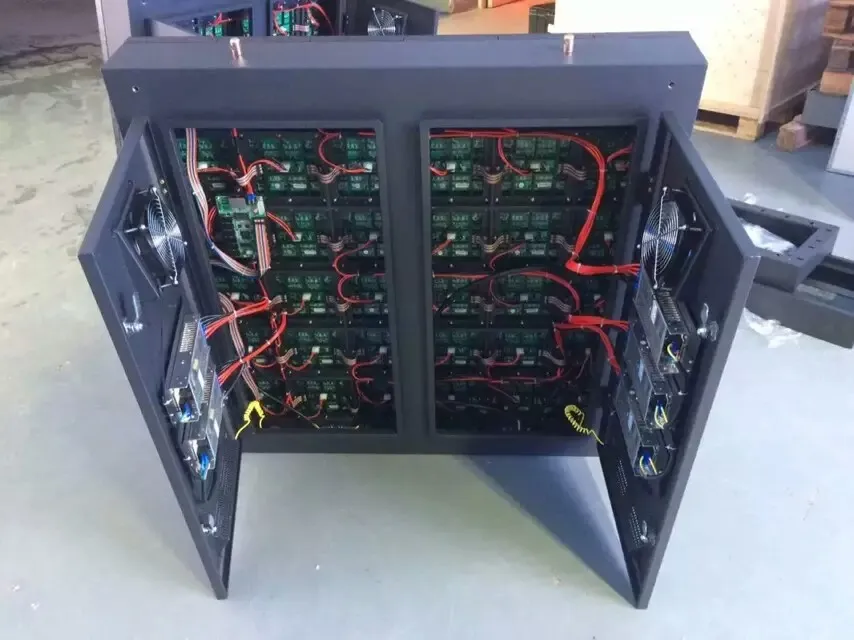

Waterproof UHD 960*960mm P5 Outdoor Advertising Screen with Back Service

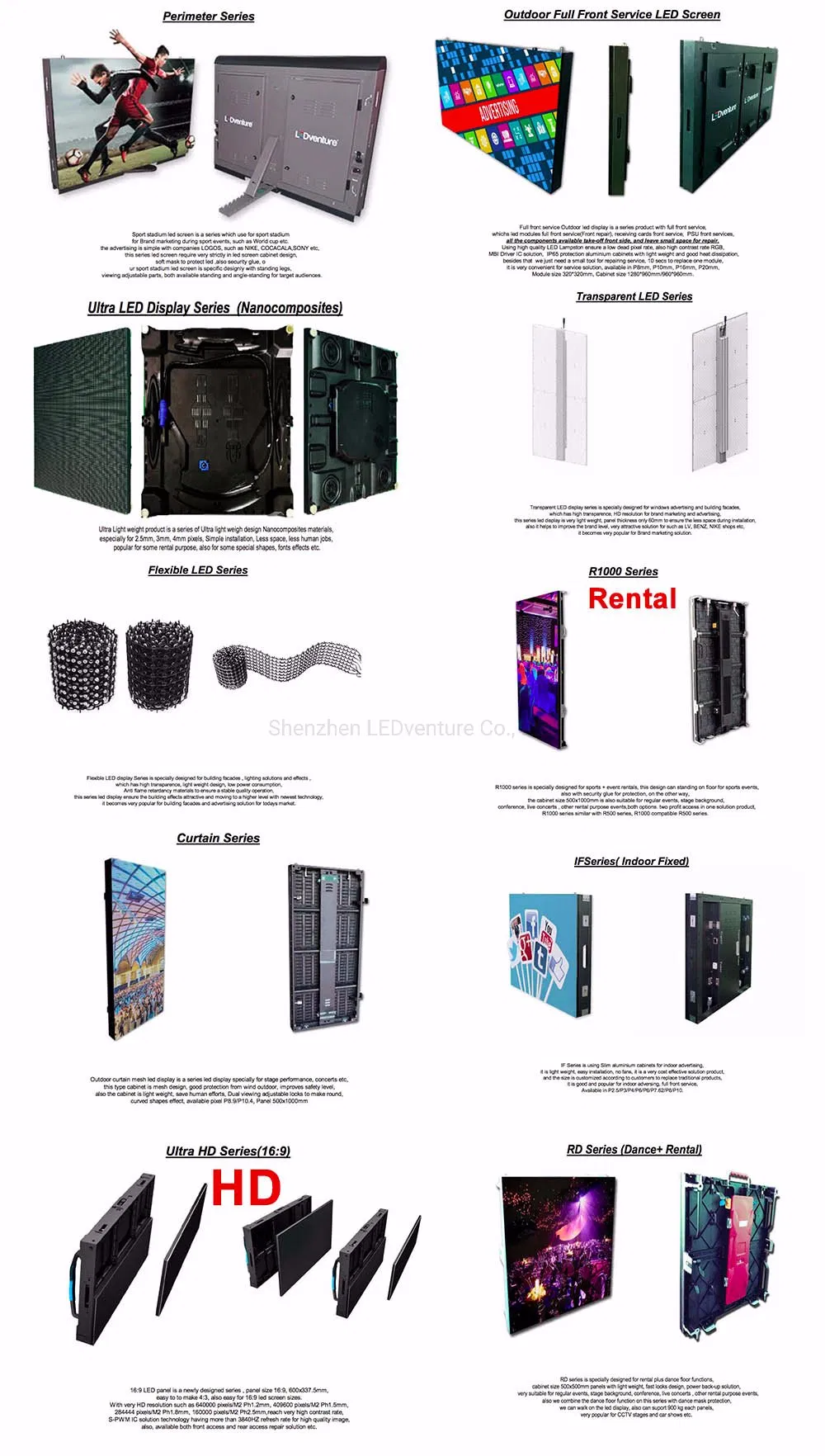

We focus on all kinds of LED display screen manufacturing including indoor/outdoor displays, rental LED displays, flexible screens, transparent displays, dance floor series, HD resolution displays, and stadium perimeter LED billboards.
Main Features:
The Outdoor New Technological Full Color LED Screen Display is a highly cost-effective solution for outdoor media. Featuring a high refresh rate of over 1920Hz (up to 3840Hz), it offers a lightweight cabinet design, top-tier image quality, and high-density resolution. Simple installation makes this series ideal for diverse outdoor media applications.

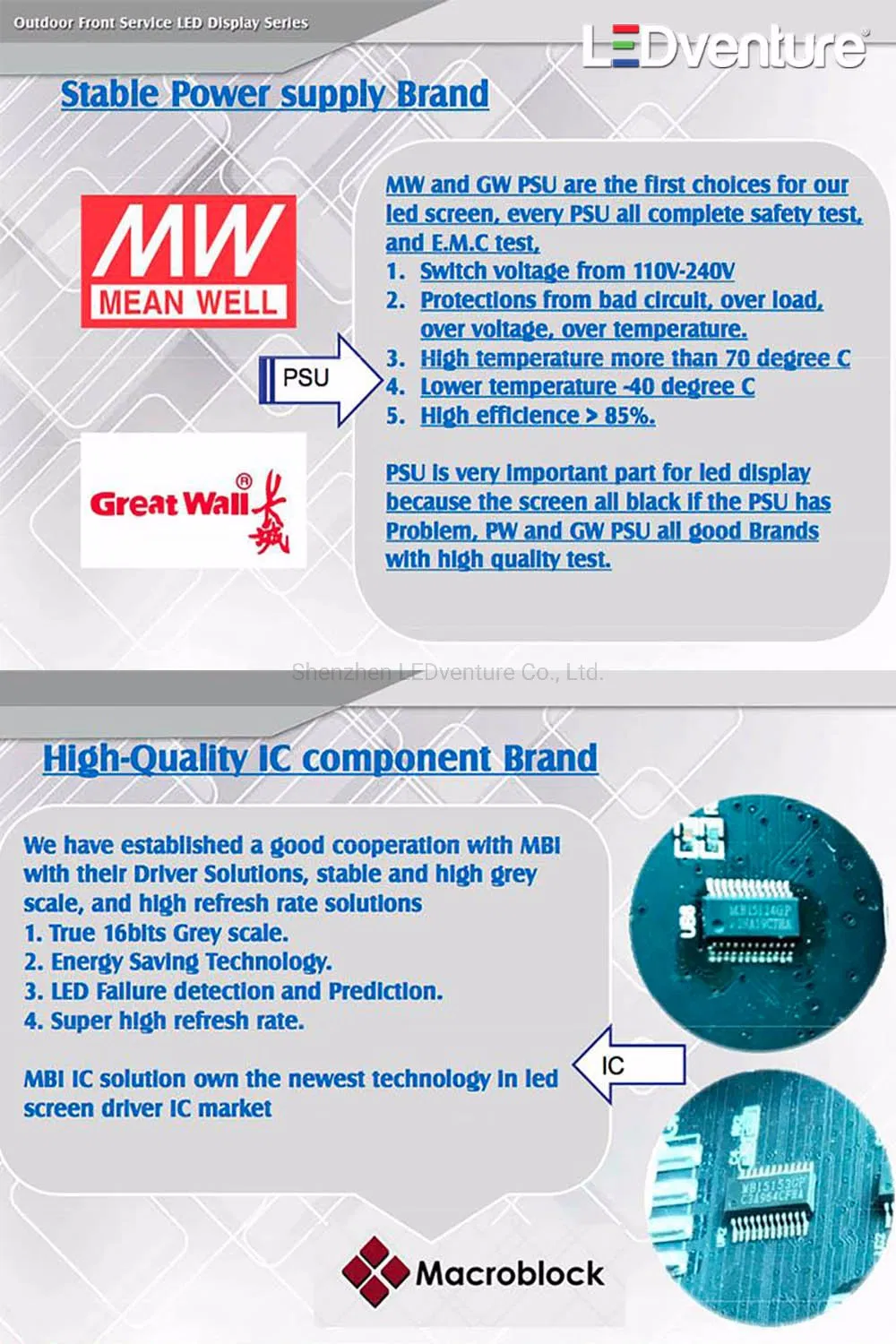

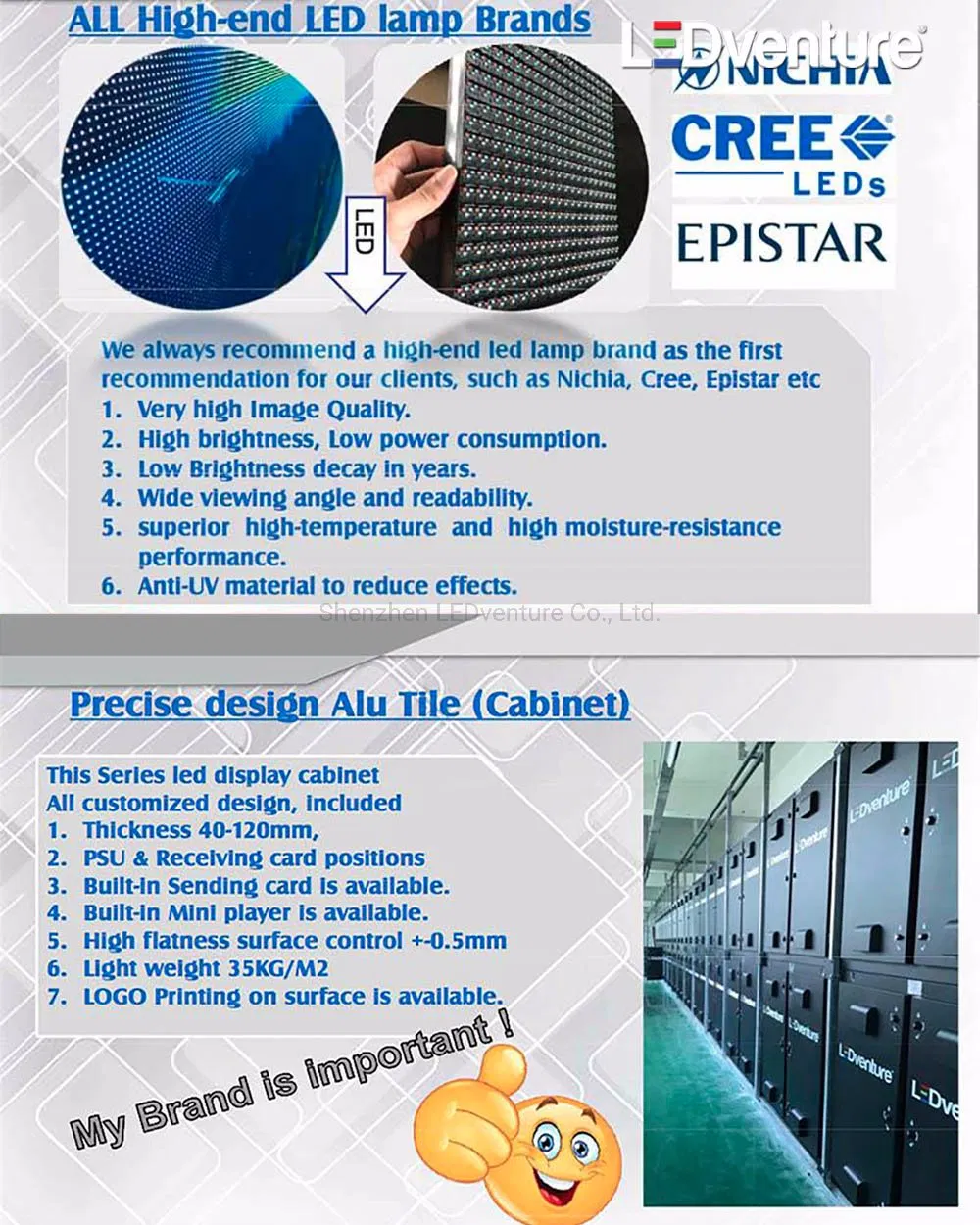

All materials are selected from top-quality levels, including SMD components, IC chips, PCBs, and PSU brands. This ensures high stability, a long lifespan, and significantly lower maintenance costs.

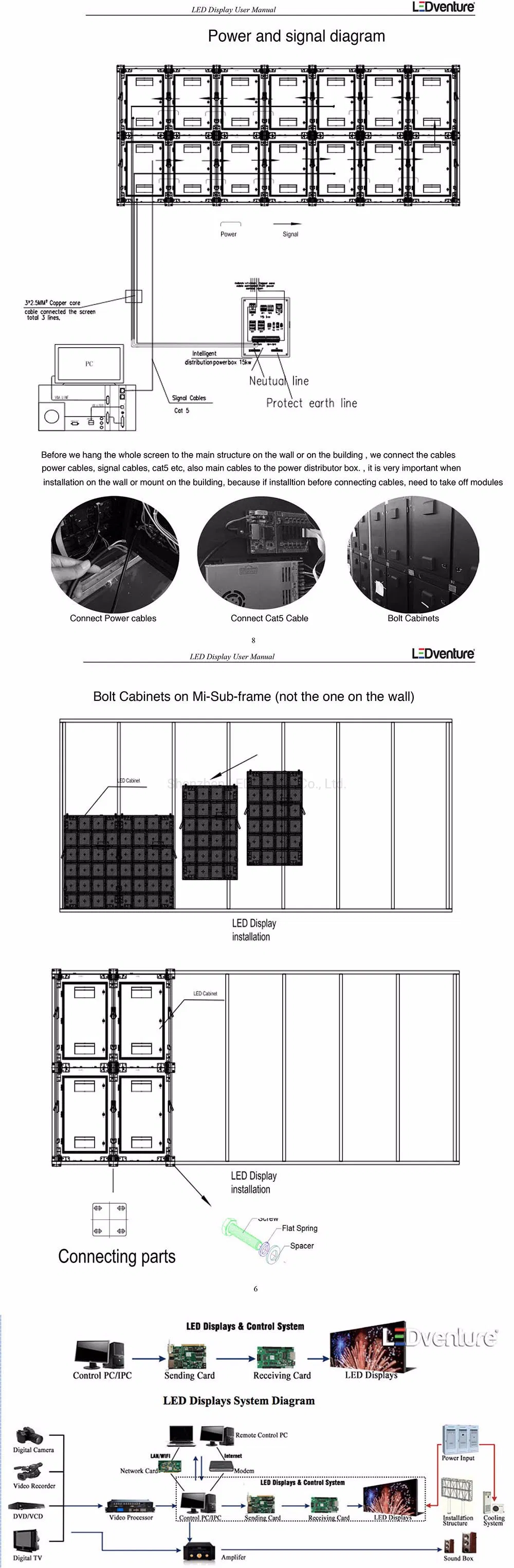

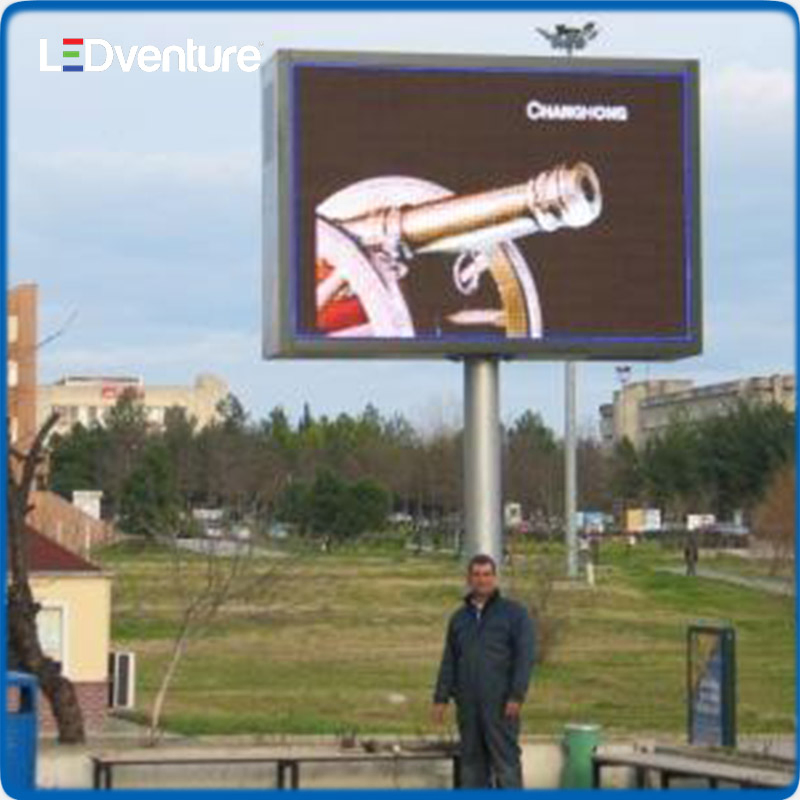

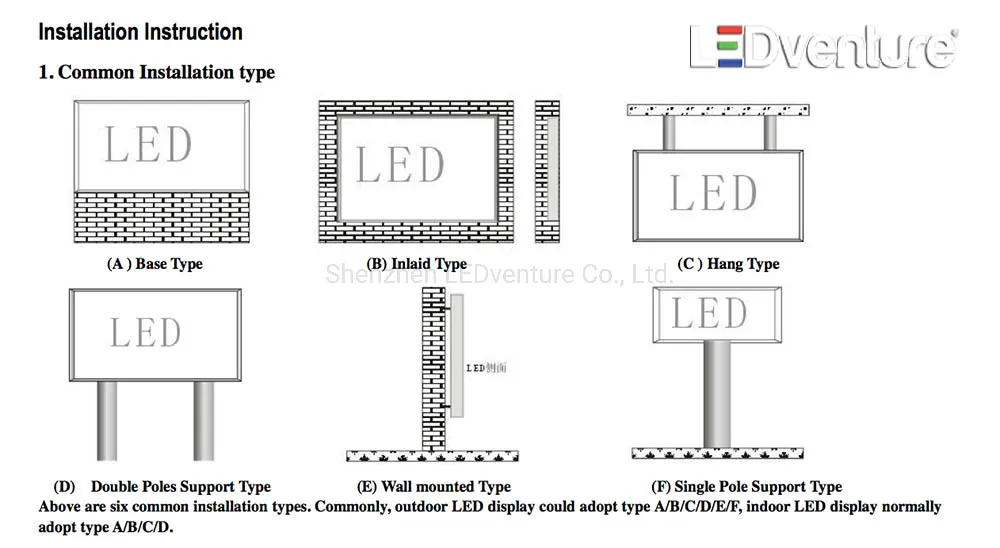

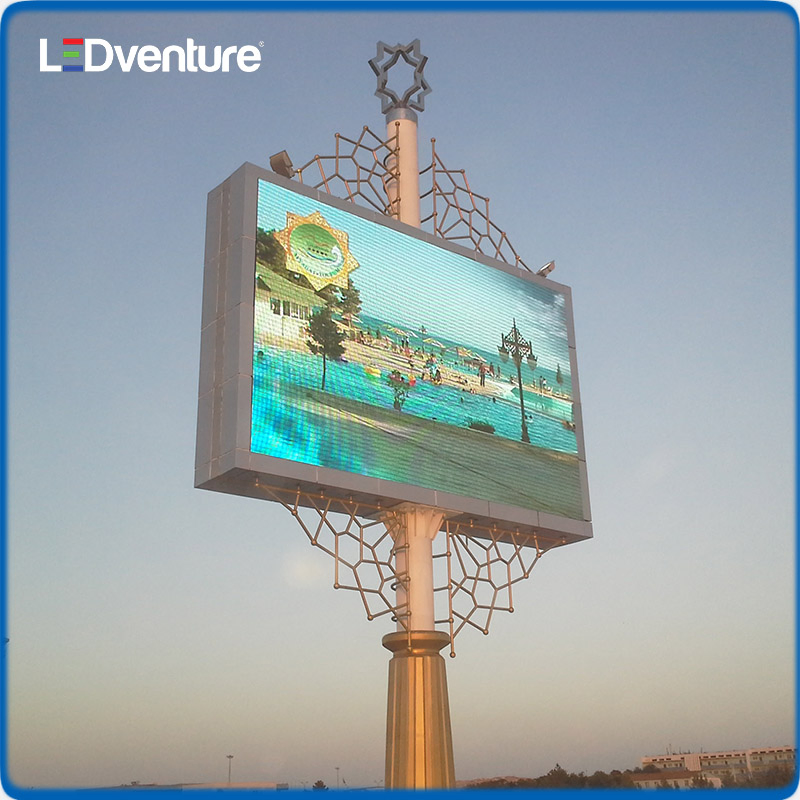

Outdoor LED displays can be fixed on walls, pillars, or standing structures. Full system hardware including sending boxes, processors, and receiving cards are supported.
Products have passed CE, EMC, FCC, and UL security tests to ensure compliance with global market standards and long-term stability.

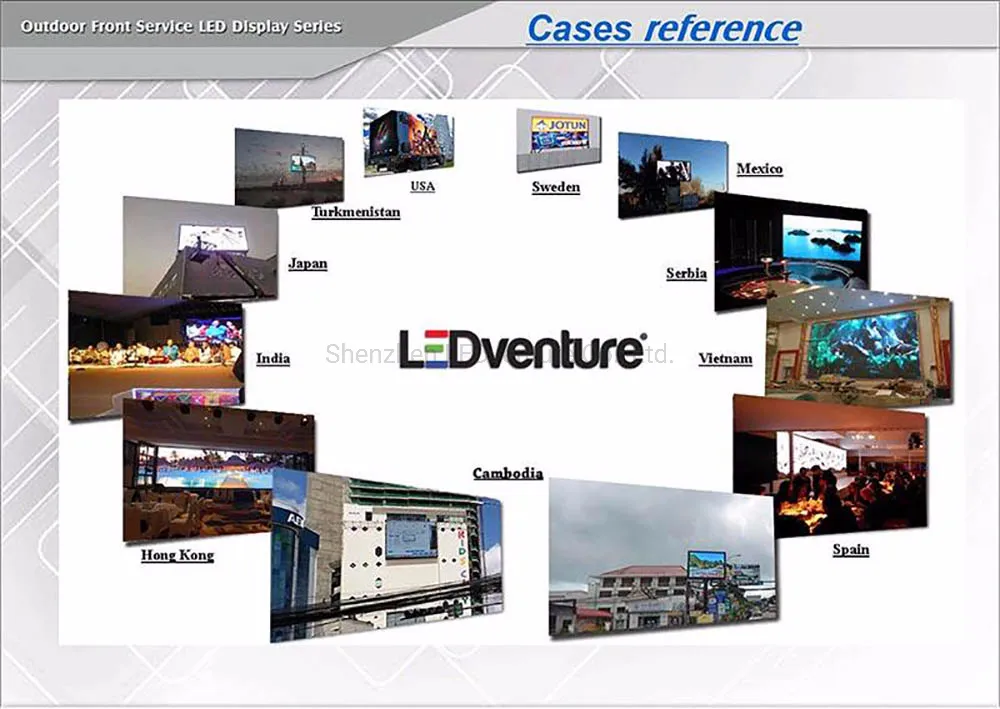

Our displays are exported globally, with a high concentration in Europe, the USA, and Asia, meeting the highest international standards.
