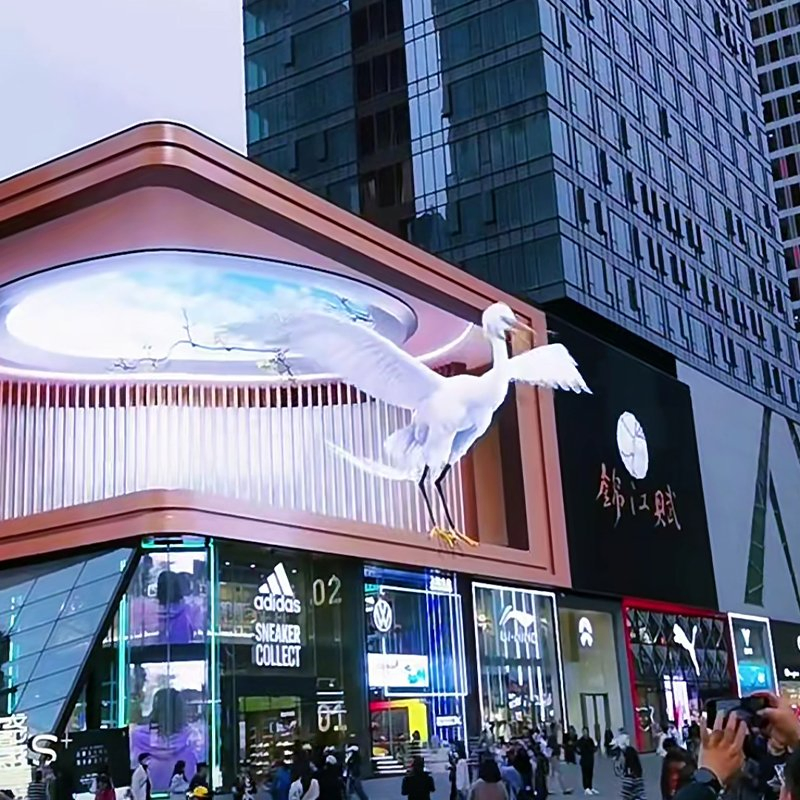

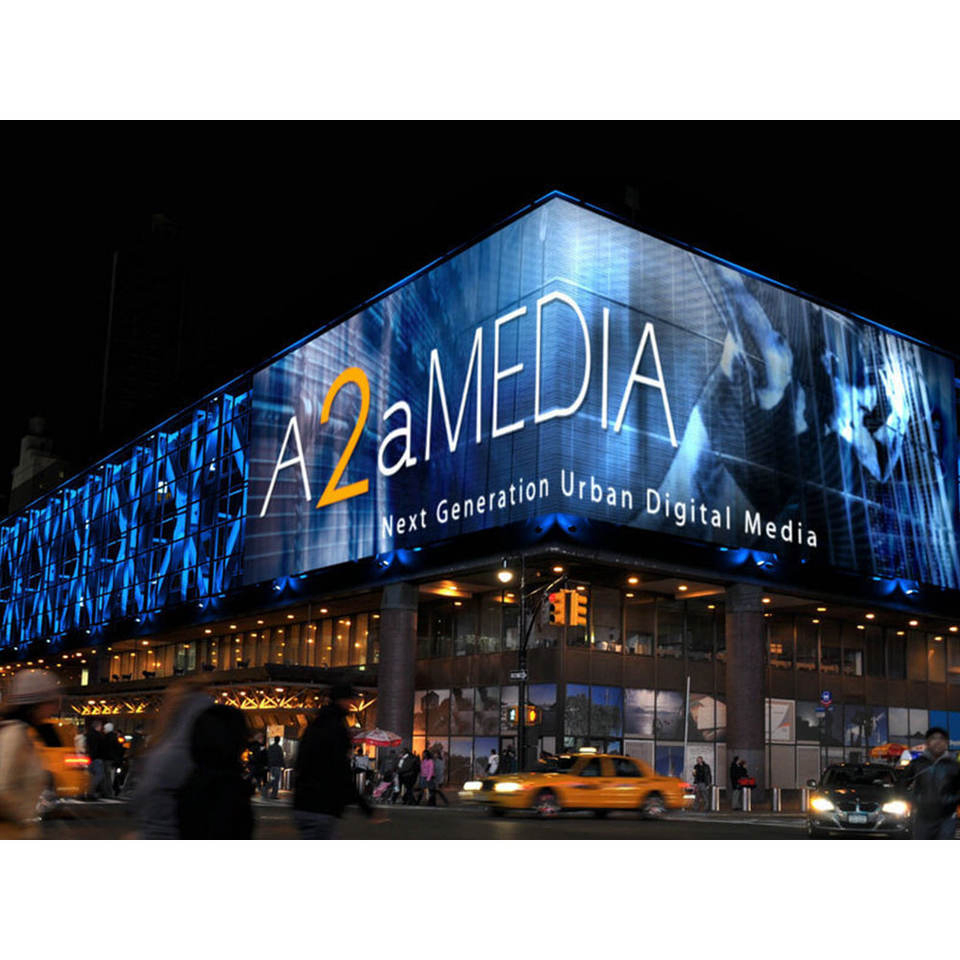

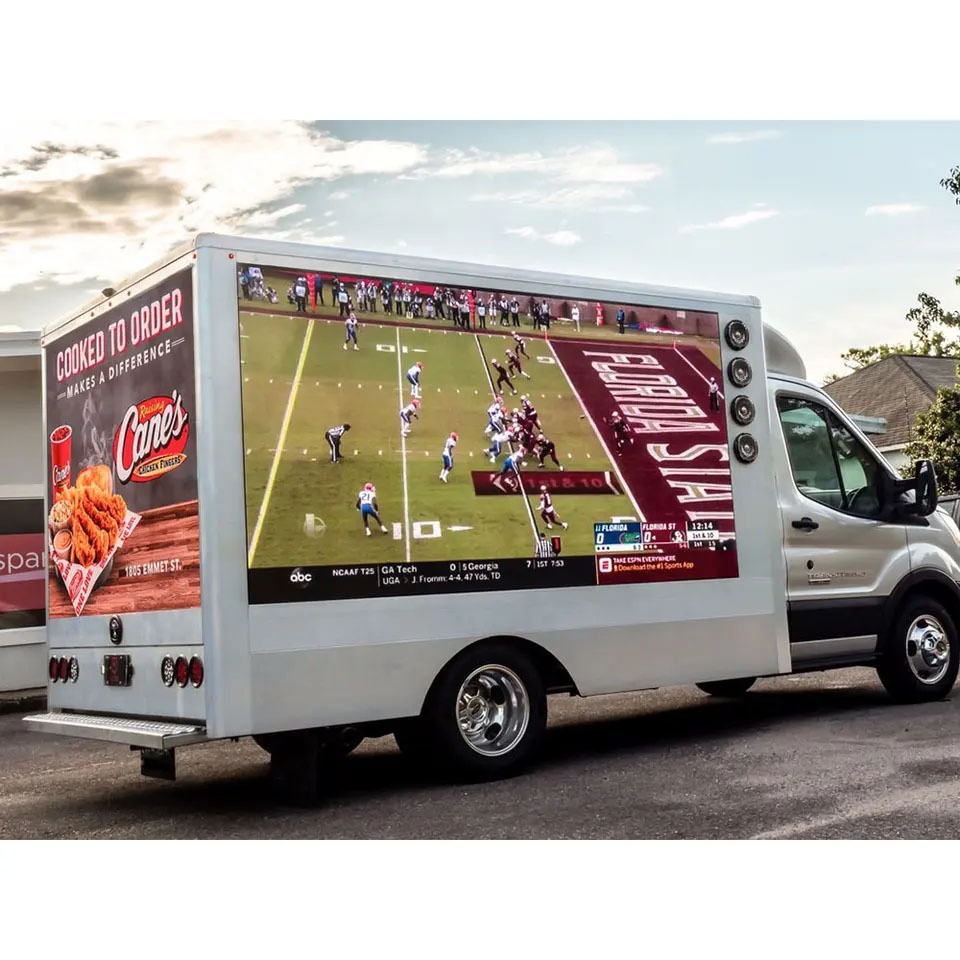

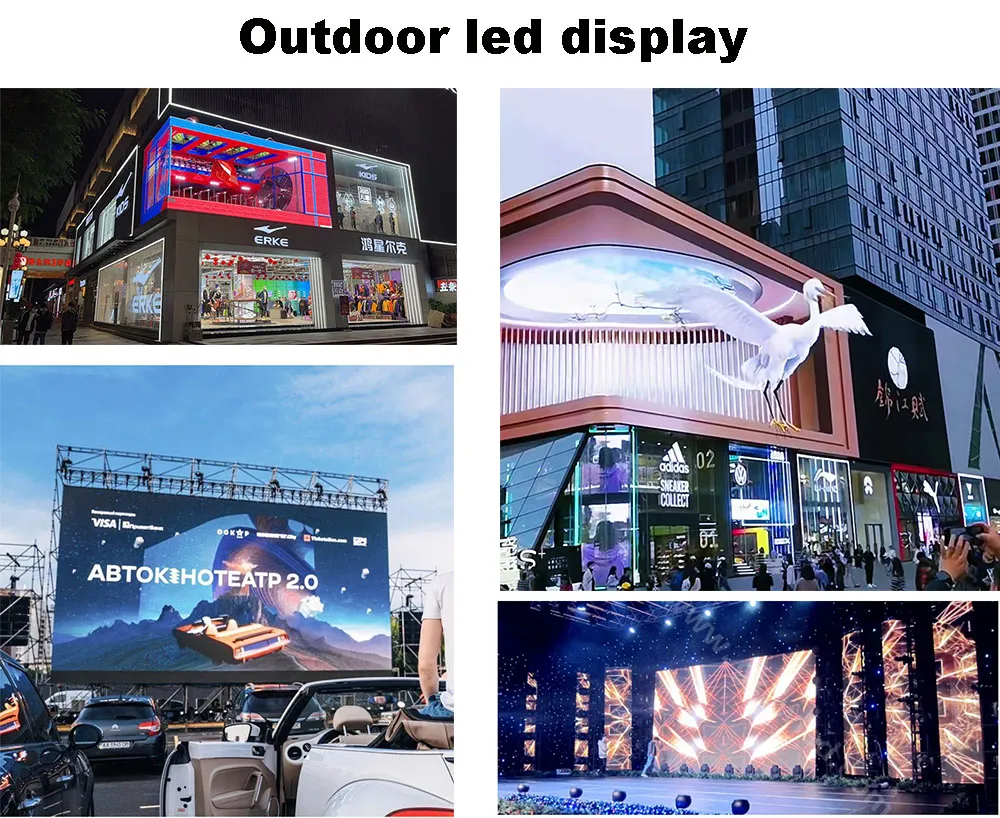

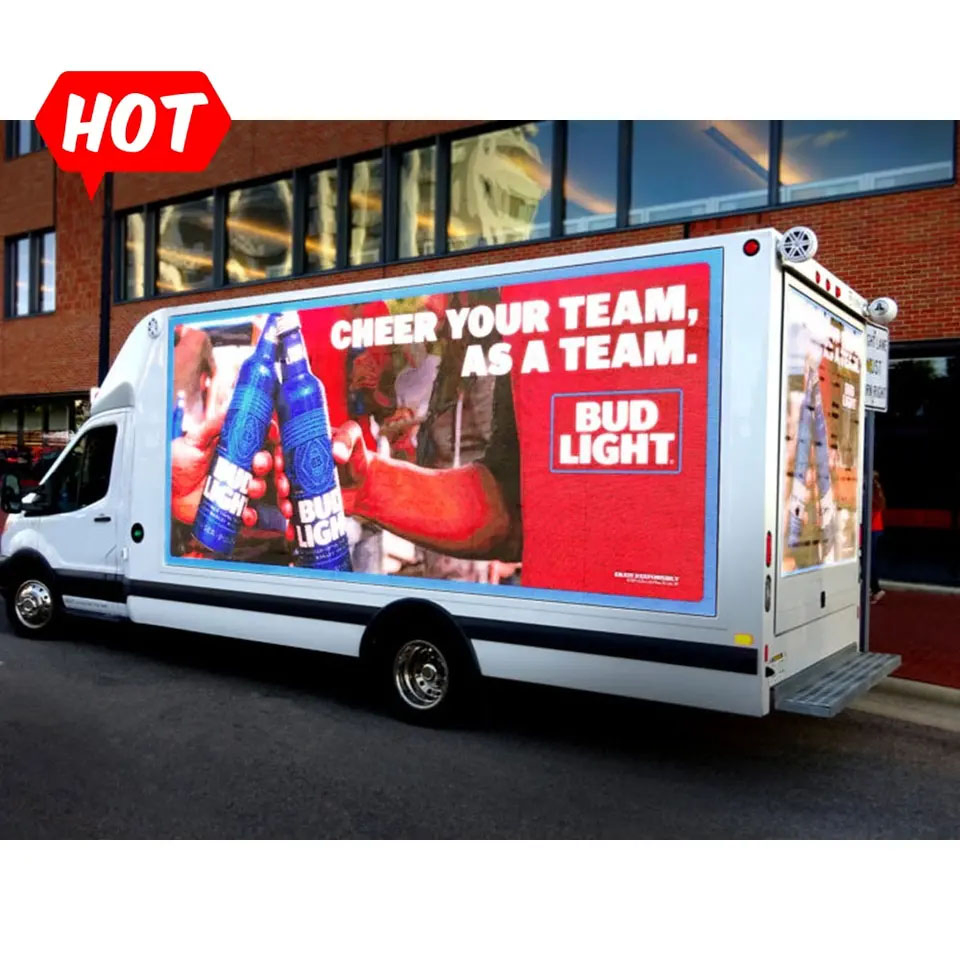

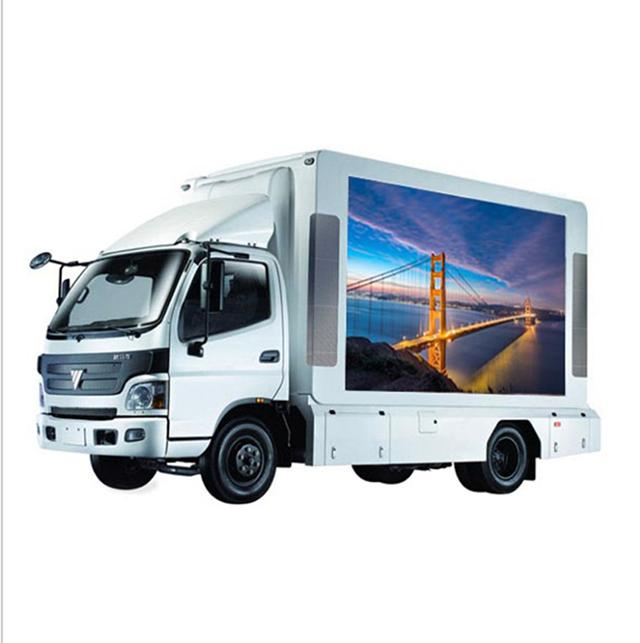

High-performance LED solution designed for outdoor advertising, mobile trailer trucks, and stage backgrounds with superior brightness and refresh rates.
| Basic Specifications | |
|---|---|
| Model NO. | P3.91 |
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R, 1G, 1B |
| Display Function | Video, Image, Text, Stage Display |
| Pixel Density | 65,536 dots/Sqm |
| Scanning Mode | 1/16s |
| Module Size | 250*250mm |

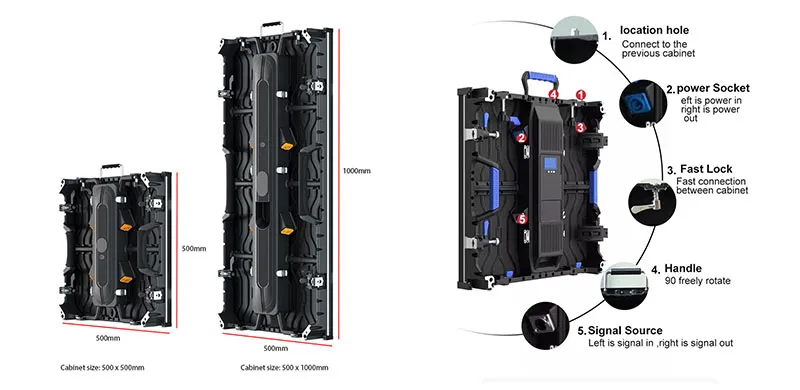

| Cabinet Size | 500*1000mm |
| Brightness | >=5000CD/M2 |
| Refresh Rate | >=3840Hz |
| Protection Grade | IP65 |
| Parameter Item | Module Specifications | Cabinet Specifications |
|---|---|---|

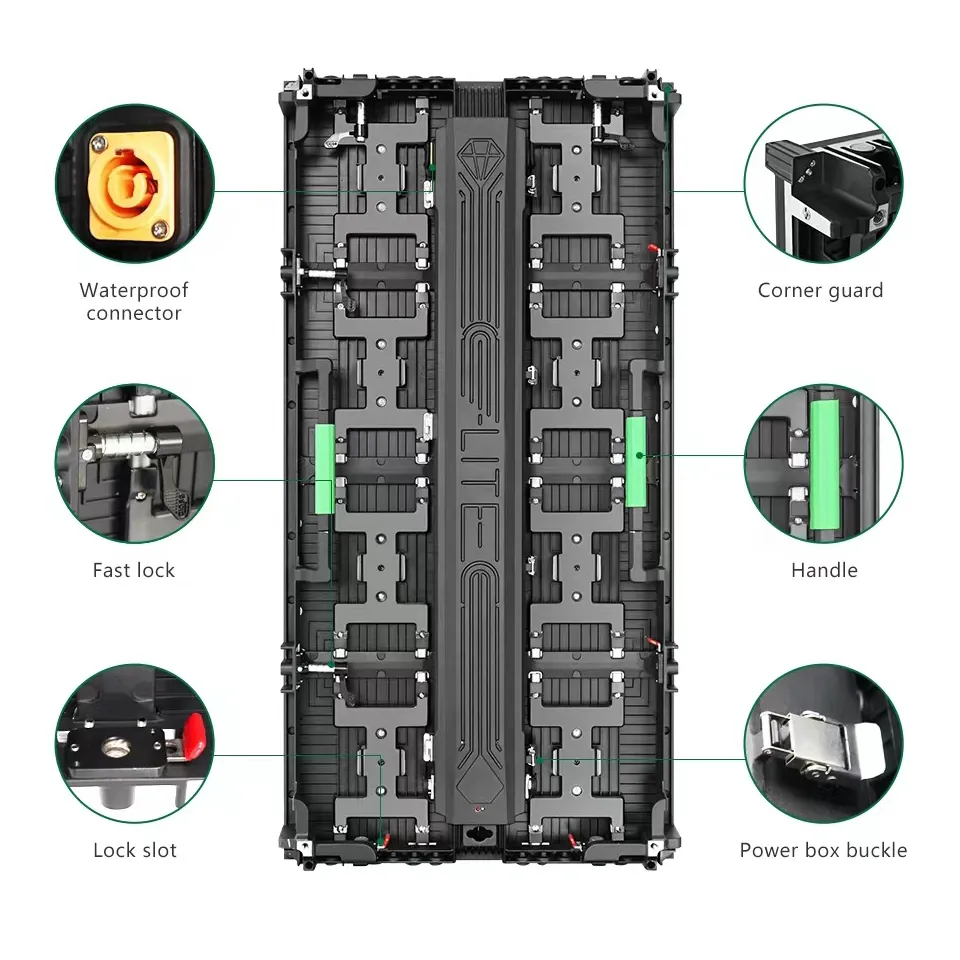

| Type/Size | SMD1921 / 250x250mm | Die-casting Aluminum / 500x1000mm |
| Resolution | 64x64 pixels | 128x256 pixels |
| Weight | - | 15kg |
| Power Supply | - | 5V 40A 200W |
| Gray Level | 16 Bit | |
| Viewing Angle | H: 160°; V: 160° | |
| MTBF | >10,000 hours | |

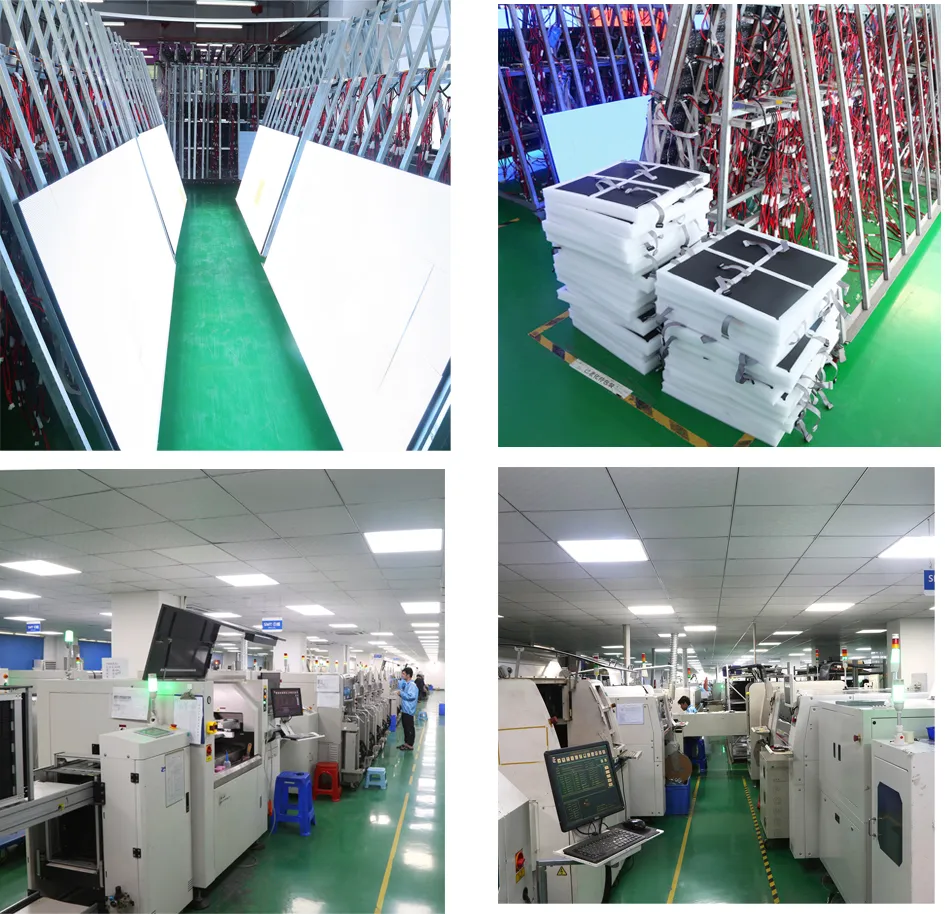

Our facility utilizes advanced SMT machines, fully automated screw machines, and professional aging test rooms to ensure the highest product quality. All products meet CE, RoHS, and CCC standards.
