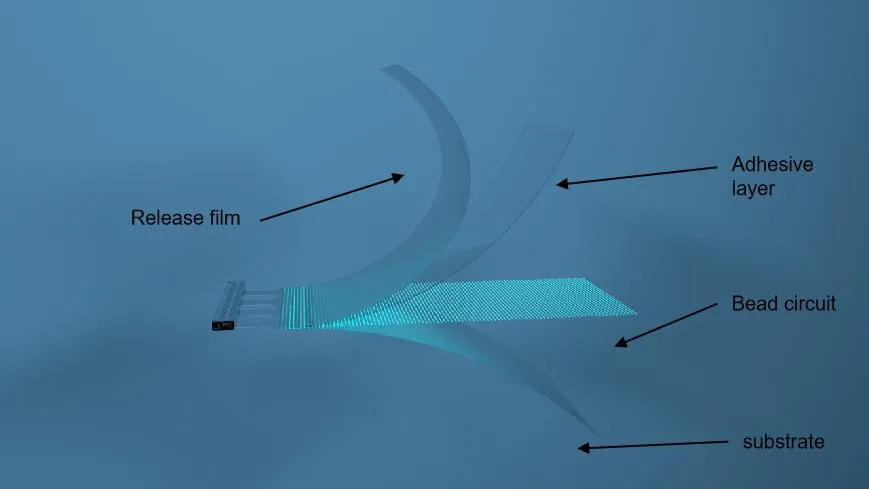

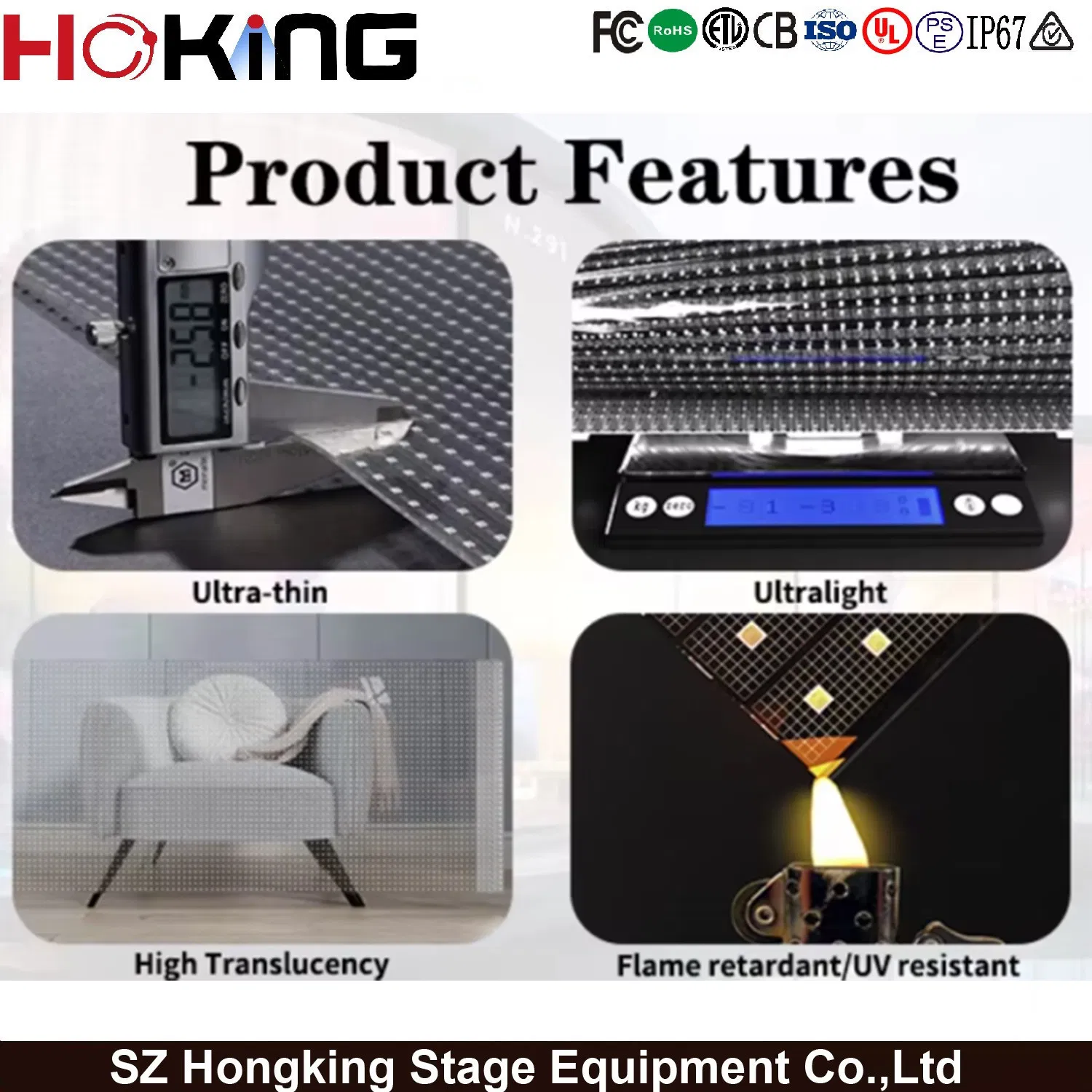

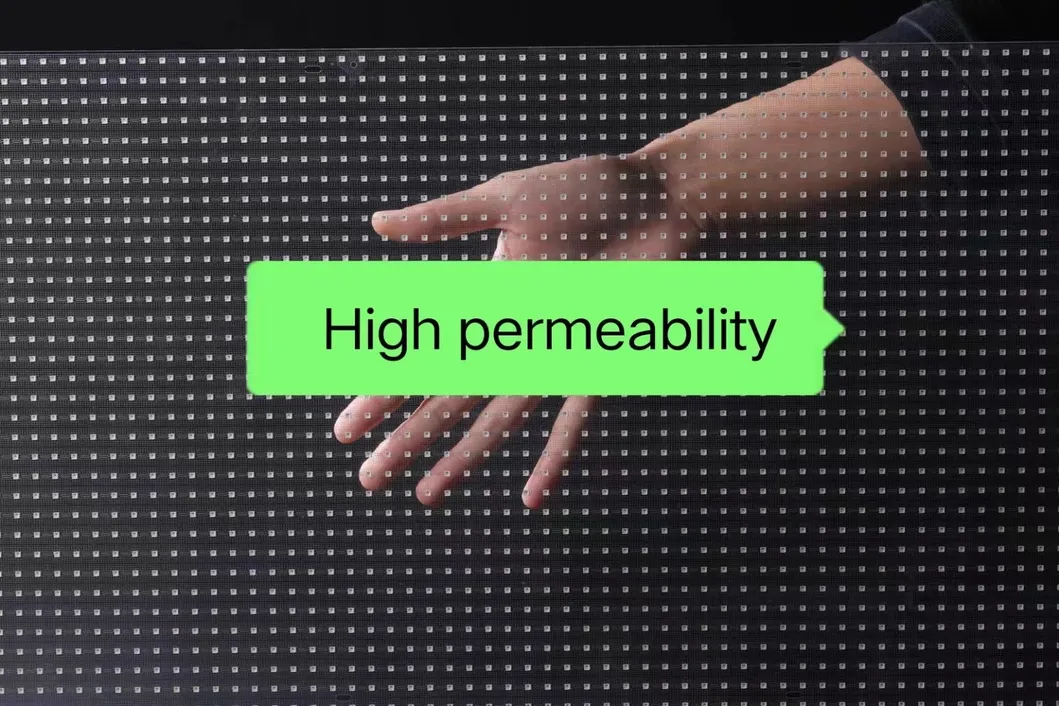

Breakthrough Technology: The transmittance is more than 90% and ultra-thin, which does not affect the glass daylighting. The combination of light and drive, independent research and development, high reliability.
| Product Items | P 6.25 | P8 | P10 | P15 | P20 |
|---|---|---|---|---|---|
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | REE 1921/1515 | REE 1921/1515 | REE 1921/1515 | SMD3535 | REE2121 |
| Pixel Density | 25600 | 16500 | 10000 | 4356 | 2500 |
| Module Size(mm) | 1200x240 | 1200x240 | 1200x240 | 1200x240 | 1200x240 |
| Brightness (CD/m2) | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 |
| Max Consumption | 600 w/m2 | 600 w/m2 | 600 w/m2 | 600 w/m2 | 600 w/m2 |
| Viewing Angle | H: 160°; V: 160° | ||||

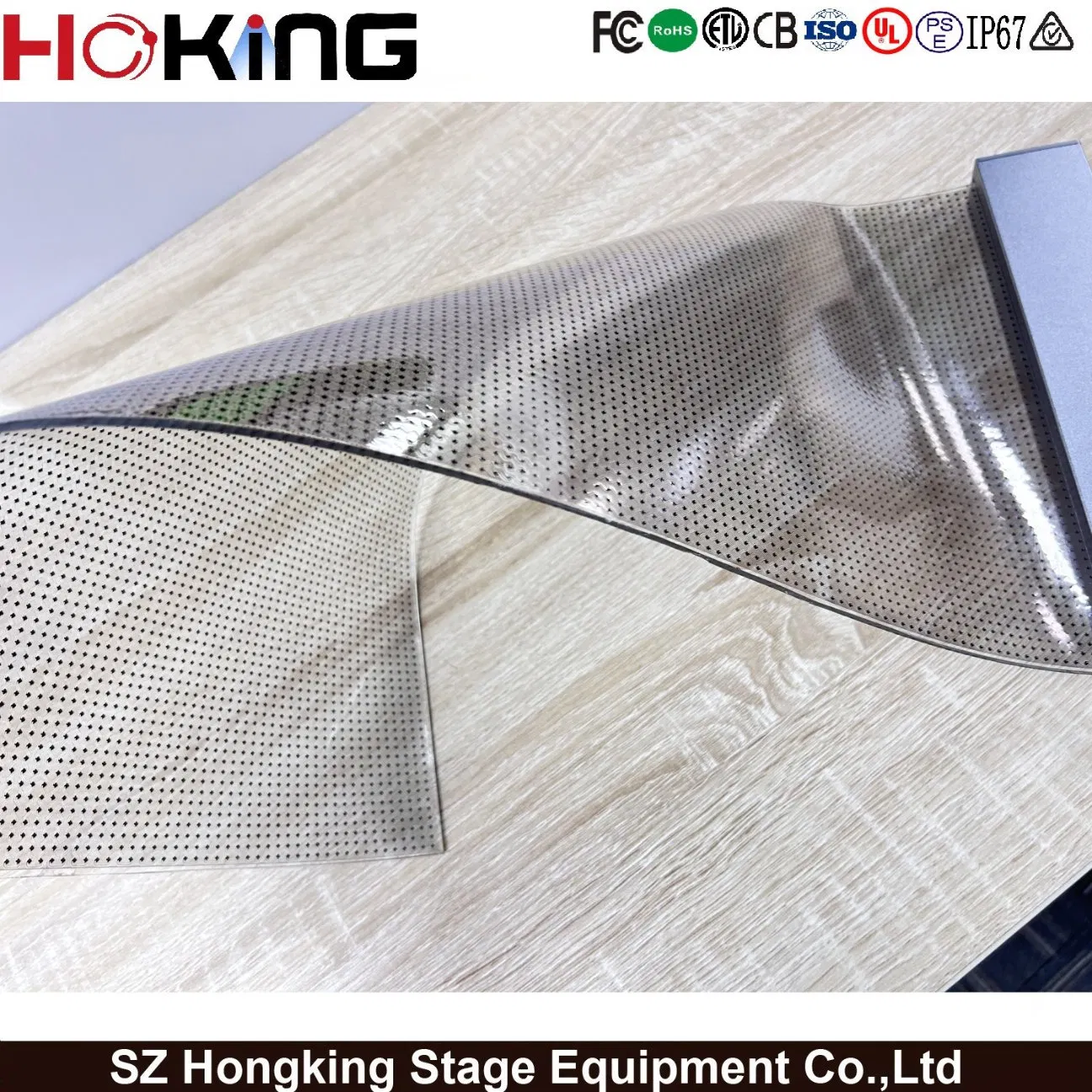

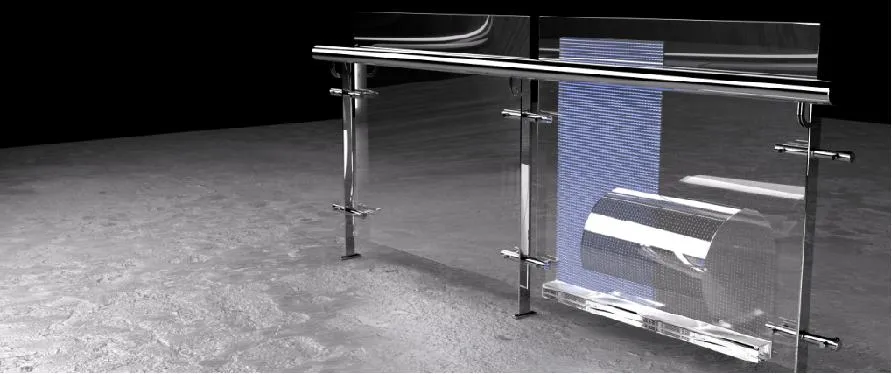

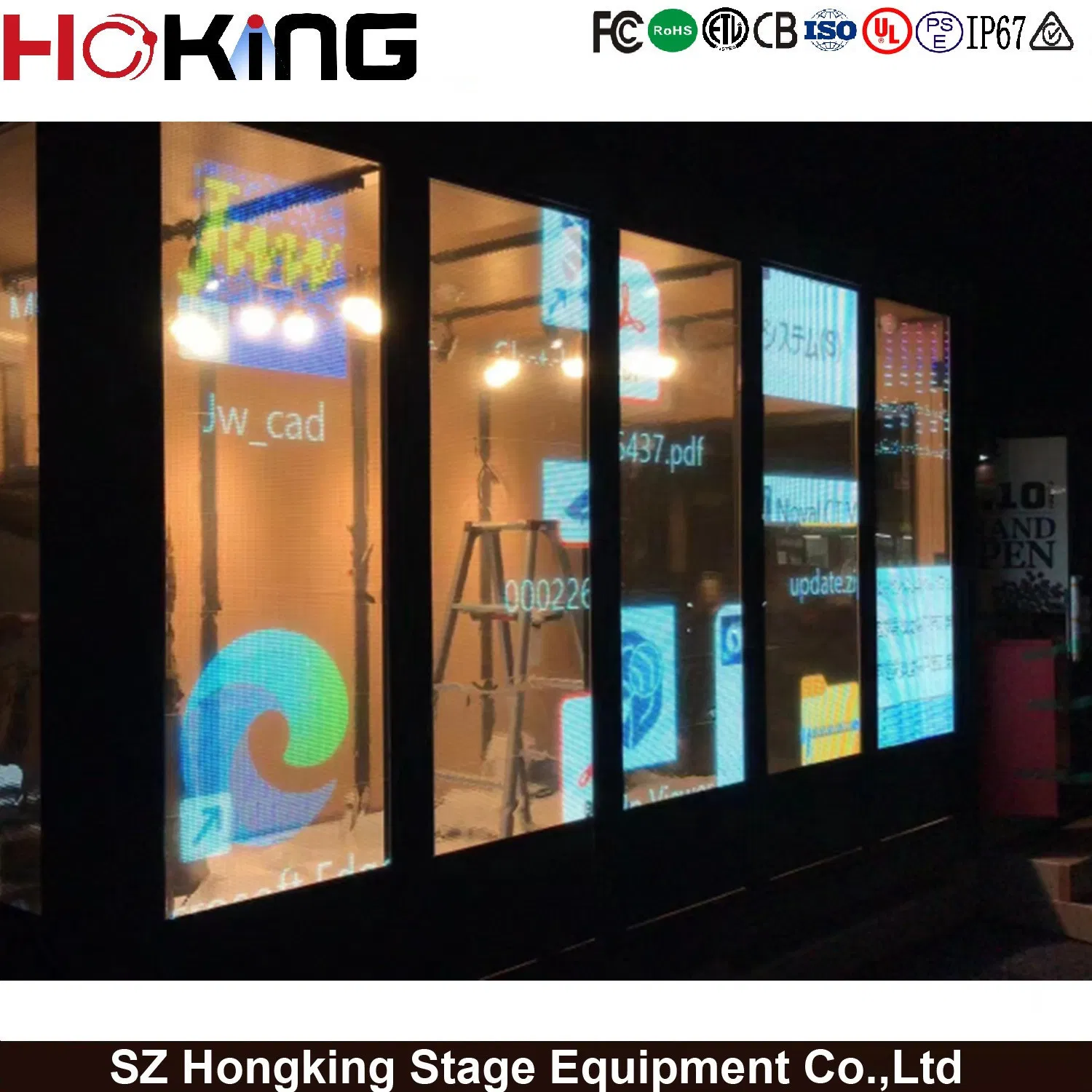

No steel structure is required. Simply stick the thin screen to the glass surface and connect the power signal. The self-developed glue filling process provides strong colloid adsorption that increases over time.

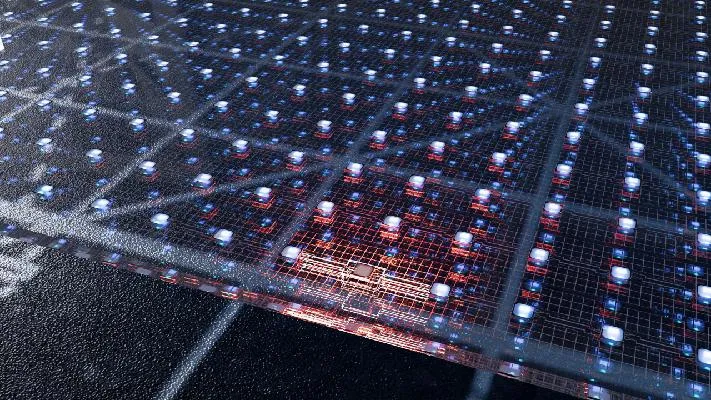

LED lights can be embedded into special glass that conducts electricity without visible wires. This glass meets safety requirements for overhead protection and uses a special coating to transmit power and signals.
