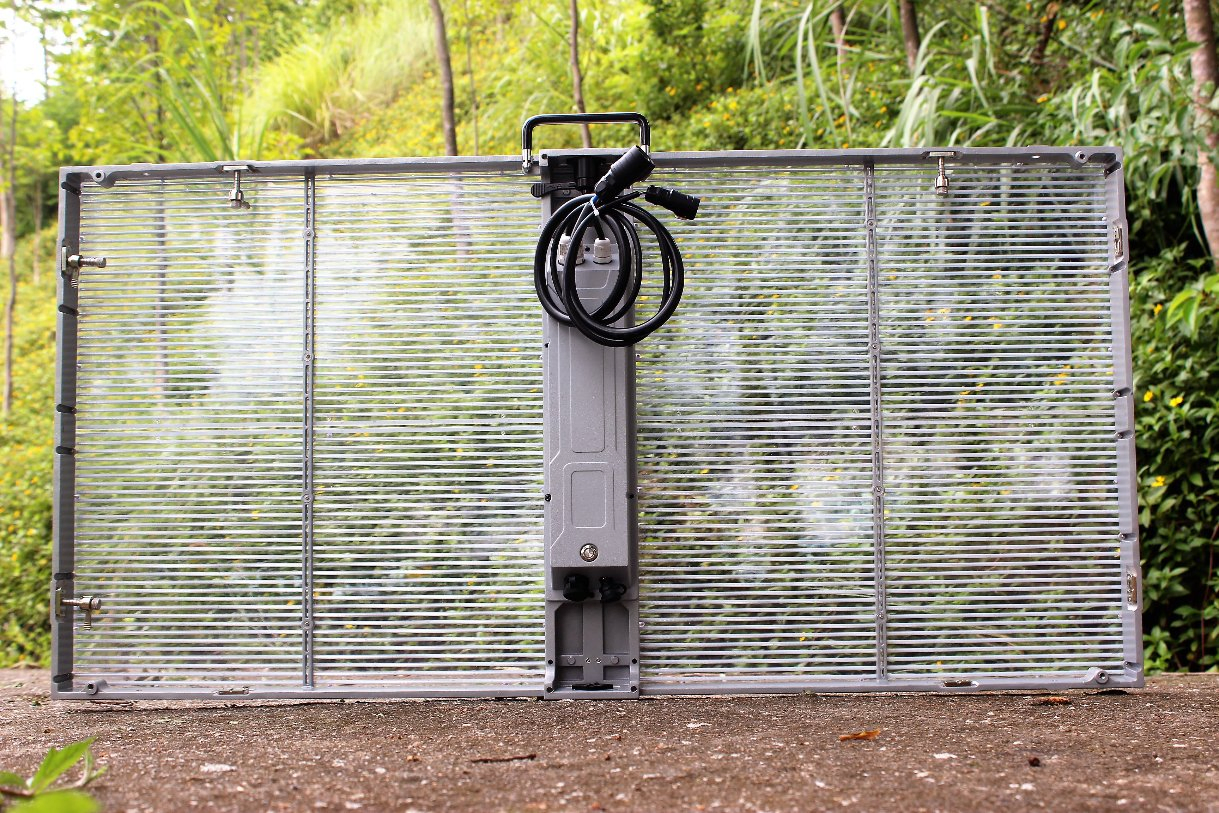

Customizable Outdoor P3.91-7.81mm Transparent Glass Display LED Wall

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
TS-3.96
Pixel Pitch
H3.96/V7.81mm
Pixel Configuration
1R,1G,1B
Pixel Density
32256 DOT/M2
Scanning Mode
1/7 Scan
Display Type
LED Video Display
Application
Advertising
IP Rating
IP30
Certification
CE, FCC
Cabinet Material
Die Cast Aluminum
Module Size
500*125 mm
Brightness
4000 CD/Sqm
LED
Nationstar SMD1921

Product Applications

01
High brightness (4000 nits) designed specifically for indoor installation.
02
Perfect for storefront windows facing streets or high-traffic passages.
03
Transparent design with up to 70% light transmittance; does not block the view behind the screen.
04
Supports pixel pitch H3.96/V7.81mm for balanced resolution and transparency.

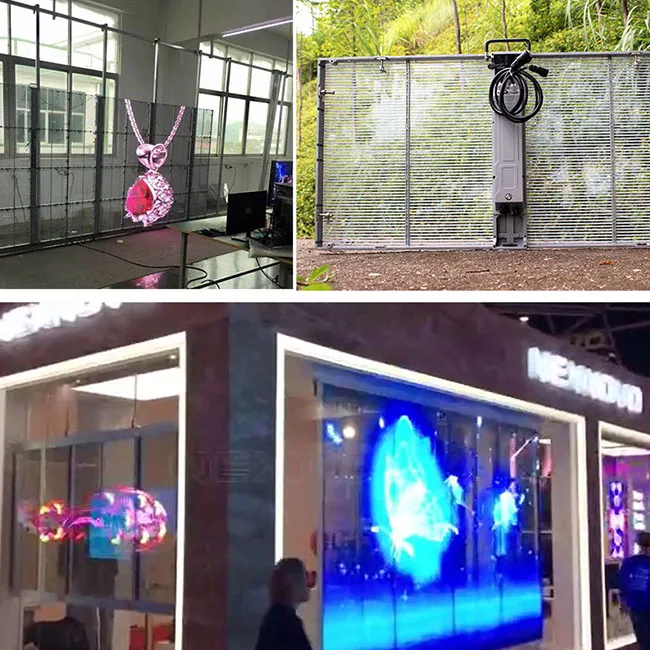

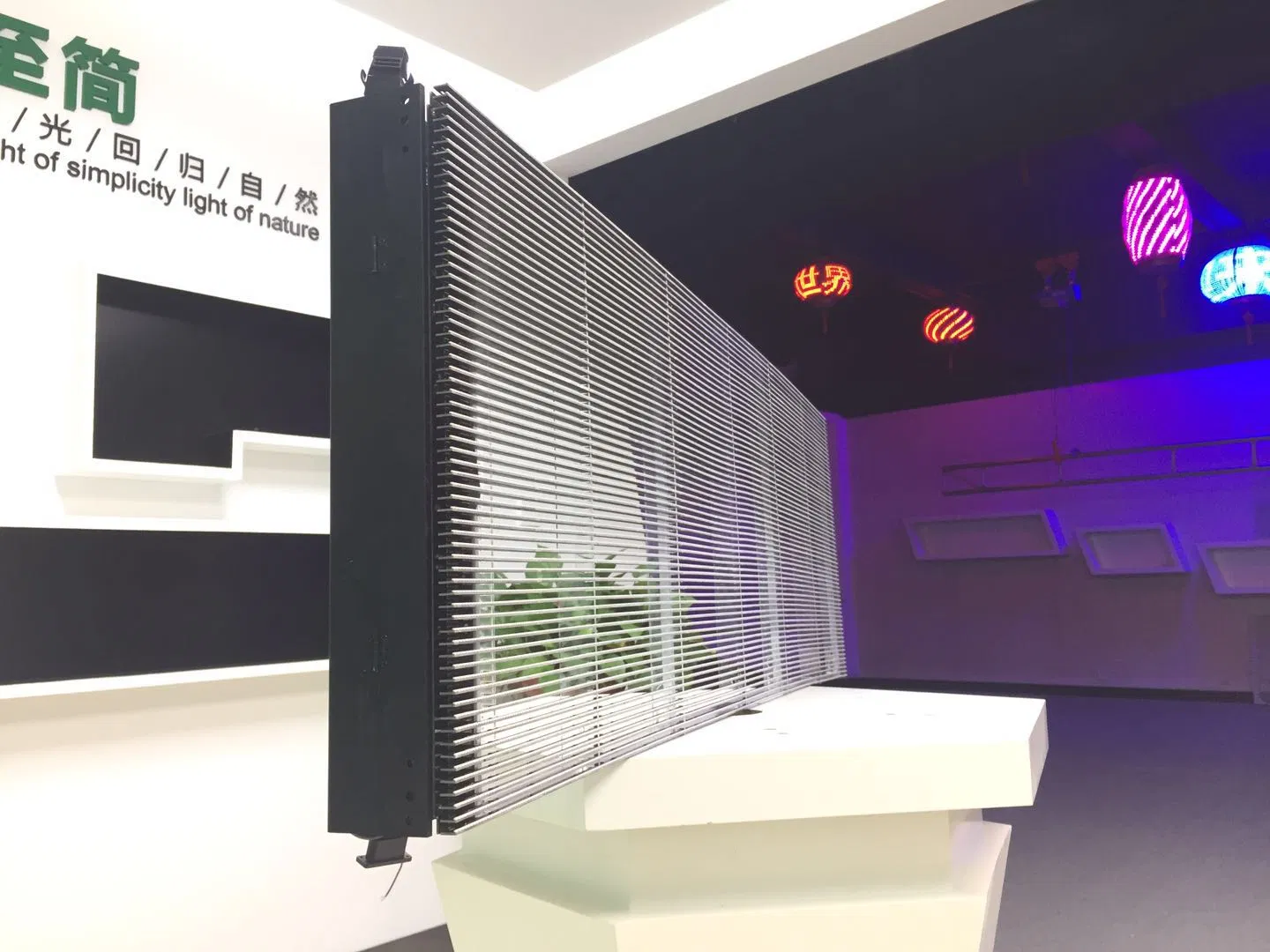

Transparent LED Display

Technical Parameters

LED Chip Parameters (NationStar SMD1921)
Item Brand Luminous Intensity Wavelength
Red LED Chip Epistar 450 mcd 622 nm
Green LED Chip Epistar 730 mcd 522 nm
Blue LED Chip Epistar 105 mcd 472 nm
Screen Working Parameters
Pixel Density32256 dots/sqm
Brightness4000 mcd/sqm
Transmittance>75%
Viewing AngleH 140°, V 140°
Refresh Rate>1920 Hz
Grey Scale16 bit
Input VoltageAC 86-264V/60Hz
Life Span≥100,000 hours

Packaging & Factory Quality

Aging test and Grayscale test performed for every module.
High technology automatic machinery and skillful workers with over 6 years experience.

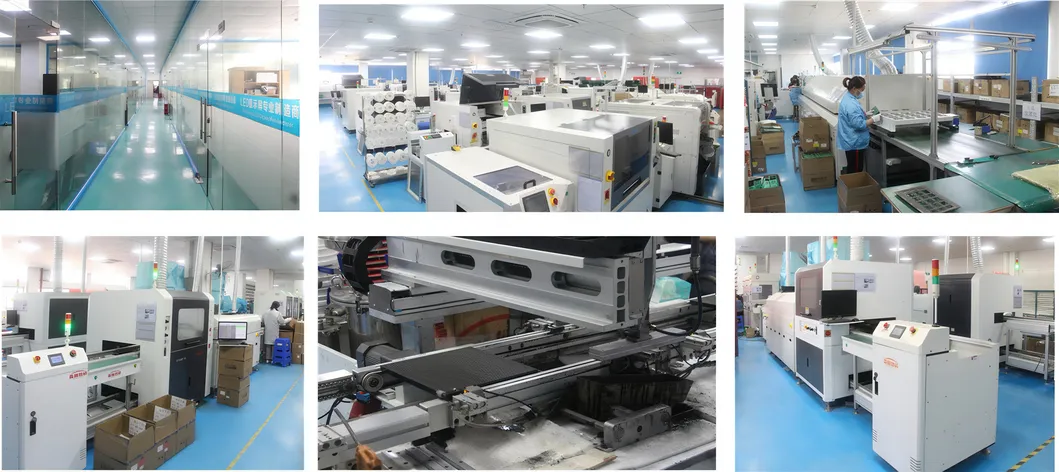

Factory Overview
Delivery Preparation

Service & Logistics

Warranty
Two years warranty
Support
24 hours online lifetime support
Production Time
Approx. 25 days (incl. aging test)
Payment Terms
T/T, 30% advance, 70% before shipping
Trade Terms
EXW, FOB, CIF, DDU, DDP

Frequently Asked Questions

Can this transparent LED screen be installed outdoors?
No, this specific model has an IP30 rating and 4000 nits brightness, making it suitable for indoor installation only, typically behind store windows.
What is the transparency level of this display?
The light transmittance reaches over 70-75%, ensuring that objects behind the screen remain visible while content is displayed.
What is the difference between H3.96 and V7.81?
This refers to the pixel pitch: the horizontal distance between LEDs is 3.96mm, and the vertical distance is 7.81mm.
What kind of packaging is provided for shipping?

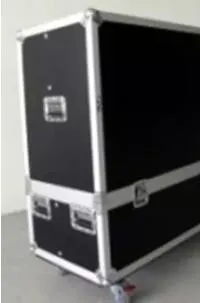

We provide either Plywood cases for fixed installations or Flight cases for rental and movable applications to ensure safe transport.
How long is the expected lifespan of the LED screen?
The display is designed for long-term use with a life span of ≥100,000 hours.
What control system is used?
The screen supports synchronized control with a computer monitor via DVI/VGA, compatible with WIN XP platforms and supports various input formats like AVI, JPEG, and MOV.
