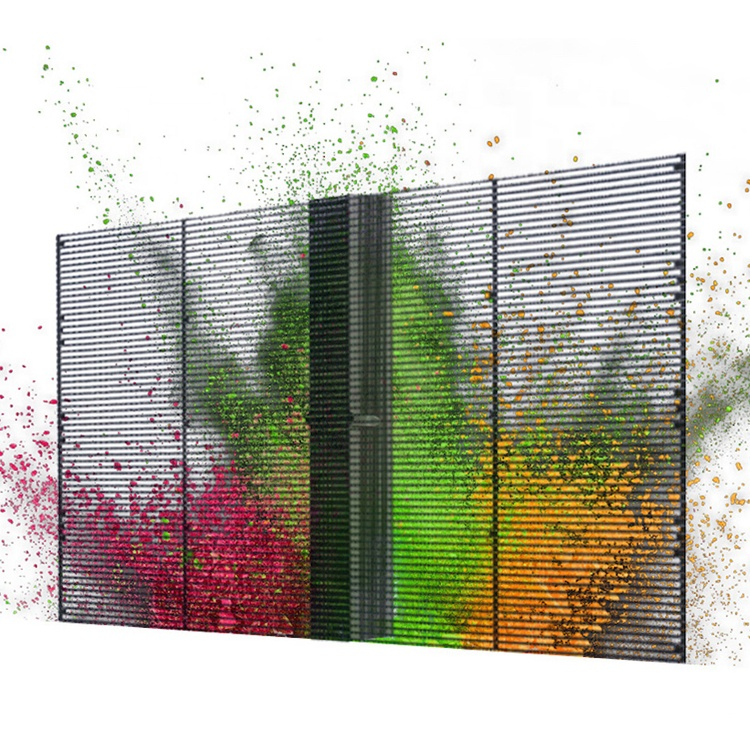

High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
1 / 5
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall

High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:P7.8
IP Rating:IP20
Pixel Pitch:7.8 mm
Pixel Configuration:1R, 1G, 1B
Pixel Density:32,768 dots/m²
Scanning Mode:1/8 Scan
Brightness:1000-5000 CD (Customizable)
Weight:12 Kg/Sqm
Transparency:More than 45%
Cabinet Material:Aluminum
Control System:Novastar / 3G / WiFi
LED Lamp:Nation Star
HS Code:8528591090
Production Capacity:5000 sqm/Week
Key Features
1Front and back service design to meet diverse installation needs.
2High transparency rate (up to 60%) for excellent light transmission and wind performance.
3Modular design reduces shipping costs and ensures easy installation.
4Ultra-lightweight (7kg/m²) and slim stable structure with brightness up to 5000CD.
High Brightness Transparent LED Screen
Detailed Specifications
Type Name TR P3.91-7.81 TRP7.8-7.8 TRP5.2-10.42 TRP10.42-10.42
Pixel Pitch 3.91-7.81mm 7.8-7.8mm 5.2-10.42mm 10.42-10.42mm
Pixel density (dot/m²) 32768 16384 18432 9216
Brightness (nits) 1000-5500 CD 1000-5000 CD 1000-5500 CD 1000-5500 CD
Transparency rate 45% 65% 75% 85%
Refresh rate (HZ) 3840
Maintenance mode Front and Back service
Cabinet size (mm) 1000mm x 500mm or 1000mm x 1000mm
Cabinet weight 10kg/pc (1000x1000mm) or 6kg/pc (1000x500mm)
Life Time > 50,000 Hours

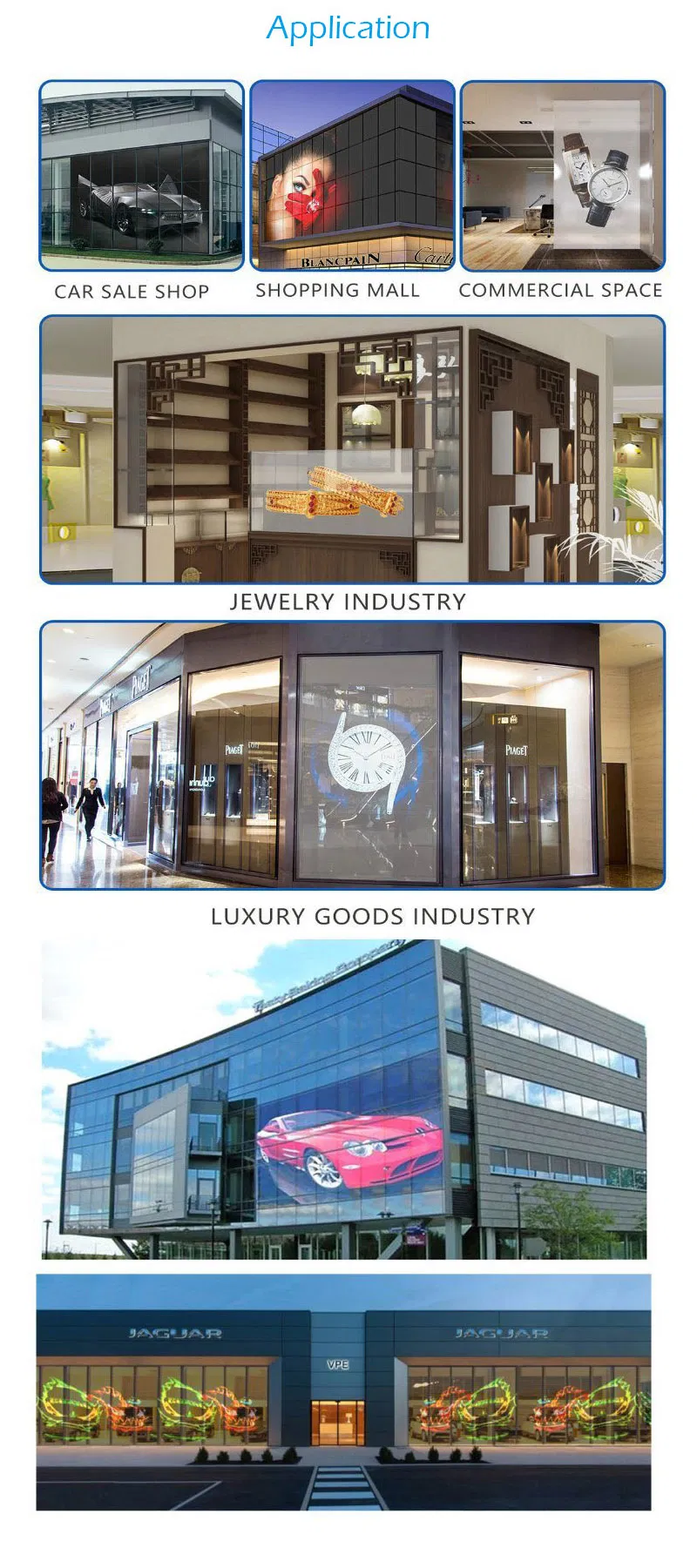

Wide Application

Transparent LED screens are widely utilized in outdoor billboards, office glass walls, exhibition halls, stage backgrounds, shopping malls, and airports.

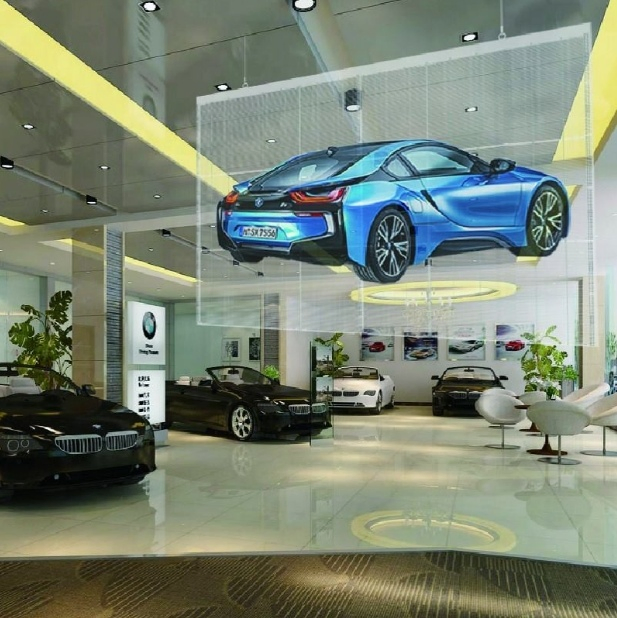

Application View

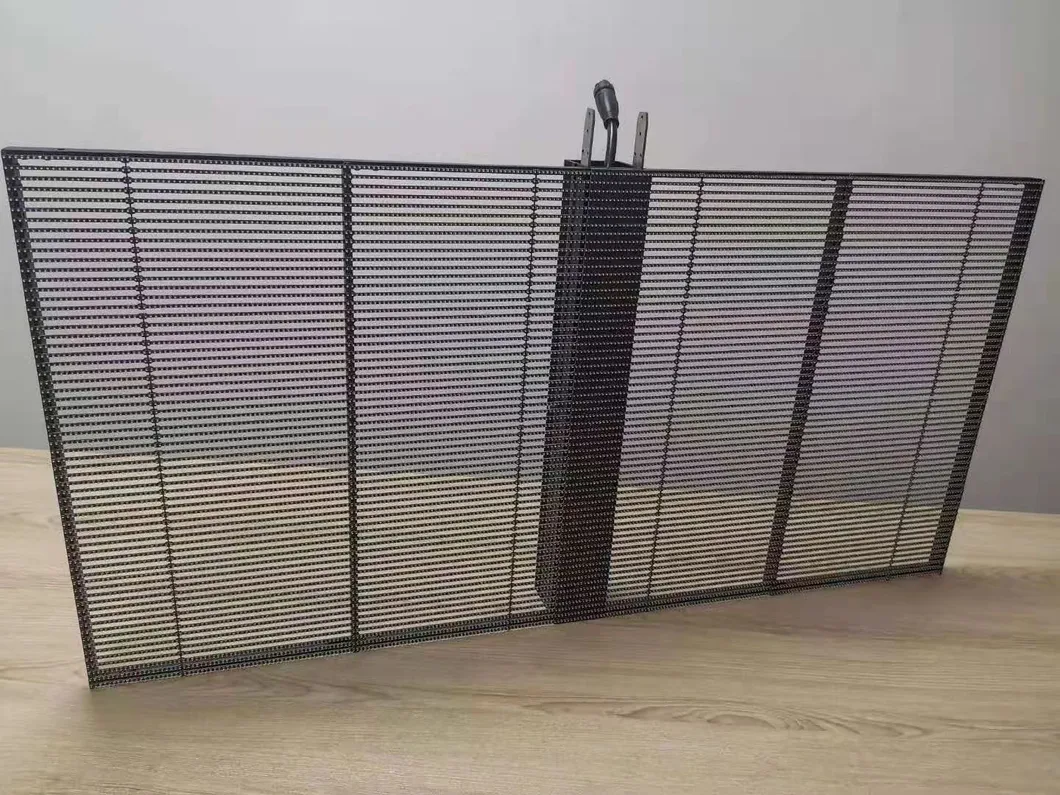

Cabinet Detail

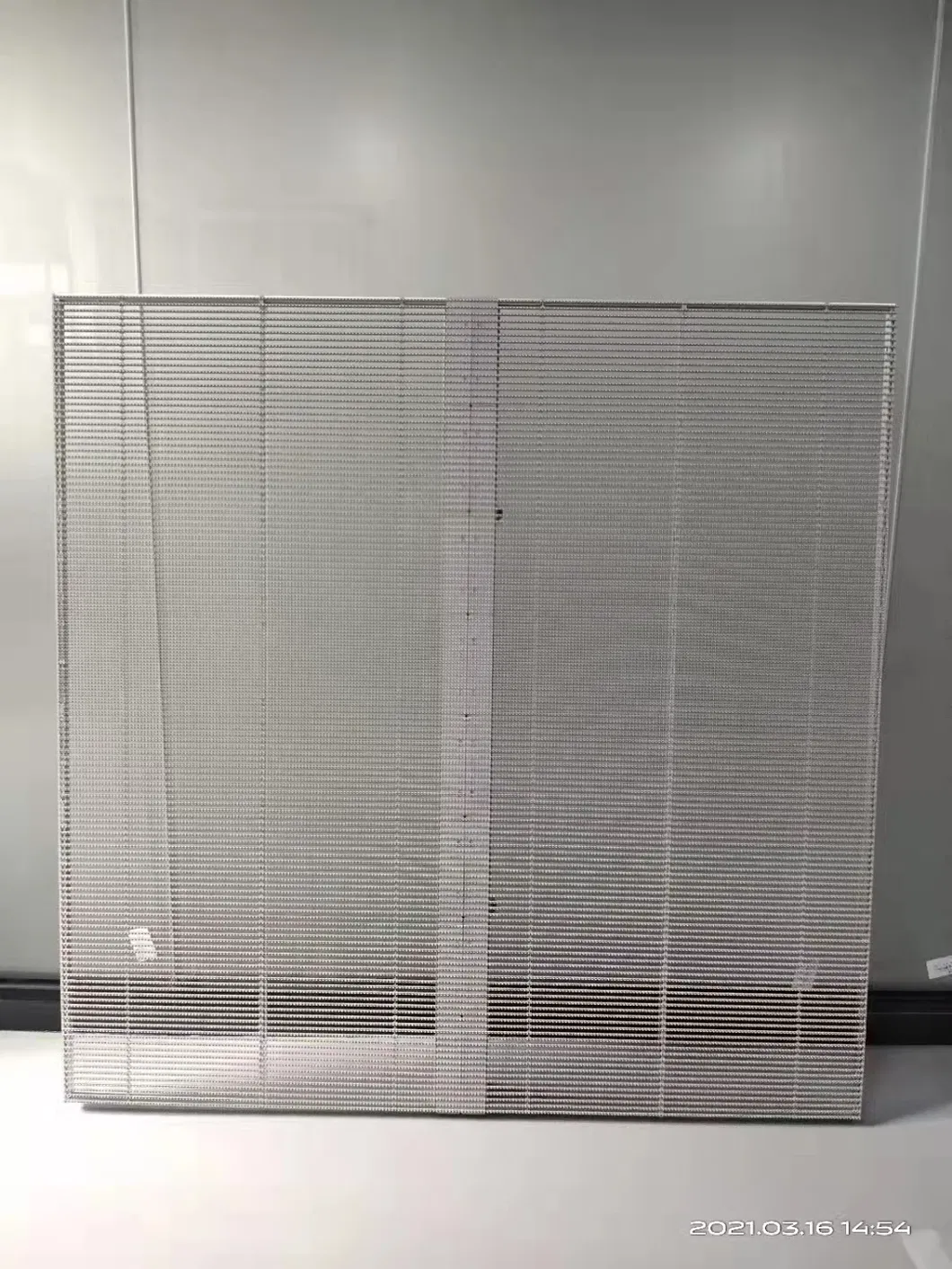

LED Panel
Structural Design & Protection

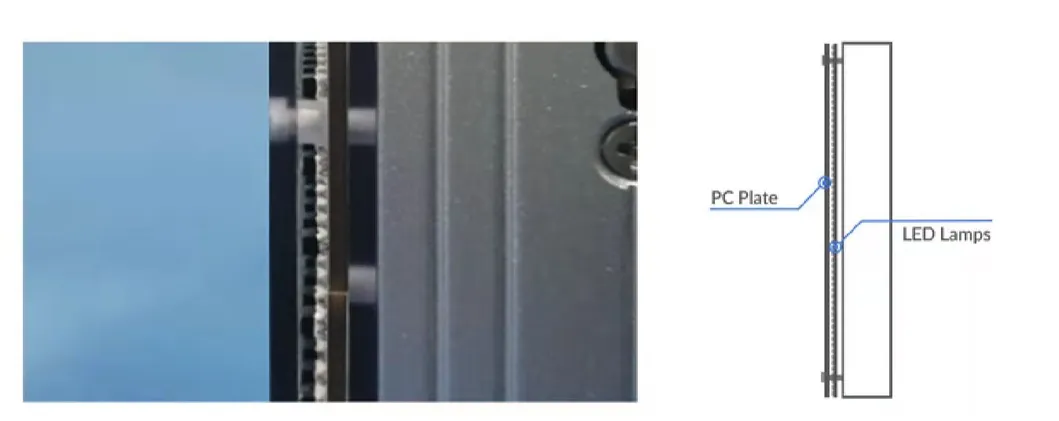

Front Protection: Equipped with a PC plate at the front of the panel to protect the LED lamps during delivery and usage, reducing maintenance costs and extending lifespan.

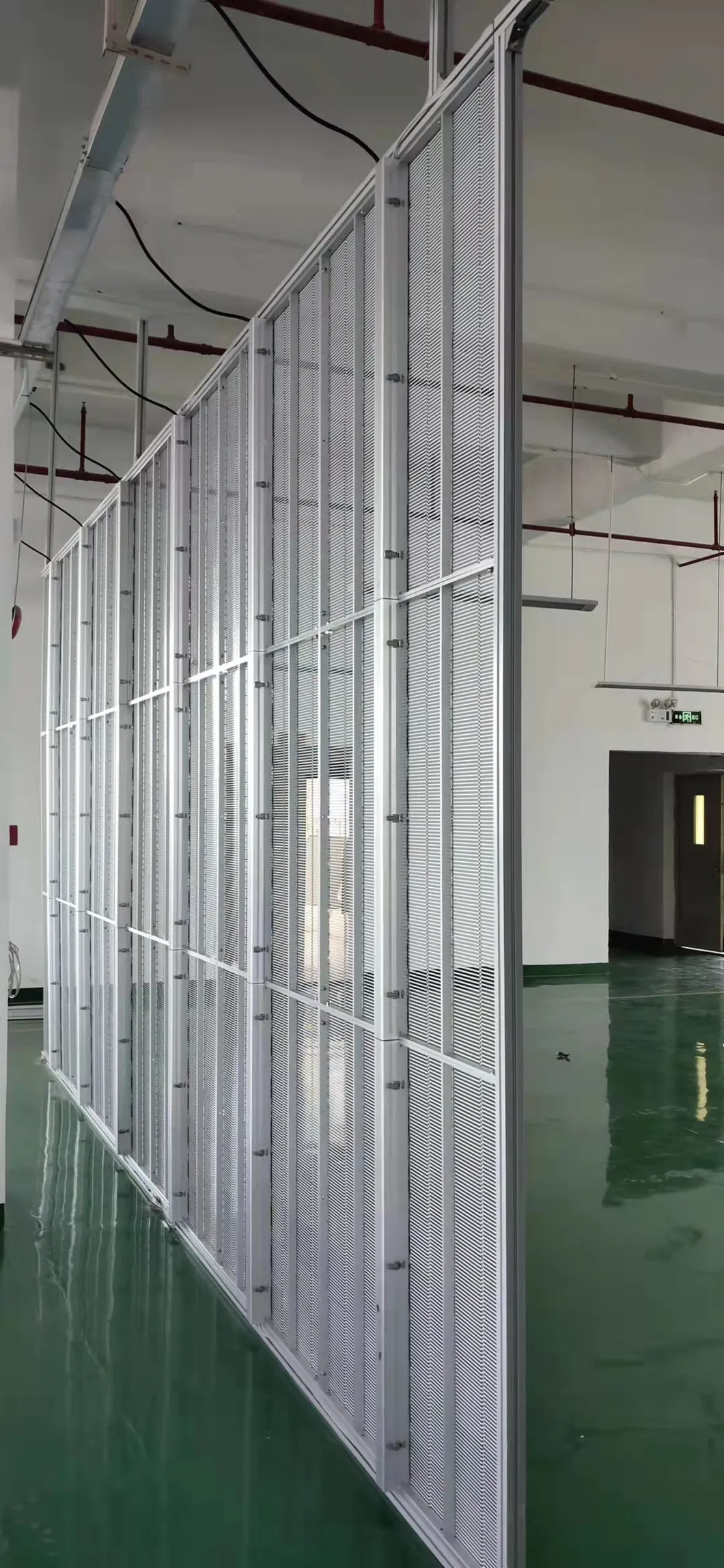

Protection Plate

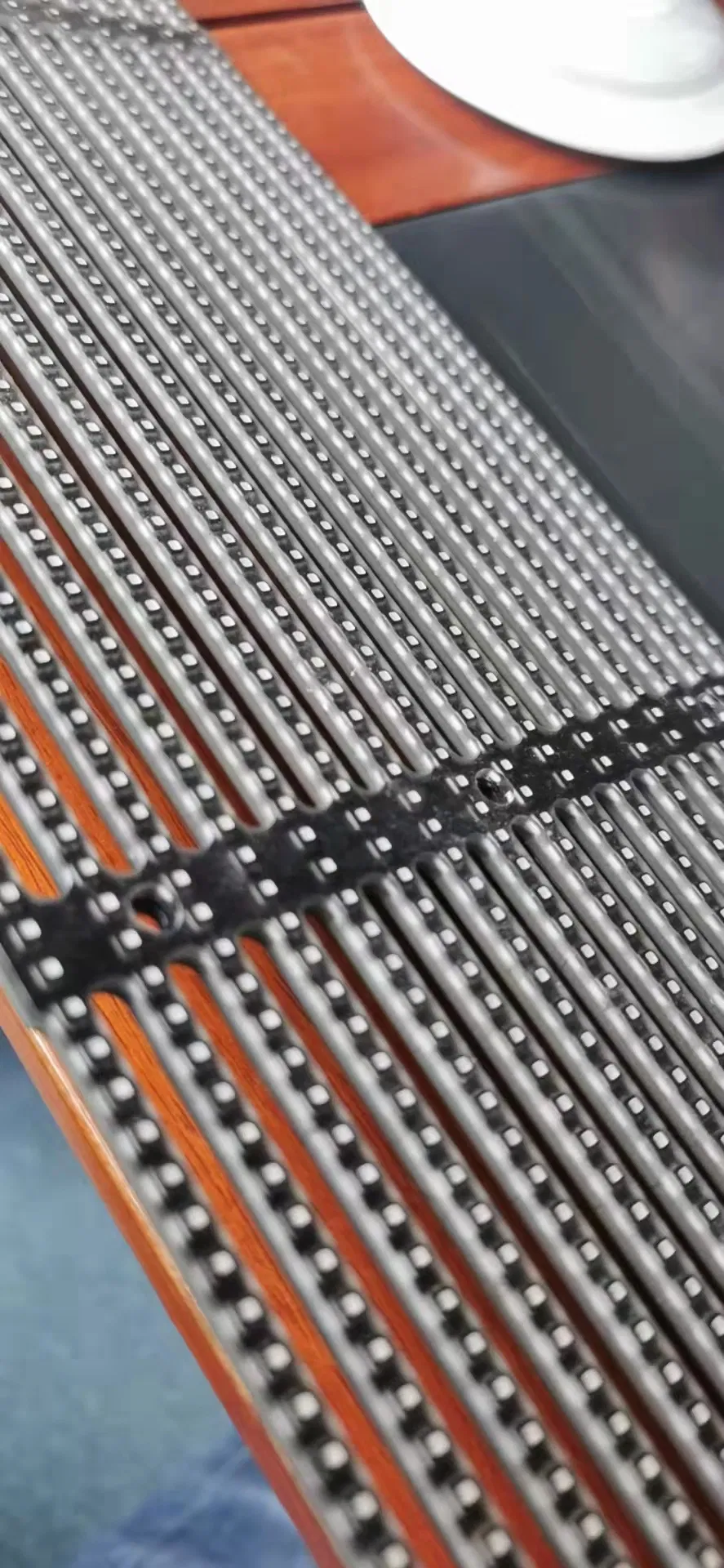

Detail View 1
Detail View 2

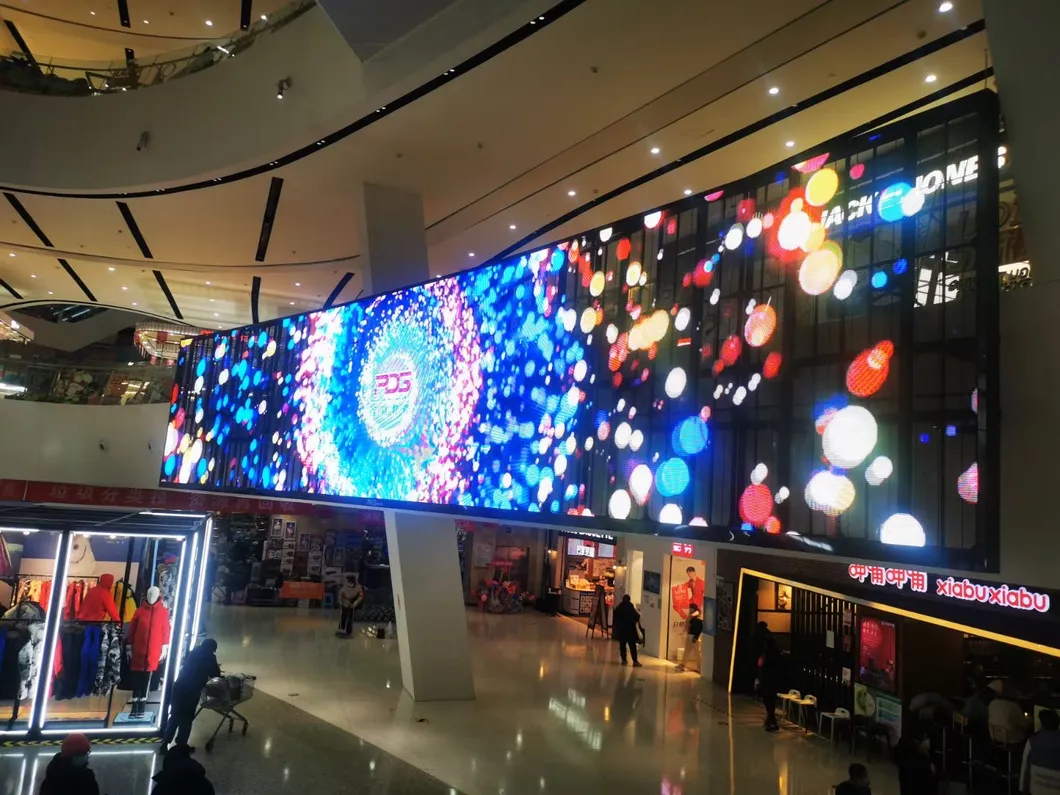

Maintenance View

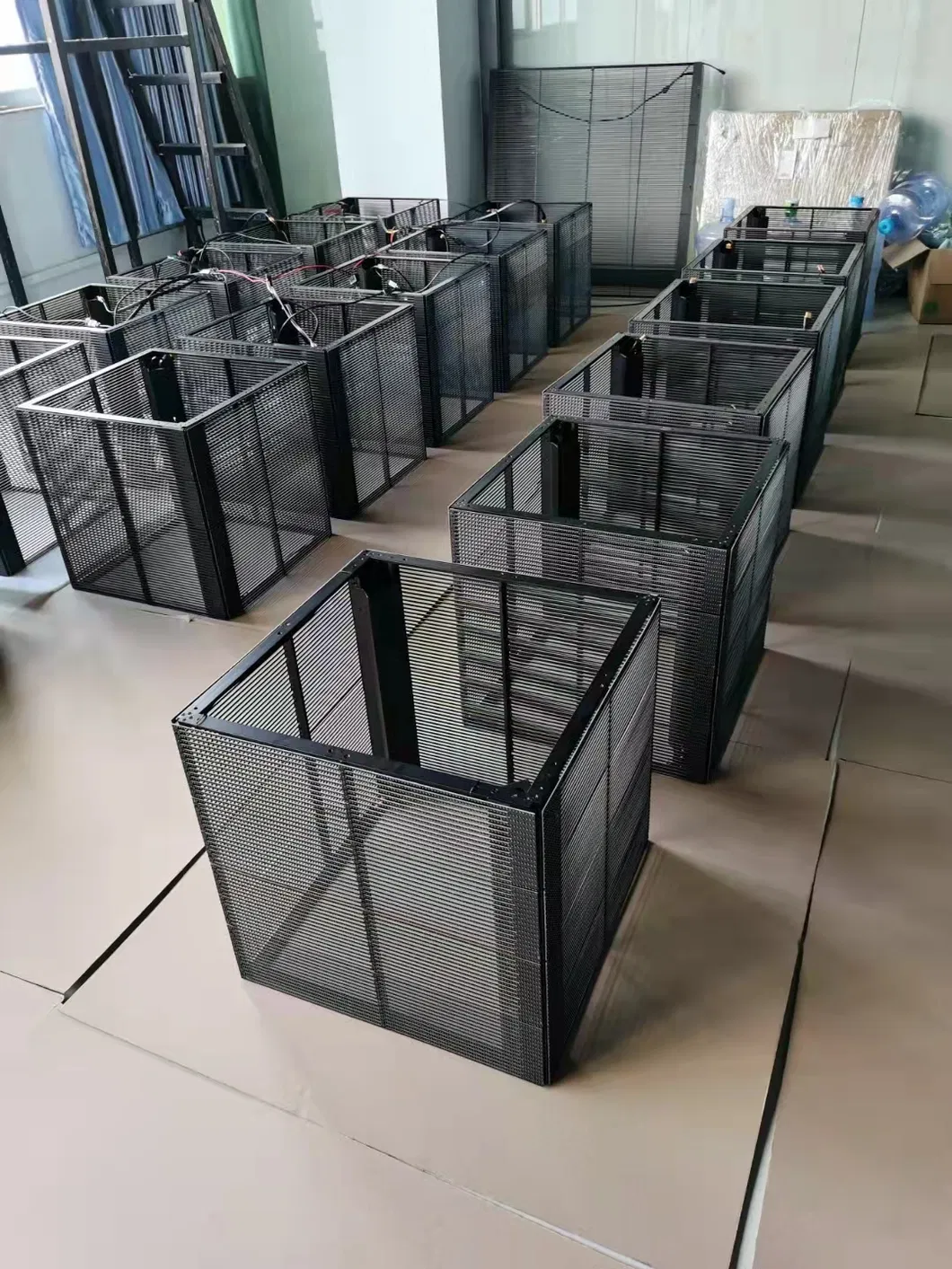

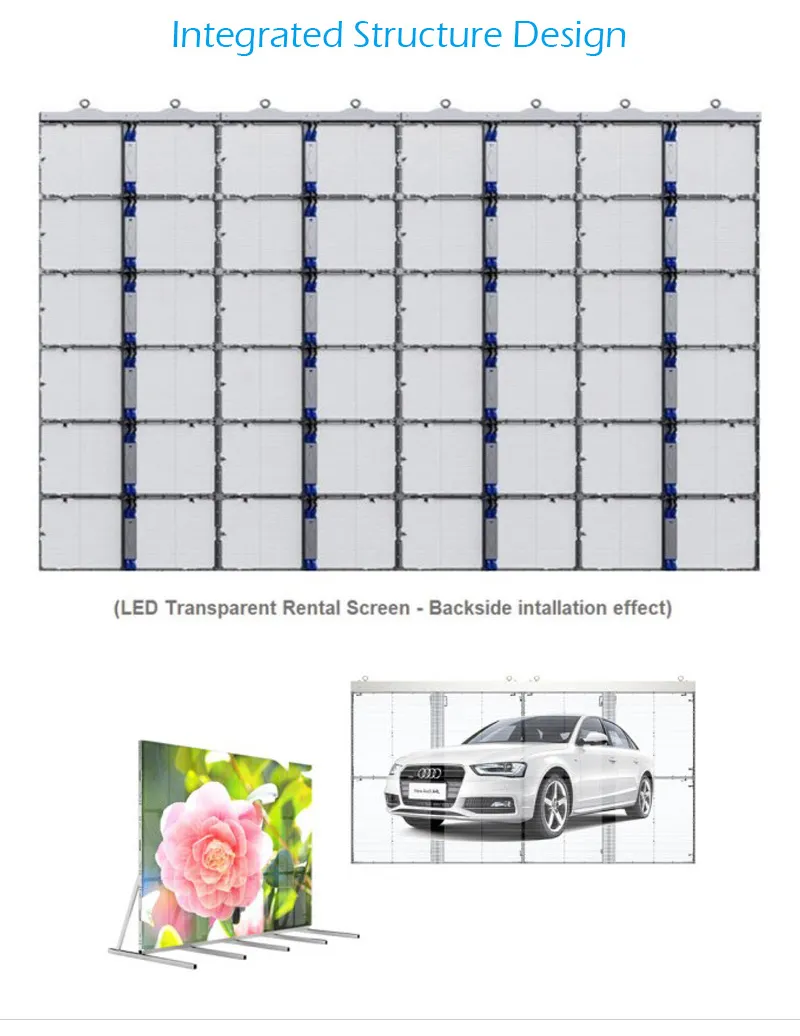

Integrated Structure: Supports various shapes such as Tube displays and Round displays for creative club installations.

Creative Shape
Round Display

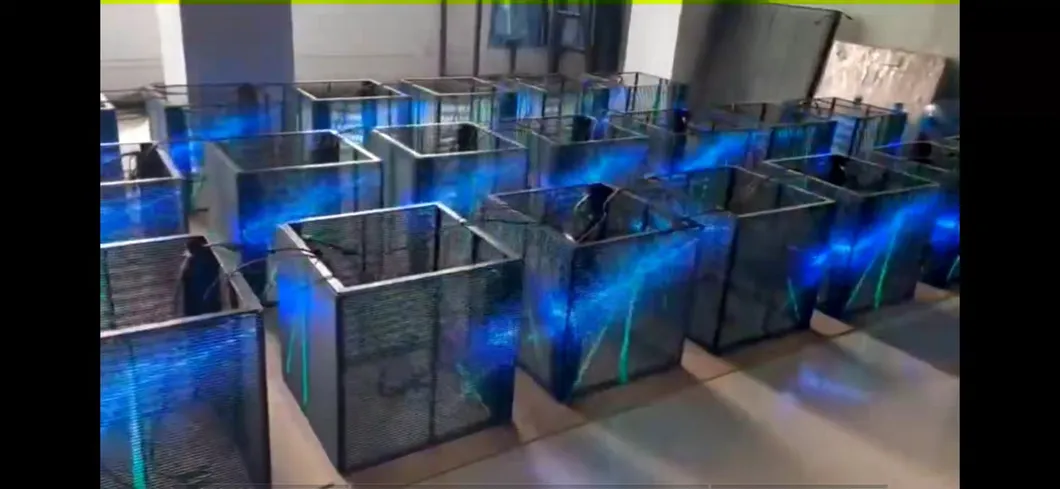

Control Method

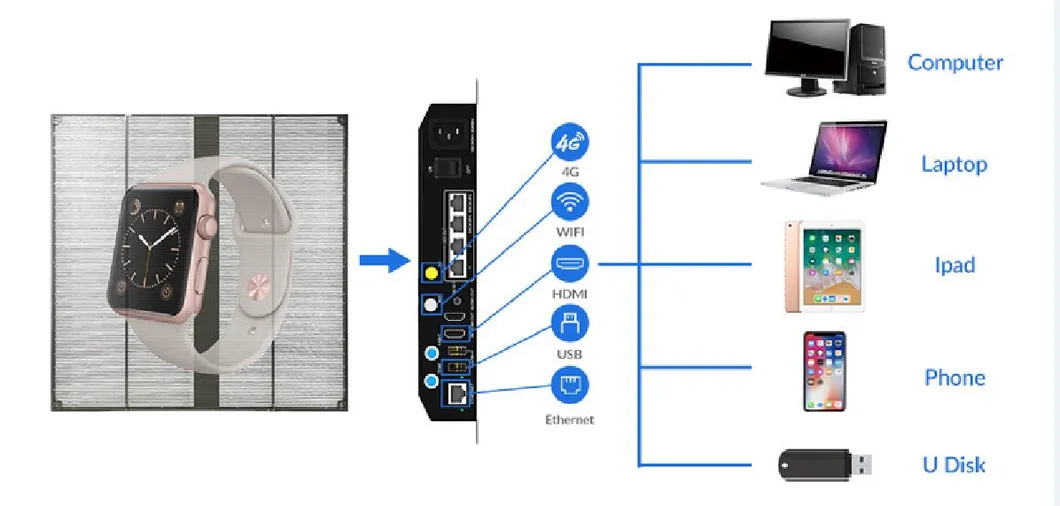

Control System Diagram
Frequently Asked Questions
? What is the transparency rate of these LED screens?
Depending on the model, the transparency rate ranges from 45% to 85%, allowing for excellent visibility and natural light passage.
? Can the screen be serviced from the front?
Yes, our transparent LED displays are designed for both front and back maintenance, making them convenient for various installation environments.
? How is the screen controlled?
The system supports professional Novastar control systems, as well as 3G and WiFi control options for remote management.
? What is the typical lifespan of the display?
The LED lamps are rated for a lifespan of over 50,000 hours under standard operating conditions.
? Is the screen suitable for outdoor use?
This series is primarily designed for indoor and semi-outdoor use (IP20/IP45), featuring high brightness up to 5000 CD to remain visible in bright environments.
? What materials are used for the cabinet?
The cabinets are constructed from high-quality aluminum, ensuring a lightweight, slim, and stable structure.

Related Products

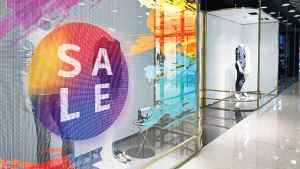

Wholesale Indoor P7.8 Transparent LED Display Digital Panel Advertising Video Wall Glass Screen for Building

Wholesale Indoor P7.8 Transparent LED Display Digital Panel Advertising Video Wall Glass Screen for Building

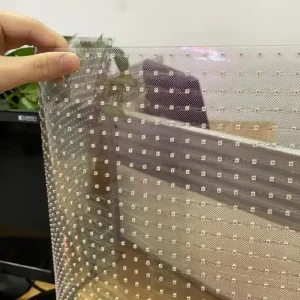

P6 P8 P10 High Brightness Transparent LED Screen Display, Glass Window LED Transparent Video Wall

P6 P8 P10 High Brightness Transparent LED Screen Display, Glass Window LED Transparent Video Wall

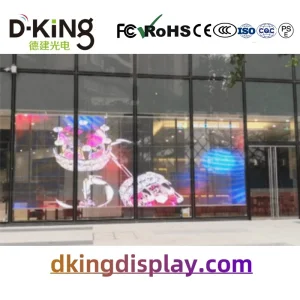

Outdoor P3.9*7.8 Transparent LED Screen Pixel Screen 500*1000mm Waterproof IP65 Glass Rental Video Wall

Outdoor P3.9*7.8 Transparent LED Screen Pixel Screen 500*1000mm Waterproof IP65 Glass Rental Video Wall

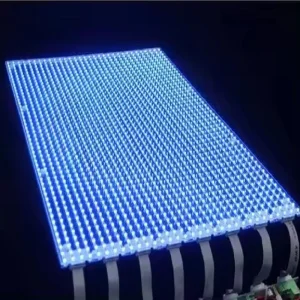

Non-Touch LED Glass Panel Display Transparent LED Video Wall

Non-Touch LED Glass Panel Display Transparent LED Video Wall
High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall

High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
3.91mm P3.91-7.81 Indoor Window RGB Glass See Through LED Display Transparent LED Screen Wall

3.91mm P3.91-7.81 Indoor Window RGB Glass See Through LED Display Transparent LED Screen Wall
P7.81 Window Glass Transparent LED Indoor Outdoor Advertising Video Wall

P7.81 Window Glass Transparent LED Indoor Outdoor Advertising Video Wall
Glass Window LED Transparent Video Wall

Glass Window LED Transparent Video Wall

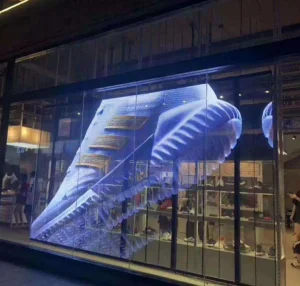

P4-8 Transparent LED Video Walls Display Screen Flexible LED Glass Window Outdoor Advertising Digital Poster
