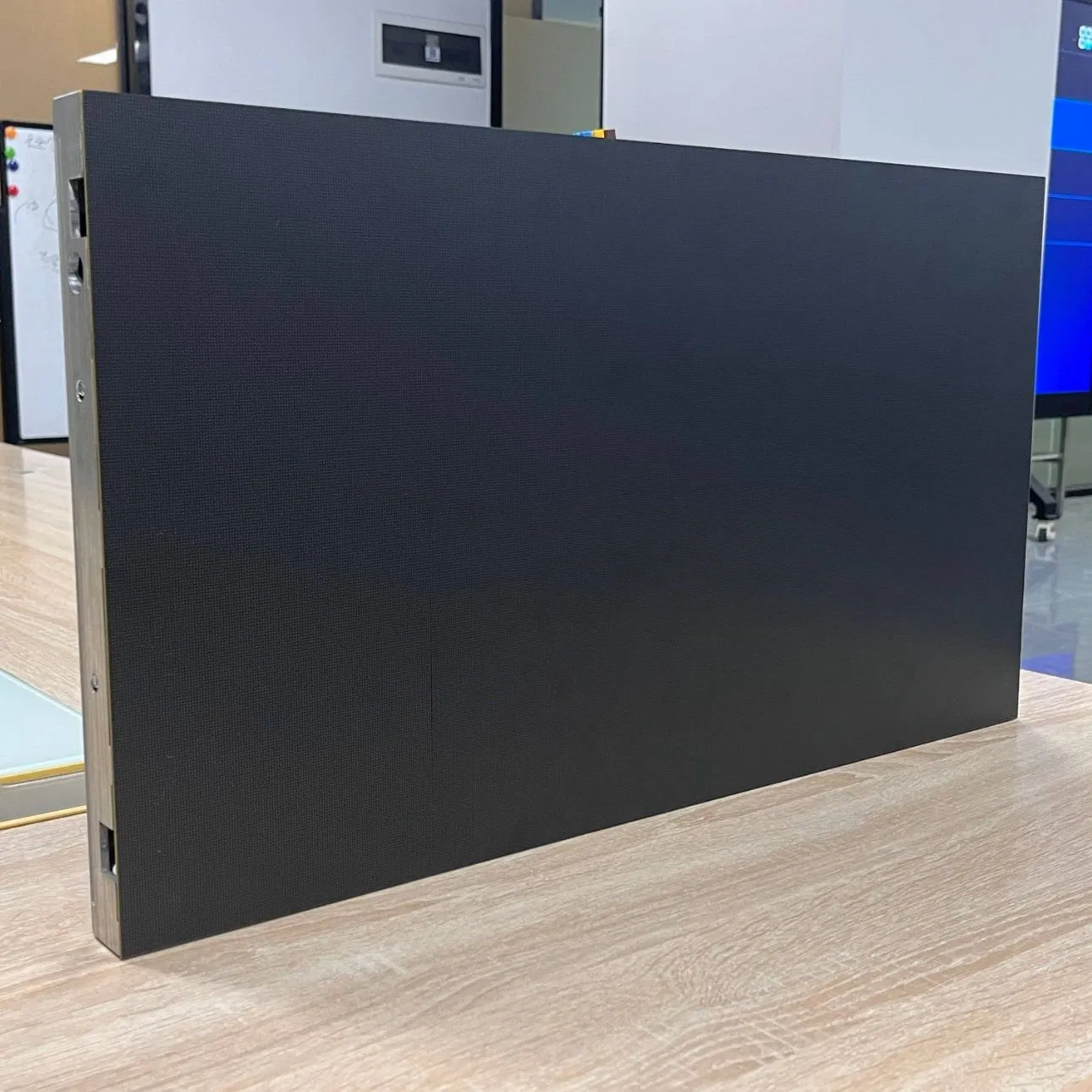

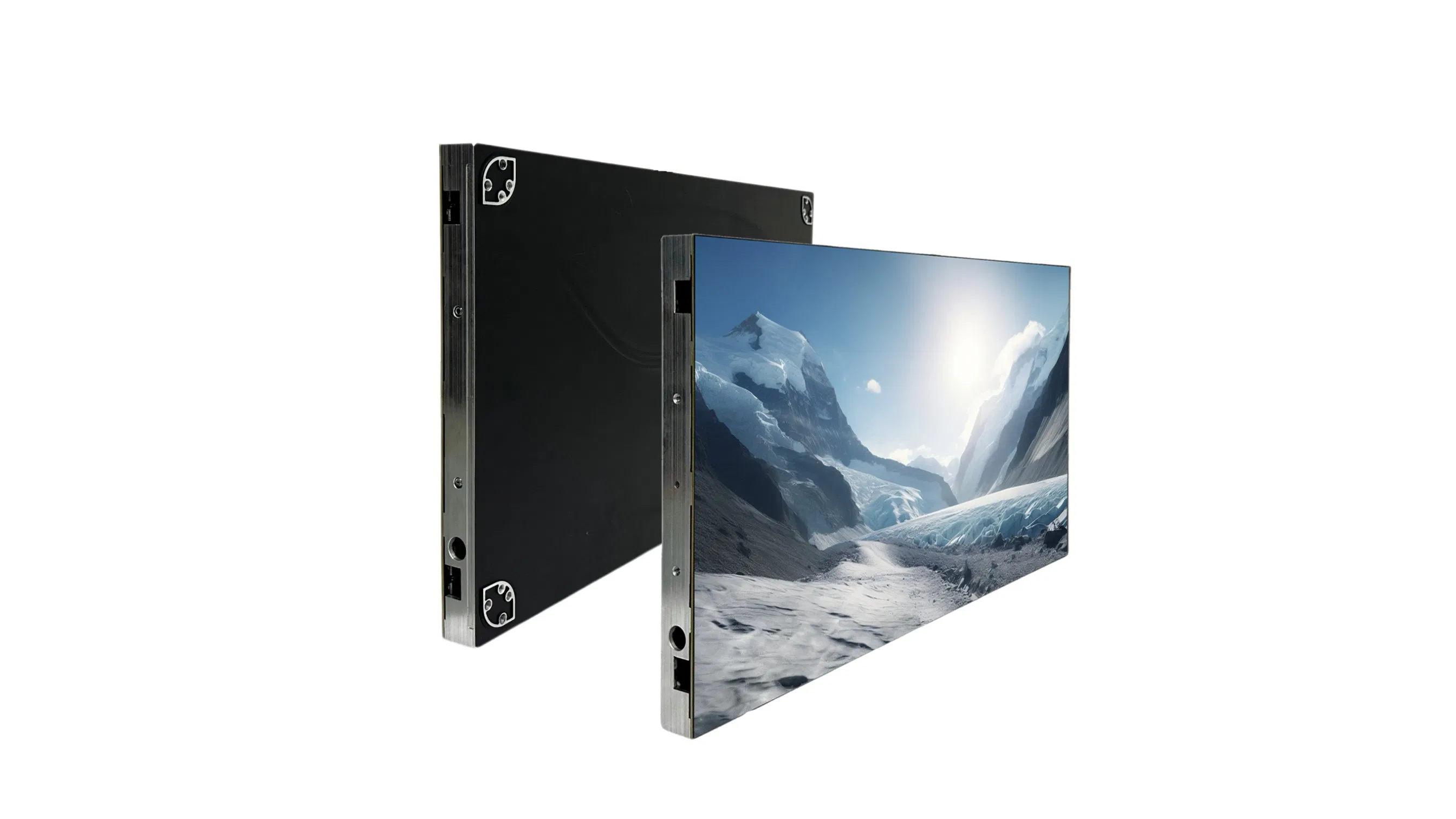

P1.56 HD Mini/ Micro LED Screen with CE, FCC, RoHS Certificates

1 / 5

P1.56 HD Mini/ Micro LED Screen with CE, FCC, RoHS Certificates

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Text Display, Market Display

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

HQP1.56

Pixel Pitch

1.56mm

Pixel Configuration

1R,1G,1B

Pixel Density

409,600/Sqm

Scanning Mode

1/54scan

Display Type

LED Video Display

Application

Stage Performance, Advertising

IP Rating

IP43

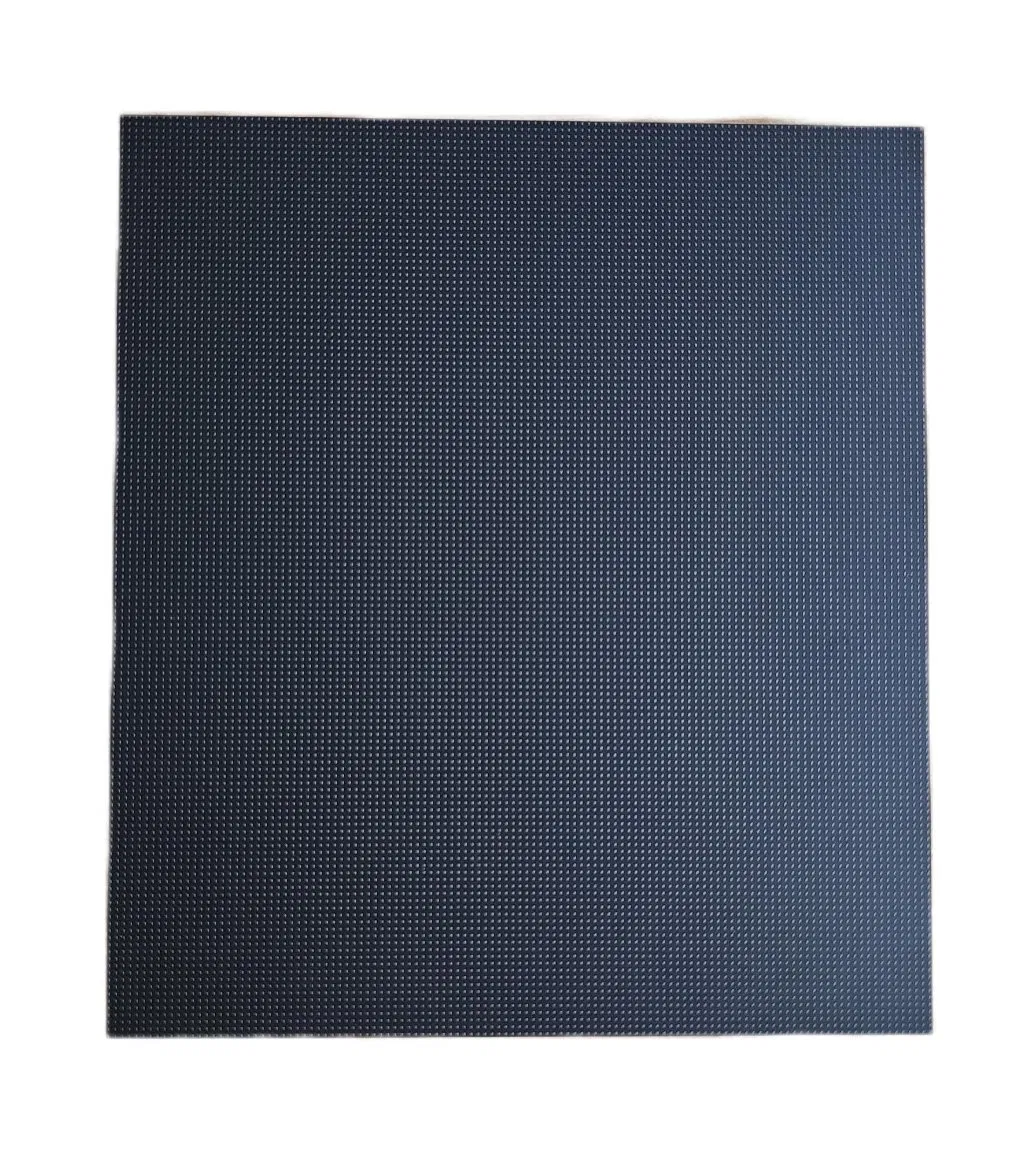

Module Size

300X168.75mm

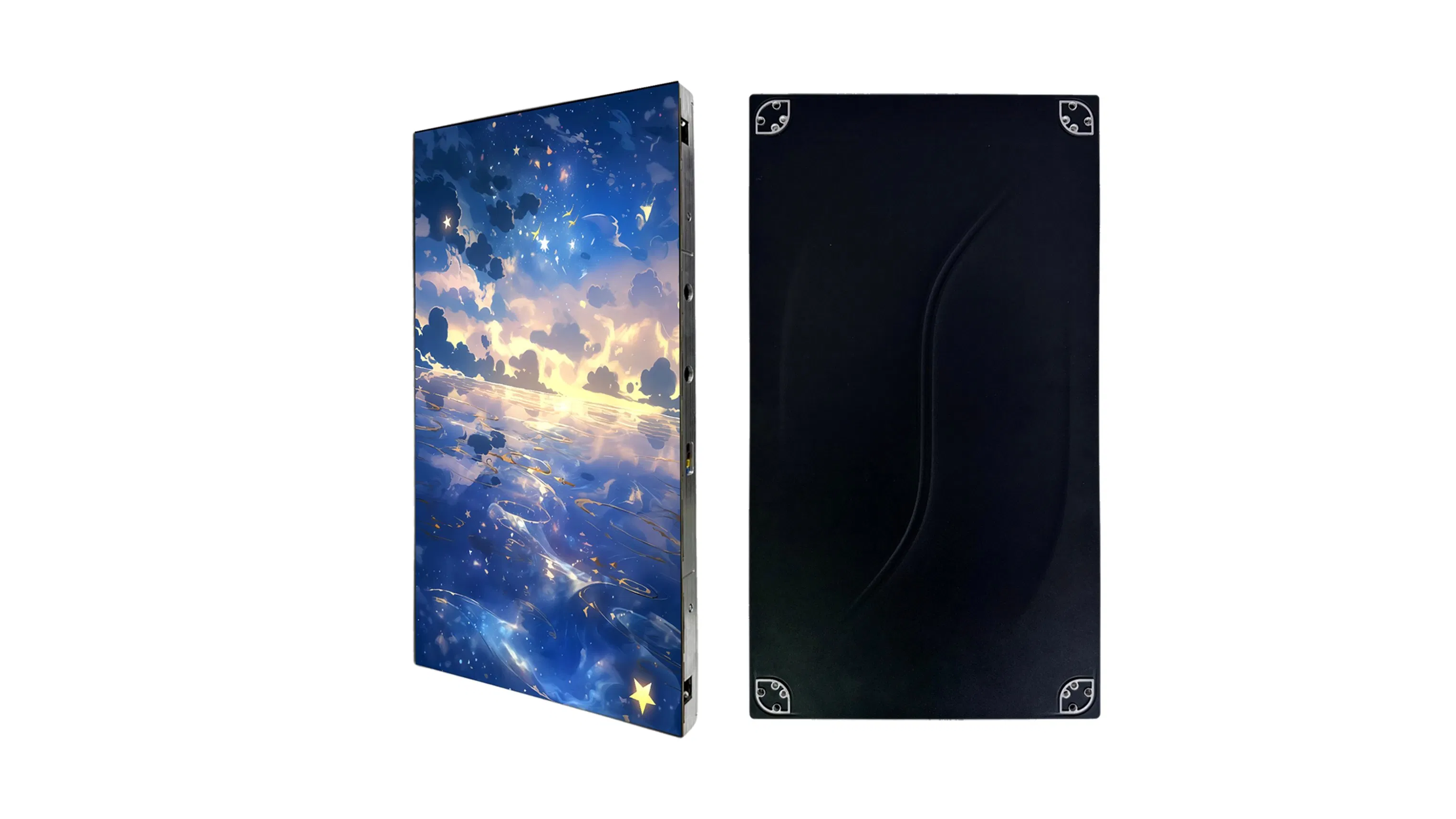

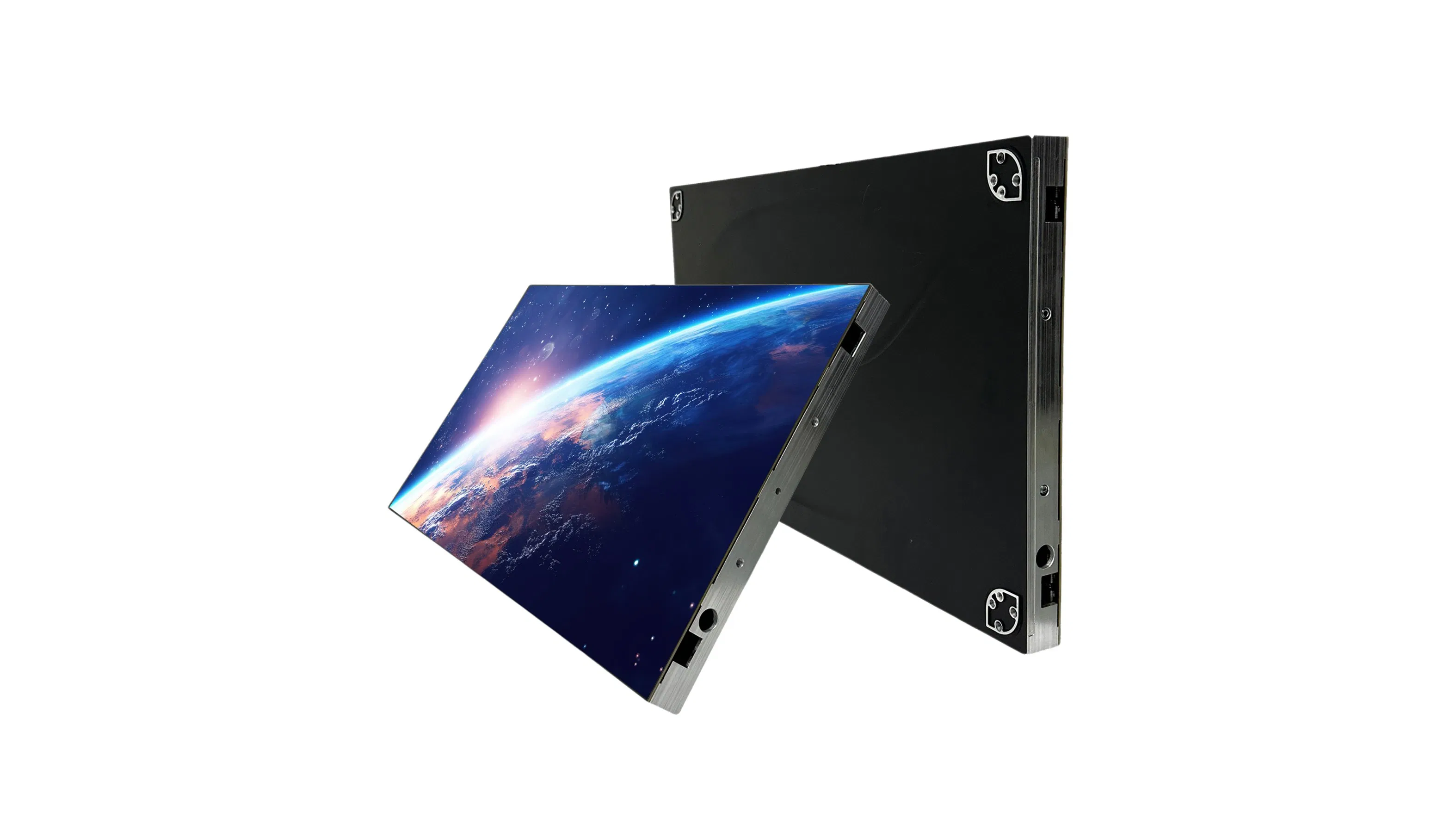

Cabinet Material

Die-Casting Aluminum

Refreshrate

3840Hz/7680Hz

Specification

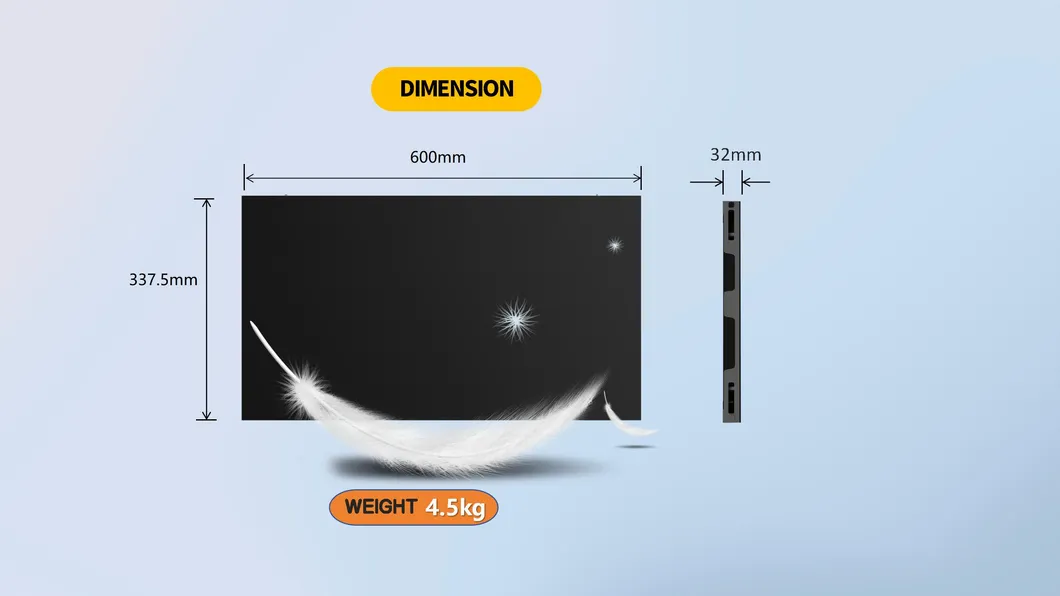

600x337.5mm

📦 Packaging & Delivery

Package Size

68.00cm * 38.00cm * 15.00cm

Gross Weight

12.000kg

📱 Product Description: P1.56 HD Mini/MicroLED Display

💻 Technical Specification

Model	P0.78	P0.93	P1.25	P1.25 HB	P1.56	P1.87
Scan Mode	54S	45S	45S	27S	54S	45S

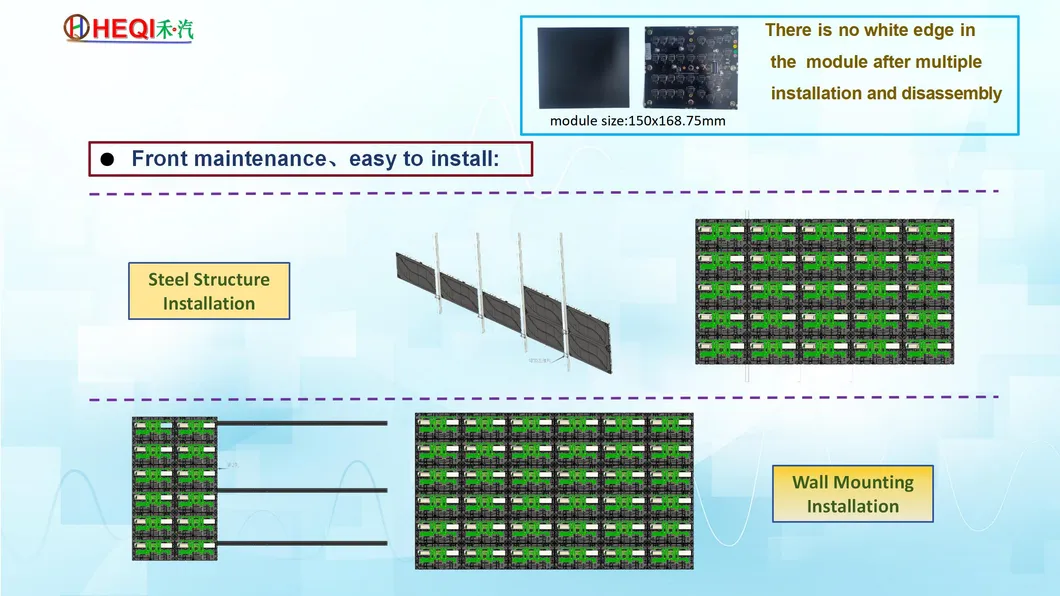

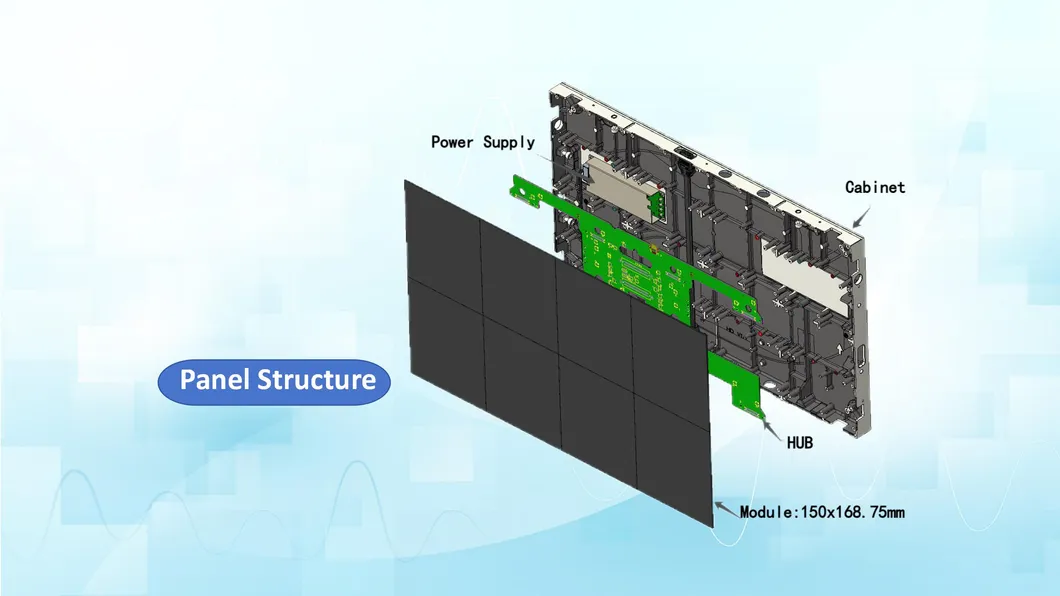

Module Size	150x168.75mm
Cabinet Resolution	768x432	640x360	480x270	480x270	384x216	320x180
Pixel Density (dots/sqm)	1,638,400	1,137,778	640,000	640,000	409,600	284,089
Gray Scale	14-22 bit

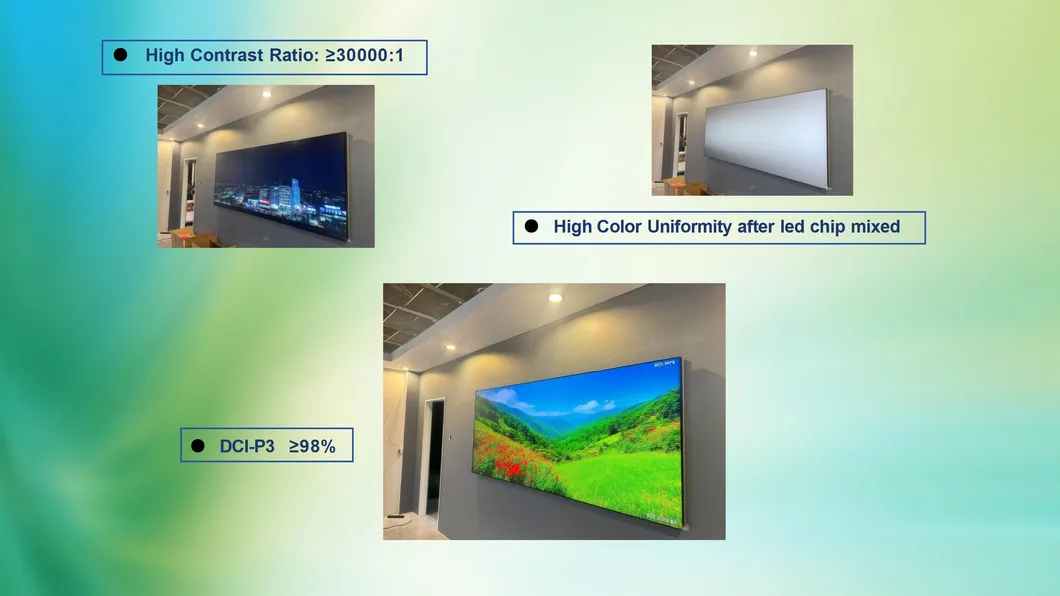

Contrast Ratio	20000:1	30000:1	30000:1	30000:1	30000:1	30000:1
Brightness	1200cd/sqm	1200cd/sqm	1200cd/sqm	3500cd/sqm	1200cd/sqm	1200cd/sqm
View Angle	H170, V170
Refresh Rate	3840Hz (7680HZ optional)

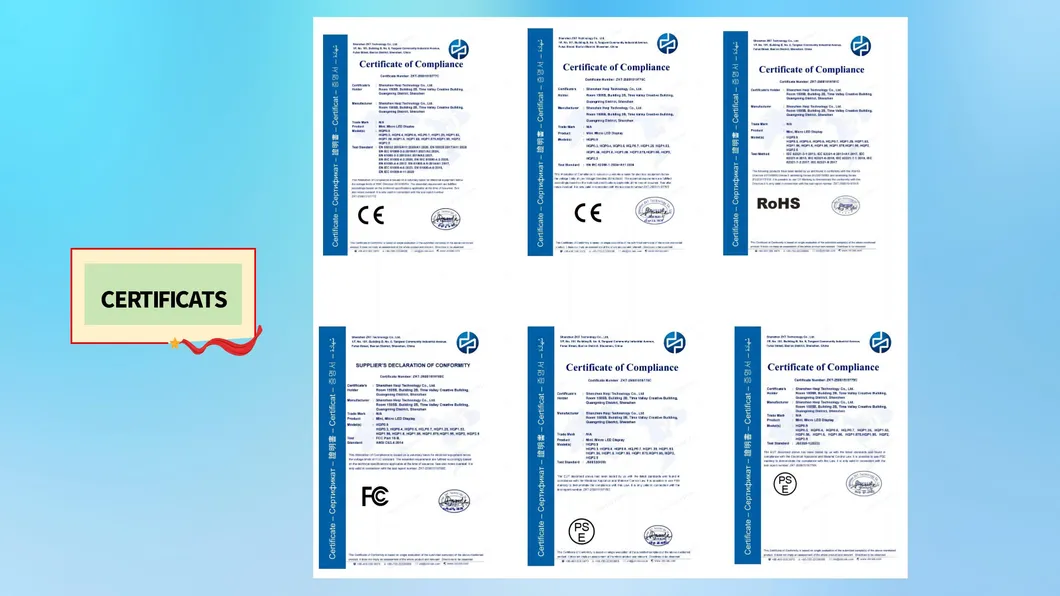

Certification	CE, FCC, RoHS

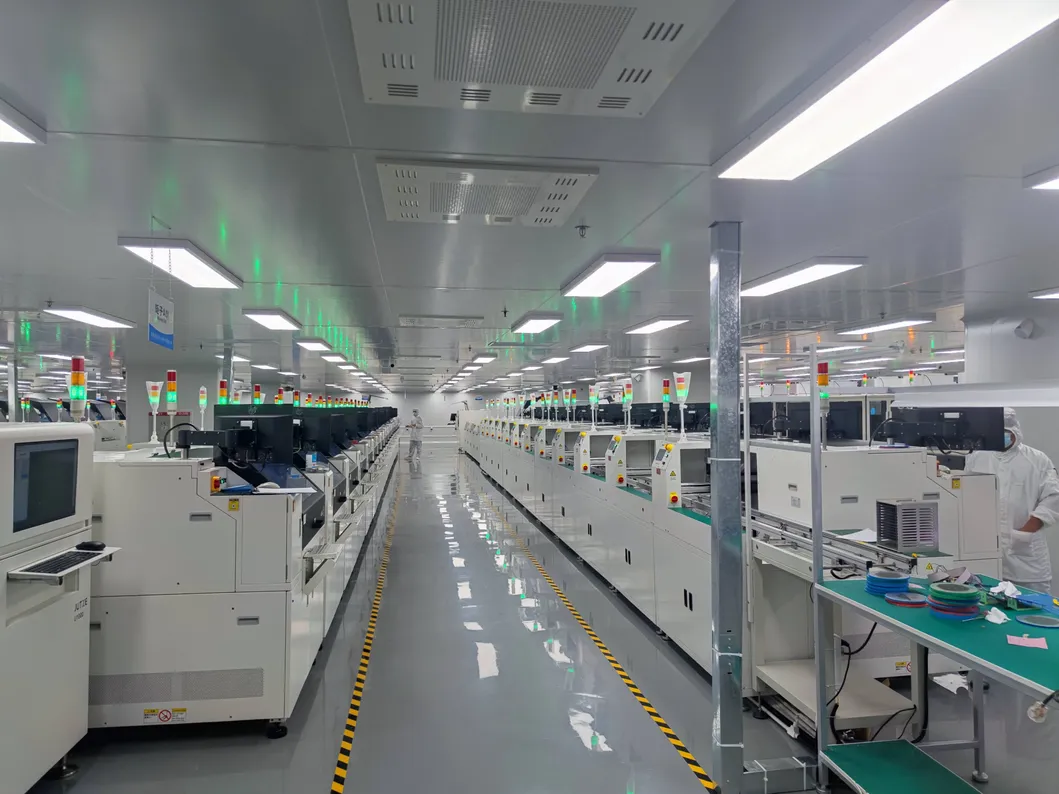

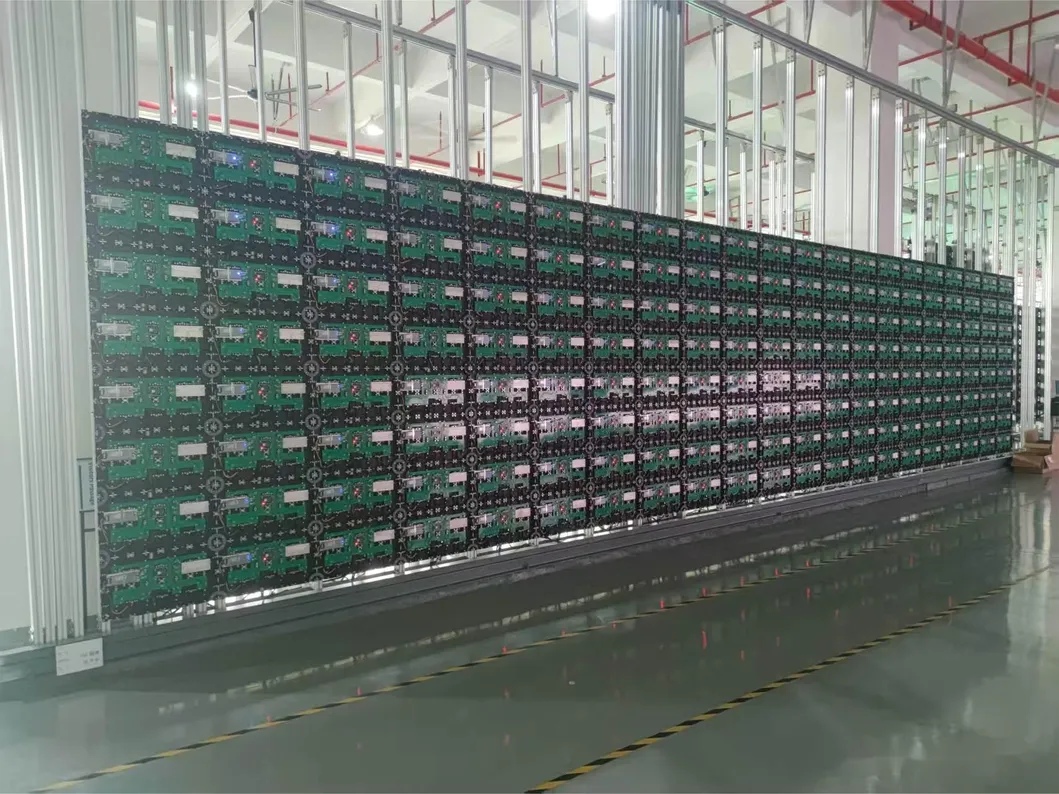

🏭 Workshop & Quality Control

❓ Q & A

1. How can I place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact our sales team directly to avoid any delays.

2. What kind of display do we provide?

We provide indoor/outdoor/mobile LED, rental LED displays, LED stage screens, advertising LED displays, transparent flexible film screens, and more.

3. What about the lead time for an order?

Usually 10-17 days, depending on your order quantity. Occasionally we have stock available for delivery within 7 days.

4. What about the warranty?

We offer a two-year warranty, which is double the standard industry practice of 1 year. Our products are designed to run for 5-10 years.

5. How about the quality?

Our LED products undergo rigorous testing for at least 72 hours before shipping. From raw material procurement to final delivery, each step passes through strict quality control systems.

6. Can you offer technical support?

Yes, we provide free training for our customers to set up screens and broadcast content through control systems like Novastar and Colorlight.
