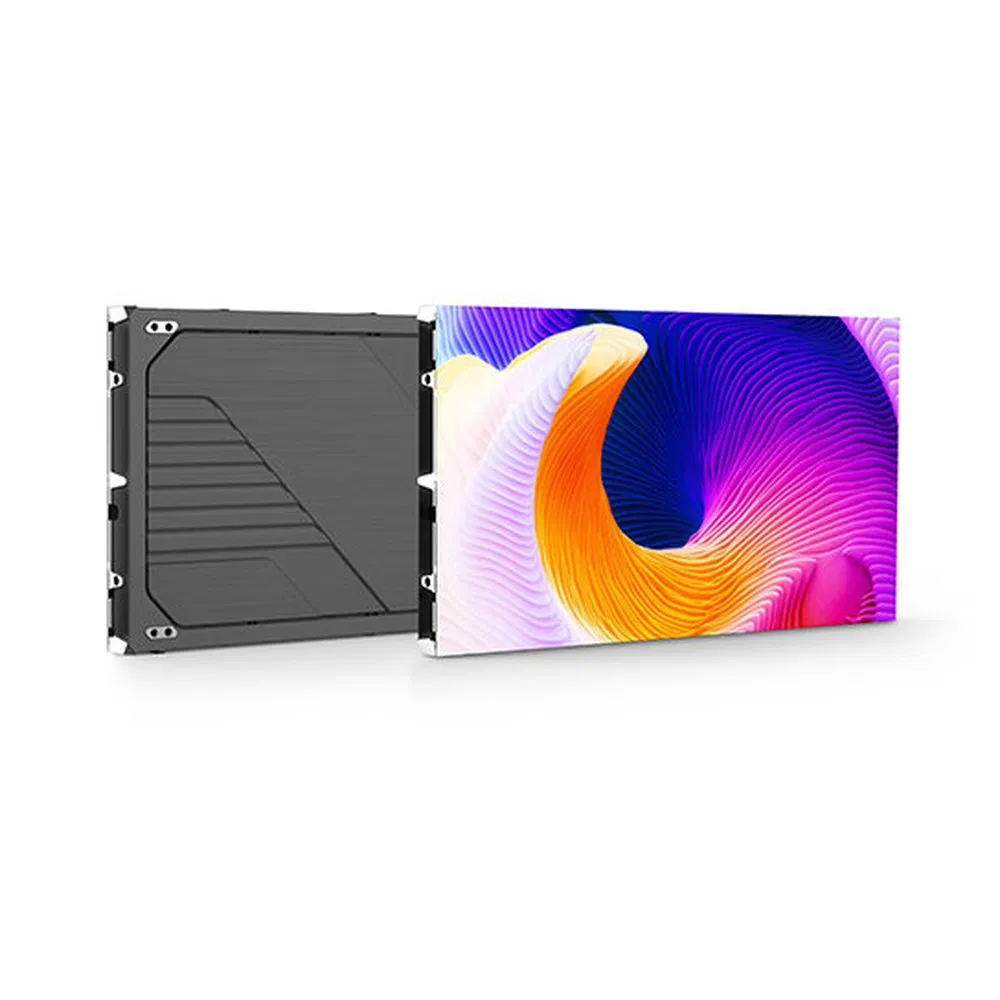

Collision Resistant Indoor COB Microled Display for Exhibition Center Showrooms

Customization: Available
Tube Chip Color: Full Color
Display Function: Video Display, Image & Text Display, Text Display

Product Description

Indoor COB LED Display Banner

Product Description

REDEFINE VISUAL EXCELLENCE WITH INDOOR FULL-COLOR COB LED DISPLAY

Experience the future of digital display technology with our Indoor Full-Color COB LED Display. Engineered with cutting-edge COB (Chip-on-Board) packaging technology, this premium LED screen delivers ultra-high pixel density, exceptional brightness, and superior contrast for stunning visual clarity.

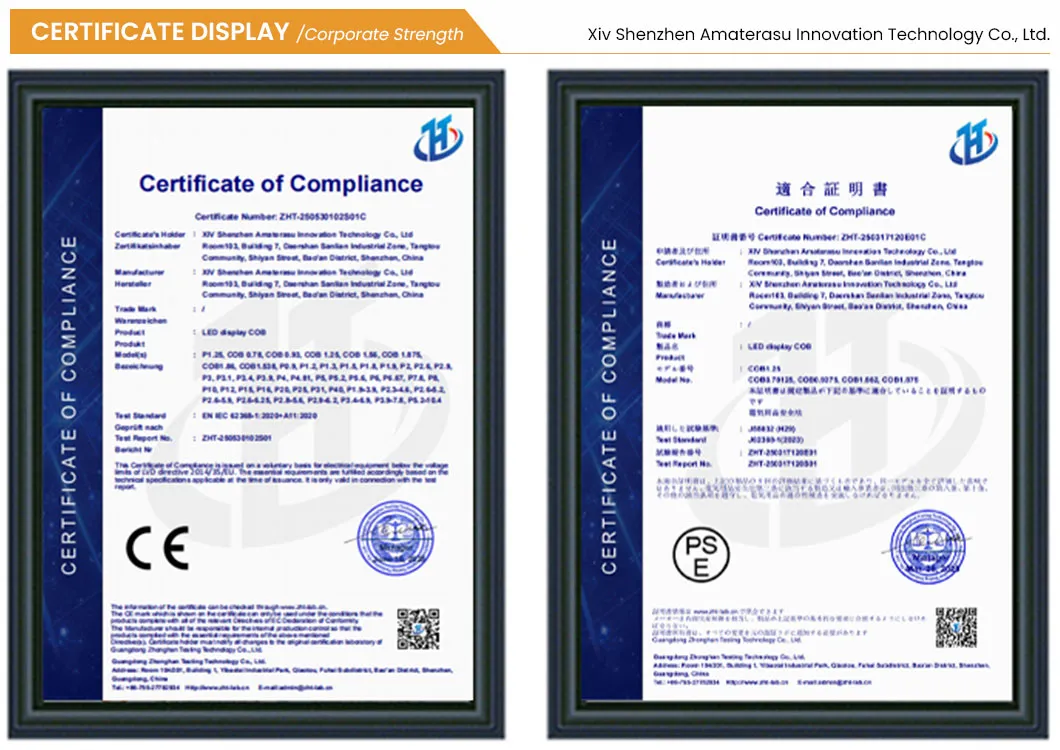

Featuring an ultra-thin design with seamless flatness (±0.015mm), common cathode technology that reduces power consumption by 44%, and robust dual power & dual card backup for uninterrupted performance. Certified with 3C, CE (TUV), and energy-saving standards.

Basic Information

Model
Indoor Full-Color COB LED Display
Pixel Pitch
P0.78
Pixel Density
1,638,400 dots/m²
Scanning Mode
1/20 scan
IP Rating
IP54

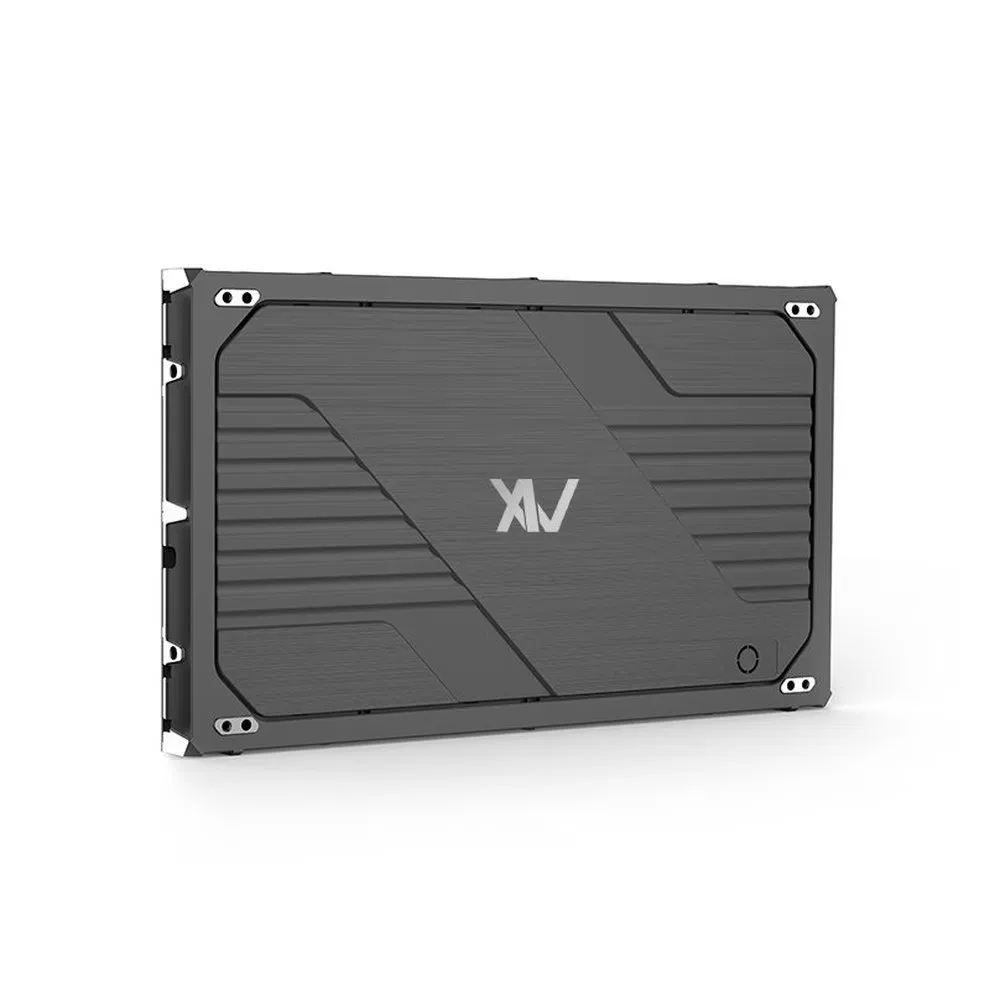

Cabinet Size
600*337.5mm
Refresh Rate
3840Hz
Contrast Ratio
10000:1

Technical Specifications

Pixel Pitch P0.78 P0.93 P1.25 P1.56 P1.87 P2.5

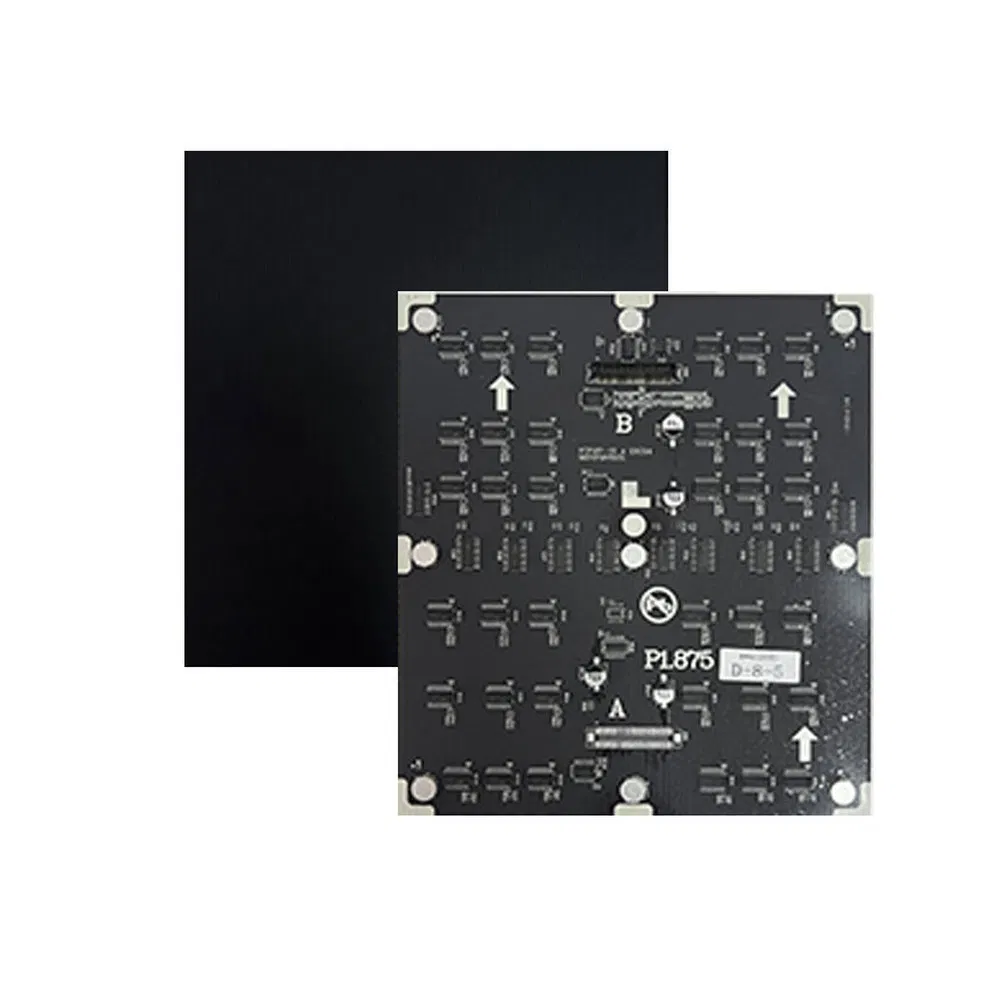

Module Size (mm) 150*168.75 300*168.75 300*168.75 300*168.75 300*168.75 300*168.75
Cabinet Resolution 768*432 640*360 480*270 384*216 320*180 240*136
Brightness (nits) 600 600 600 1200 600 600
Refresh Rate 3840Hz

Functional Advantages

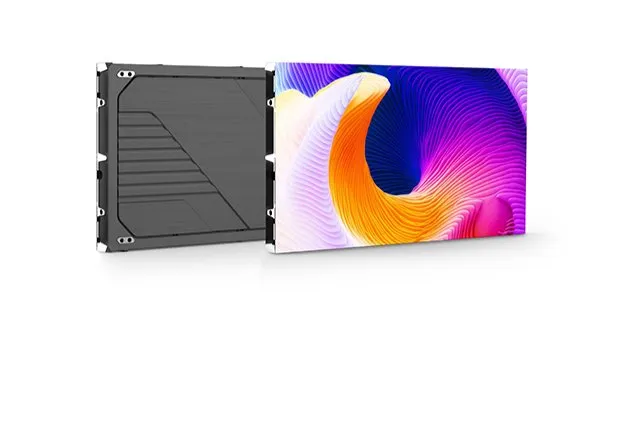

Ultra-high Pixel Density
ULTRA-HIGH PIXEL DENSITY
Advanced COB packaging integrates multiple LED chips onto a single substrate, achieving higher PPI for sharper, more detailed images with virtually no visible graininess.
44% LOWER POWER CONSUMPTION
Common cathode technology significantly reduces energy usage, lowers heat generation, enhances thermal management, and extends product lifespan.

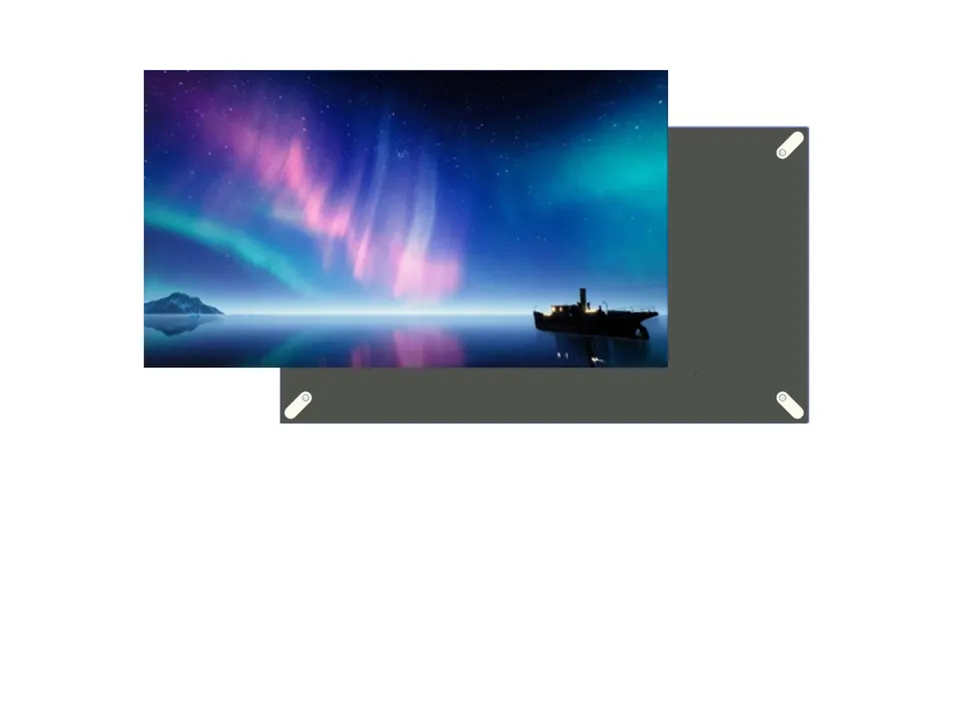

Power Saving Technology

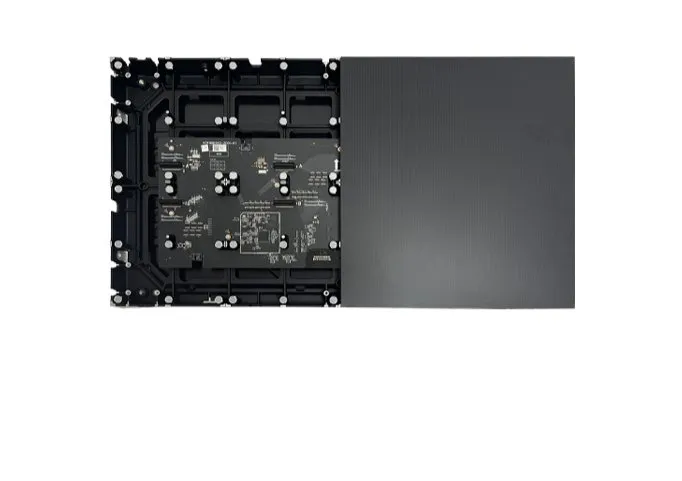

Dual Redundancy
DUAL REDUNDANCY SYSTEM
Built-in dual power supply and dual receiving card backup guarantee continuous operation, minimizing downtime for mission-critical applications.

Core Applications

  • ● HIGH-END COMMERCIAL & CONFERENCE: Ideal for corporate boardrooms, executive briefing centers, and luxury retail stores.
  • ● PUBLIC DISPLAYS & DIGITAL SIGNAGE: Perfect for airports, malls, and museums requiring high-resolution advertising.
  • ● HOME THEATER & PRIVATE CINEMA: Delivers cinematic accuracy and deep blacks for home entertainment.
  • ● COMMAND & CONTROL CENTERS: Reliable displays for emergency dispatch and traffic management monitoring.

Visual Showcase

Display Application 1
Display Application 2
Display Application 3

Frequently Asked Questions

What are the primary benefits of COB LED technology?
COB (Chip-on-Board) technology offers higher pixel density, improved thermal dissipation, and enhanced durability (collision resistance). It provides a more uniform light output and superior contrast compared to traditional SMD LEDs.
How does the "Common Cathode" technology save energy?
Common cathode technology accurately controls voltage to the red, green, and blue LED chips separately. This reduces unnecessary heat generation and can lower overall power consumption by up to 44% compared to conventional common anode designs.
What is the IP rating of this indoor display?
This display is rated IP54, which means the surface is protected against dust and can be cleaned with water or damp cloths, making it more robust than standard indoor LED panels.
Can these screens be used for 24/7 mission-critical operations?
Yes. The display features a dual redundancy system with built-in dual power supplies and dual receiving cards, ensuring uninterrupted performance for control rooms and emergency centers.
What is the typical lifespan and warranty for these products?
Our high-grade COB displays are designed for a long service life of up to 100,000 hours. We offer comprehensive technical support and standard warranties on major components to ensure long-term reliability.
How do I choose the right pixel pitch for my project?
The choice depends on viewing distance. For close-up viewing (under 1.5m), P0.78 or P0.93 is recommended. For standard meeting rooms, P1.25 to P1.56 is typically ideal for a balance of resolution and cost.
