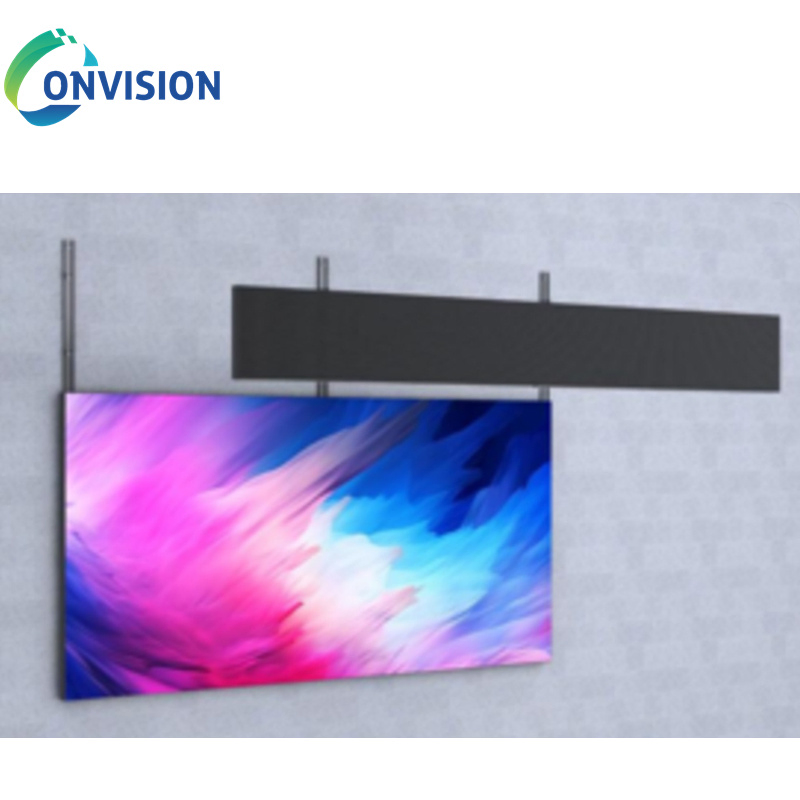

High Brightness Indoor Microled Display Screen for Fixed Installations

i

Basic Information

Model NO.

P2.604

Pixel Pitch

P2.604mm

Pixel Configuration

1R,1G,1B

Pixel Density

147456 dots/sqm

Scanning Mode

1/32s

System Platform

WIN98/XP/7/10

Display Type

LED Video Display

IP Rating

IP31

Certification

CE, RoHS, CCC, FCC, TUV

Maintenance

Front Access

Material

Die-Cast Aluminum

Refresh Rate

3840Hz

⚙

Technical Specifications

Pixel Pitch	P1.25	P1.56	P1.95	P2.5	P2.604	P2.976	P3.91
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515	SMD1515	SMD1515
Density (Dot/sqm)	640000	409600	262144	160000	147456	112896	65536
Module Res.	200*200	160*160	128*128	100*100	96*96	84*84	64*64
Brightness (Nits)	600	600	800	800	600-800	800	1000
Contrast	10000 : 1
Refresh Rate	3840Hz

★

Product Highlights

Ultra Lightweight

Cabinet weight: 2.9kg / 4.5kg / 5.8kg. Lighter and slimmer design reduces transportation and installation labor costs.

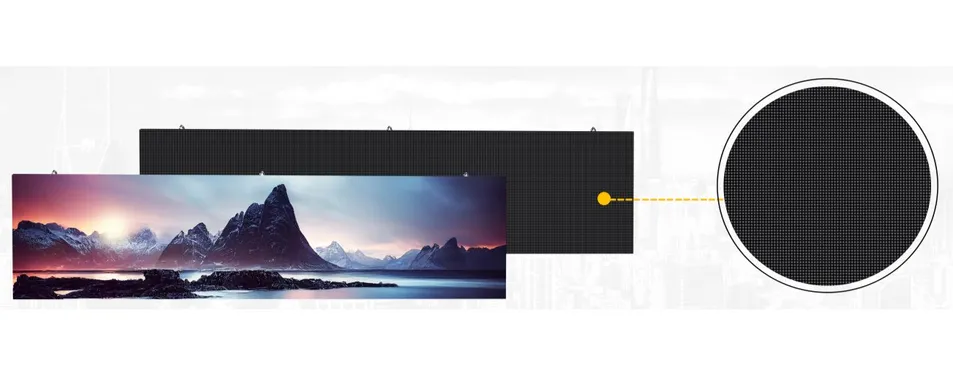

High Contrast Mask

Corrugated light-absorbing mask achieves superior contrast for vivid indoor display performance.

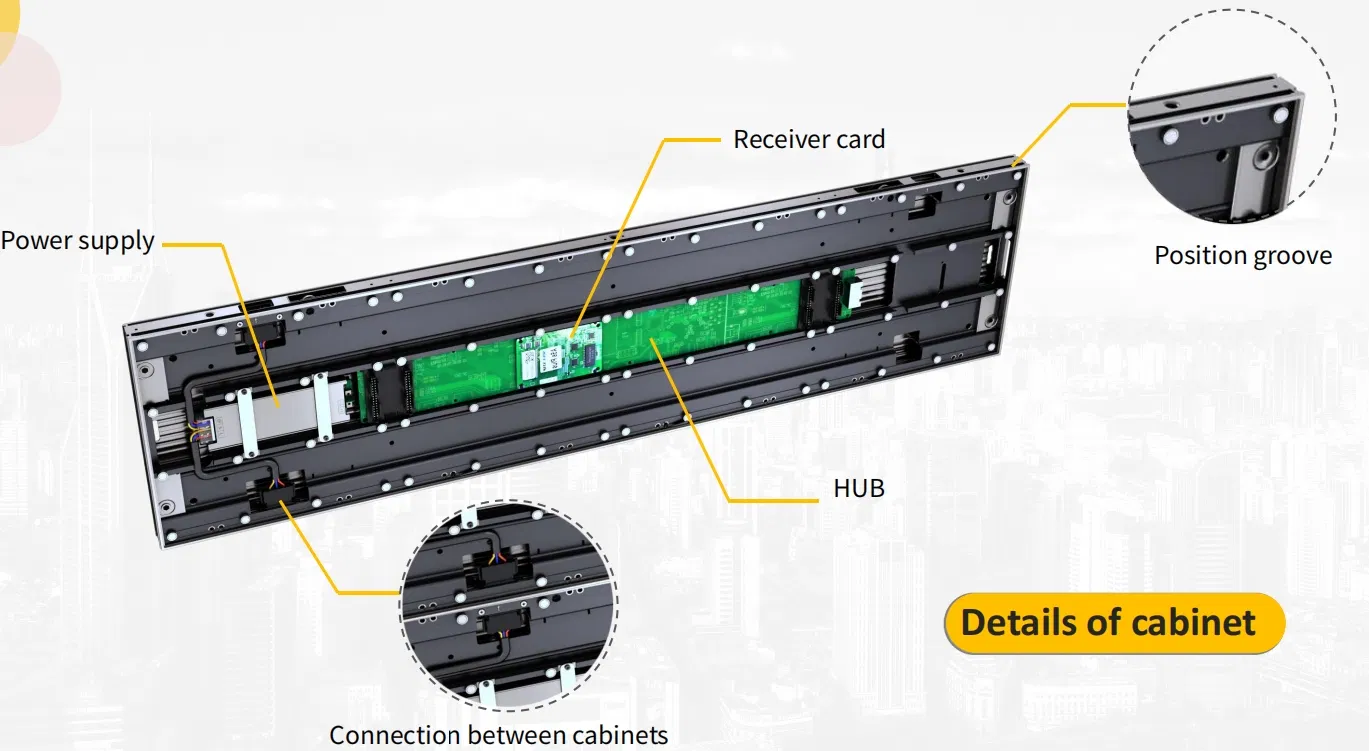

Wireless Connection

Neat cabinet design with no external cables between cabinets for a clean professional look.

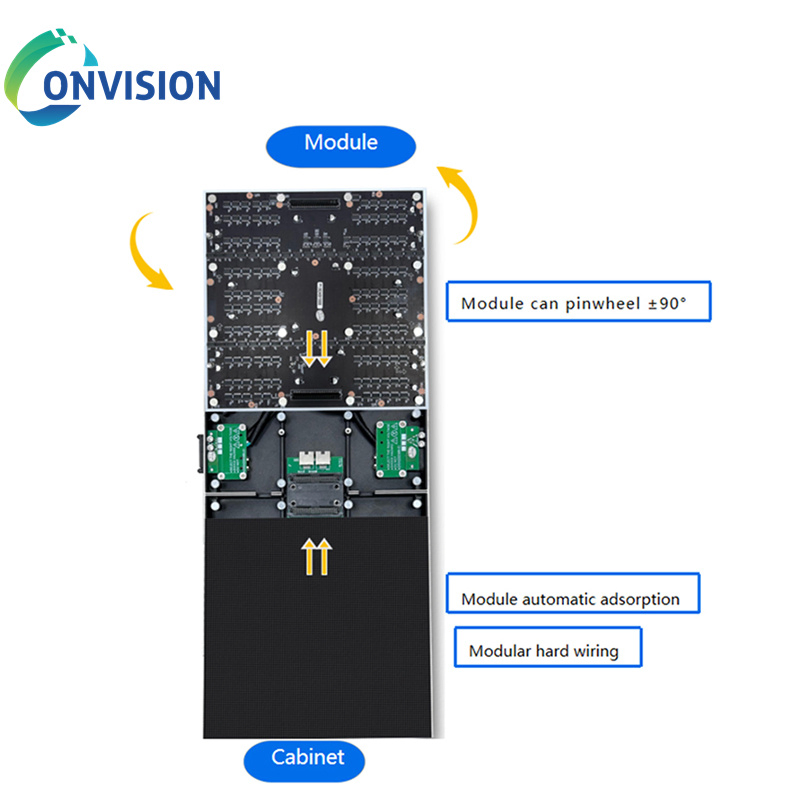

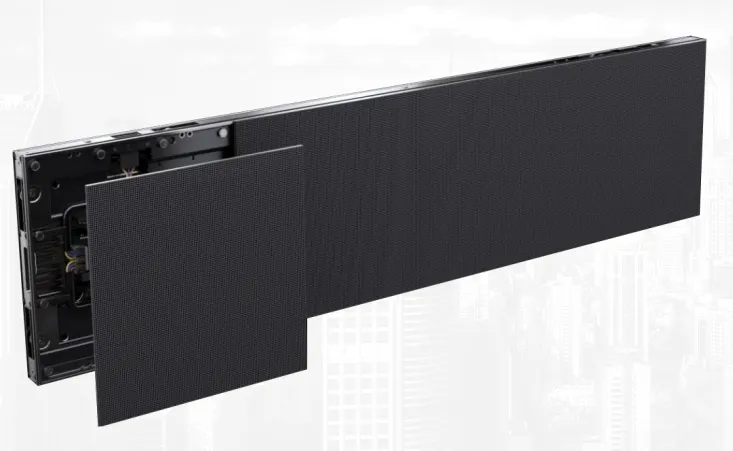

Full Front Access

Easy front-side maintenance allows for quick module replacement without dismantling the structure.

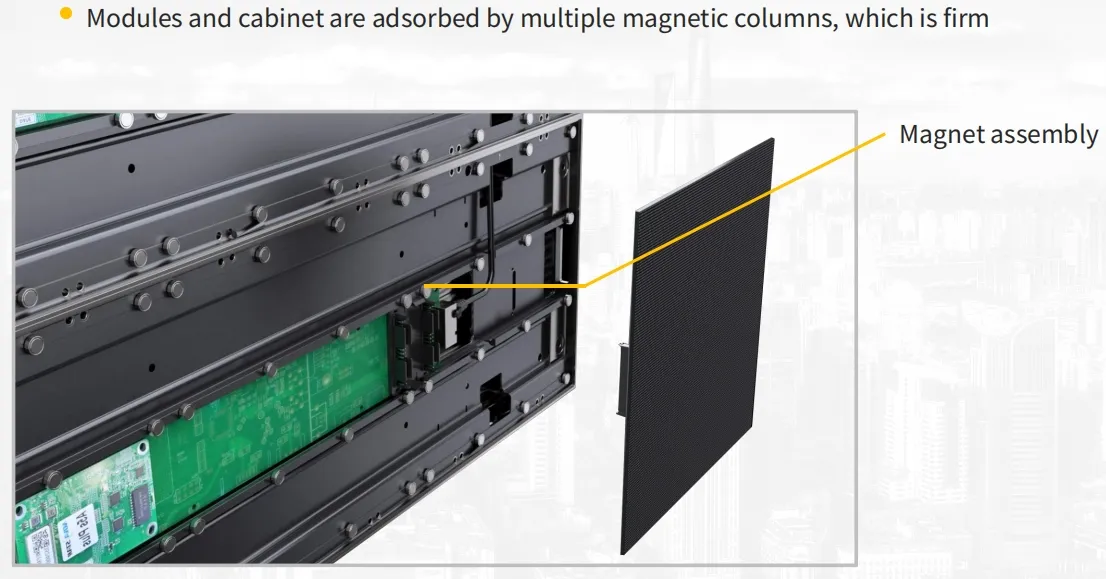

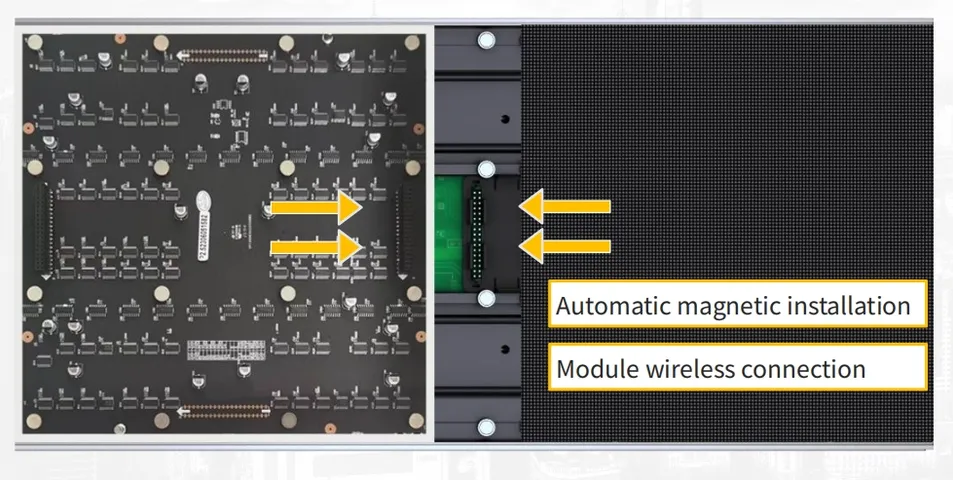

Hot Swapping

Stable hardware connection between modules and cabinet with excellent heat dissipation through aluminum material.

👁

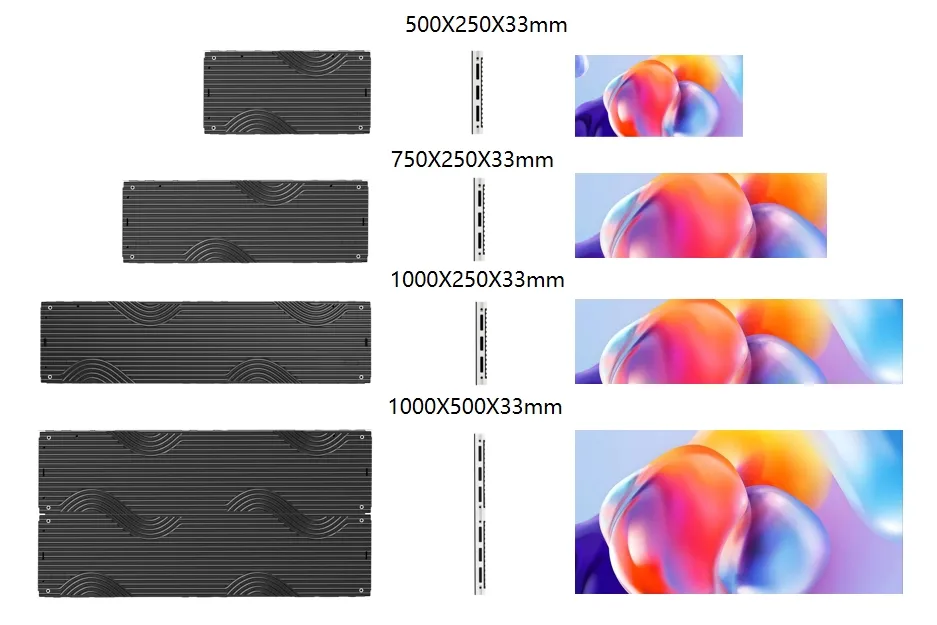

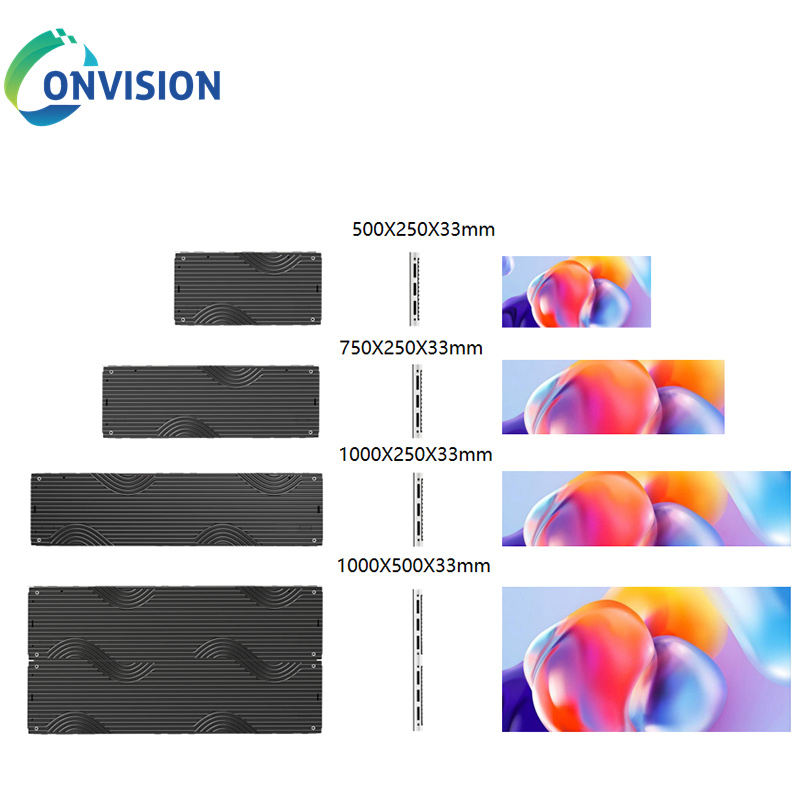

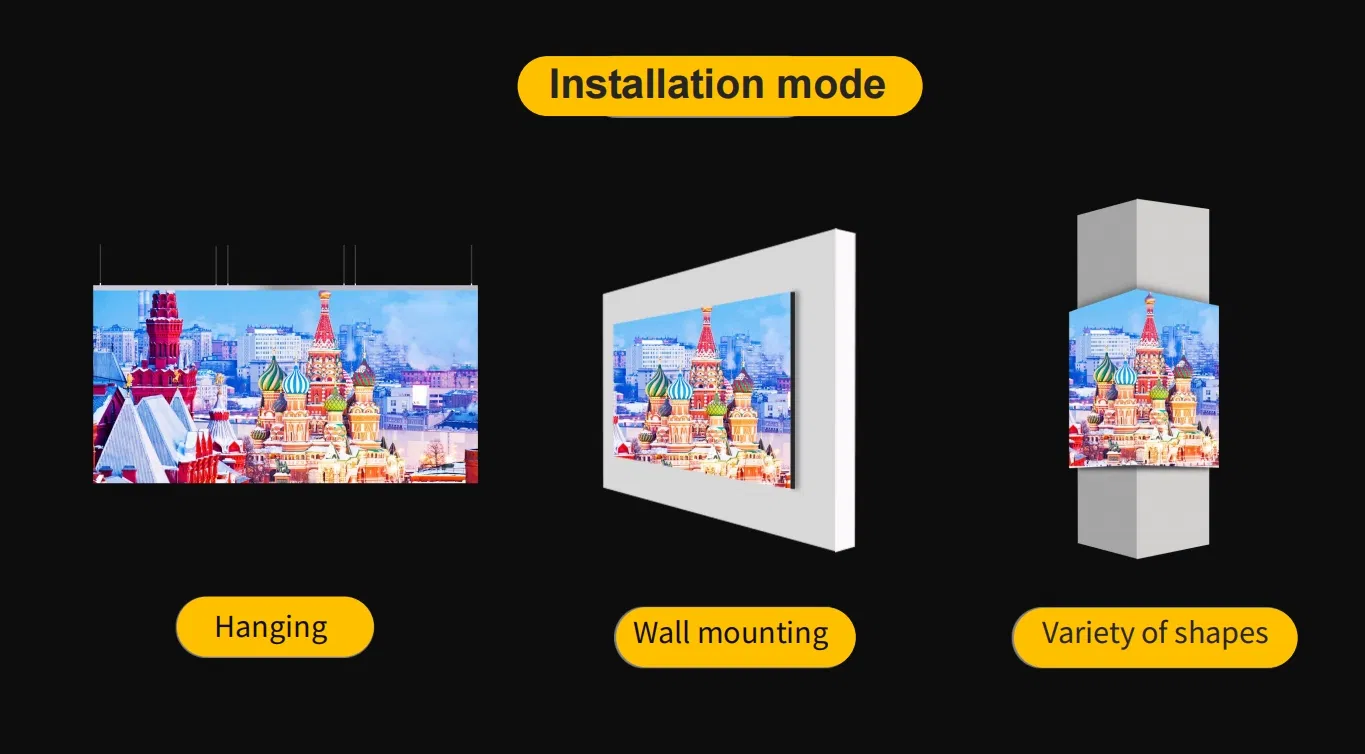

Dimensions & Scenarios

?

Frequently Asked Questions

How do you guarantee the quality of the LED displays?

We ensure quality through a rigorous process: always providing a pre-production sample before mass production and conducting a 100% final inspection before shipment.

What types of display products are available?

Our product range includes Indoor and Outdoor LED Displays, Rental LED Displays, LED modules, and various LCD display solutions.

What payment and delivery terms are accepted?

We support various delivery terms (FOB, EXW, DDP, etc.) and payment methods including T/T, L/C, PayPal, and Credit Cards in USD, HKD, and CNY.

Is the price listed on the page final?

No, the prices shown are approximate. Please contact us directly for detailed quotations based on your specific requirements.

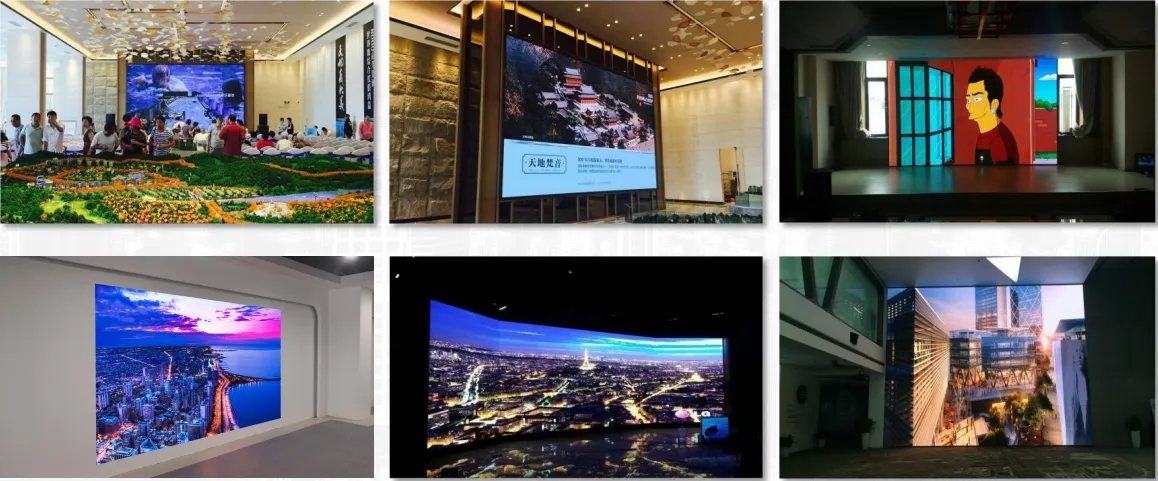

What are the primary applications for these screens?

These screens are ideal for stage performances, advertising, shopping guides, conference centers, and fixed indoor installations.

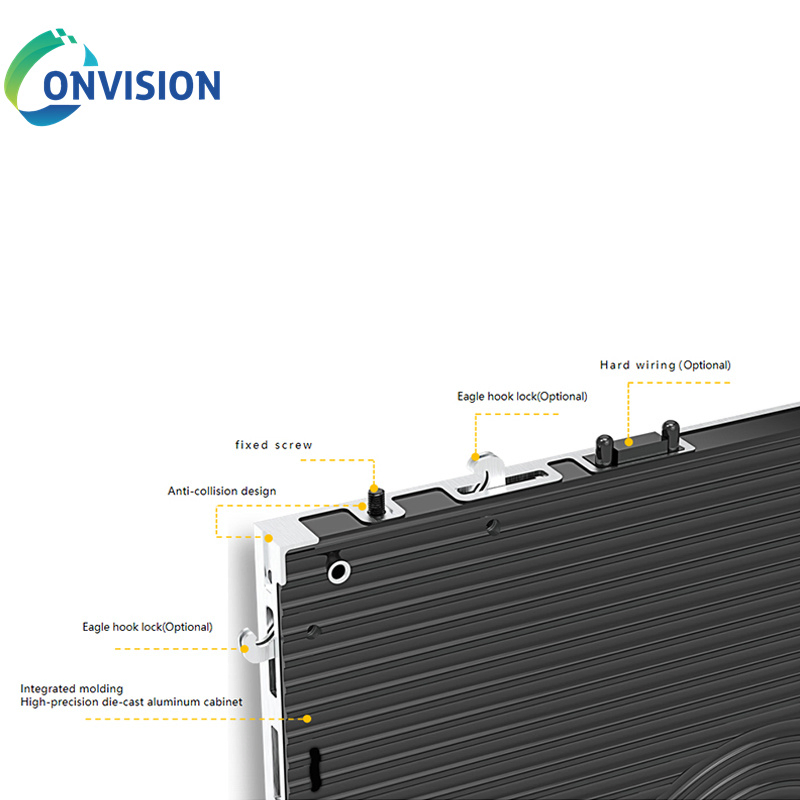

Why choose an aluminum cabinet for indoor displays?

Aluminum cabinets provide better heat dissipation, are significantly lighter than steel, and ensure a more stable hardware connection for wireless module integration.
