Basic Info
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text, Market Display
Avg Power Consumption
260W/M2
Pixel Density
22545 DOT/M2
Cabinet Material
Die Cast Aluminum
Best Viewing Distance
>12m
LED Type
Nationstar SMD2727
Product Description

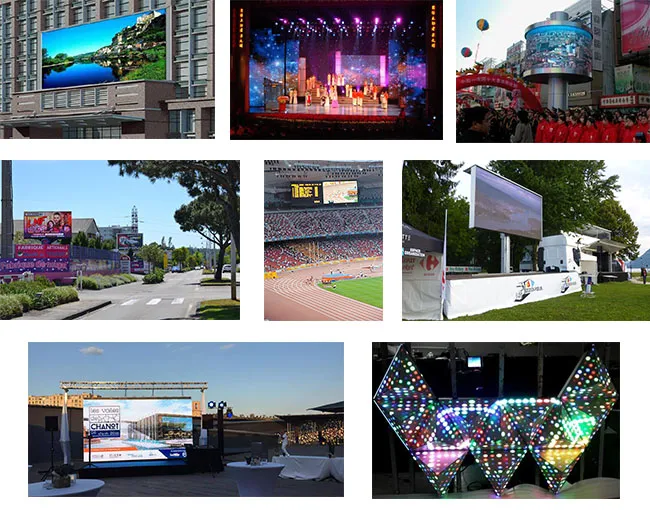

Application:

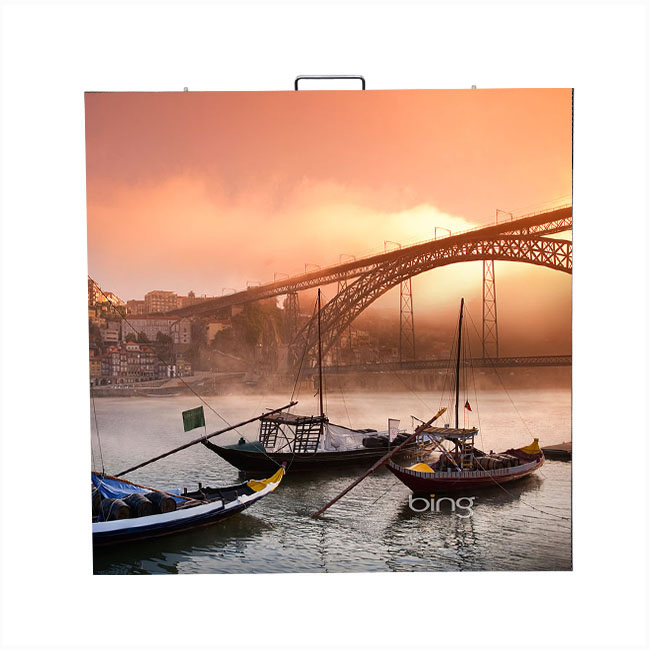

- Advanced LED screen specifically designed for outdoor fixed installation.

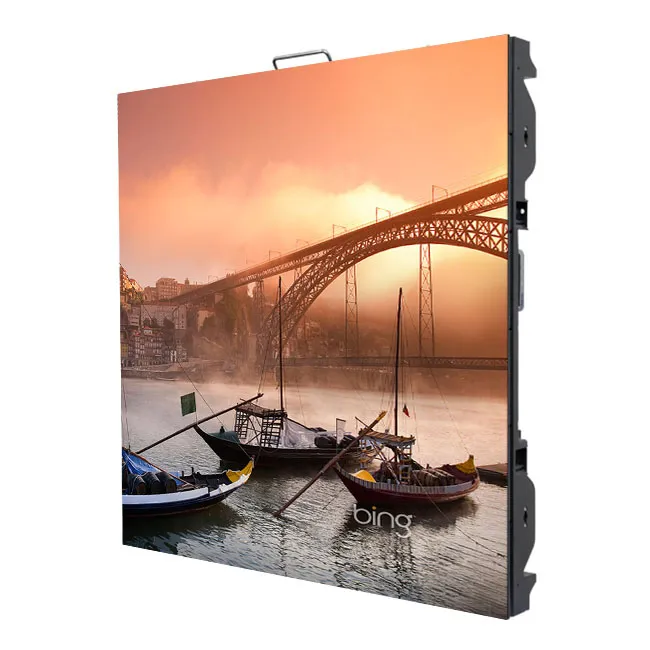

- Ultra-slim and lightweight cabinet architecture for modern architectural needs.
Key Product Features:
- Slim and light weight cabinet design with a sleek professional outlook.
- High brightness levels suitable for direct sunlight environments.
- Industrial-grade high quality components.
- Superior waterproof and protection ratings for extreme weather.
Technical Specifications
| No. |
Parameter |
Specification (SF06) |
| 1 | Pixel Pitch (mm) | 6.67 |
| 2 | Module Size (mm) | 320*160 |
| 3 | Module Resolution (pixels) | 48*24 |

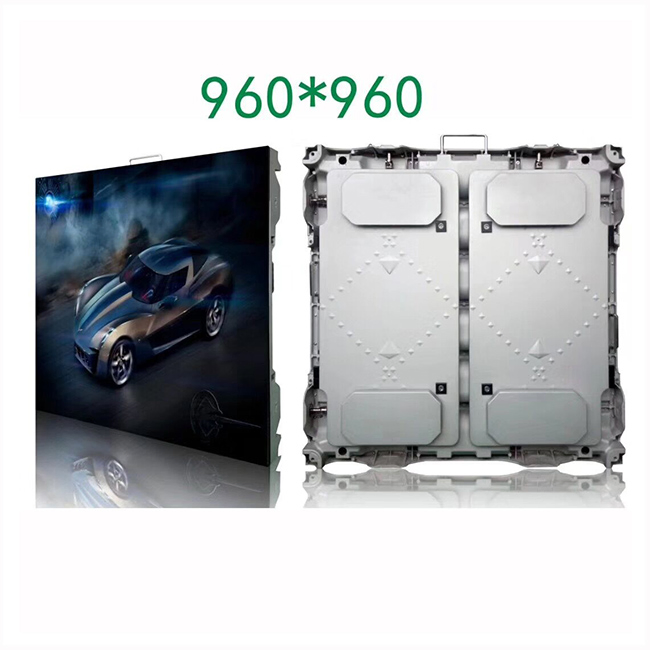

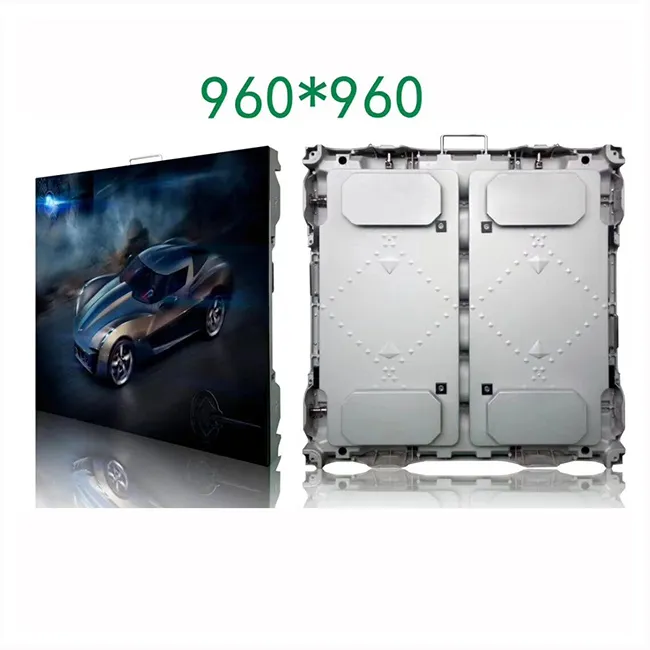

| 4 | Cabinet Size (mm) | 960*960*110 |
| 5 | Cabinet Resolution (pixels) | 144*144 |
| 6 | LED Encapsulation | SMD2727 NationStar |
| 7 | Driver Mode (Scan) | 1/6 |
| 8 | Cabinet Weight (kg) | 30KG |
| 9 | Brightness (NIT) | 6500 |
| 10 | Refresh Rate (Hz) | 1920 |
| 11 | Viewing Angle (H/V) | ±140°/±140° |
| 12 | Protection Grade | IP65 |
| 13 | Average Power Consumption | 260 W/m² |
| 14 | Working Temperature | -20ºC ~ 50ºC |
Core Advantages:
- Lightweight design reduces structural load.
- Simplified installation process for faster deployment.
- Reliable quality guarantee with premium LEDs.
- Superb ingress protection (IP65).

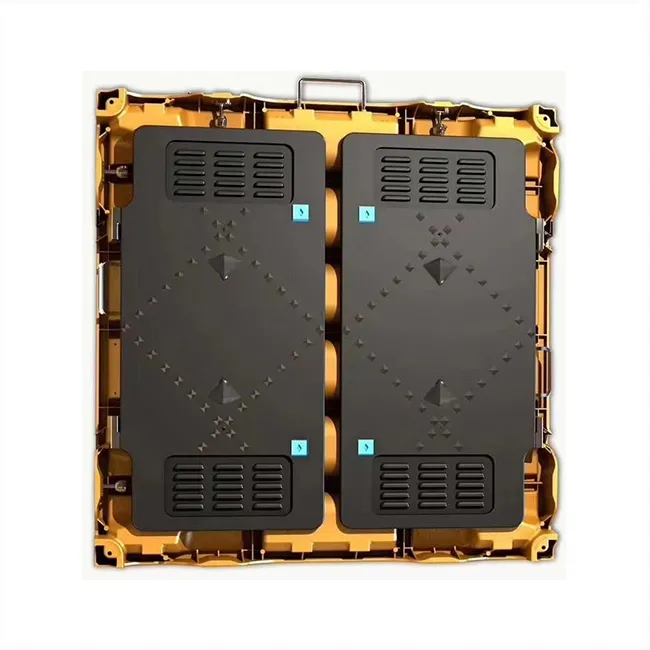

- Customizable cabinet colors to match environment requirements.

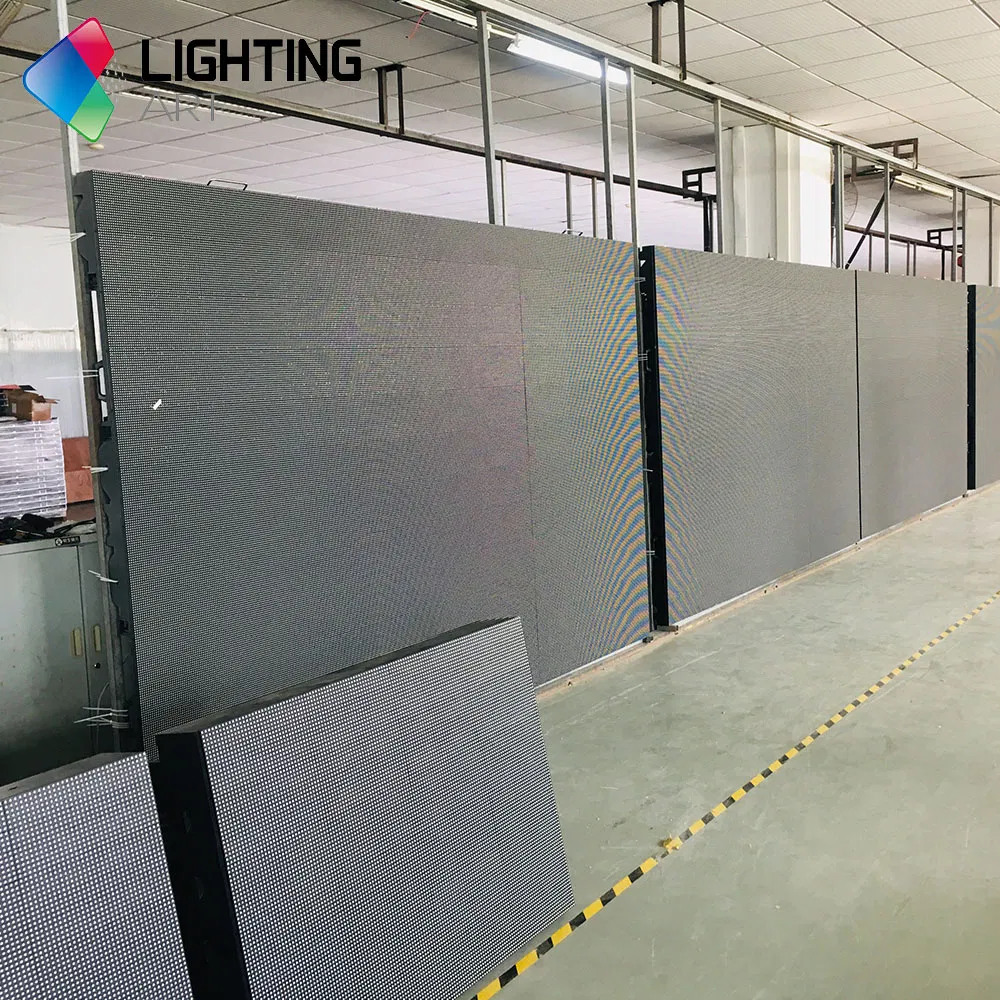

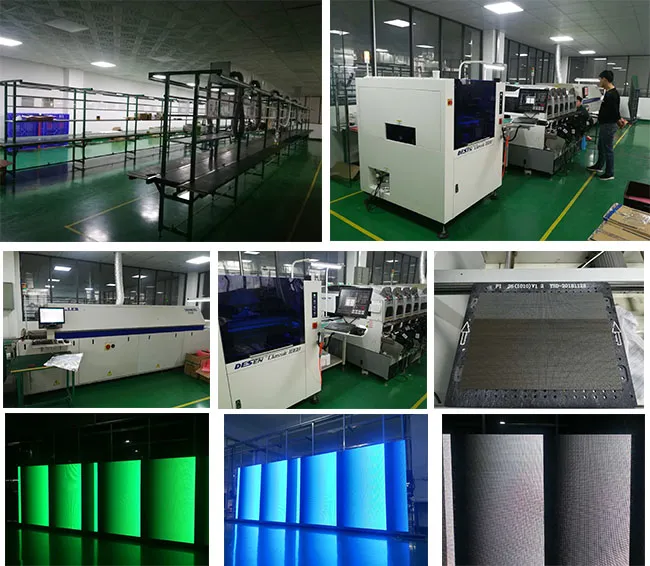

Quality Control & Factory Standard
- Skillful production team with extensive industry experience.
- Utilizing high-technology automatic assembly machines.
- Rigorous aging tests and grayscale testing for every single module.
Delivery and Payment Logistics
- Production Lead Time: Approximately 25 days for orders up to 200 m² (includes mandatory aging test).

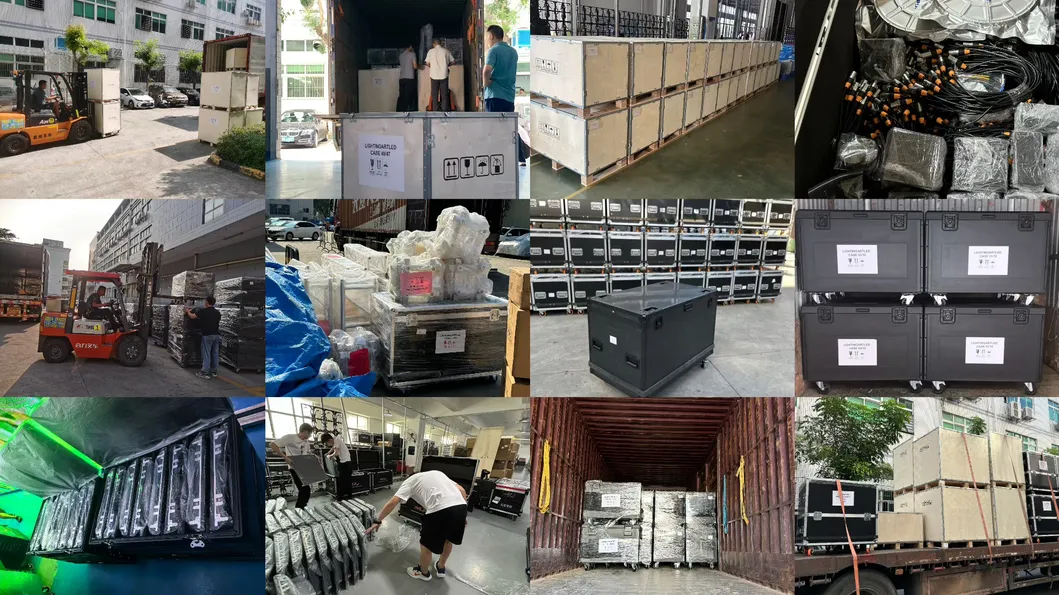

- Packaging: Secure Plywood case or Flight case options provided.
- Trade Terms: FOB, CIF, DDU, DDP supported.
Frequently Asked Questions
What is the pixel pitch of the SF06 model?
The SF06 features a 6.67mm pixel pitch, providing a balance of high resolution and cost-effectiveness for outdoor displays.
Is this LED screen suitable for rainy or dusty environments?
Yes, it has an IP65 protection grade, ensuring it is waterproof and dust-resistant for outdoor fixed installations.
What is the recommended viewing distance?
The optimal viewing distance for the P6.67 (SF06) model is 12 meters or more.
How much power does the display consume?
The average power consumption is approximately 260W per square meter, making it an energy-efficient choice for large-scale advertising.
What kind of maintenance testing do you perform?
Every module undergoes a comprehensive aging test and a grayscale test to ensure color uniformity and long-term reliability before shipping.
What are the cabinet material and weight specifications?

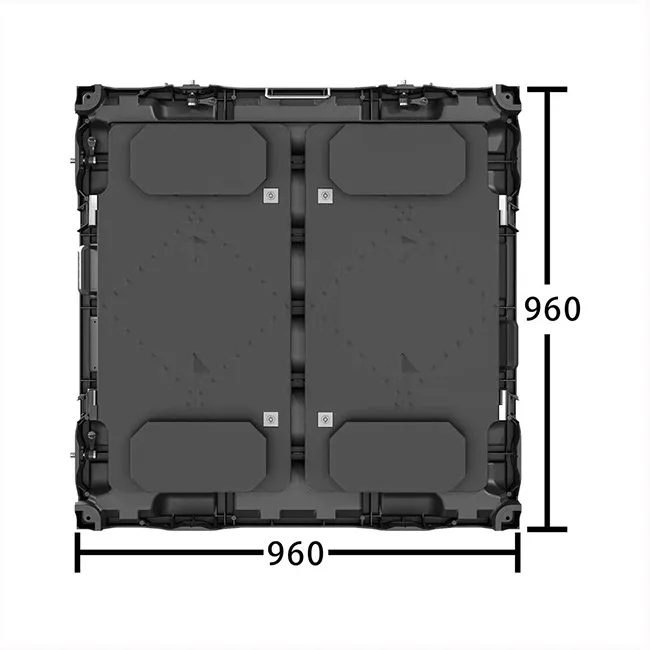

The cabinet is made of durable Die-Cast Aluminum and weighs approximately 30KG per unit (960x960mm).
