📋 Basic Information
Model NO.:FLEX
Pixel Pitch:2.5mm
Pixel Density:160000 Dots/Sqm
Scanning Mode:1/24 Scan
IP Rating:IP45
Certification:CE, RoHS, CCC, ETL, FCC/ISO
Module Material:Silicon Rubber Soft Bracket
Service Access:Front
Viewing Angle:140 / 140
Input Voltage:100V or 240V
📷 Product Overview
⚙ Technical Specifications
| Model |
FLEX1.25 |
FLEX1.579 |
FLEX1.667 |
FLEX1.875 |
FLEX2 |
FLEX2.5 |
FLEX3 |
FLEX4 |
| Pixel Pitch(mm) |
1.25 |
1.579 |
1.667 |
1.875 |
2 |
2.5 |
3 |
4 |
| Pixel Matrix /sq.m |
640000 |
401111 |
360000 |
284444 |
250000 |
160000 |
111111 |
62500 |
| Brightness (nits) |
≥600 |
≥650 |
≥700 |
≥750 |
≥750 |
≥750 |
≥900 |
≥850 |
| Scan |
1/48 |
1/38 |
1/36 |
1/32 |
1/30 |
1/24 |
1/20 |
1/15 |
| Module Dimension |
240x120mm / 0.79x0.39ft |
| Refresh Rate (HZ) |
3840 |
3840 |
3840 |
≥2880 |
≥2880 |
≥1920 |
≥1920 |
≥1920 |

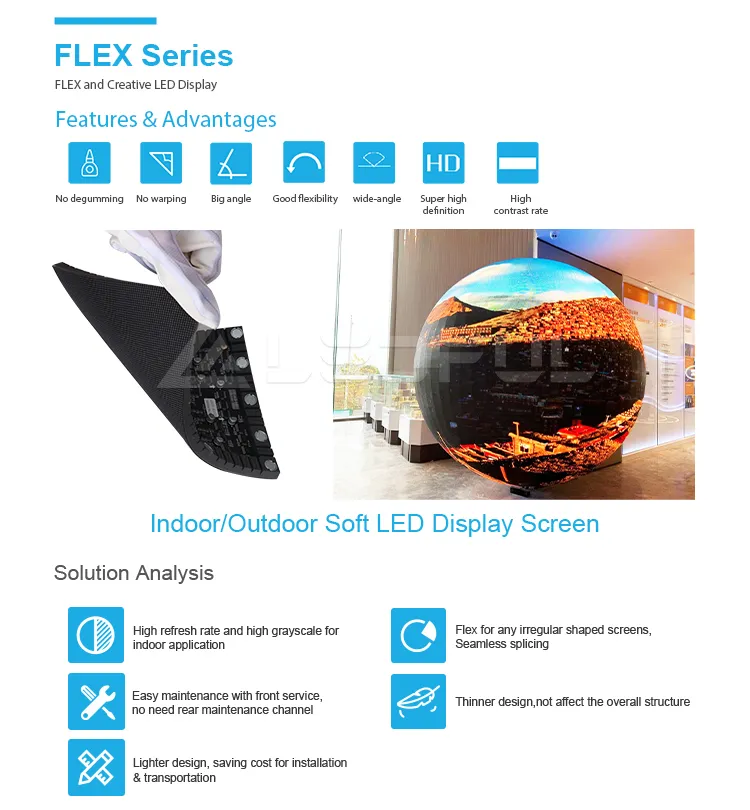

💎 Key Features & Applications

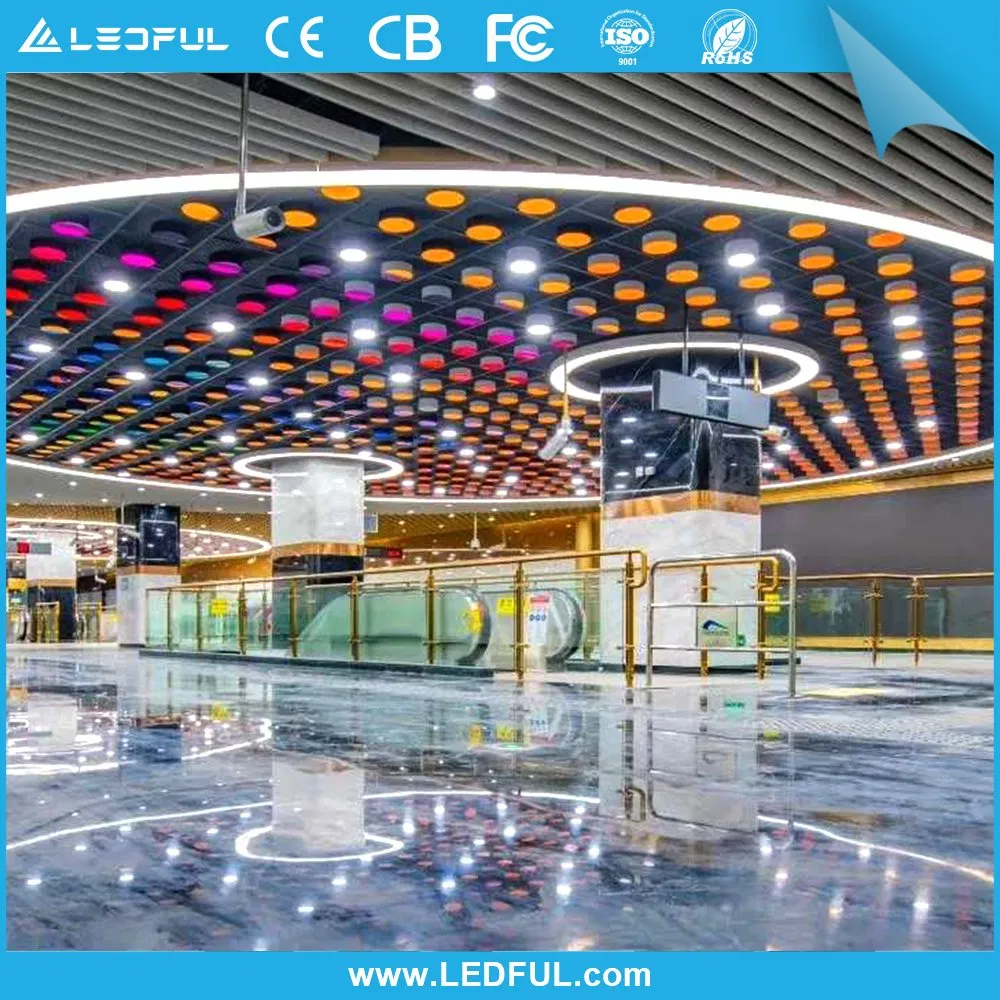

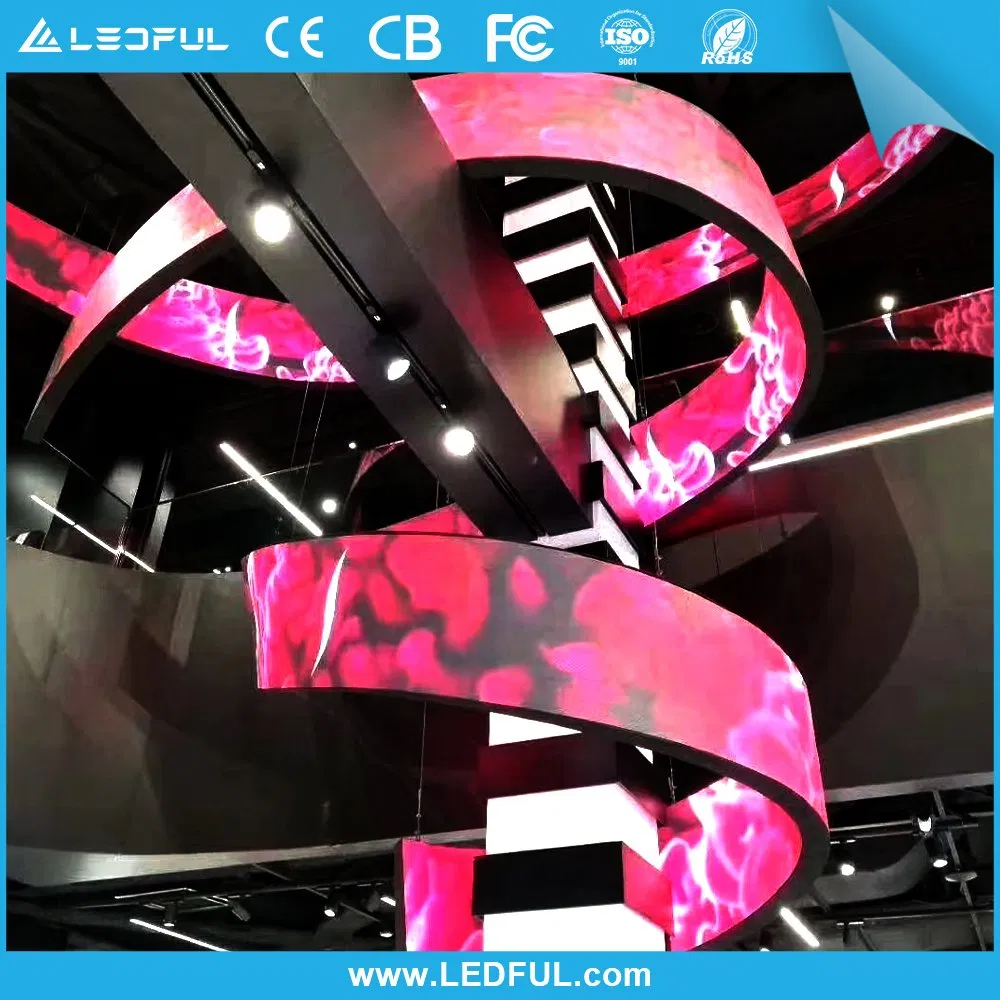

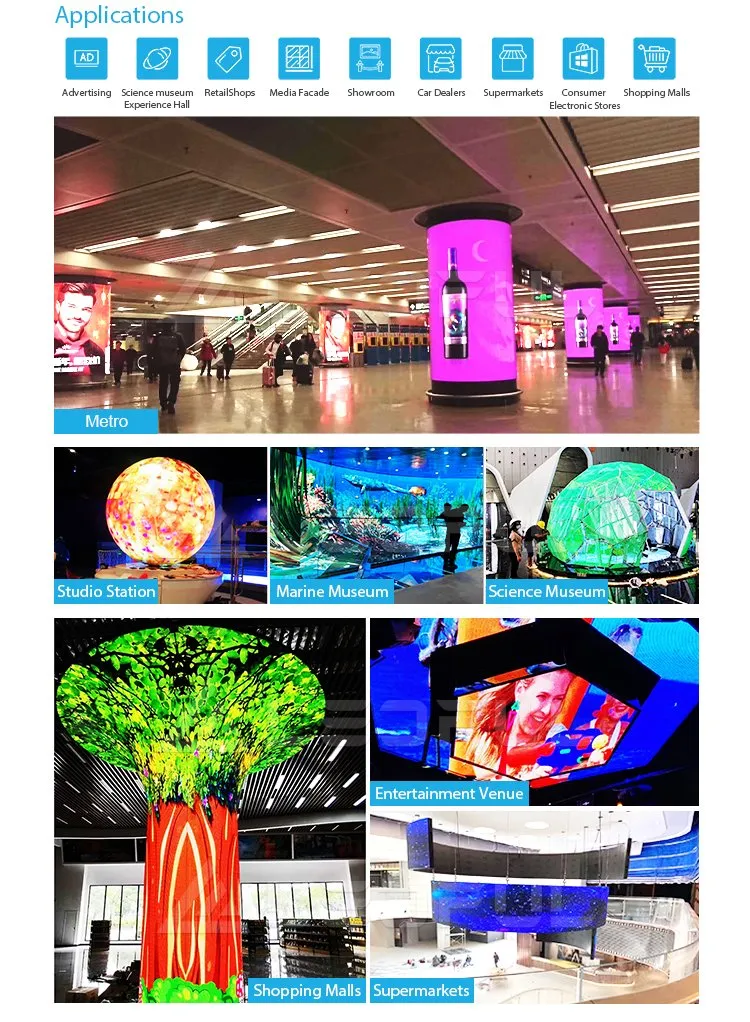

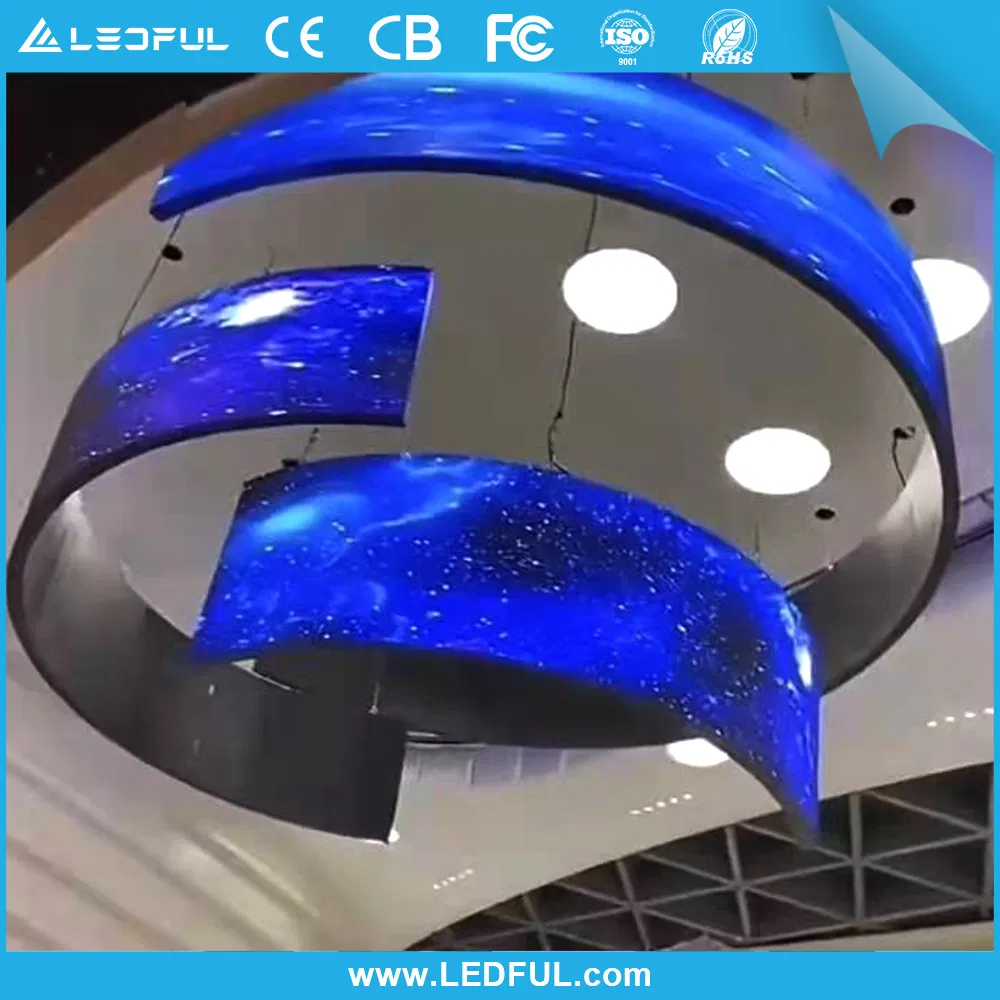

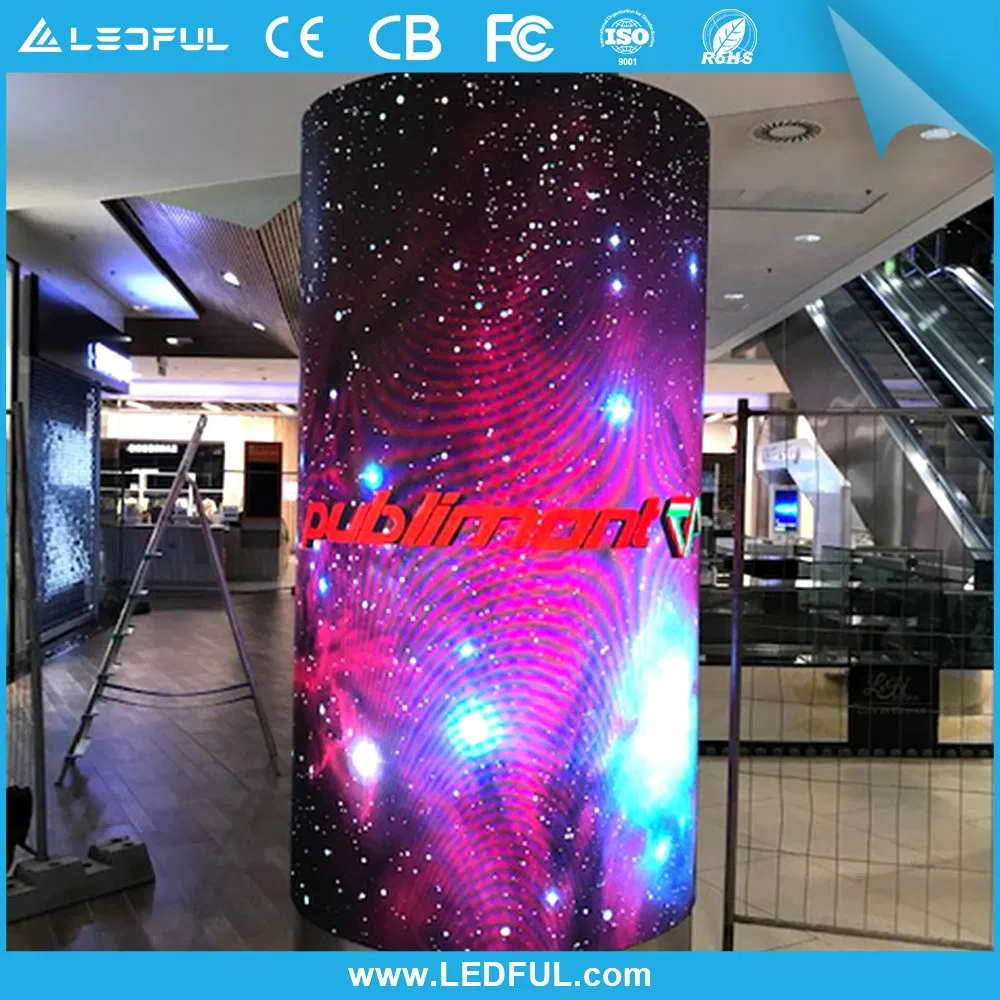

Concentrating on professional display solutions including LED Posters, Transparent screens, and commercial billboards. Our flexible modules are designed for creative installations such as circular, curved, and irregular shapes. These products are ideal for media advertising, retail, sports, and studio environments.
📦 Quality & Logistics
Our products undergo rigorous testing through multiple operating procedures and experiments to ensure stable quality. We support customized, OEM, and ODM orders, ensuring every detail of packaging and shipping is handled with professional care.
❓ Frequently Asked Questions
What is the minimum diameter available for circular displays?
The minimum diameter we can manufacture is 153mm.
How do you maintain the flexible modules?
The flexible modules feature magnets on the back. Maintenance is simple: just press the module point to remove it for front-service access.
What is the maximum curved angle of the flexible modules?
The maximum curved angle for these flexible modules is 90 degrees.
What control systems are supported?
We typically use advanced asynchronous control systems that support cluster play via APP, Phone, WIFI, Laptop, and Cloud control.
What is your standard warranty term?
We provide a 3-year warranty with a professional after-sales team available to solve any technical questions.

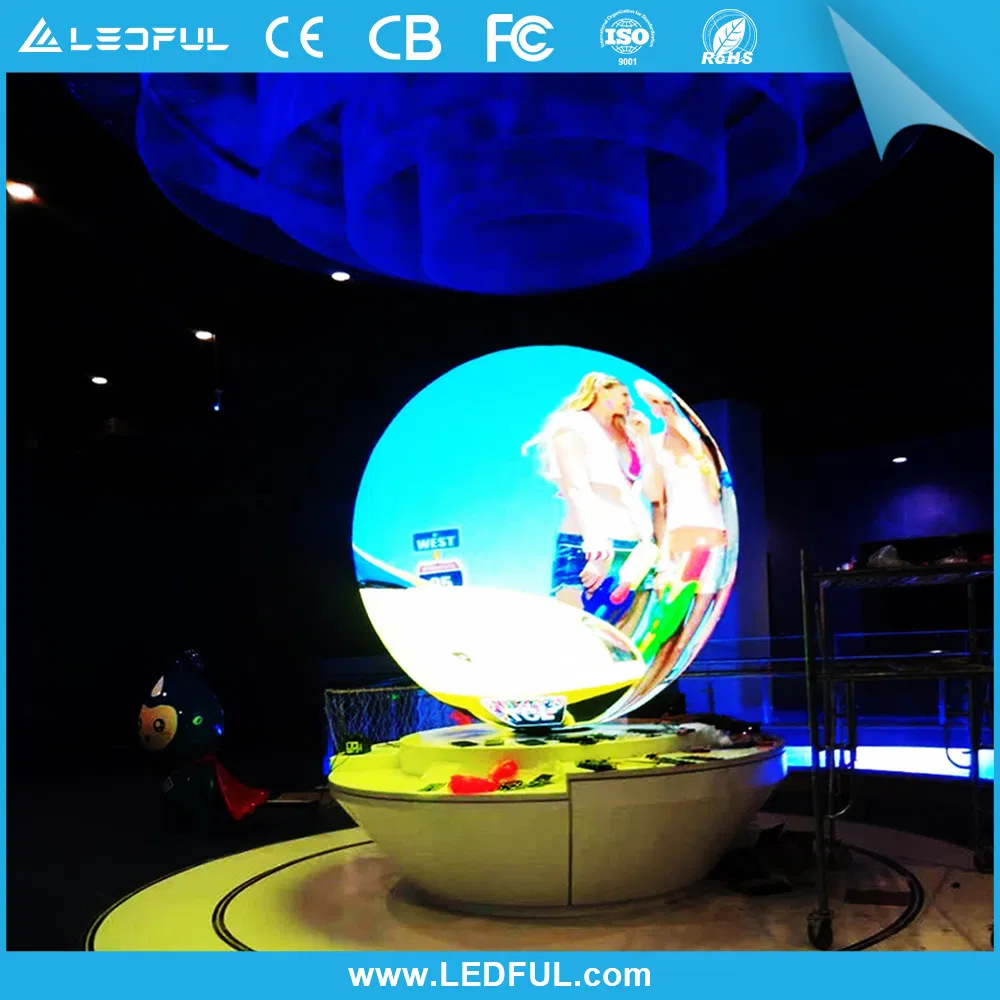

Can you provide customized shapes?
Yes, front service, double-sided, column, flex, curved, sphere, and any irregular shaped LED displays are available.
