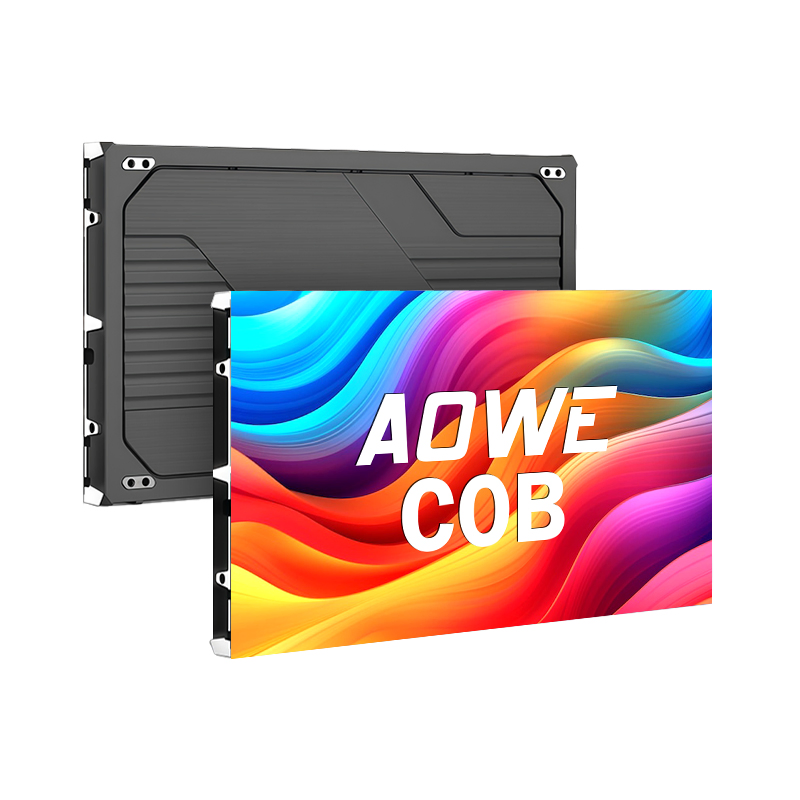

Microled Display COB High Definition LED Screen Xr LED Video Wall for Home Theater

1 / 5

Microled Display COB High Definition LED Screen Xr LED Video Wall for Home Theater

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Market Display

Send Inquiry

Product Description

📋 Basic Information

Model NO.

A60

Pixel Pitch

0.6/0.9/1.2

Pixel Configuration

1R,1G,1B

Pixel Density

640,000

Scanning Mode

1/31 Scan

Display Type

LED Video Display

IP Rating

IP43

Certification

CE, RoHS, CCC, ETL

Warranty

3 Years

Brightness

600~800CD/M2

Material

Aluminum

Module Size

600X337.5

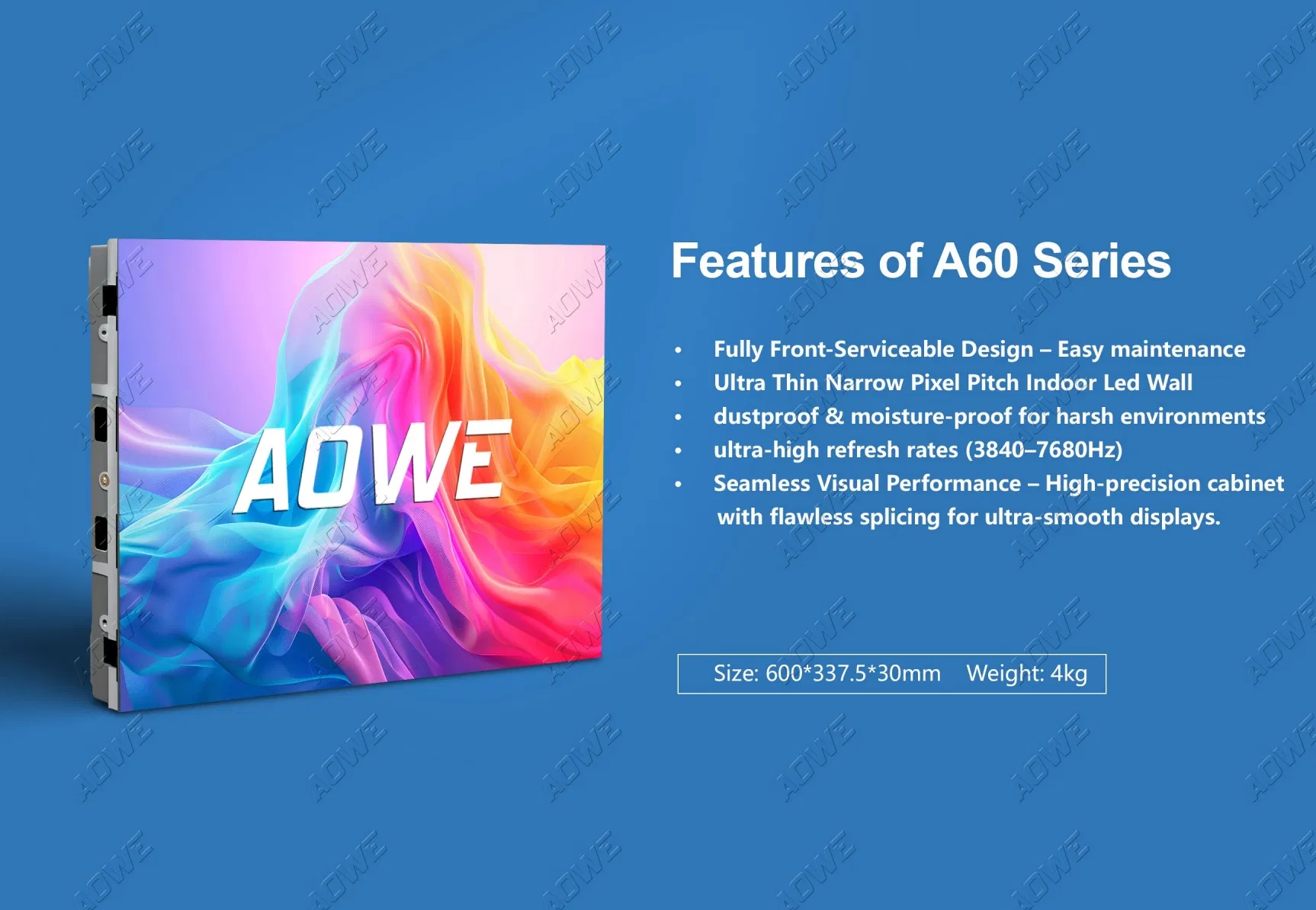

💡 Features of A60 COB LED Display

Portability & Space Efficiency
COB is a packaging method where multiple LED chips (the red, green, and blue diodes that make a pixel) are directly bonded to a substrate and then encapsulated as a single, unified module with a protective phosphor coating.

Superior Reliability and Durability: This is COB's most significant advantage.

✓No Dead Pixels: The epoxy resin coating fully protects the LED chips from moisture, dust, oxygen, and static electricity.
✓Impact Resistance: The surface is a solid, smooth layer. It can withstand direct poking and scraping, ideal for public spaces and interactive kiosks.
✓Longer Lifespan: Superior protection and heat dissipation significantly reduce the degradation rate.

Excellent Thermal Performance:

Direct Heat Path: Since the LED chips are bonded directly to the PCB, heat is conducted away more efficiently. The PCB itself acts as a large heatsink, resulting in a lower operating temperature and preventing color shift over time.

▶ Product Video Showcase

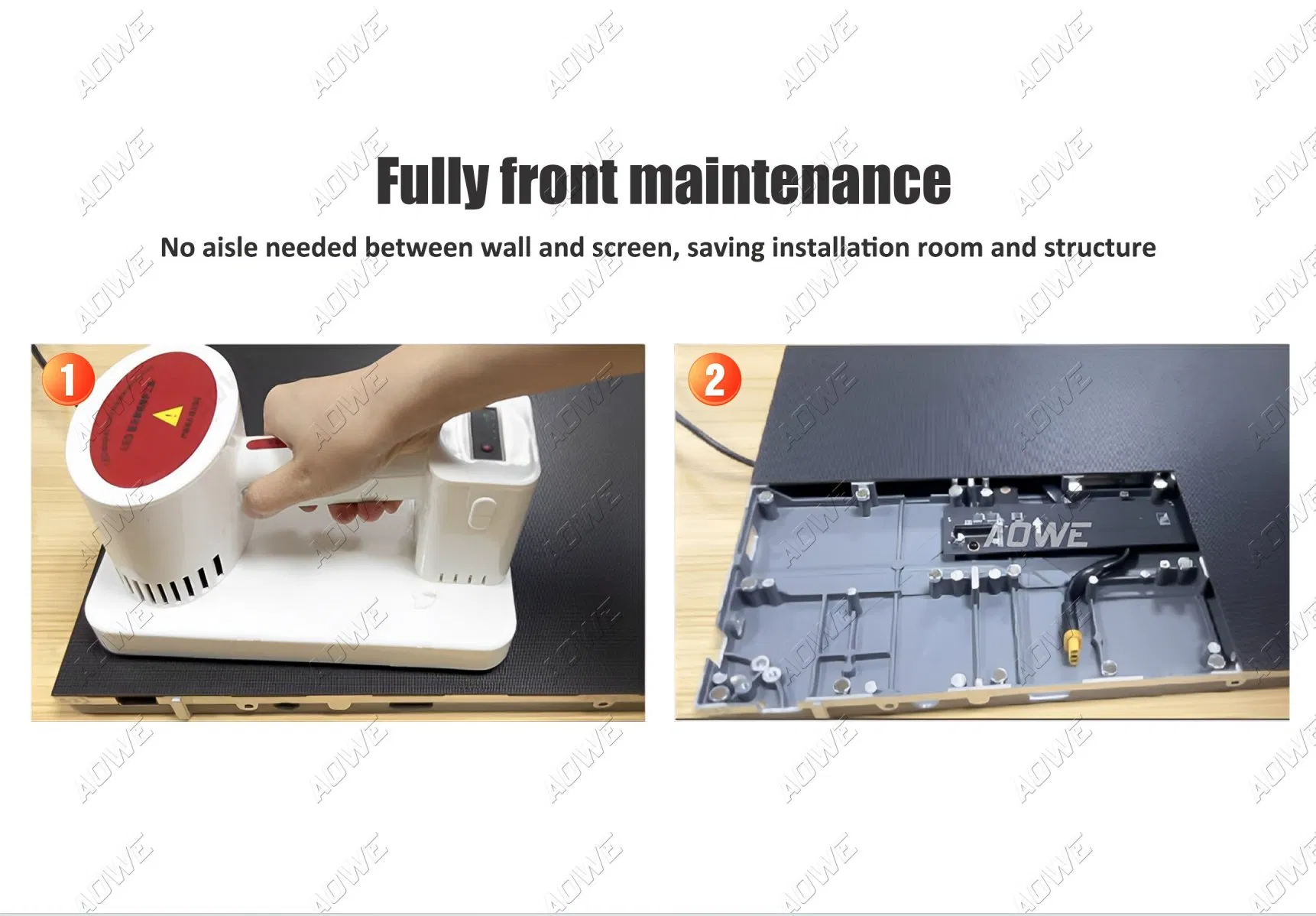

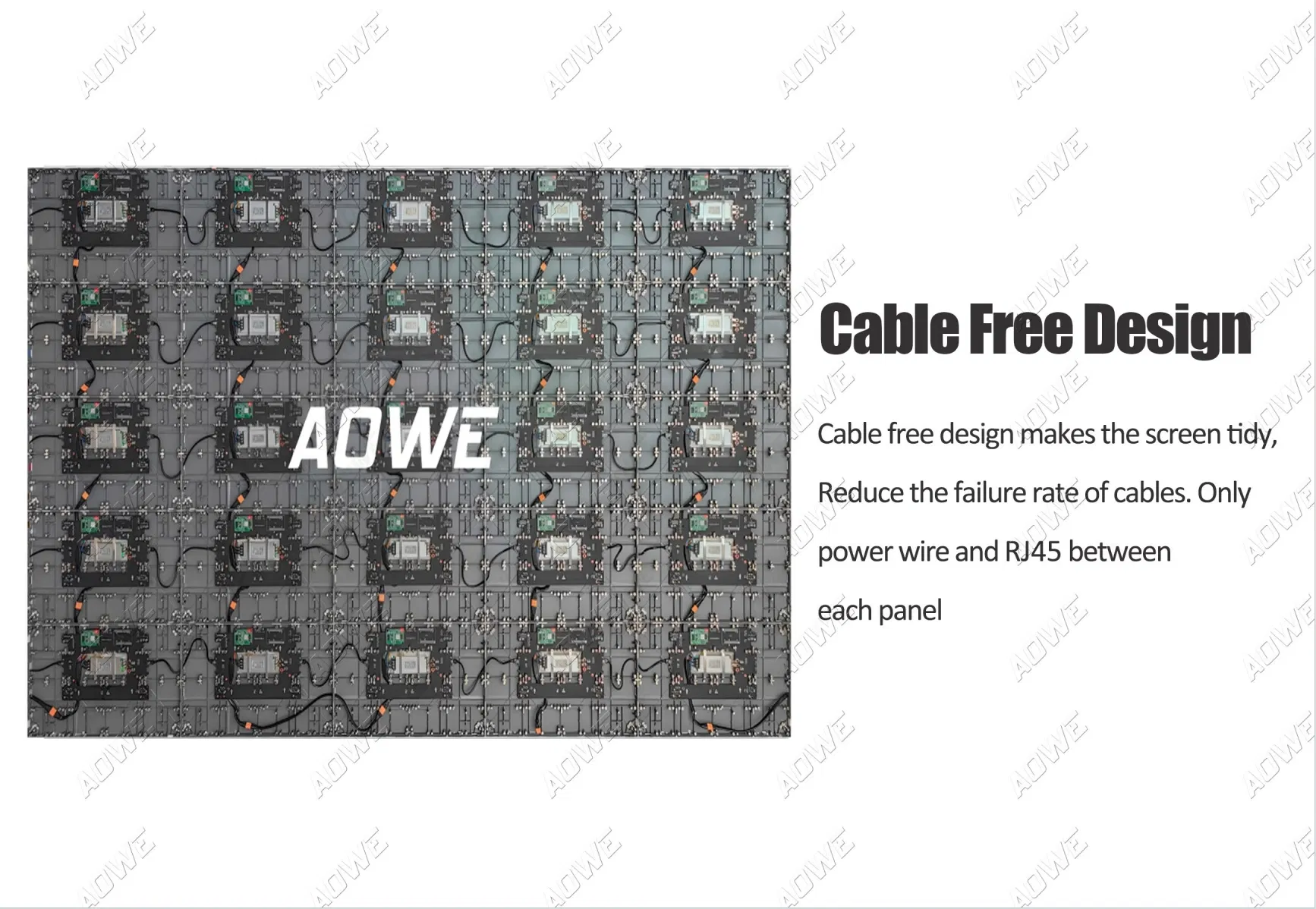

📷 Detailed Product Views

⚙ Technical Specifications

Model	A60 COB
Pixel Pitch	P0.6/ P0.9 / 1.25 / P1.5 / P1.8
Color Configuration	1R1G1B Flip chip

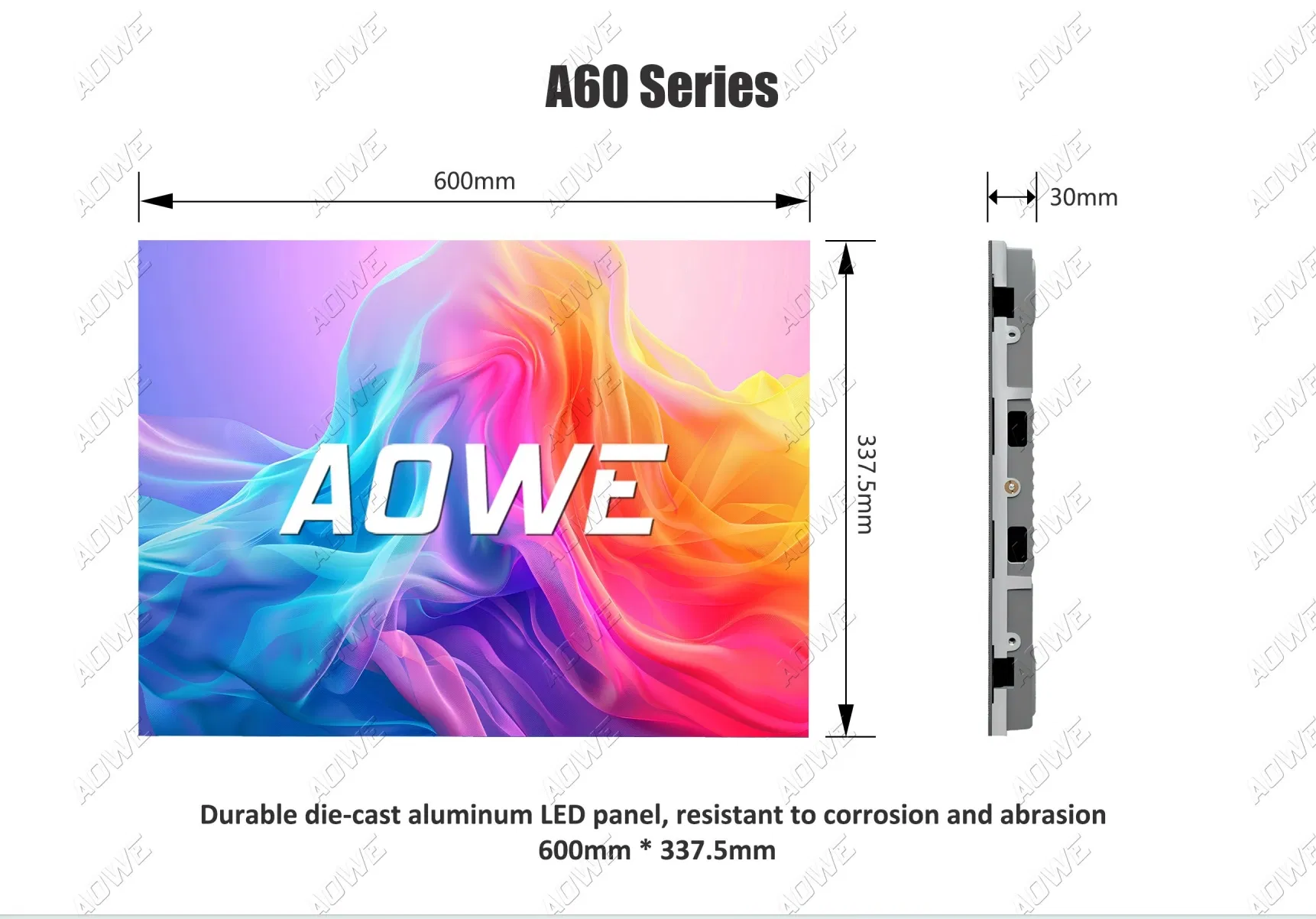

Cabinet Size	600x337.5 mm
Brightness	600-800 Nits
Refresh Rate	3840Hz
Viewing Angle	H: 140°; V:140°
Life Span	100,000 Hours
Applications	Church, Cinema, Exhibition, School, Government

❓ Frequently Asked Questions

What are the advantages of COB LED technology?

COB (Chip-on-Board) offers superior reliability with no dead pixels, high impact resistance, and excellent thermal performance compared to traditional SMD displays.

Is the display suitable for interactive use?

Yes. Due to its solid epoxy resin coating, the surface is scratch-resistant and can withstand direct physical contact, making it perfect for kiosks and public areas.

What pixel pitches are available for the A60 model?

The A60 series supports ultra-fine pixel pitches including P0.6, P0.9, P1.25, P1.5, and P1.8.

What certifications does this product have?

The display is fully certified with CE, RoHS, FCC, CB, PSE, ETL, and follows ISO9001/ISO14001 standards.

What is the expected lifespan and warranty?

The A60 COB LED display has a lifespan of 100,000 hours and comes with a 3-year warranty for peace of mind.

Where can this display be applied?

It is ideal for high-end scenarios such as home theaters, churches, cinemas, retail stores, government conferences, and exhibitions.
