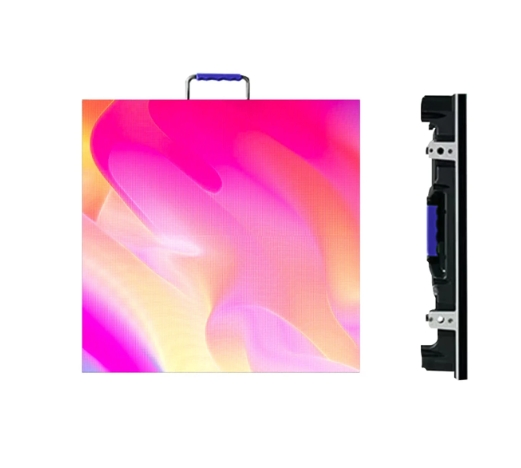

Indoor LED Screen Display Overview:

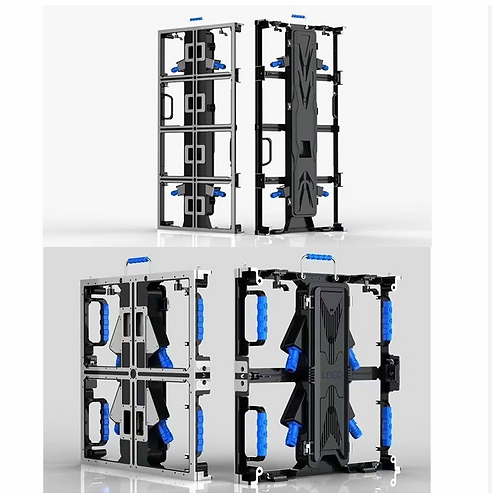

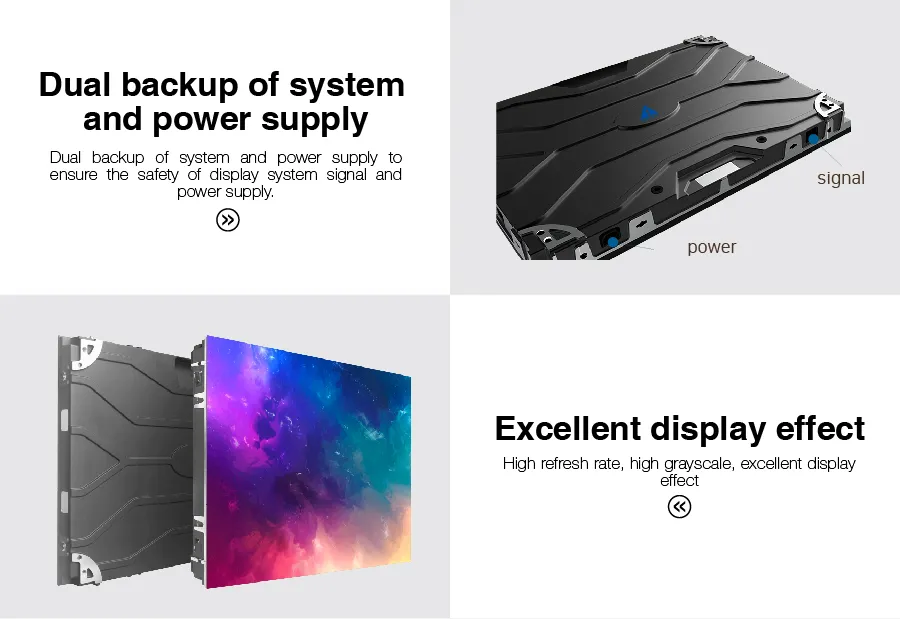

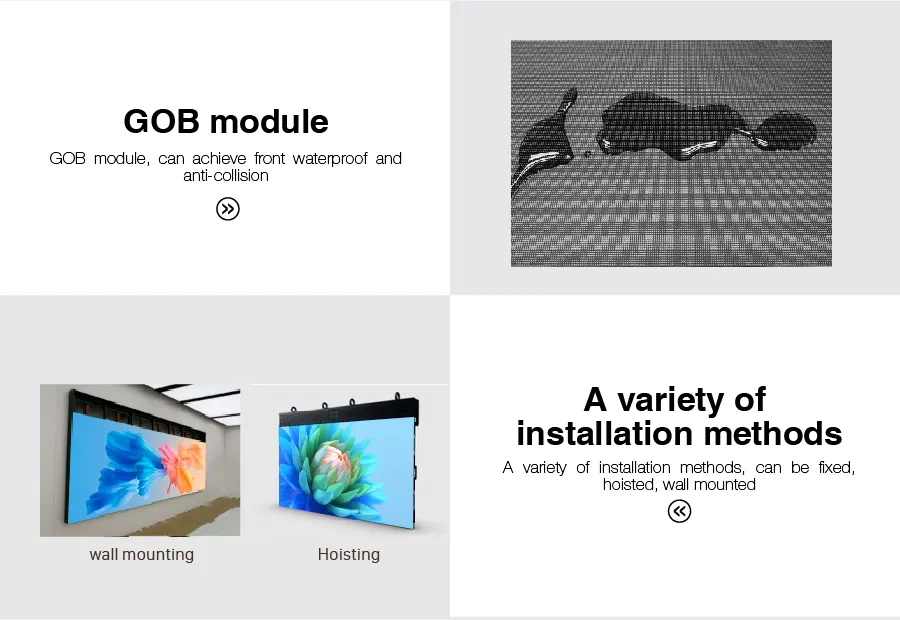

The indoor conventional screen is a full-color high-definition LED display screen, which is composed of a die-cast aluminum frame. With excellent EMC performance, minimalist circuit and modular design, there are a variety of box sizes to choose from, as well as a variety of assembly methods to choose from.

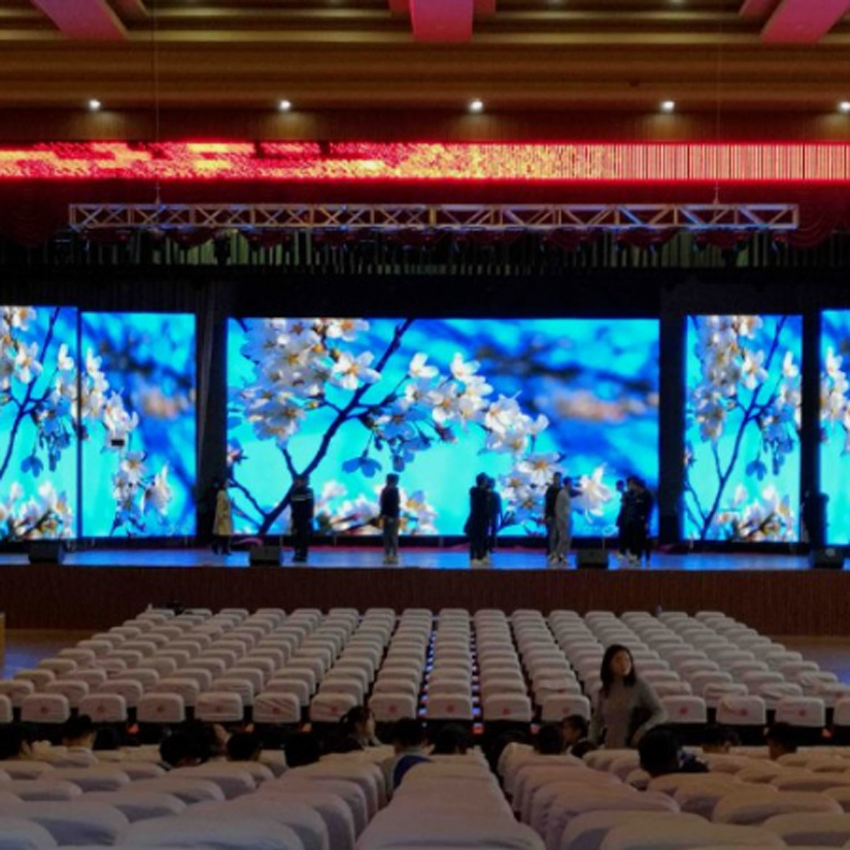

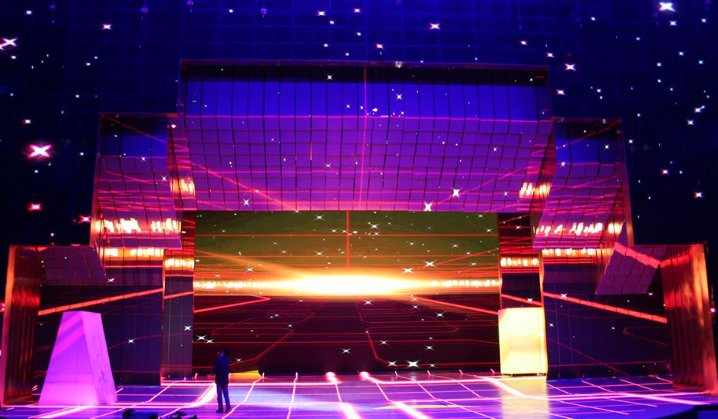

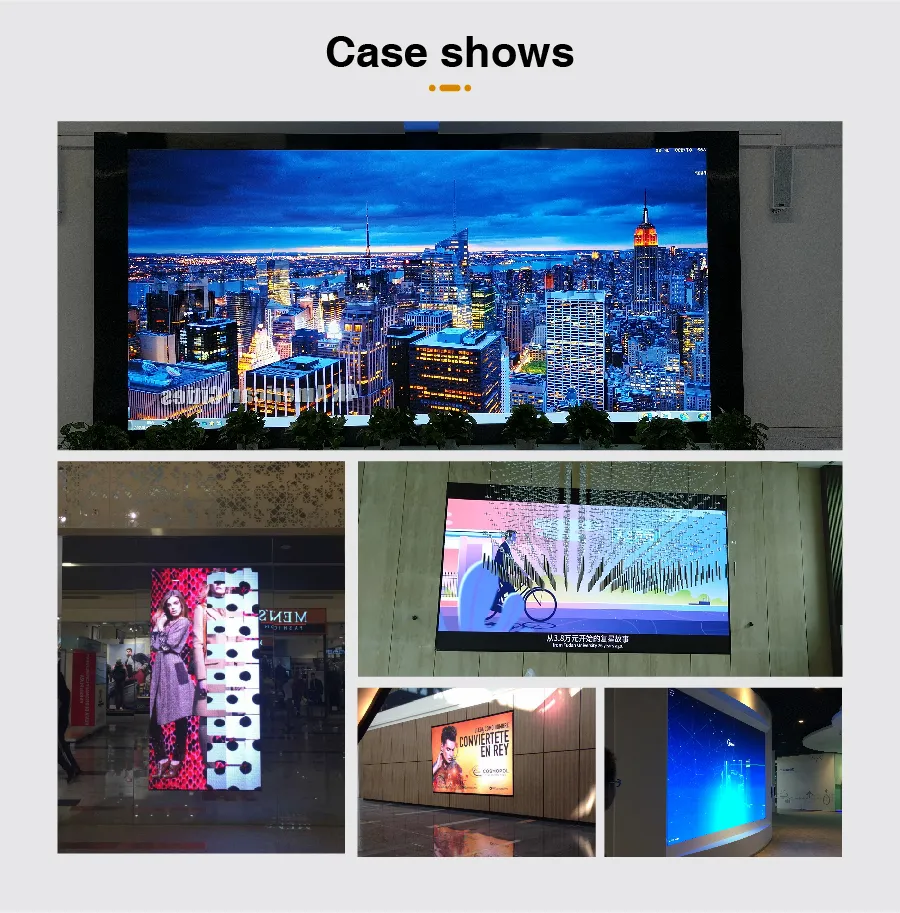

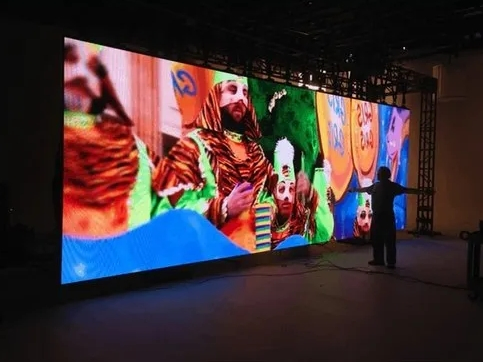

Application: Widely used in conference rooms, hotels, shopping malls, dispatching rooms, monitoring rooms, stage backgrounds, studios, and other indoor venues.

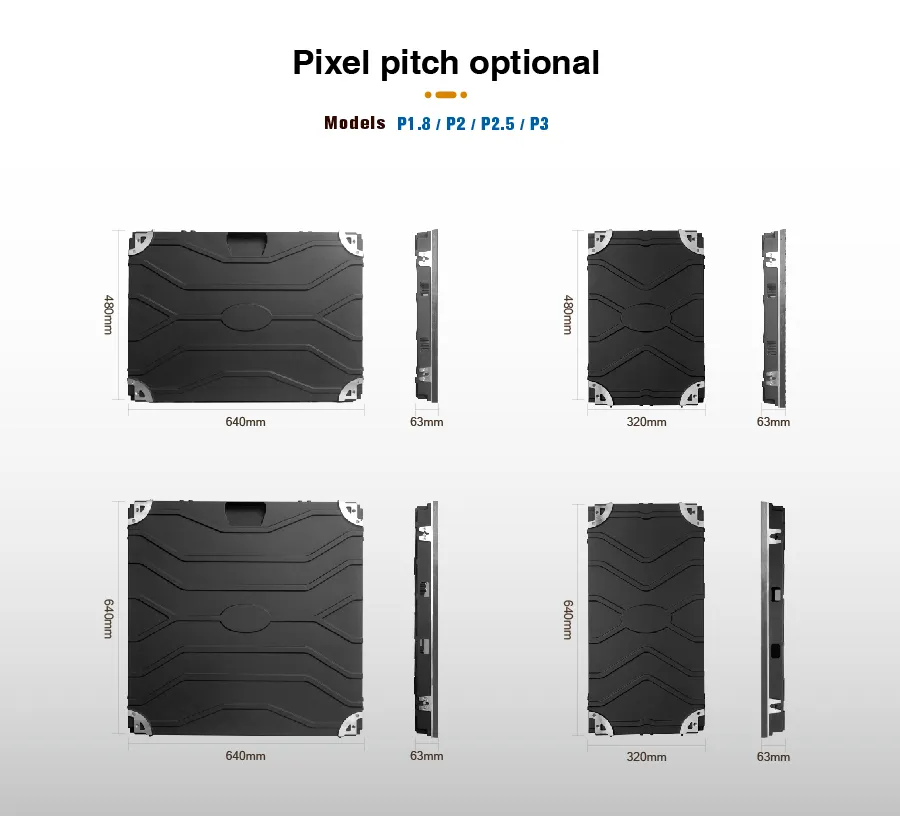

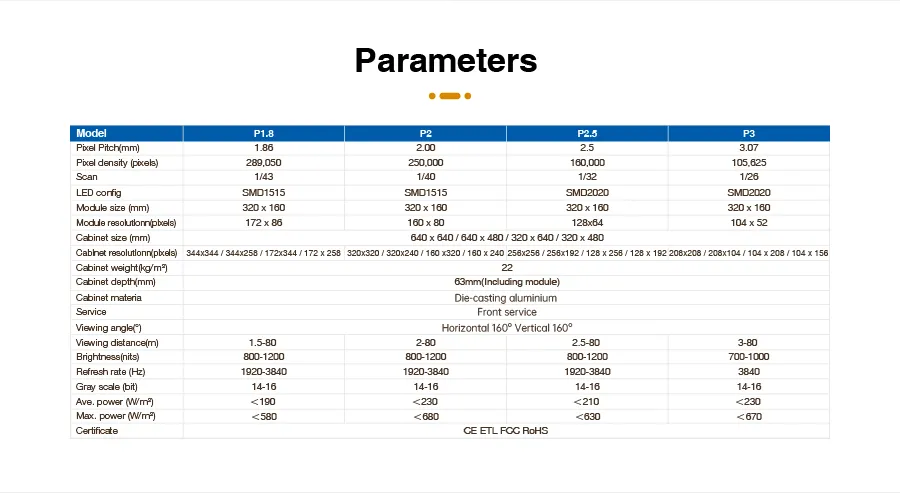

| Model | HRSN-P1.8 | HRSN-P2 | HRSN-P2.5 | HRSN-P3 |
|---|---|---|---|---|
| Pixel pitch | P1.86 | P2 | P2.5 | P3.07 |
| Pixel density (dots/m²) | 289,050 | 250,000 | 160,000 | 105,625 |
| LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Scan mode | 1 / 43 | 1 / 40 | 1 / 32 | 1 / 26 |
| Module size (mm) | 320*160 | 320*160 | 320*160 | 320*160 |

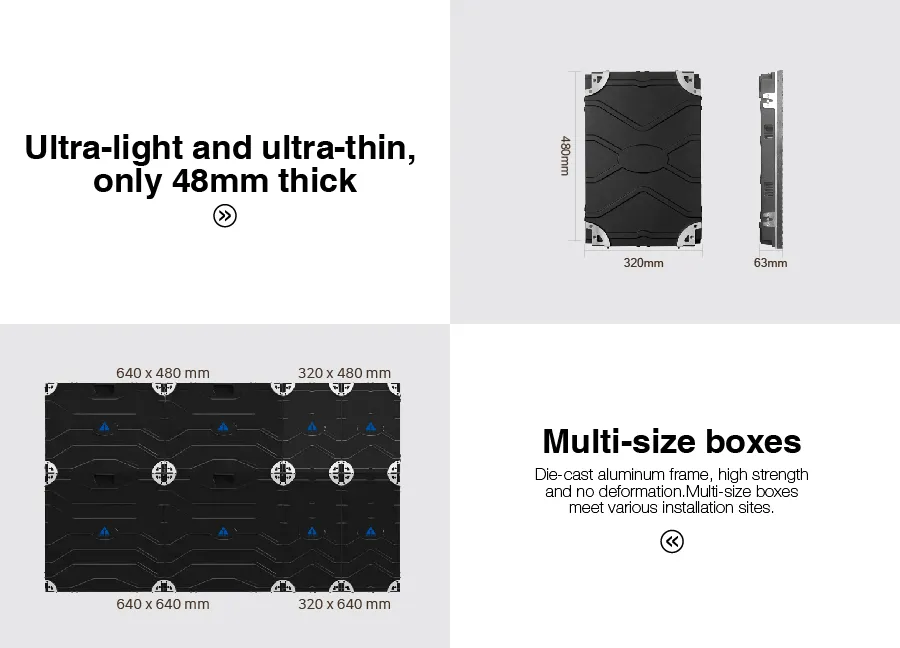

| Cabinet thickness | 63mm (including LED module) | |||
| Brightness (cd/m²) | 800-1200 | 800-1200 | 800-1200 | 700-1000 |
| Refresh rate (Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Gray scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 |
