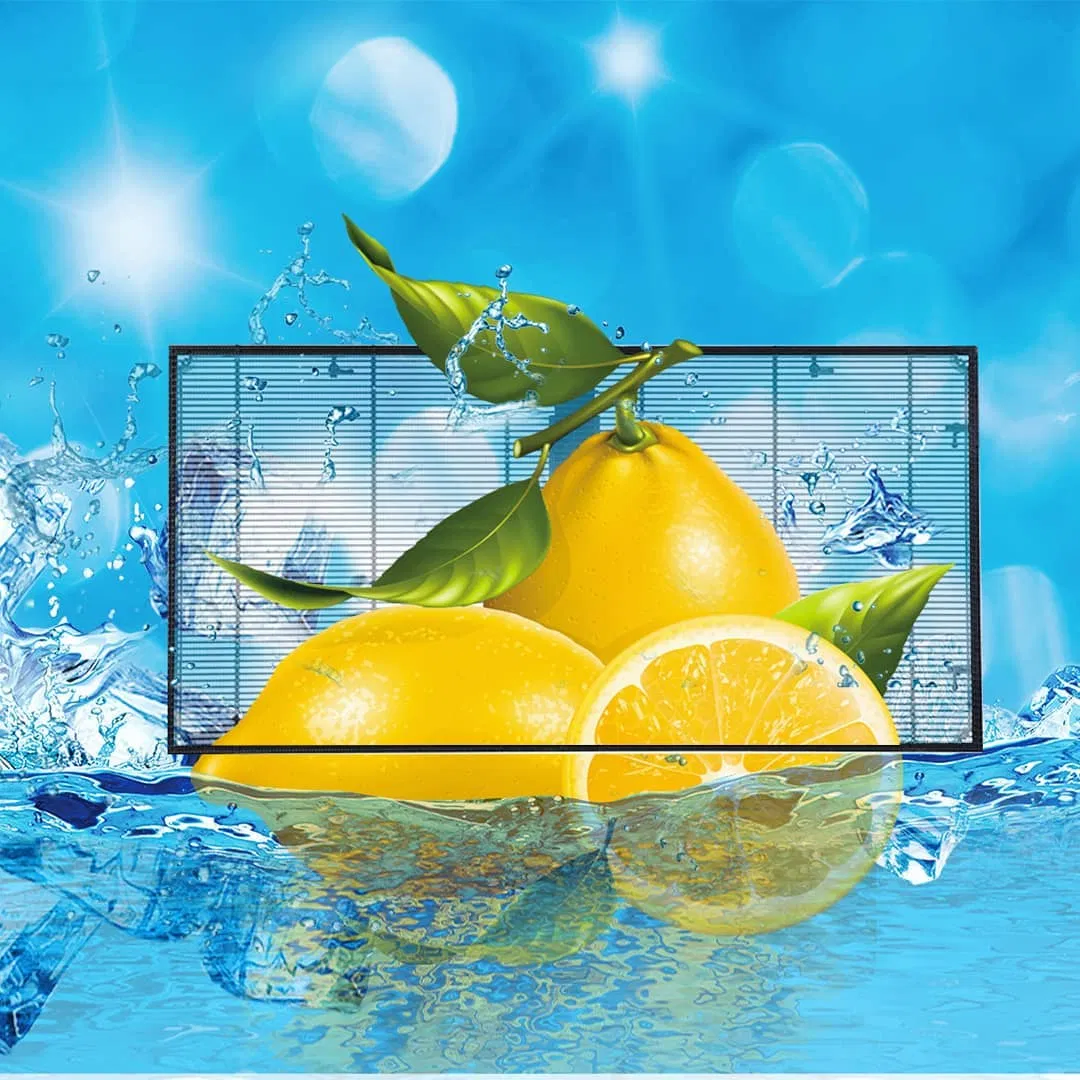

P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
1 / 5
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall
P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall

P3.9-7.8 High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
P3.9-7.8
Scanning Mode
1/16 Scan
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP43
Certification
CE, RoHS, CCC
Brightness
More Than 6000CD
Cabinet Size
500 mm X500mm
Driver IC
Mbi5024
View Angle
140 Degree
Weight
15kg/ Sqm
Transport Package
Wooden Case or Flight Case
Specification
500mm x 500mm
HS Code
8528591090
Production Capacity
3000sqm / Month
Product Description

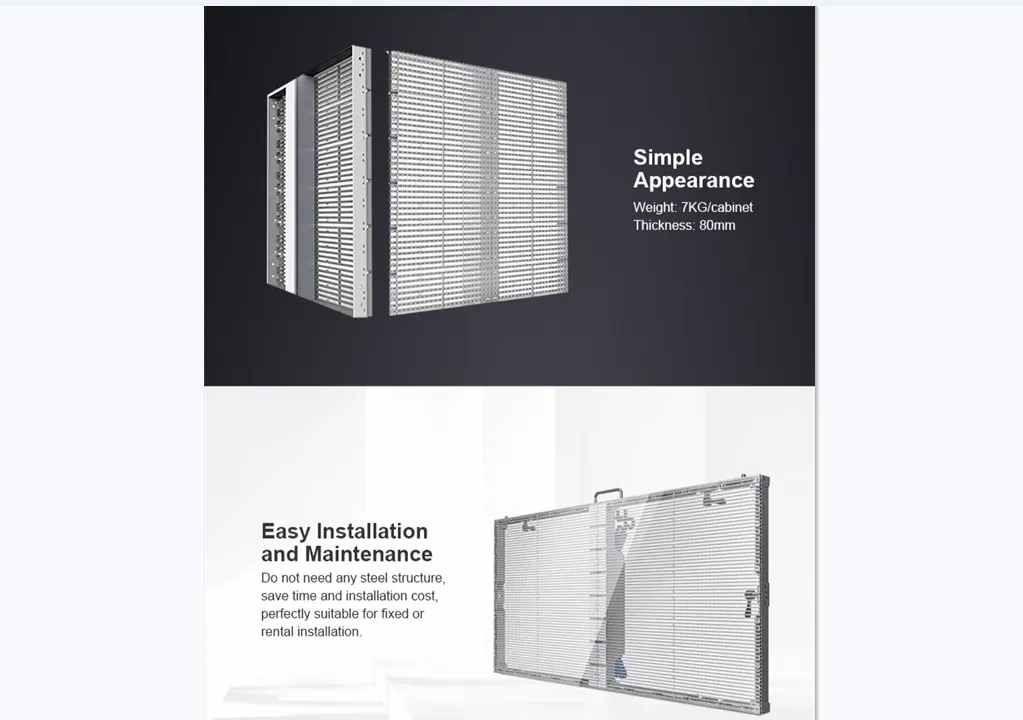

Transparent LED Screen Display

Transparent LED display advantage:

1
Good visualization: Glass-based design allows the light to pass through the glass without any influence to the building structure around. Transparency of the glass screen can up to 85%.
2
Ultra-thin and ultra-light: The thickness can be up to 1cm, and the weight can be as low as 7kg/m2. High brightness and high definition.
3
High Brightness: The brightness can reach up to 6500 cd/m2.
4
Easy and convenient maintenance: It can be maintained from inside, making it safer and more convenient.
5
Saving lighting costs: Besides good advertising effects, LED glass display also helps light the glass wall, making it more attractive and saving lighting costs.
6
Wide use range: Wherever a glass wall exists, a glass LED display can be installed, such as banks, supermarkets, theaters, business streets, hotels, and landmark buildings.
Detailed View & Applications

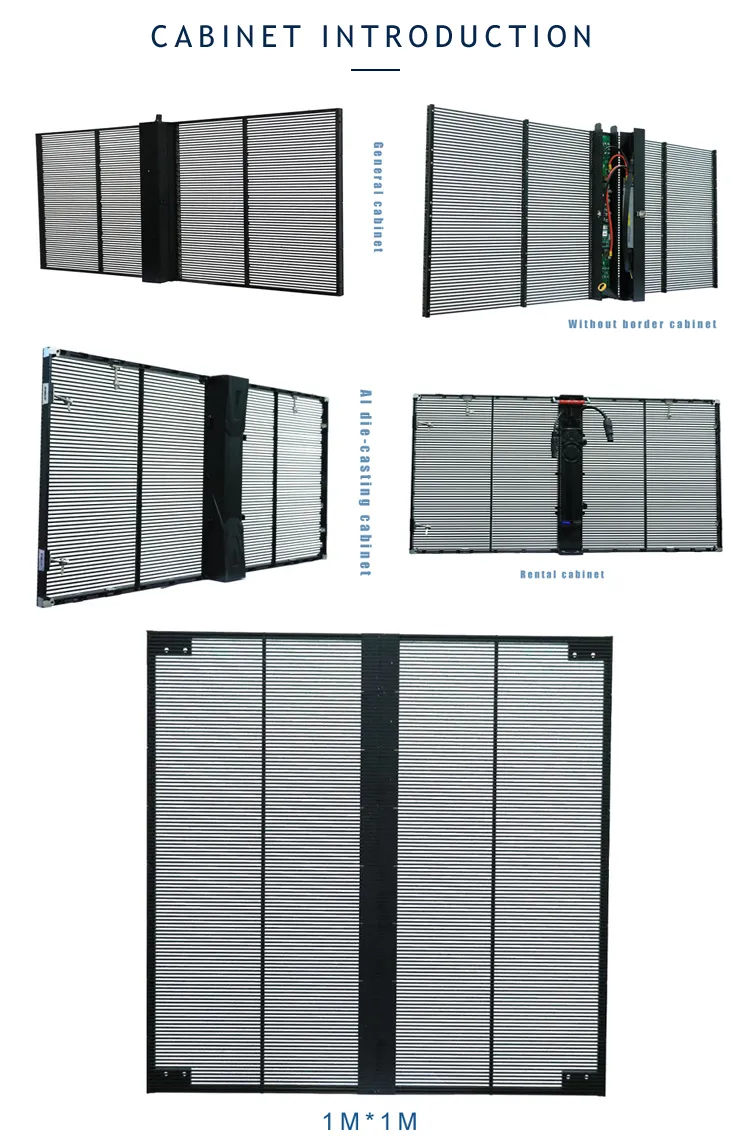

Transparent LED Detail

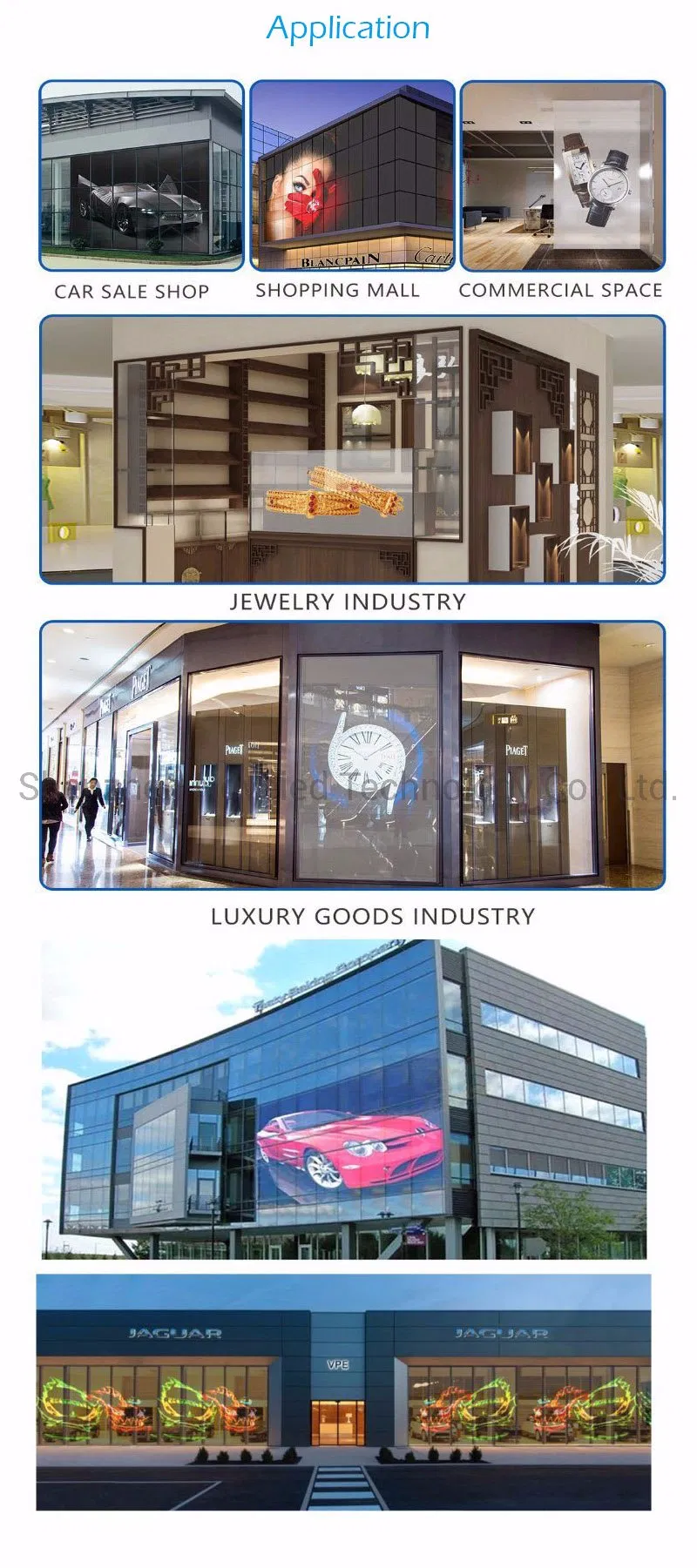

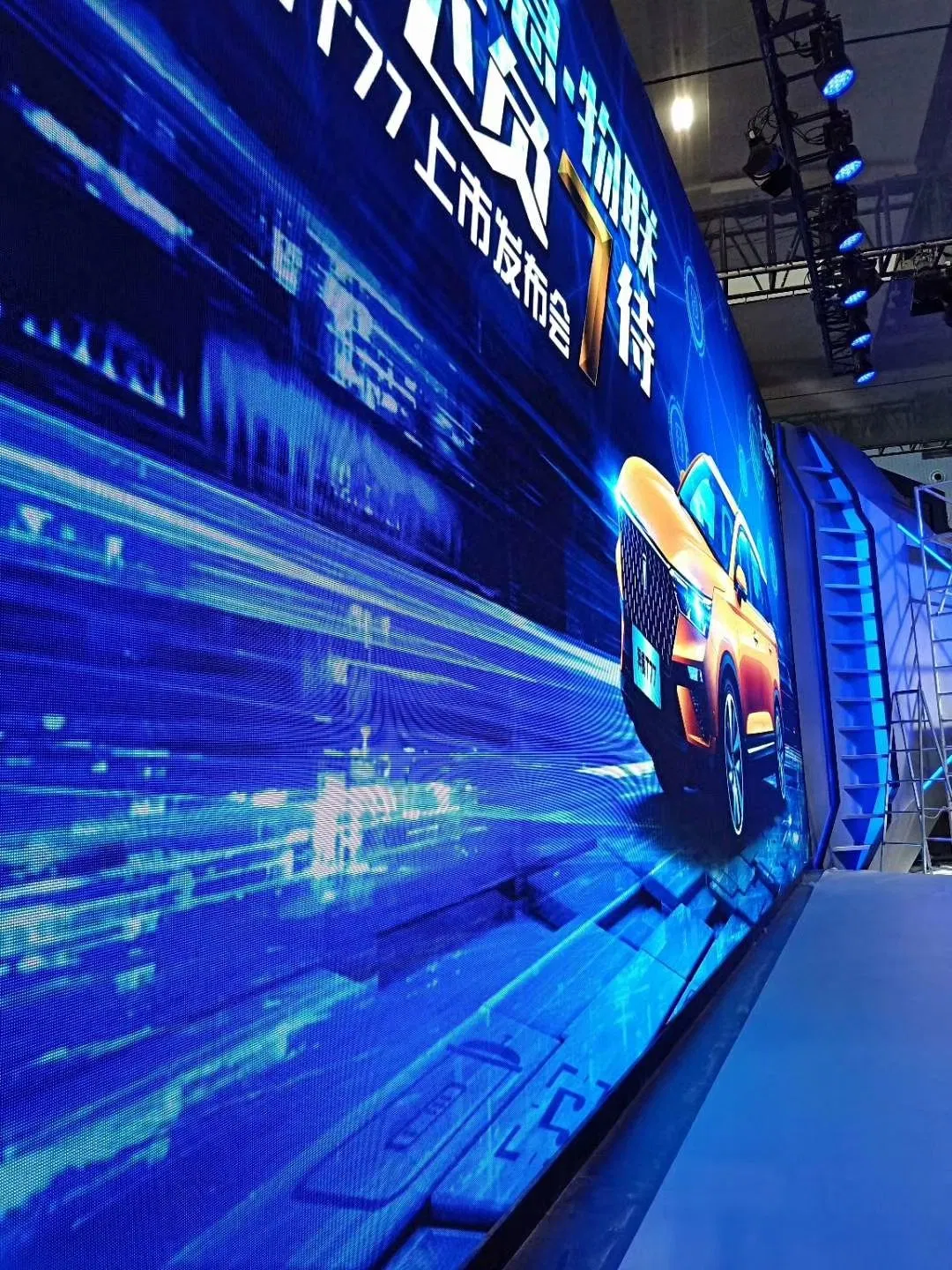

Transparent LED Application

Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.

Technical Specifications
Model NVD-P3.91 NVD 3.91 NVD -P7.81 NVD 10.4
Pixel pitch3.91-7.813.91-7.817.81-7.8110.4-10.4
Lamp TypeIndoor SMD2121Outdoor SMD1921Outdoor SMD2525Outdoor SMD2525
Pixel density3276832768163849230
Module size500mm*500mm / 500mm*1000mm / 1000mm*1000mm (Customized available)
Weight15KG/sqm15KG/sqm15KG/sqm14KG/sqm
Transparency65%65%70%75%
Brightness≥1000nit≥4500nit≥4500nit≥4000nit
Refresh rate≥1920Hz≥1920Hz≥1920Hz≥1920Hz
Scan mode1/16S1/8S1/4S1/3S
Max Power400W400W400W400W
Avg Power150W150W180W180W
Driver ICMBI5124, High Refresh Rate
InstallationHanging or Stacking
Packing & Transportation
Packing 1
Packing 2

Professional packaging: wooden box or flight case. This packaging prevents collisions effectively during transportation, such as falling damage, perfectly solving your transportation worries.

Frequently Asked Questions
What is the transparency level of these LED screens?
The transparency depends on the model, ranging from 65% to 85%, allowing natural light to pass through without affecting the building structure.
Can the screen be used outdoors?
Yes, specific models like the NVD 3.91 and NVD-P7.81 use outdoor SMD lamps (SMD1921/SMD2525) and offer high brightness over 4500 nits.
How is the maintenance performed?
The design allows for maintenance from the inside, which is much safer and more convenient than external access.
What are the installation options?
The transparent LED panels support both hanging and stacking installation methods to suit different architectural requirements.
Does the display save energy?
Yes, in addition to efficient LED technology, it helps light the glass wall naturally, reducing the overall lighting costs for the building.
What is the typical weight of a panel?
The panels are ultra-lightweight, typically around 14kg to 15kg per square meter, making them easy to install on glass structures.
