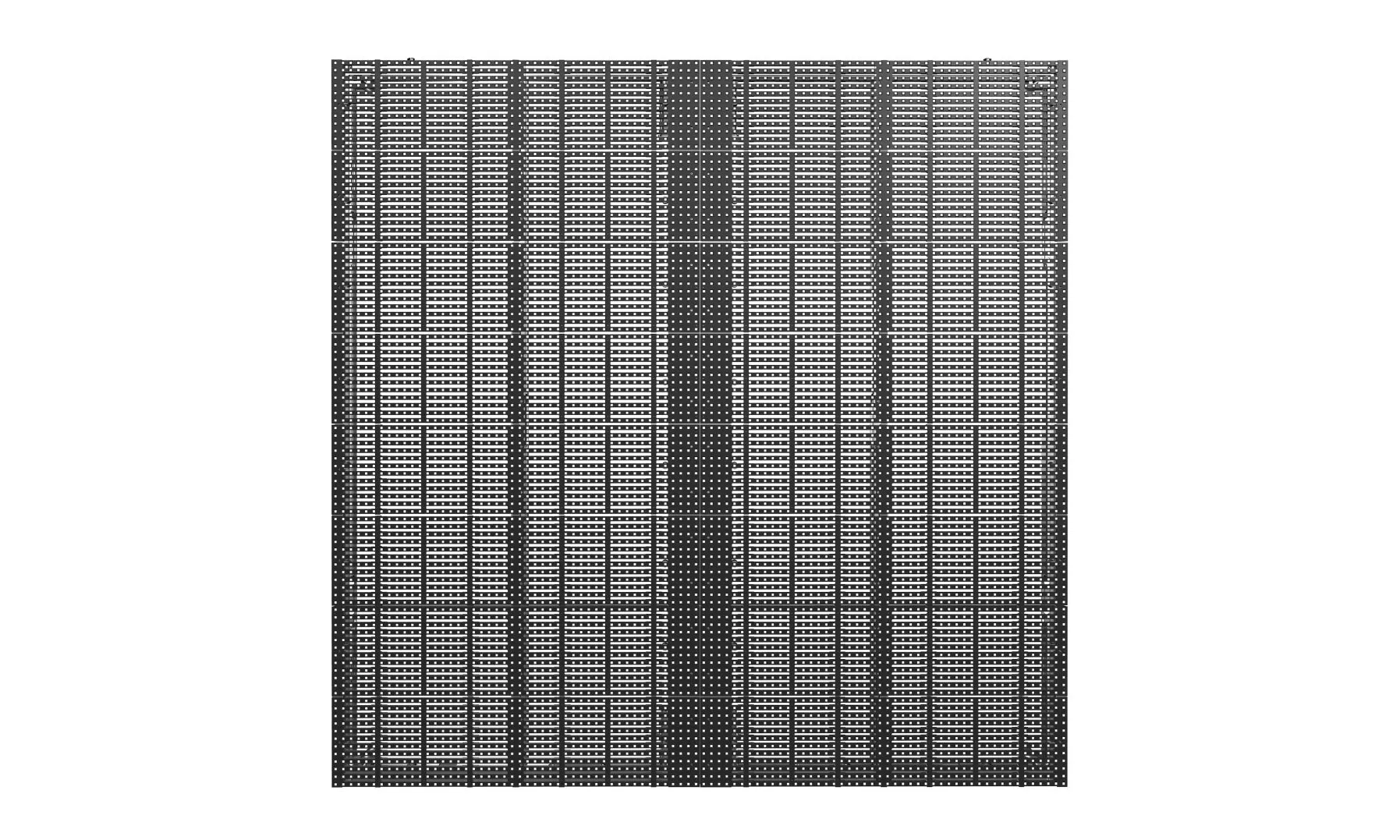

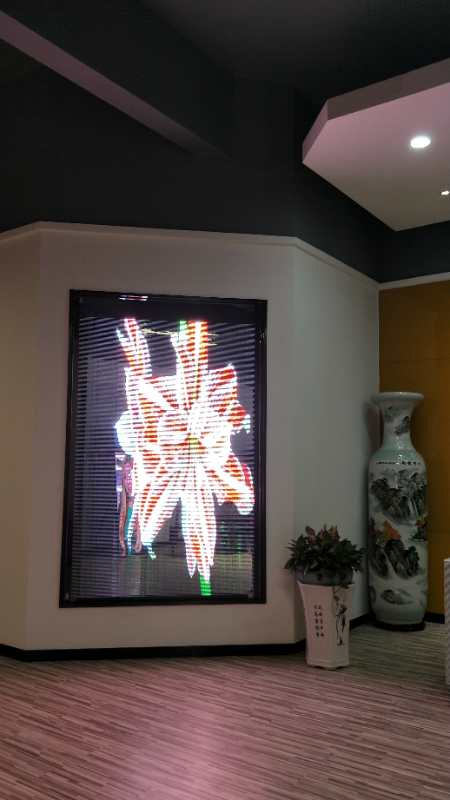

P3.91 7.81 China Best Flexible Advertising Video Wall Panel Film Screen Indoor Glass Transparent LED Display

Basic Specifications

Model NO.

TS-3.91

Pixel Pitch

3.91mm

Pixel Density

65536 DOT/M2

Scanning Mode

1/16 Scan

Display Type

LED Video Display

IP Rating

IP30

Certification

CE, FCC

Cabinet Material

Die Cast Aluminum

Module Size

250*250 mm

Brightness

1000 CD/Sqm

LED Type

Kinglight SMD2020

IC

Mbi5124

Applications & Features

1. Series of advanced LED screens designed for easy installation and removal.
2. Ideal for indoor commercial advertising billboards, stages, banks, stock exchange centers, theme parks, airports, schools, government agencies, exhibitions, meeting rooms, cinemas, hotels, and various public facilities.

LED Technical Parameters

LED & Chip Specifications
Pixel Pitch	3.91mm (1R1G1B)	LEDs Type	SMD2020 KINGLIGHT
Red LED Chip	Epistar	Intensity/Wavelength	40~60 mcd / 620~625 nm
Green LED Chip	Epistar	Intensity/Wavelength	110~180 mcd / 514~535 nm
Blue LED Chip	Epistar	Intensity/Wavelength	25~45 mcd / 460~470 nm

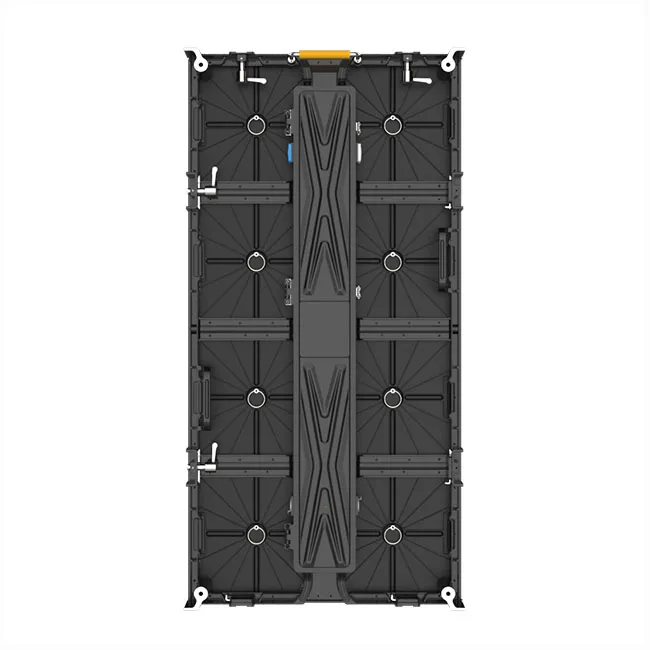

Cabinet & Screen Parameters

Dimension	Definition	Material	Weight
*1000500 mm**	*256128 dots**	Die Cast Aluminum	14 KG

Control System & Working Parameters
Grey Scale	14 bit
Refresh Rate	>1920 Hz
Viewing Angle	H 170°, V 120°
Max Power	680 W/m²
Average Power	240 W/m²
Input Voltage	AC 86-264V/60Hz
Life Span	≥100,000 hours

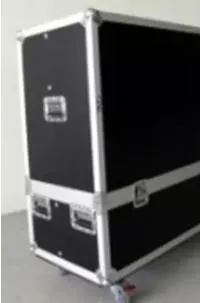

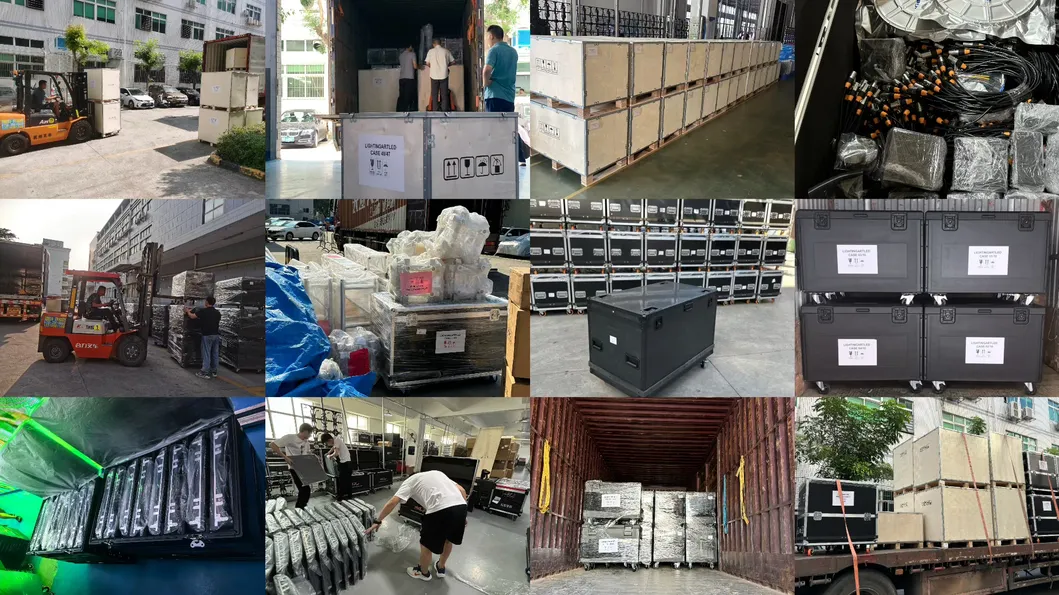

Packaging & Delivery

Fixed Installation Type

Rental/Movable Type

After-Sale Service

Two years warranty provided for all components.
24 hours online service, lifetime support.
Depot repair service: Buyer only bears shipping costs back to factory during warranty.
Experienced engineer service available for global projects.

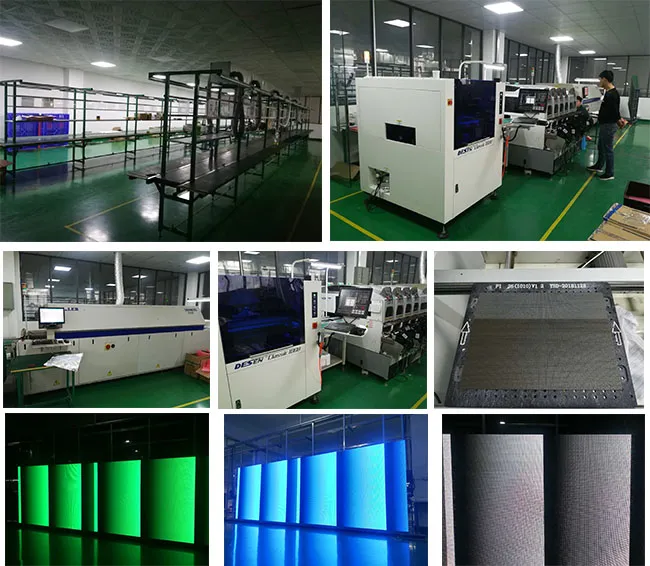

Factory Quality Control

Frequently Asked Questions

Q1: What is the pixel pitch and density of the TS-3.91 model? A: The TS-3.91 features a pixel pitch of 3.91mm and a high pixel density of 65,536 dots per square meter, ensuring clear video display.

Q2: Can this LED screen be used for outdoor events? A: This model is rated IP30, which is designed for indoor applications such as stages, exhibitions, and commercial advertising.

Q3: What is the warranty period for this product? A: We provide a comprehensive two-year warranty along with 24-hour online technical support for the lifetime of the product.

Q4: What material is used for the LED cabinet? A: The cabinet is made of high-quality Die Cast Aluminum, which is lightweight (14KG) and provides excellent heat dissipation.

Q5: What is the typical lead time for production? A: For orders between 1-200 m², the production time is approximately 25 days, which includes a rigorous aging and grayscale test.

Q6: What input signals are supported by the control system? A: The system supports a wide range of formats including AVI, JPEG, MOV, MPEG, DAT, VOB, BMP, JPG, TIFF, and GIF via DVI and VGA interfaces.
