| Specification | P6.25 | P8.33 | P10 |
|---|---|---|---|
| Pixel Pitch | 6.25mm | 8.33mm | 10mm |
| Physical Density (dots/m2) | 25600 | 14400 | 10000 |
| Module Size (mm) | 400 X 300 | ||

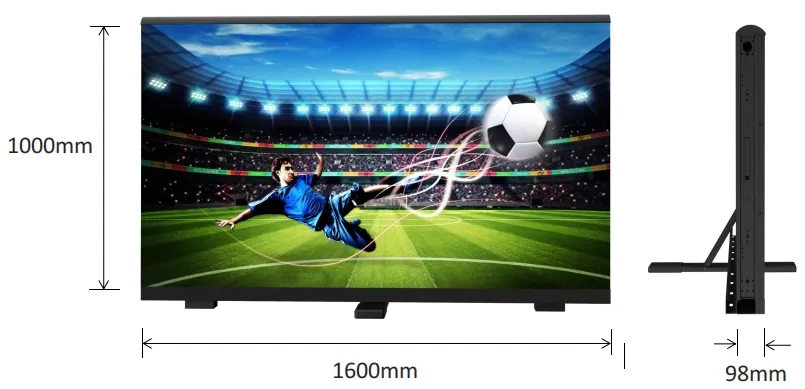

| Cabinet Size (mm) | 1600 X 1000 X 98 | ||
| Panel Weight (kg) | 35 | ||
| Maintenance | Front/Rear Maintenance | ||
| Viewing Angle (H/V) | 140°/160° | ||
| Contrast Ratio | 10000 : 1 | ||
| Power Input | AC90-264V, 47-63Hz | ||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||

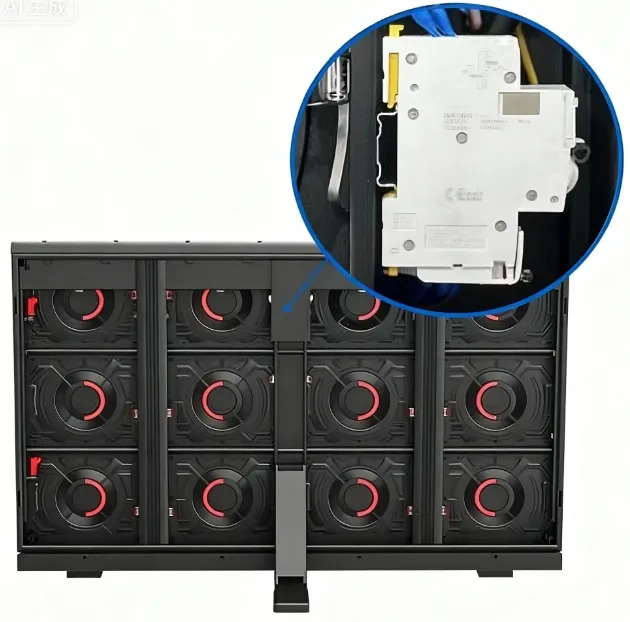

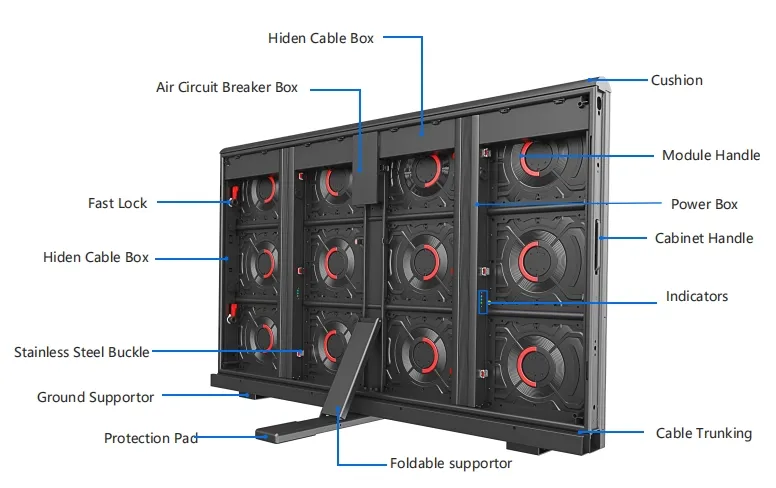

1. Fault Protection: Circuit breakers trip quickly during short circuits or water ingress, preventing fires and screen damage.
2. Isolation Protection: Allows individual screen shutdown for repairs without affecting the entire system.
3. Personnel Protection: Ensures safety for maintenance teams during installation and debugging.

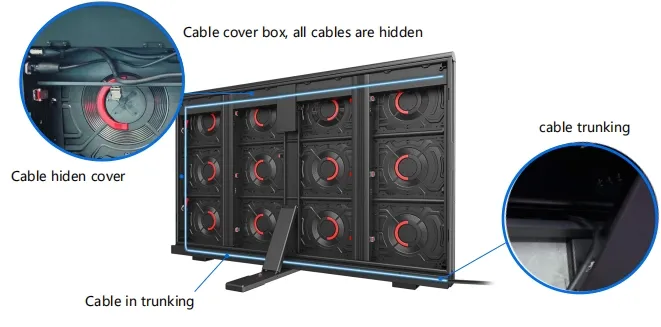

1. Safety & Reliability: Prevents cable damage from external factors and eliminates tripping hazards. Stabilizes signal transmission by reducing exposure to moisture and dust.
2. Aesthetic Design: Concealed wiring provides a clean, professional, and streamlined appearance for stadium environments.

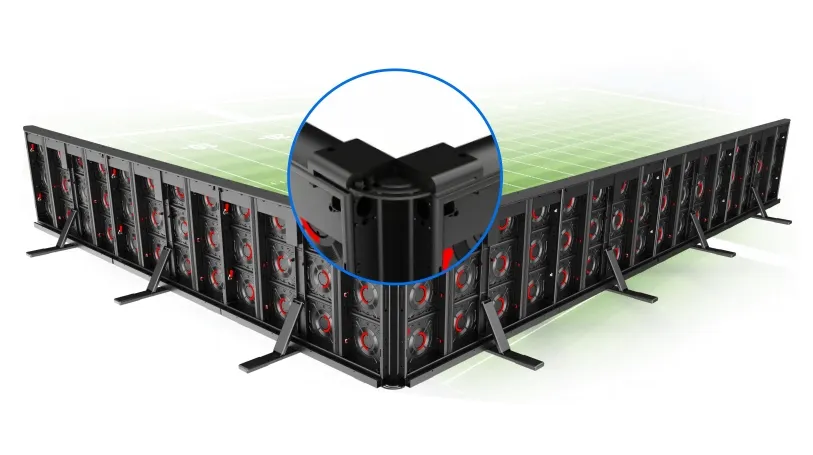

1. Flexibility: Features an adjustable range of 90° to 180°, allowing the screen to fit corner installations seamlessly.
2. Innovation: The rotatable design breaks traditional fixed screen modes, offering versatile display possibilities.
