Product Description

📊

Basic Specifications

Model NO.
SPAS-10
Pixel Pitch
10mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text
Avg Power Consumption
250W/M2
Pixel Density
10000 dot / m²
Scanning Mode
1/2 Scan
Cabinet Material
Aluminum
Certification
CE, FCC
Best Viewing Distance
>20m
📝

Product Description

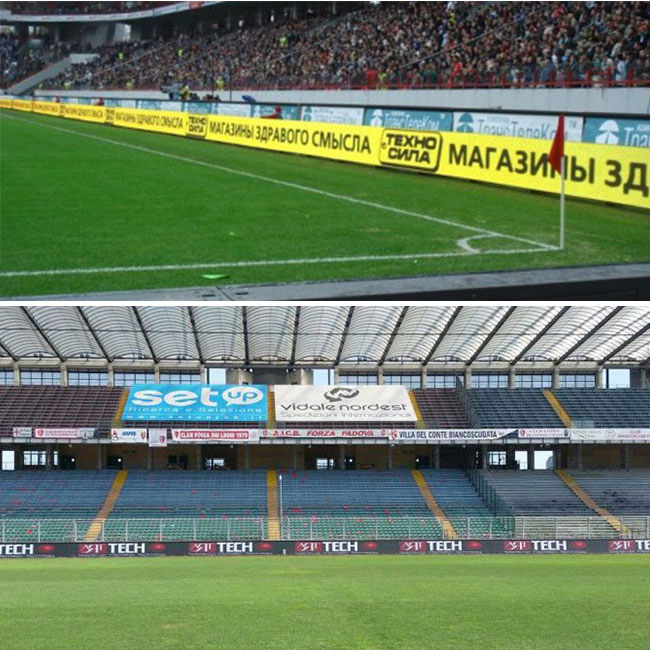

Application:

  • Advanced LED screen specifically designed for sport stadium advertisement.

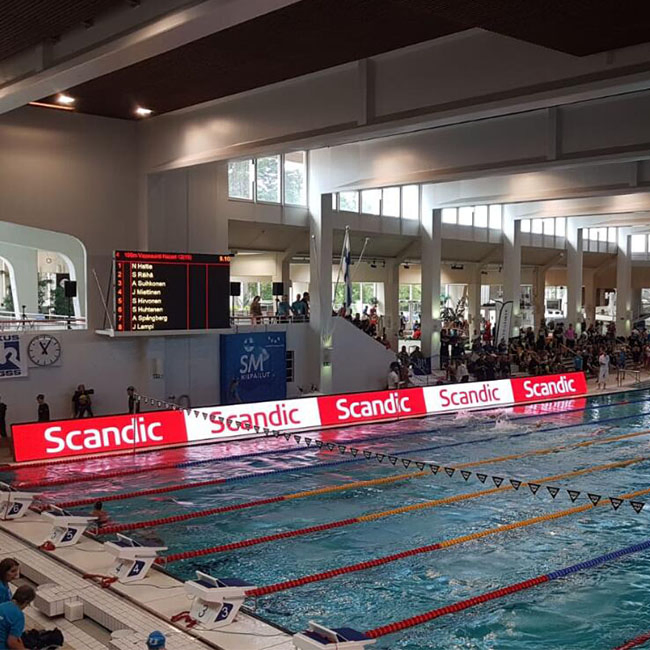

  • Ideal for football stadiums, basketball courts, table tennis arenas, hockey areas, and swimming pools.
  • Widely popular solution for live stadium broadcasts and perimeter advertising.

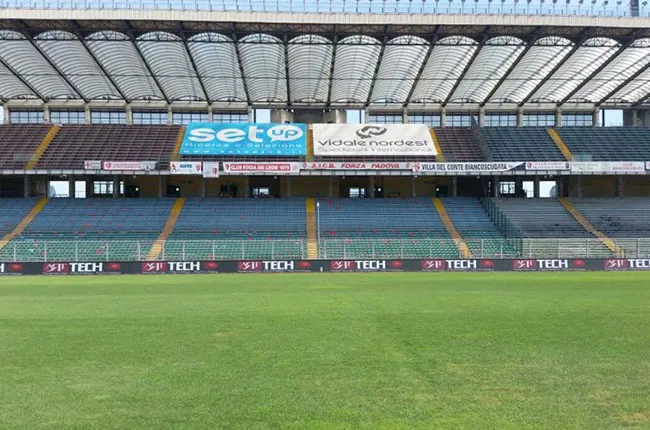

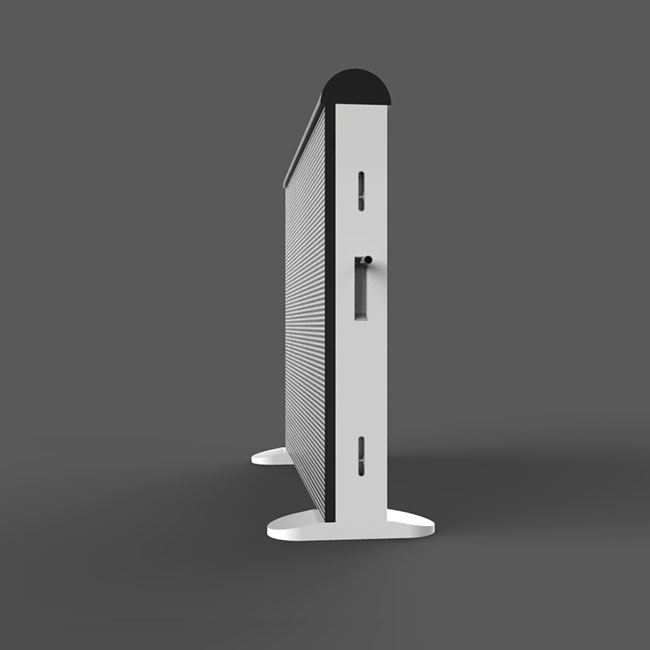

Stadium Sport LED Screen

Product Features:

  • Cost-effective high-grade aluminum cabinet materials.
  • Equipped with a soft top cover and soft mask to ensure athlete protection.
  • Supports adjustable viewing angles from 0 to 15 degrees.

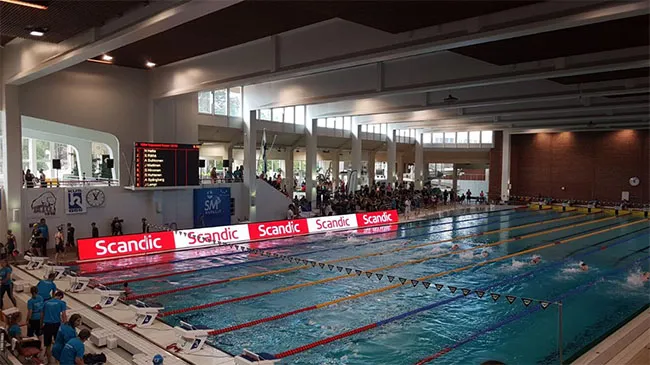

LED Display Features
⚙️

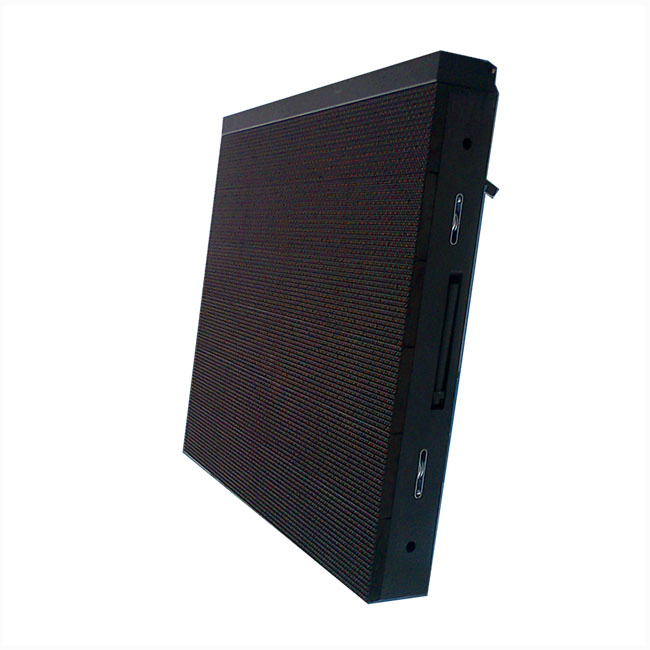

Technical Specification

No. Parameter Specification Details
1Model No.SPAS10
2Pixel Pitch (mm)10
3Module Size (mm)320*160
4Cabinet Size (mm)1280*960*120
5LED EncapsulationSMD3535 KINGLIGHT
6Cabinet Weight (kg)43
7Brightness (NIT)6500
8Refresh Rate (Hz)3840
9Viewing Angle (H/V)±140°/±140°
10Protection GradeIP65
11Average Power250 W/m²
⭐

Core Advantages

  • Ultra-High Brightness: Clear visibility even under direct sunlight.
  • Fast Installation: Tool-free splicing for quick setup and maintenance.
  • Energy Efficient: Optimized power consumption design.
  • Ingress Protection: Robust IP65 rating for all-weather outdoor use.

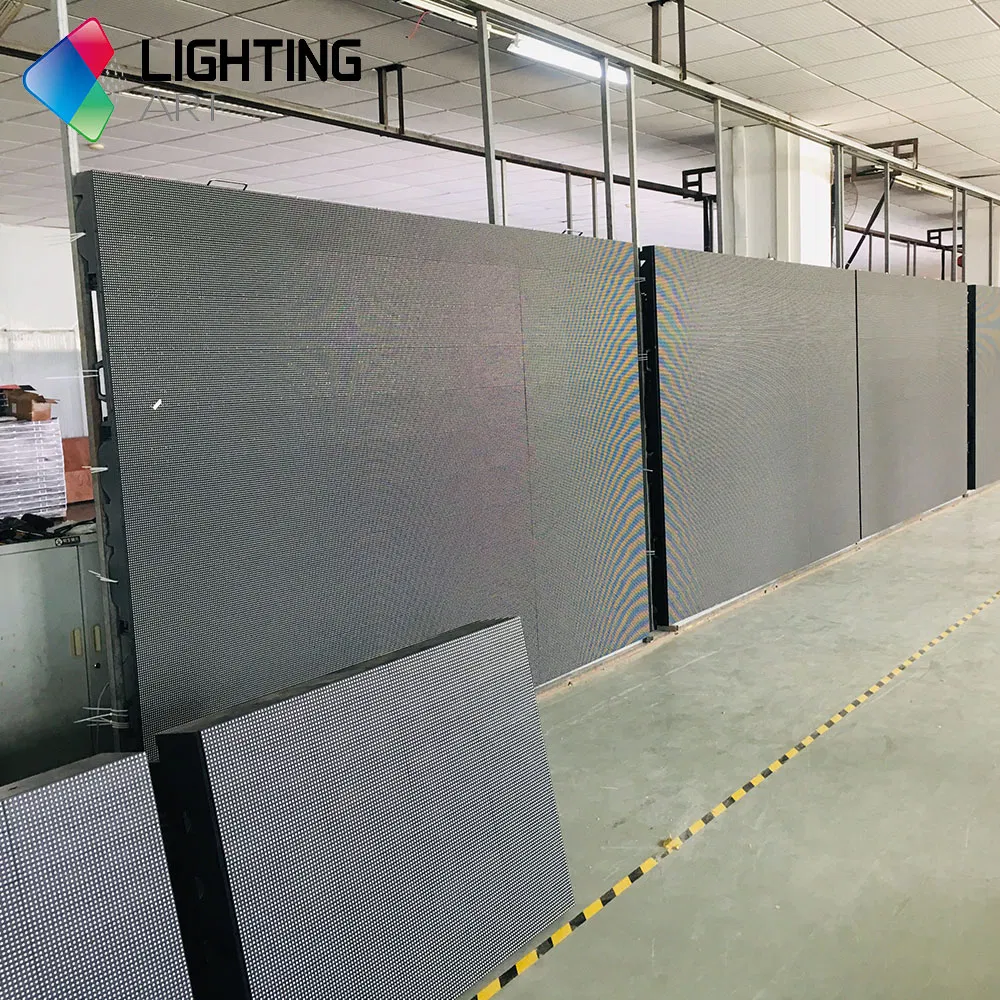

Professional Manufacturing:

We operate as a specialized factory with 6 years of experience in LED technology, featuring professional development engineers and skillful workers.

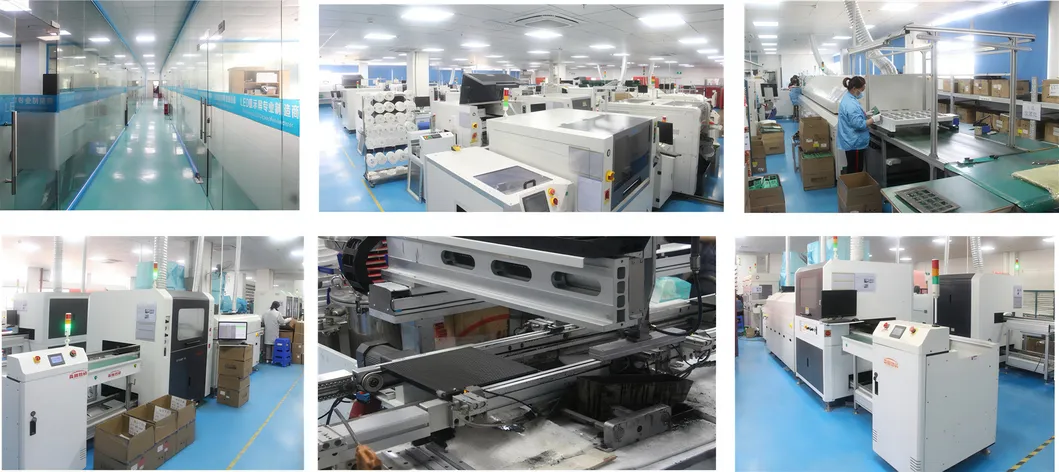

Factory Production
Quality Testing

Delivery & Payment Terms:

  • Production time: Approx 25 days for orders up to 200 m².
  • Payment: 30% advance, 70% before shipping via T/T.
  • Shipping: Plywood case or flight case packaging provided.
❓

Frequently Asked Questions

What makes this LED screen suitable for stadiums?
It features a soft top cover and a soft mask specifically designed to protect athletes from injury upon impact, while also protecting the LEDs.
Can the viewing angle be adjusted?
Yes, the cabinet supports angle adjustments from 0 to 15 degrees to ensure the best visibility for spectators and cameras.
Is the display waterproof for outdoor use?
Absolutely. With an IP65 protection grade, the screen is designed to withstand outdoor weather conditions.
What is the typical lead time for an order?
For standard orders between 0-200 m², the production time is approximately 25 days, which includes rigorous aging tests.
What kind of testing do the modules undergo?
Every module undergoes a comprehensive aging test and a grayscale test to ensure color uniformity and long-term reliability.
What packaging options are available?
We provide durable plywood cases for fixed installations or professional flight cases for rental and mobile applications.
