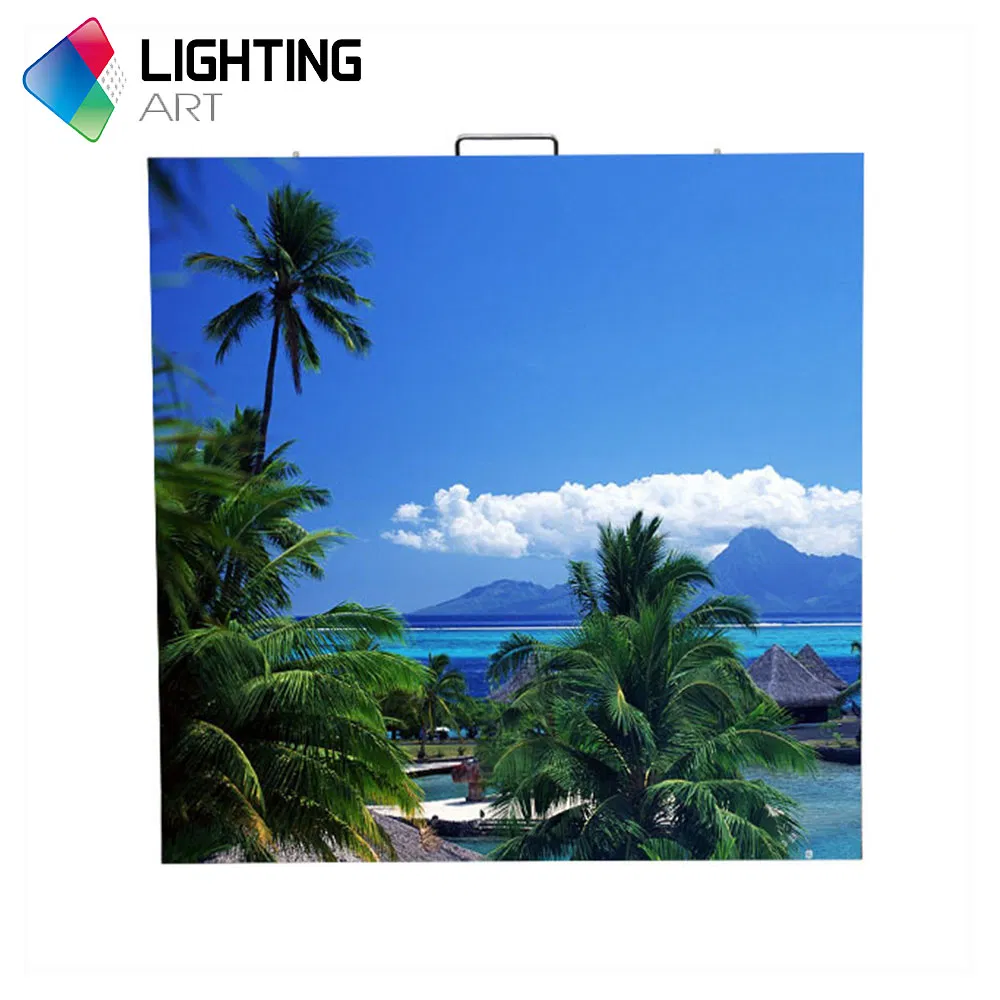

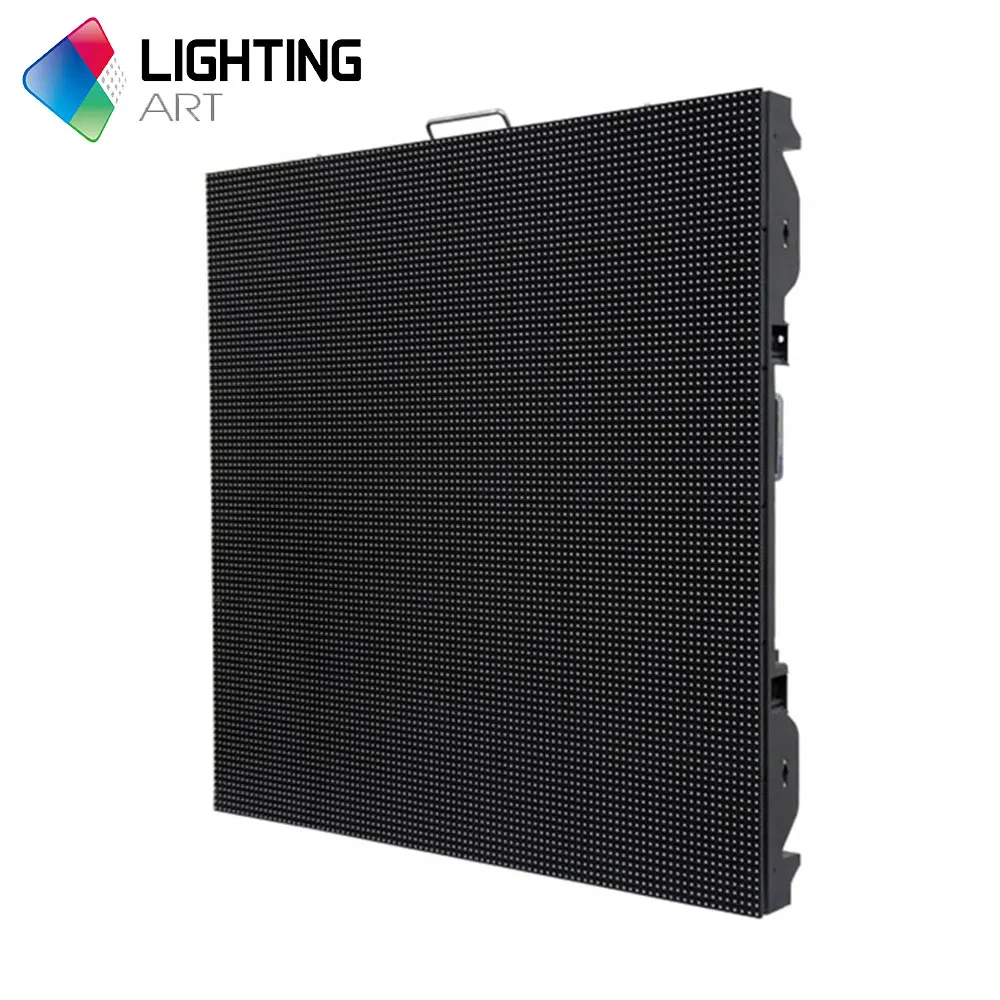

Timely Delivery RGB Full Color LED Display P10 Outdoor LED Display Module LED Screen Wall

Basic Specifications

Model NO.

SPAS-10

Pixel Pitch

10mm

Pixel Density

10000 dot / m²

Scanning Mode

1/2 Scan

Brightness

6500 NIT

Power Consumption

250W/M2 (Avg)

Cabinet Material

Aluminum

Protection Grade

IP65

Viewing Distance

>20m

Certification

CE, FCC

Application & Features

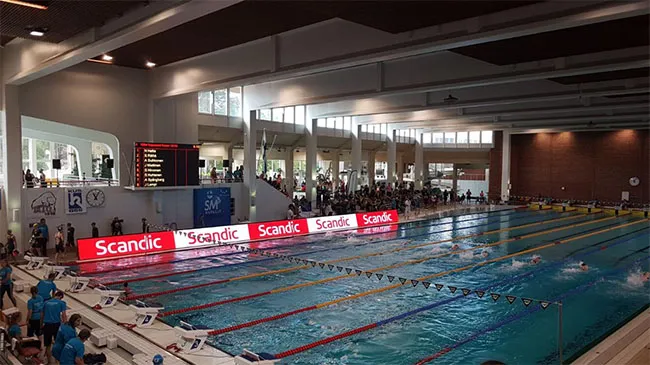

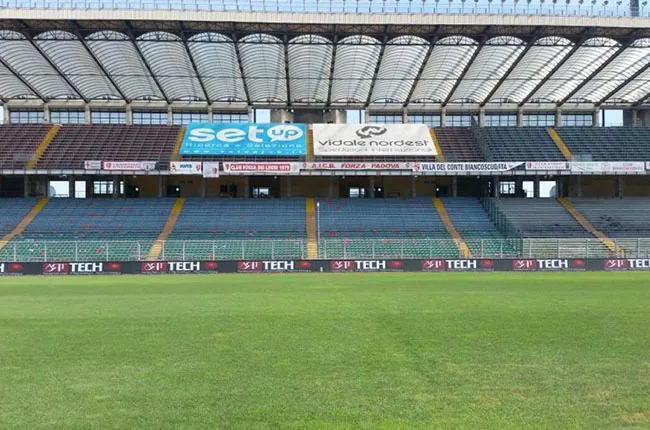

Ideal for Sporting Venues: Designed for advanced LED screen applications in football stadiums, basketball courts, hockey arenas, and swimming pools. It is a highly popular solution for stadium-side perimeter advertising.

✓Cost-effective aluminum cabinet materials.
✓Equipped with a soft top cover and soft mask for athlete protection.
✓Supports flexible angle adjustment from 0 to 15 degrees.
✓High brightness for outdoor visibility.
✓Fast, tool-free splicing for quick installation.
✓Energy-saving technology with superb ingress protection.

Technical Parameters

Item	Parameter	Value
1	Model No.	SPAS10
2	Pixel Pitch (mm)	10
3	Module Size (mm)	320*160
4	Module Resolution (pixels)	32*16
5	Cabinet Size (mm)	1280960120
6	Cabinet Resolution (pixels)	128*96
7	LED Encapsulation	SMD3535 KINGLIGHT
8	Refresh Rate (Hz)	3840
9	Viewing Angle (H/V)	±140°/±140°
10	Max Power Consumption (W/m²)	750

Manufacturing & Quality

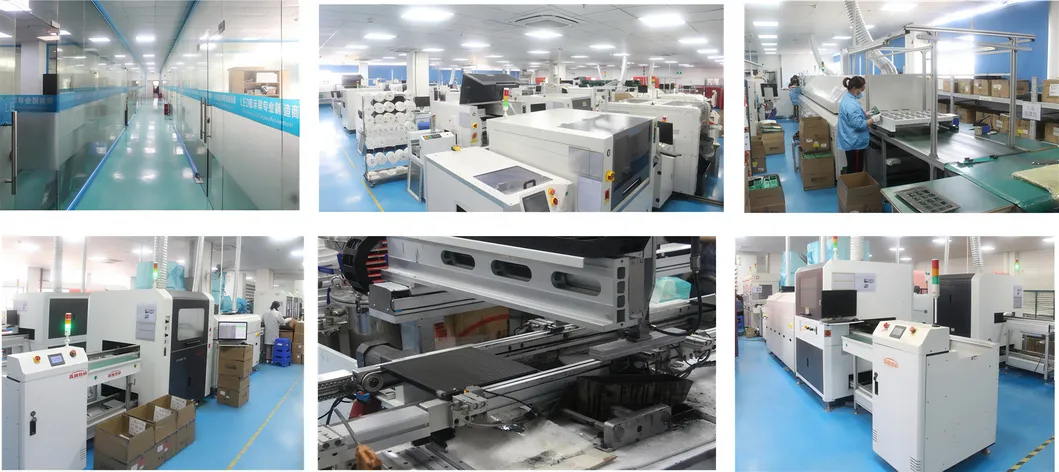

Our facility leverages 6 years of industry experience with a focus on high-technology automatic machines and skilled craftsmanship. Each module undergoes rigorous aging and grayscale testing to ensure peak performance.

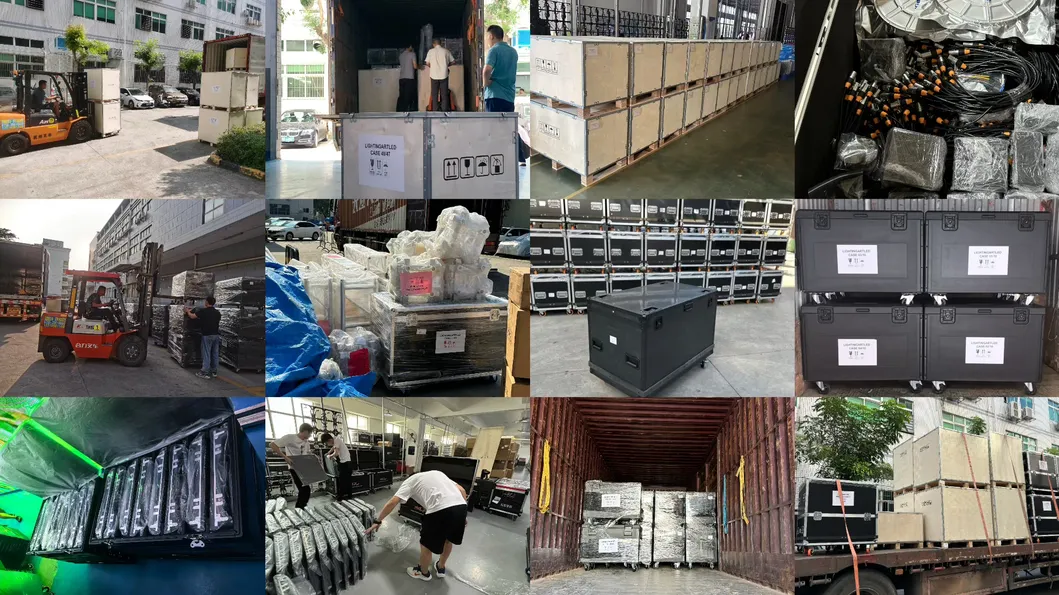

Delivery Details: Production for 0-200 m² screens takes approximately 25 days, including testing. We provide plywood or flight cases for secure international transport.

Frequently Asked Questions

1. What are the main applications for the SPAS-10 LED screen? It is specifically designed for stadium environments, including football, basketball, and hockey arenas, primarily used for perimeter advertising.

2. How is athlete safety ensured with this display? The cabinet features a soft top cover and a soft mask to cushion impact and protect athletes from injury during sports activities.

3. Can the viewing angle be adjusted after installation? Yes, the cabinet supports angle adjustments from 0 to 15 degrees to ensure the best visibility for both live audiences and cameras.

4. Is the screen suitable for outdoor weather conditions? Absolutely. With an IP65 protection grade and high brightness of 6500 NIT, it is designed to perform reliably in outdoor environments.

5. What is the typical lead time for an order? For orders up to 200 m², the production time is approximately 25 days, which includes comprehensive aging and quality testing.

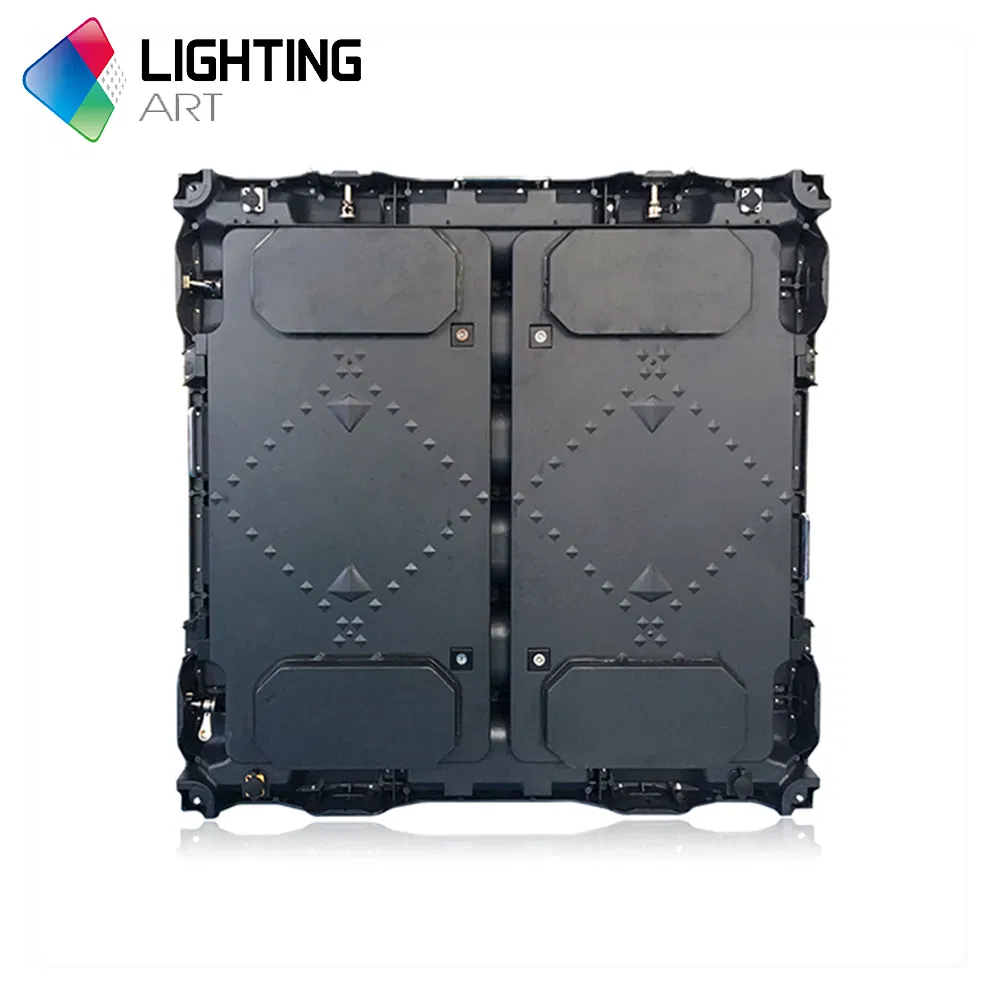

6. What materials are used for the cabinet construction? The cabinets are made from high-quality, cost-effective aluminum, providing durability and excellent heat dissipation.
