Basic Information
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text, Market Display
Avg Power Consumption
110W
Pixel Density
10000 dot / m²
Cabinet Dimension
960X960mm
Production Capacity
2000sqm/Month
📸
Product Description

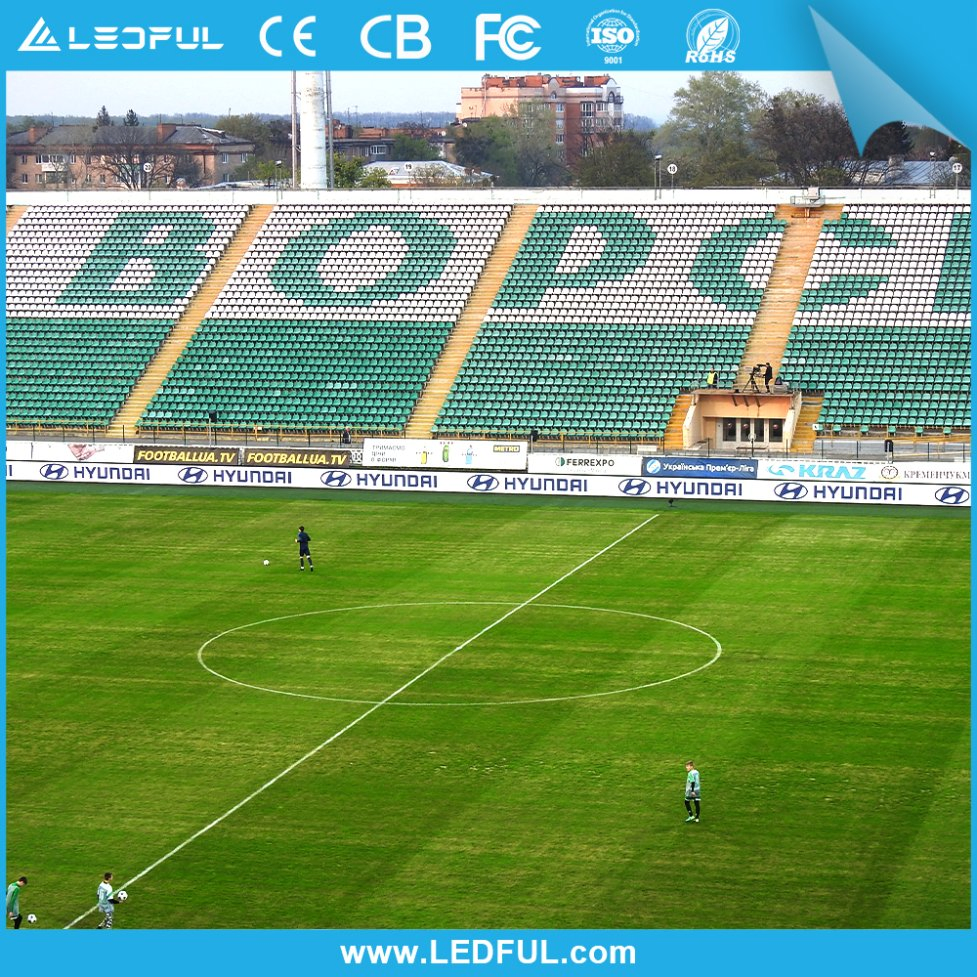

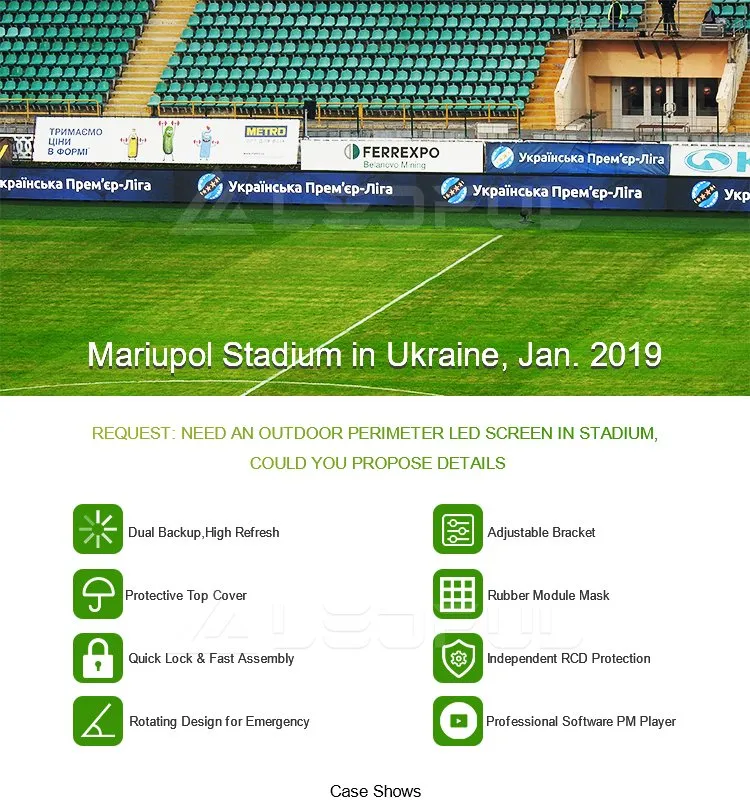

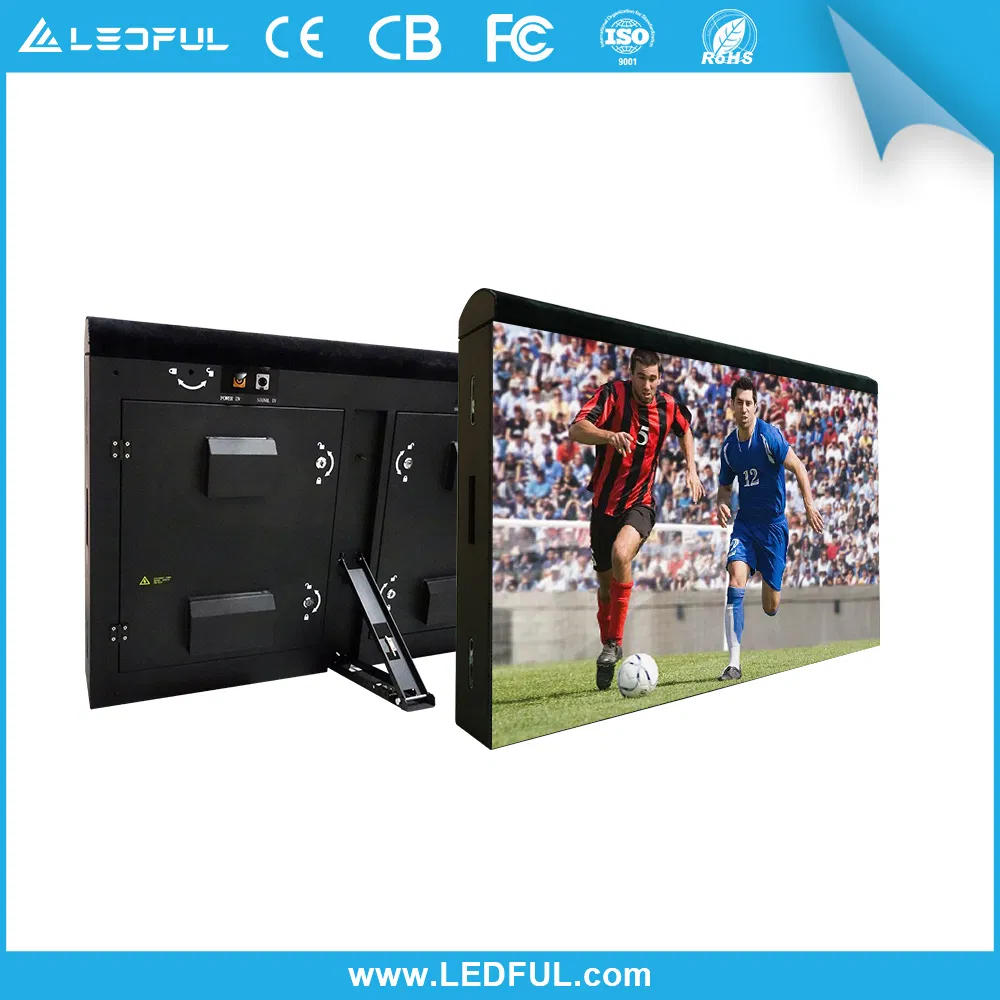

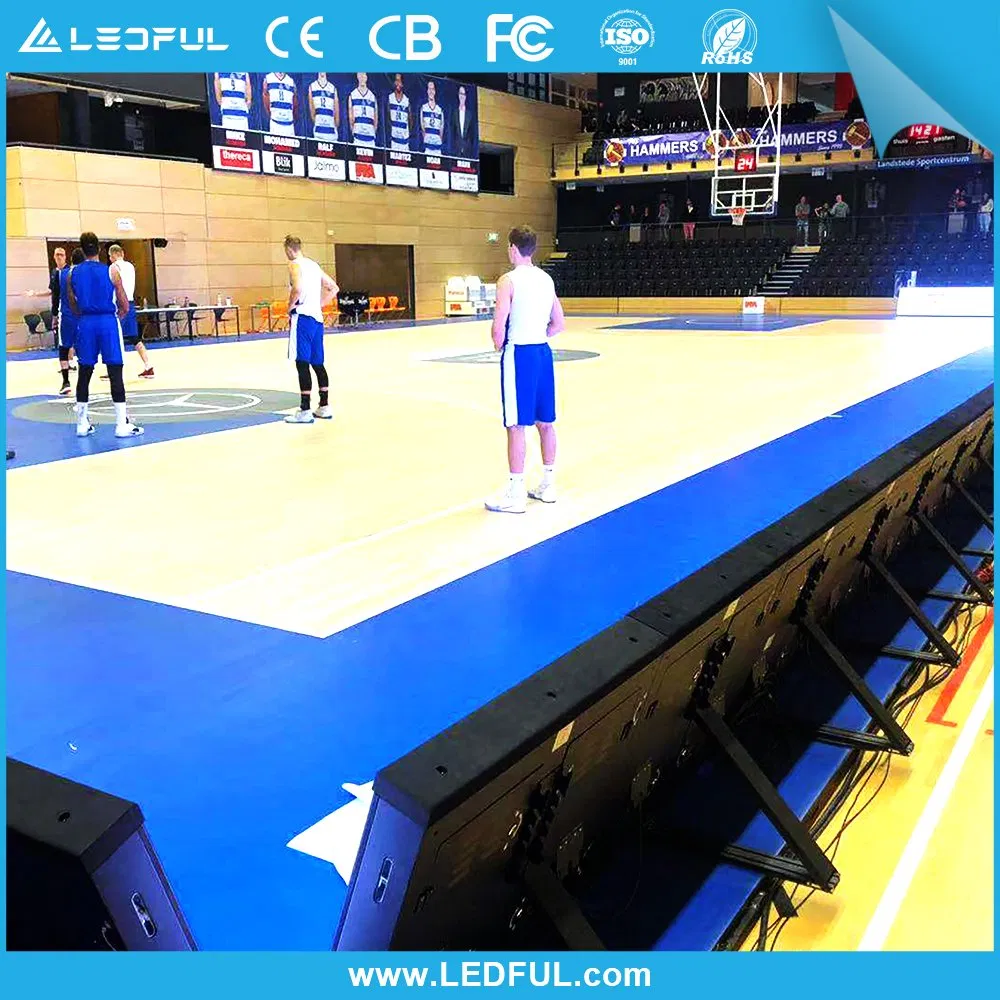

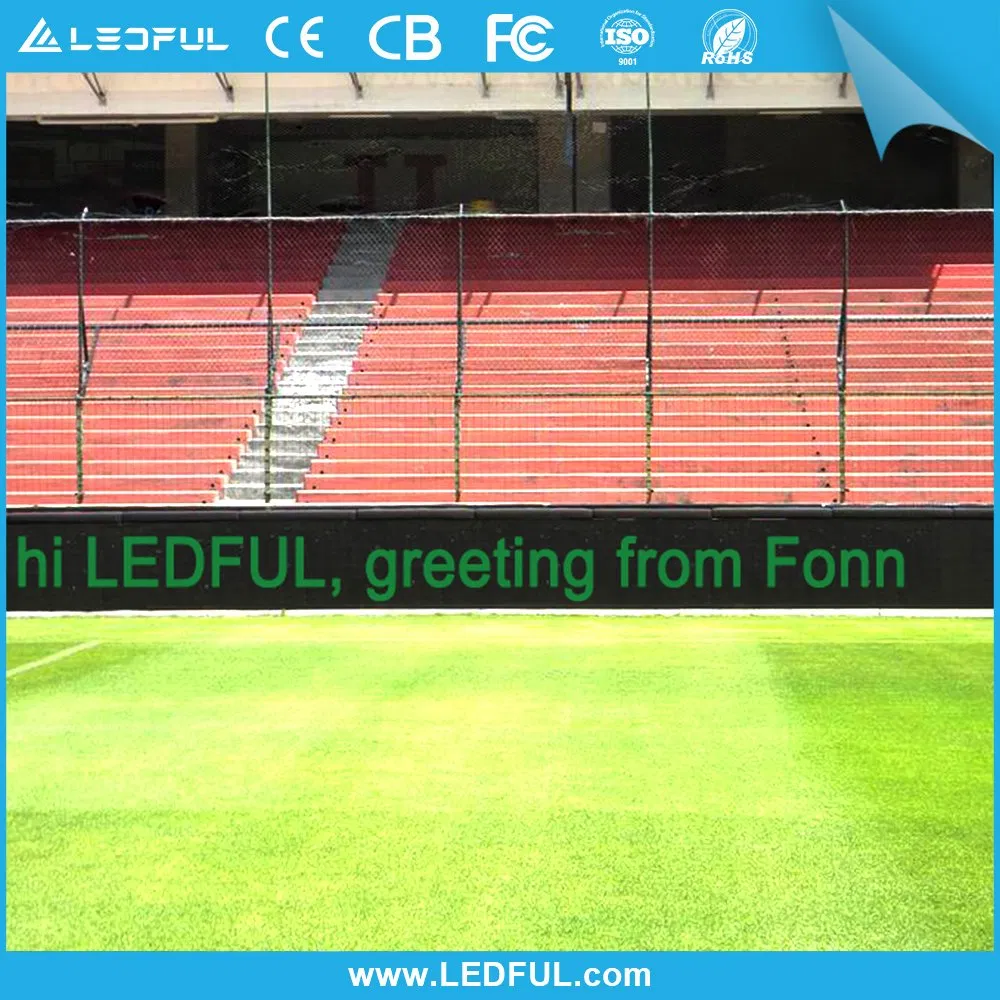

The professional stadium perimeter LED display series is designed for football, basketball, and other sports venues. Features include high brightness for outdoor visibility and protective masks for player safety.
📊
Technical Specifications
| Model Parameter |
IPM6 |
IPM10 |
OPM8 |
OPM10 |
OPM16 |
| Pixel Pitch (mm) | 6 | 10 | 8 | 10 | 16 |
| Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 |
| Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 |
| Scan | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 |
| Cabinet Resolution | 160x160 | 128x96 | 160x120 | 96x96 | 64x64 |
| IP Rate | IP43 | IP43 | IP65 | IP65 | IP65 |
| Grey Scale (bit) | 14bit | 14bit | 16bit | 16bit | 16bit |
🏢
Professional Expertise
With 13 years of rich experience in the industry, we provide comprehensive LED display solutions including 3-year warranties. Our focus covers LED Posters, Transparent screens, Commercial billboards, and specialized Sports LED displays.

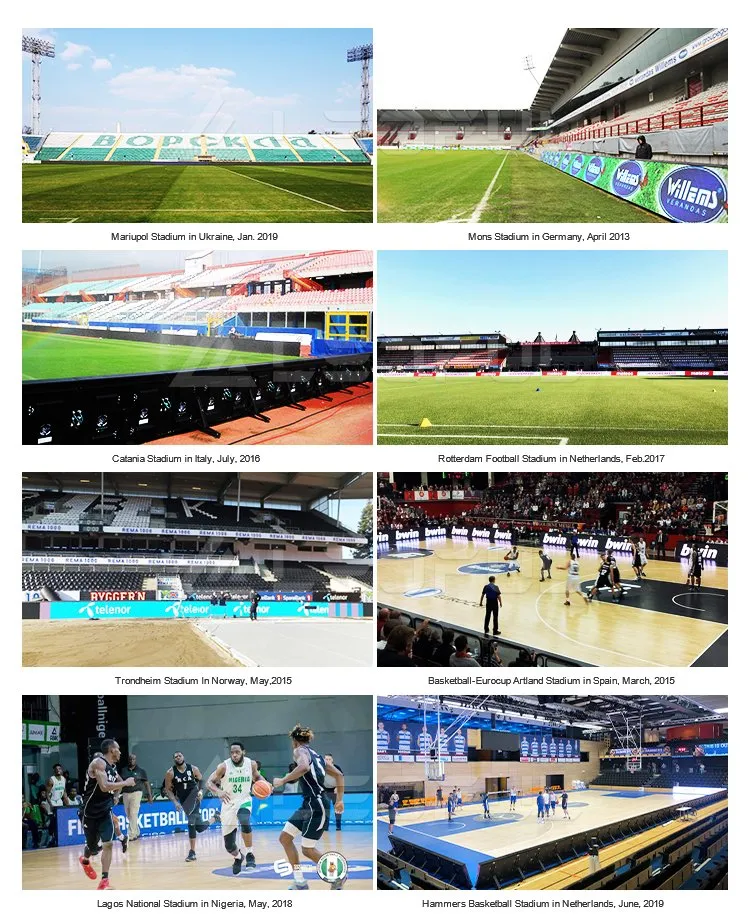

Products are exported to 83 countries across Europe, America, Asia, and Africa, with over 5,600 successful projects. Our facility ensures high stability through 16 monetary procedures and 23 operating procedures involving 1,500 tests.
📦
Packaging & Shipping
We handle every detail of your order with care, ensuring robust packaging for global shipping. We welcome customized OEM and ODM orders to meet specific project requirements. Our solutions cater to media advertising, retail, sports events, and architectural projects.
❓
Frequently Asked Questions
Can the LED cabinets be stacked?

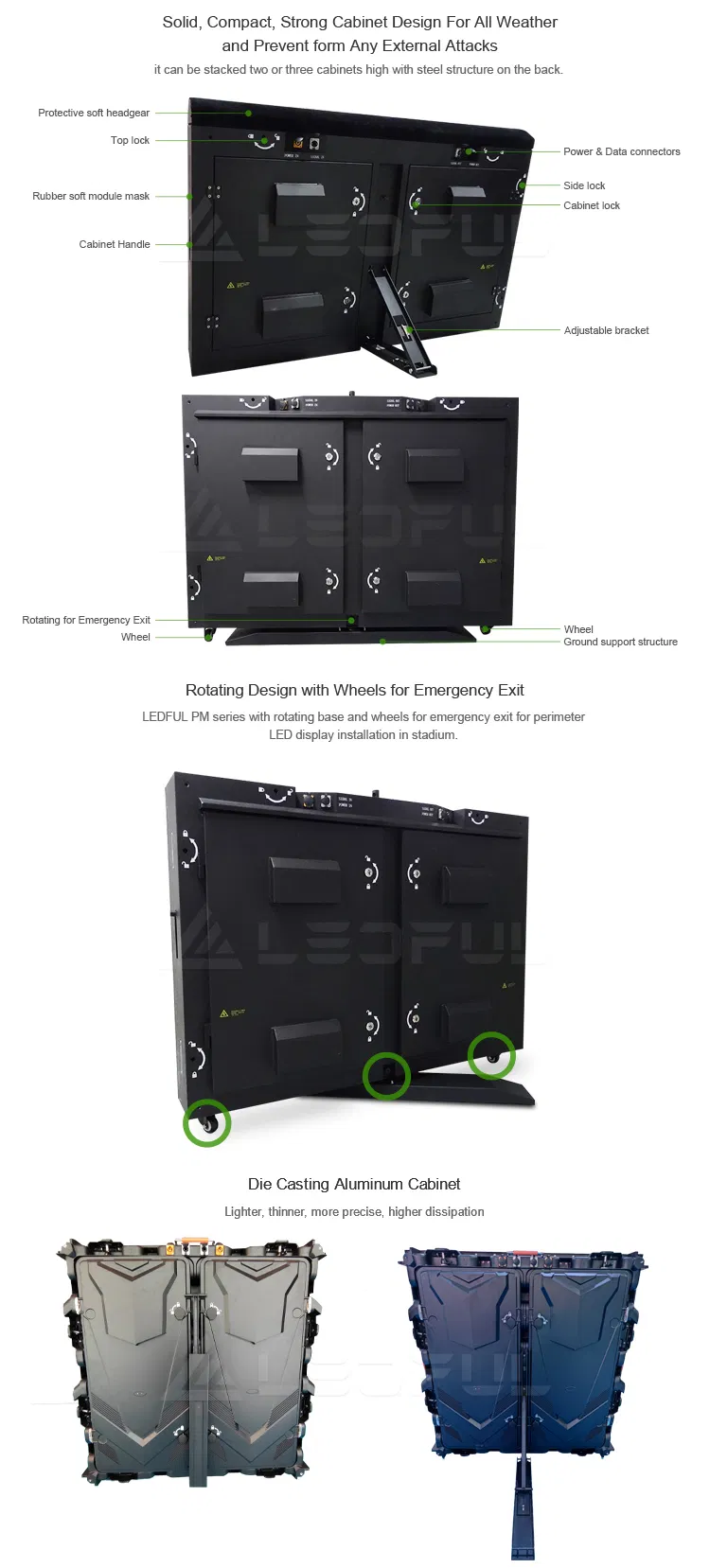

Yes, the cabinets can be stacked two or three units high using a steel structure on the back for support.
How do you display ultra-long videos on perimeter screens?
We provide specialized software free of charge specifically designed to manage and play ultra-long video content across the entire screen length.
What protection features are included for sports use?

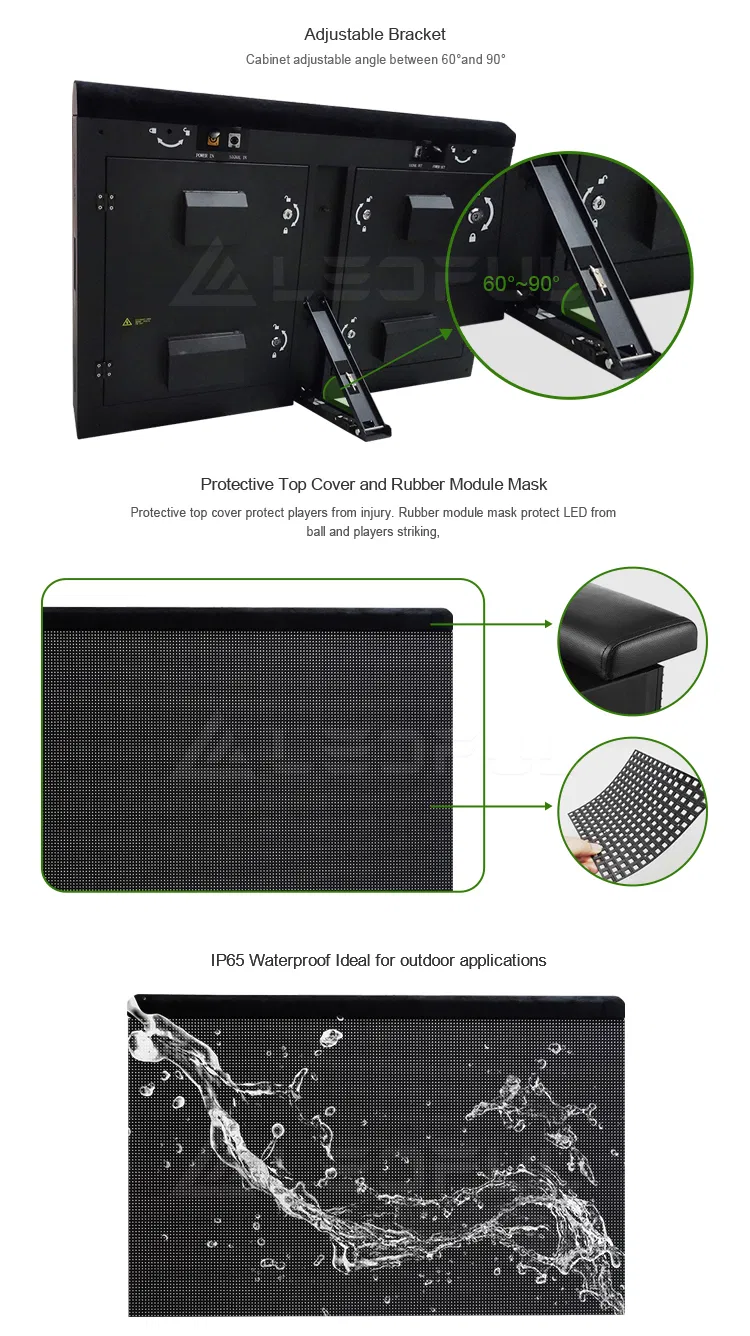

The PM series features a soft rubber facial mask and a soft top cover. This dual protection prevents damage to the LEDs from ball impacts and protects players from injury during collisions.
What control system is used for these displays?
We utilize the Nova Taurus Series asynchronous control system. It supports cluster play and management via APP, WiFi, Phone, Laptop, or Cloud control for maximum convenience.
What is the warranty period and after-sales support?
We offer a 3-year warranty. Our professional after-sales team and dedicated sales engineers are available to resolve any technical issues or operational questions.
