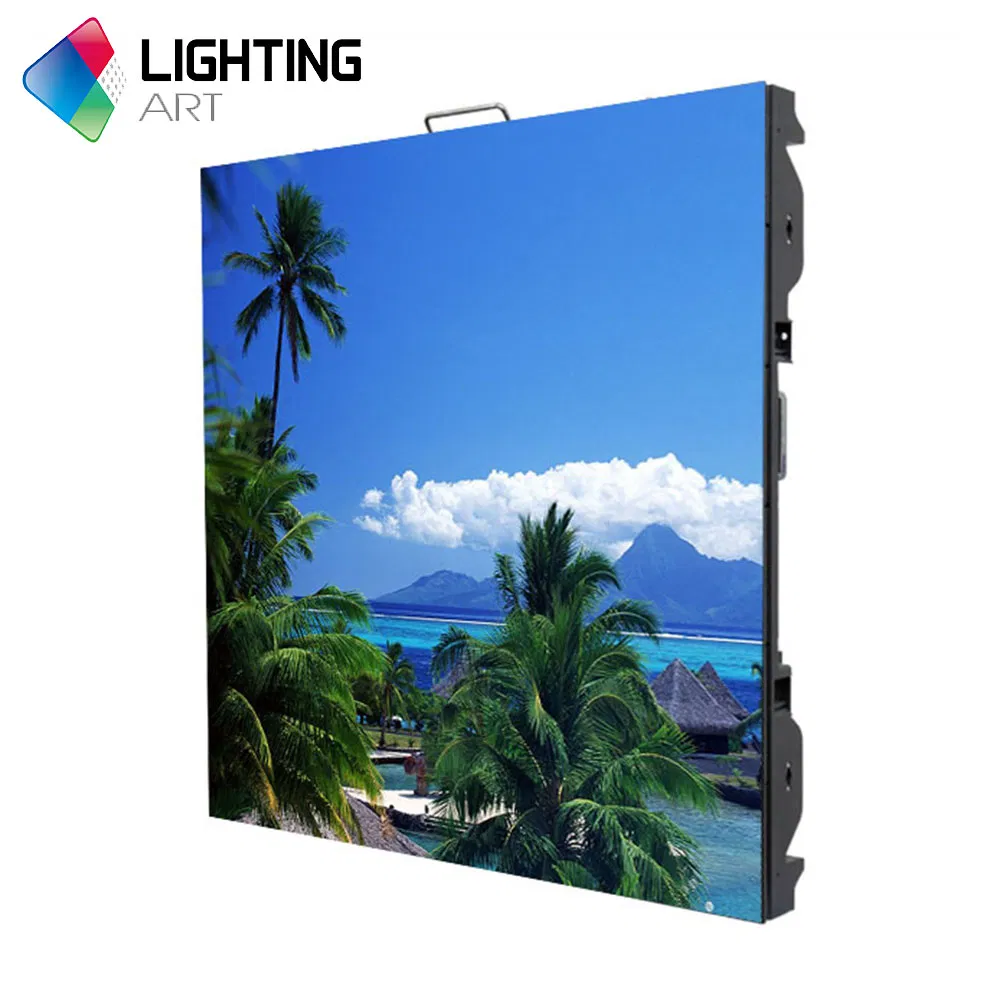

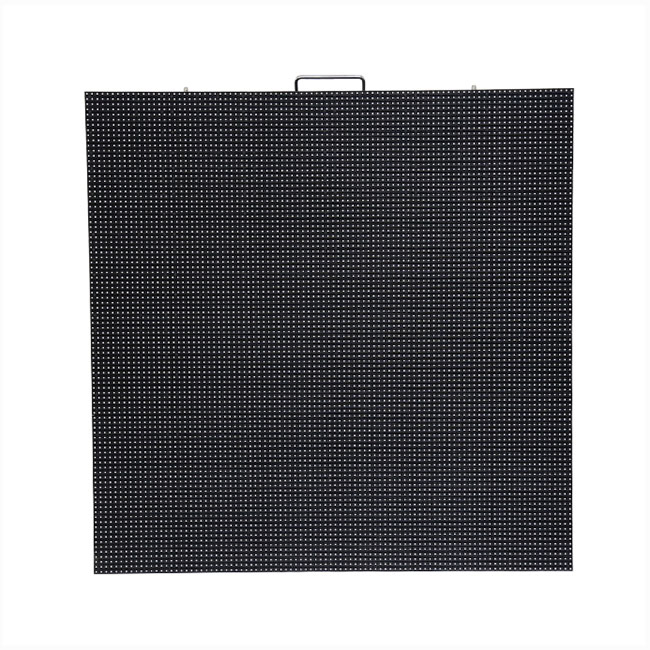

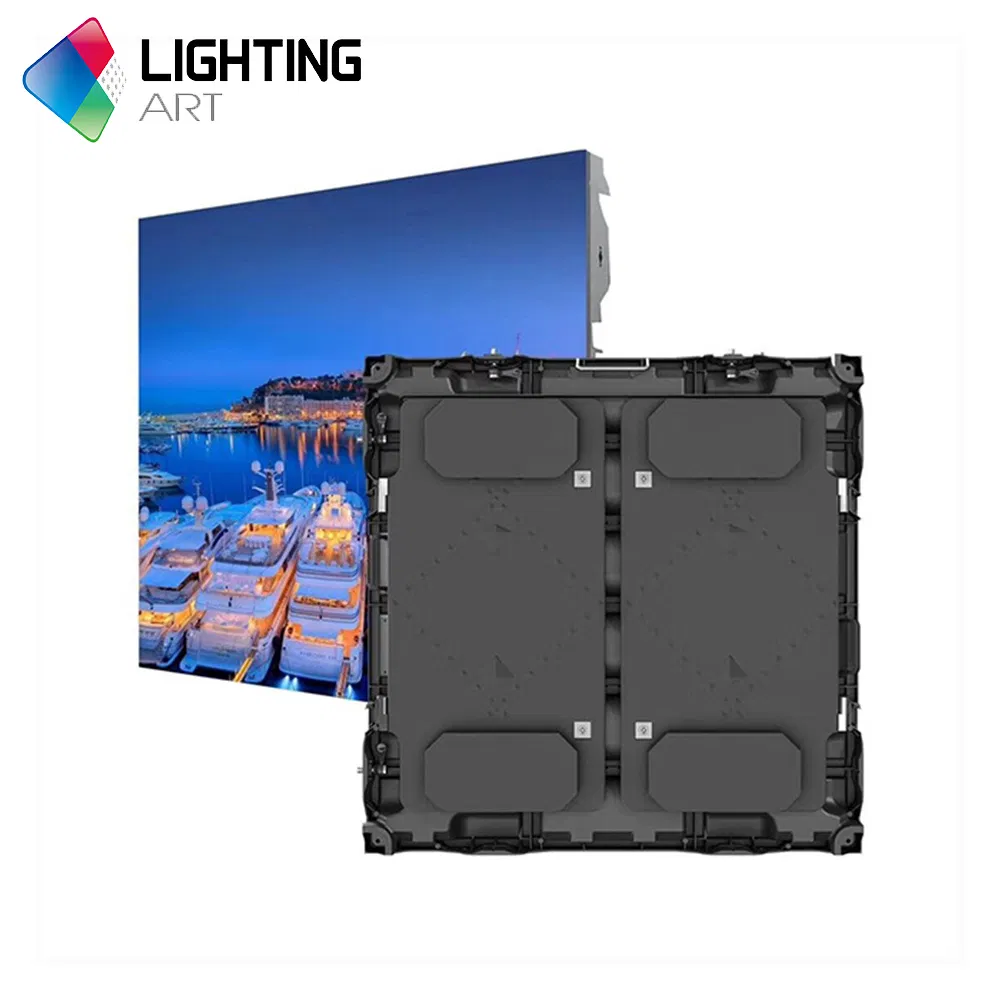

Outdoor P6 P8 P10 LED Display Screen LED Digital Video Wall

1 / 5

Outdoor P6 P8 P10 LED Display Screen LED Digital Video Wall

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SPAS-10

Pixel Pitch

10mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image, Text, Market Display

Power Consumption

250W/M2 (Avg)

Pixel Density

10000 dot / m²

Scanning Mode

1/2 Scan

Application

Advertising / Sports

Certification

CE, FCC

Cabinet Material

Aluminum

Viewing Distance

>20m

Module Size

320*160mm

Product Overview

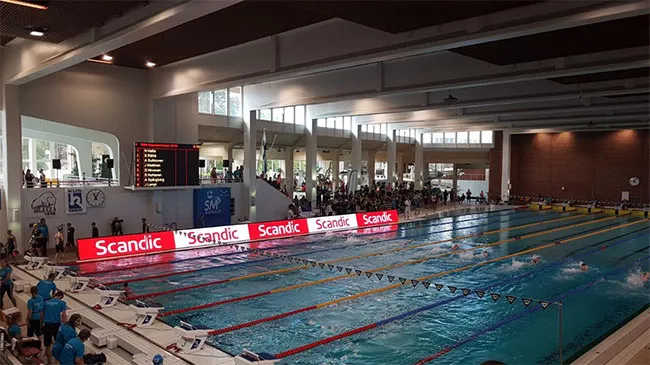

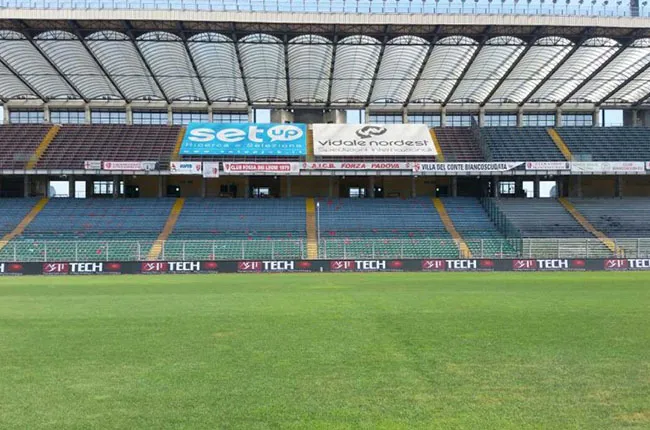

Application Scenarios:

✓ Advanced LED screen designed for sport stadium advertisement.
✓ Ideal for football, basketball, table tennis stadiums, hockey areas, and swimming pools.

Key Features:

1 Cost-effective aluminum cabinet materials.
2 Soft top cover and soft mask for athlete protection.
3 Support angle adjustment from 0-15 degrees.
4 High brightness and energy-saving technology.

Detailed Specifications

No.	Parameter Item	Specifications
1	Model No.	SPAS10
2	Pixel Pitch (mm)	10
3	Module Size (mm)	320*160
4	Cabinet Size (mm)	1280960120
5	LED Encapsulation	SMD3535 KINGLIGHT
6	Cabinet Weight (kg)	43
7	Brightness (NIT)	6500
8	Refresh Rate (Hz)	3840
9	Viewing Angle (H/V)	±140°/±140°
10	Protection Grade	IP65
11	Max Power Consumption	750 W/m²
12	Average Power Consumption	250 W/m²

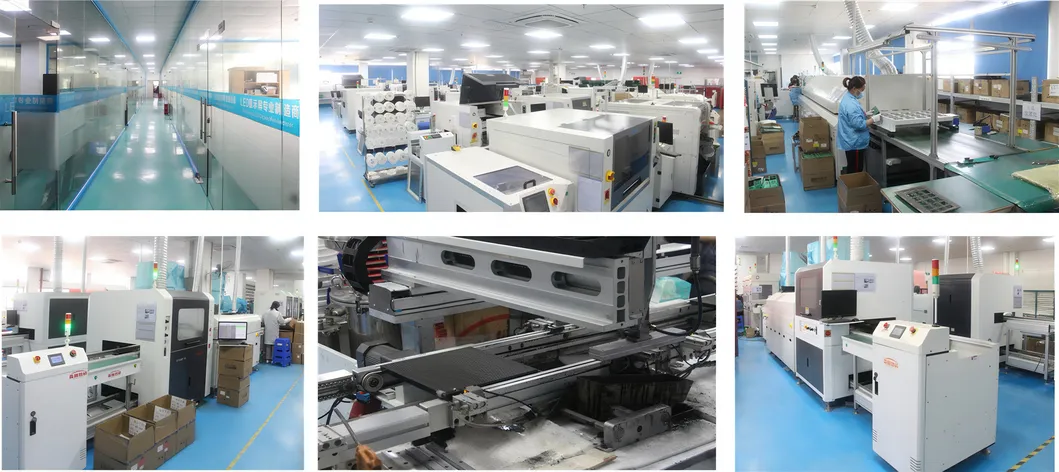

Production & Quality Control

★ Skilled workers with over 6 years of experience.
★ High-technology automatic machines for precision manufacturing.
★ Rigorous Aging test + Grayscale test for every single module.

Logistics & Payment:

Production Time

Approx. 25 days (incl. aging test)

Payment Terms

T/T, 30% advance, 70% before shipping

Trade Terms

FOB, CIF, DDU, DDP

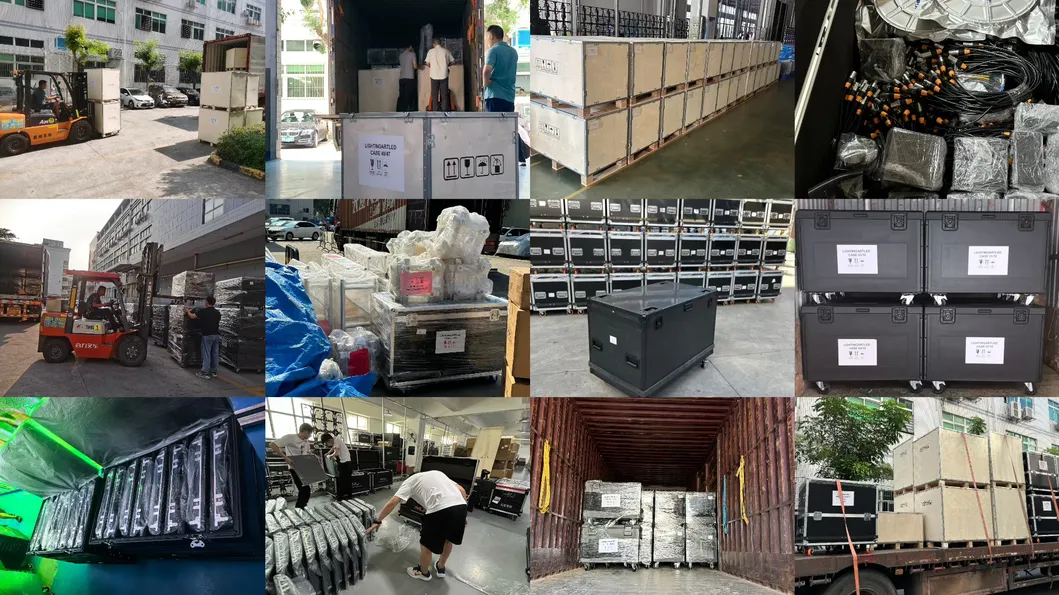

Packaging

Plywood case or Flight case

Frequently Asked Questions

1. What makes the SPAS-10 ideal for sports stadiums?

The SPAS-10 features a soft top cover and a soft mask specifically designed to protect athletes from injury during impact, while providing high-visibility advertising.

2. Can the viewing angle of the screen be adjusted?

Yes, the cabinet supports angle adjustment from 0 to 15 degrees to ensure the best visibility for spectators in different stadium layouts.

3. What is the weather protection rating for this outdoor screen?

The screen has an IP65 protection grade, making it highly resistant to dust and water, suitable for permanent outdoor installations.

4. What is the typical lead time for an order?

For orders up to 200 m², the production time is approximately 25 days, which includes mandatory aging and quality testing.

5. What kind of LED lamps are used in this model?

This model uses high-quality SMD3535 KINGLIGHT LEDs, ensuring a brightness of up to 6500 NITs and a high refresh rate of 3840Hz.

6. What are the available packaging options for shipping?

We provide professional plywood cases for standard shipping or flight cases for mobile applications requiring frequent transport.
