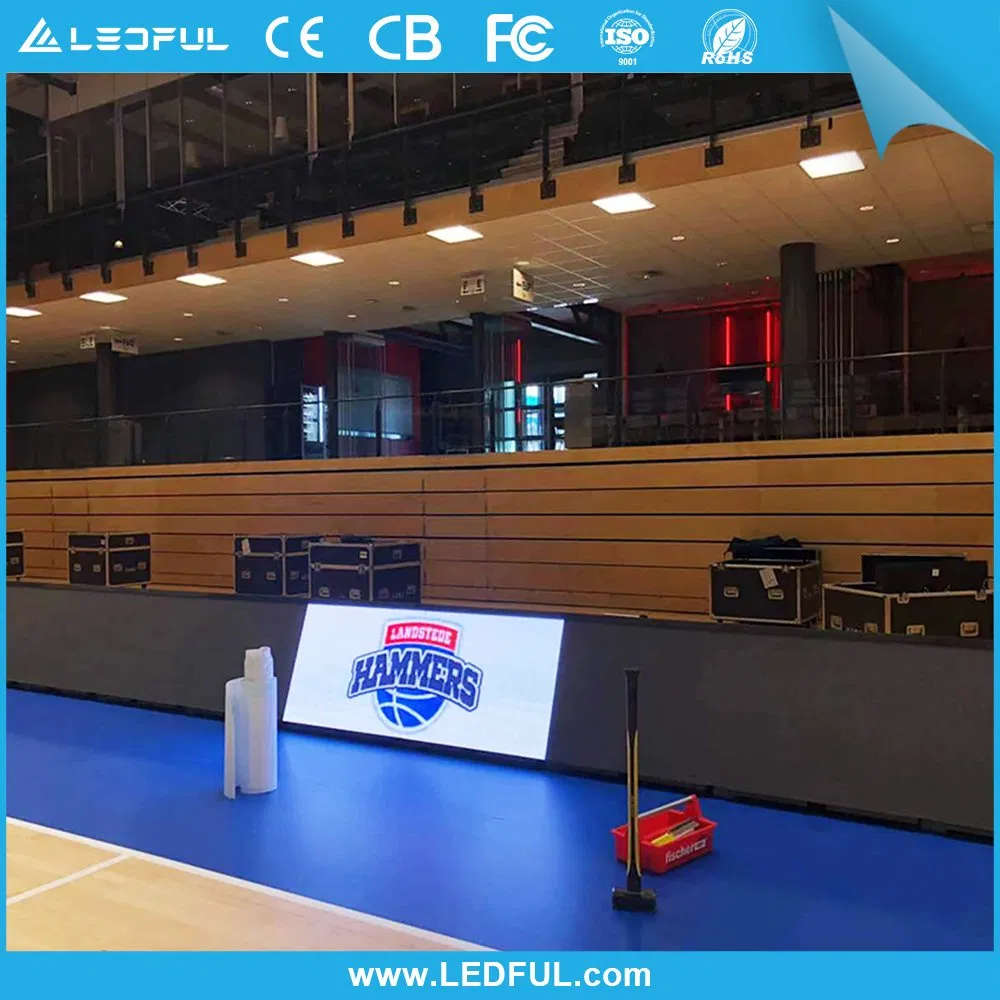

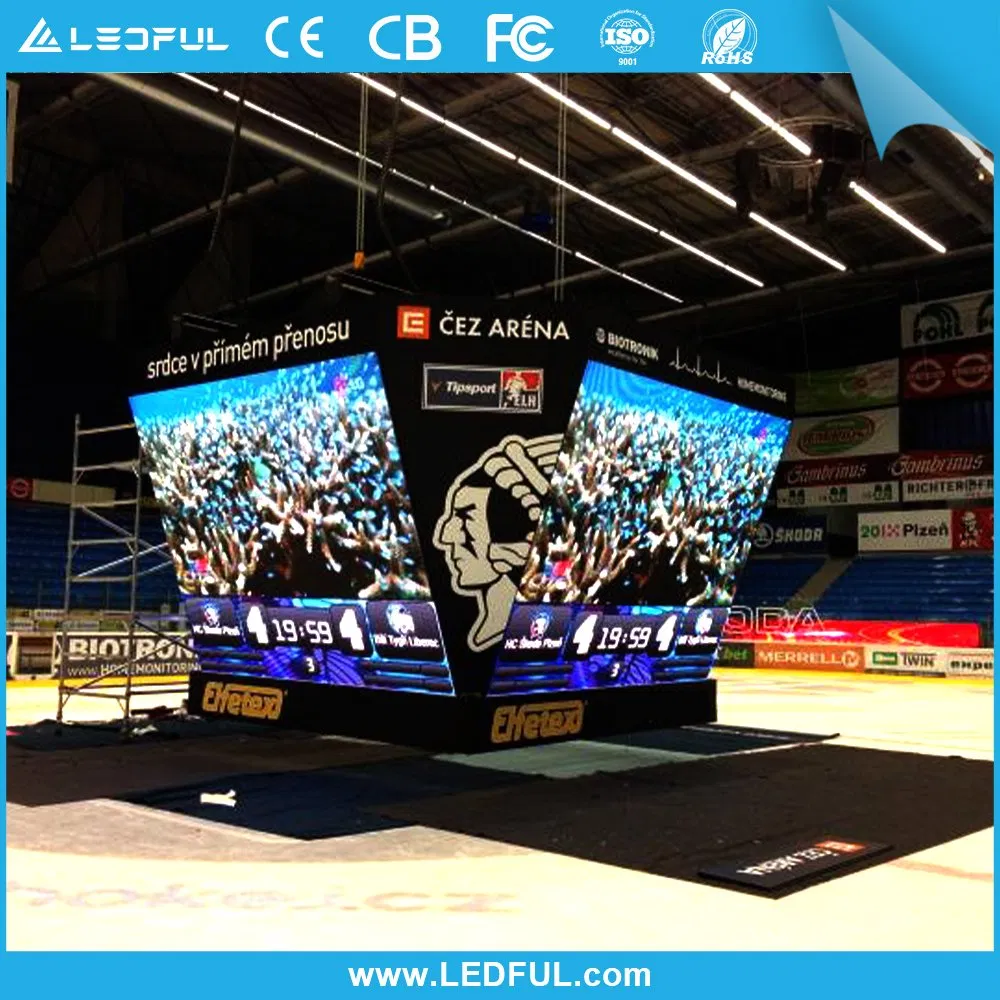

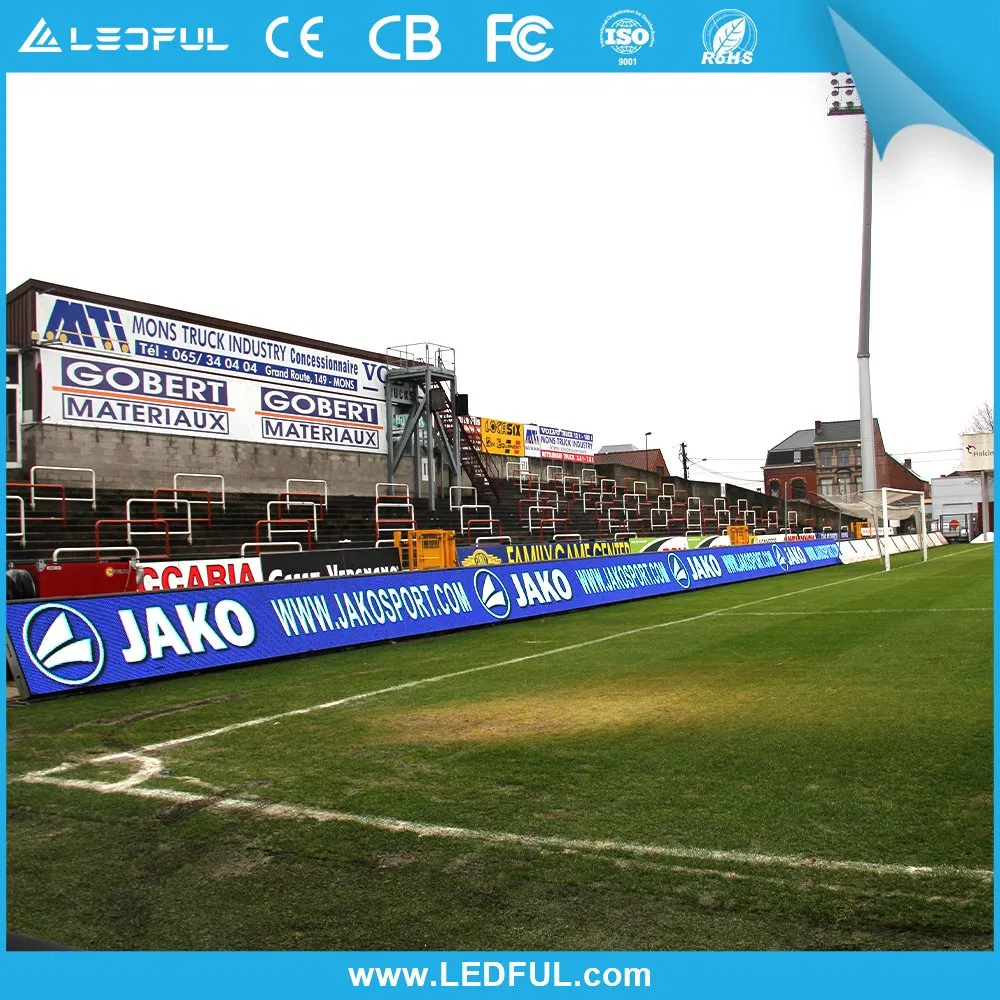

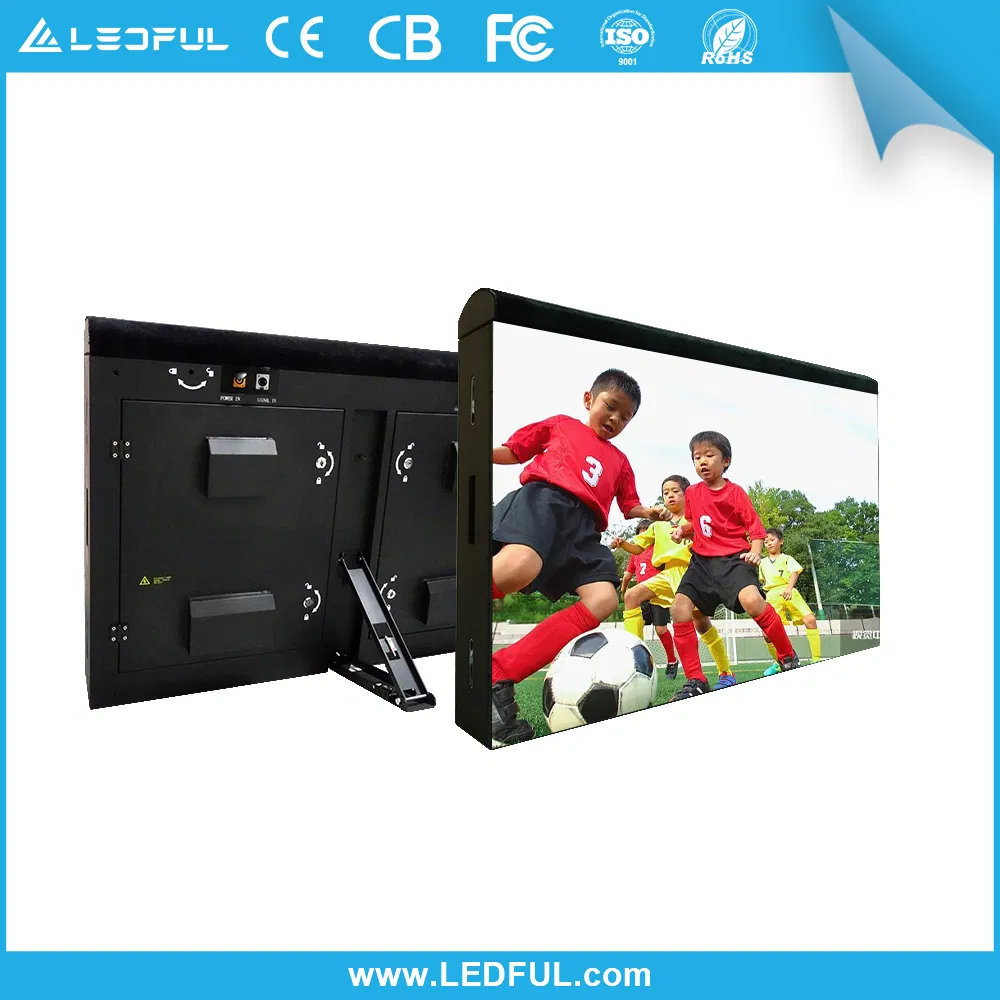

Indoor & Outdoor LED Stadium Screen P5 P8 P10mm Sport Stadium LED Perimeter Display Football Scoreboard LED Video Wall

📊

Basic Information

Model

PM

Pixel Pitch

10mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image, Text, Market Display

Power Consumption

110W (Avg)

Pixel Density

10000 dot / m²

Scanning Mode

1/2 Scan

Application

Advertising & Stadium

Brightness

7500 Nits

IP Rate

IP65

Refresh Rate

2880 Hz

Viewing Angle

140 / 140

📝

Product Description

⚙️

Specifications

Parameter	IPM6	IPM10	OPM8	OPM10	OPM16
Pixel Pitch(mm)	6	10	8	10	16
Pixel Matrix Per Sq.m	27777	10000	15625	10000	3906
Configuration	SMD3528	SMD3528	SMD3535	SMD3535	SMD3535
Brightness (nits)	2200	1800	6800	7500	8000
Scan	1/8	1/4	1/3	1/2	1/1
IP Rate	IP43		IP65
Refresh Rate (HZ)	2880		>1920

🖼️

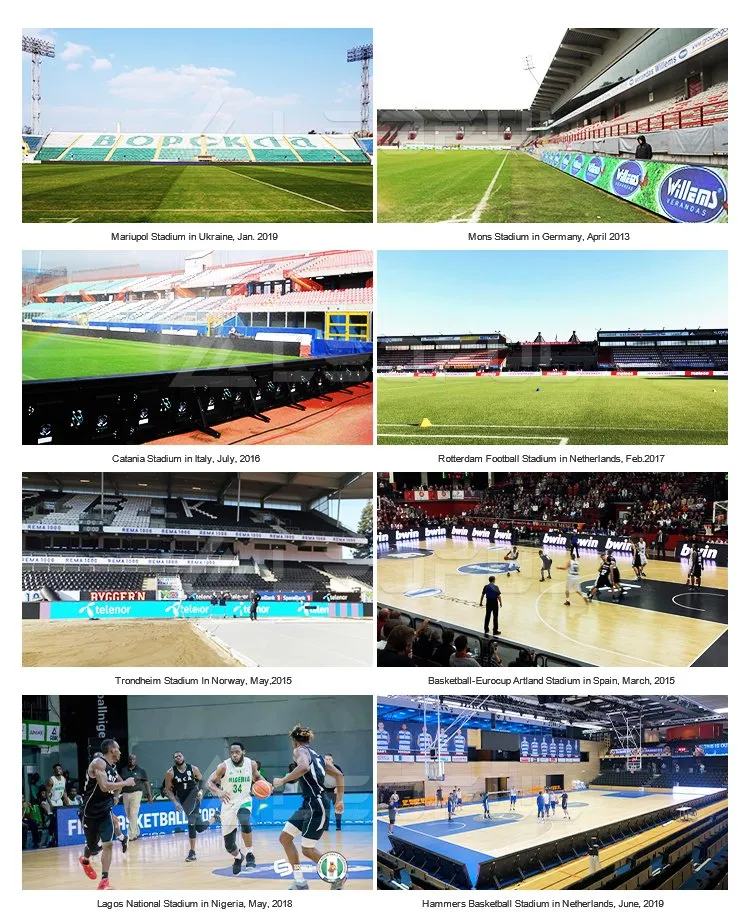

Product Showcase

🏢

Quality & Service

Our solutions cover LED Posters, Transparent LED screens, Outdoor & Indoor commercial billboards, Rental screens, and Sports LED displays. With successful projects in over 83 countries, we maintain high standards with CE, FCC, RoHS, and ISO9001 certifications.

❓

Frequently Asked Questions

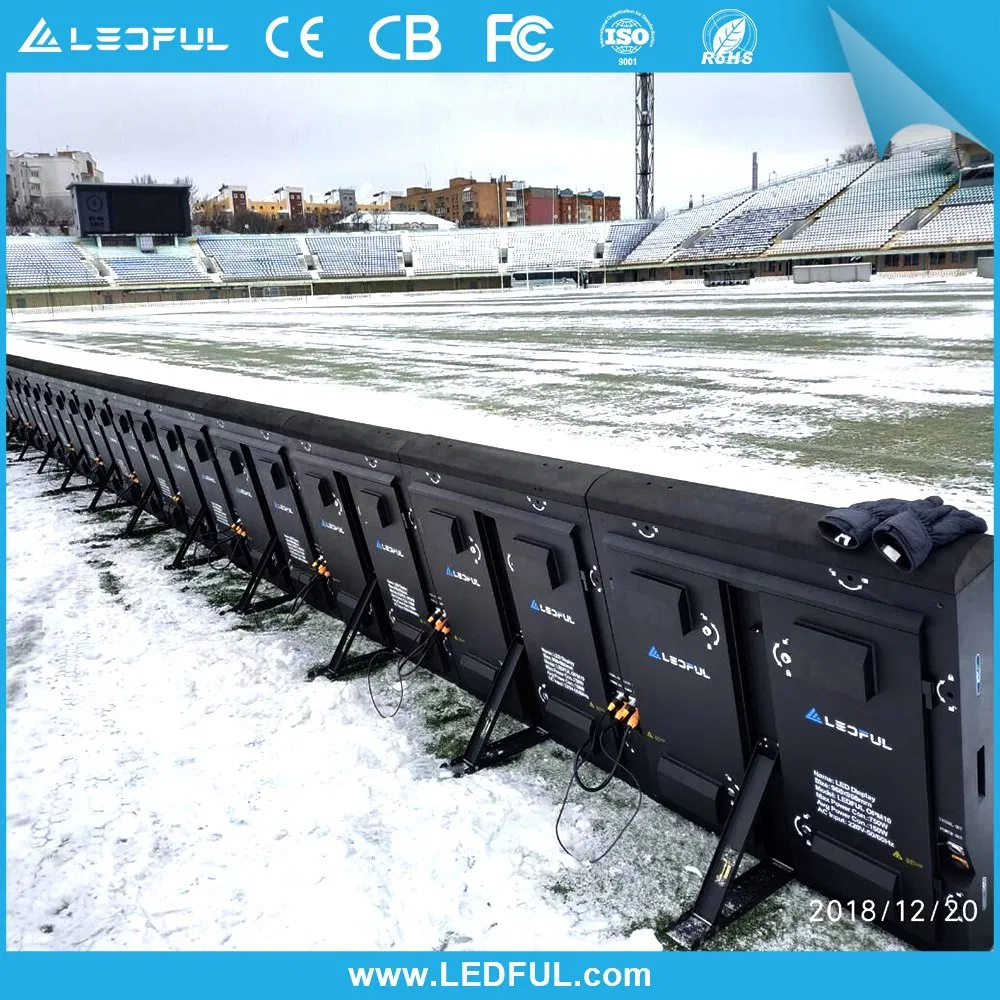

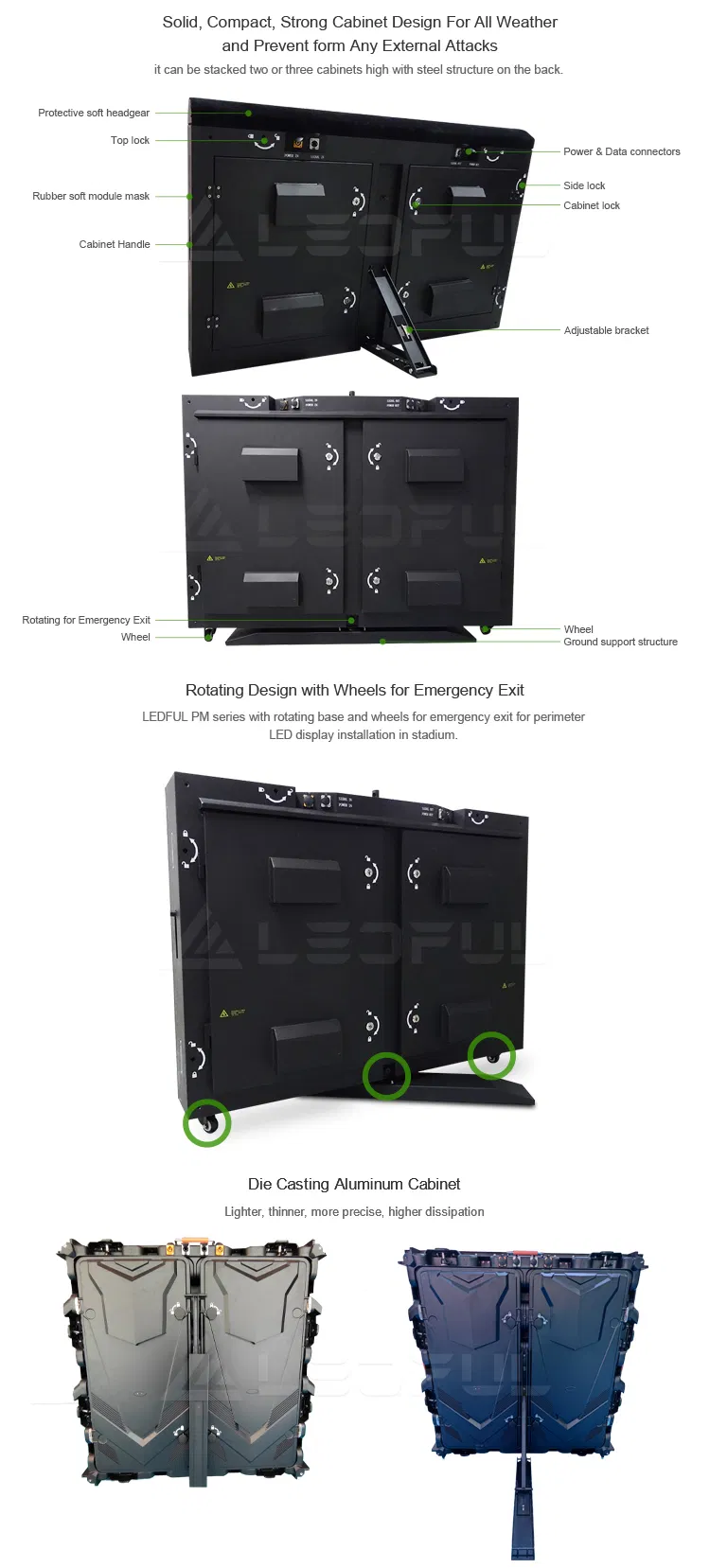

Can the cabinets be stacked for installation?

Yes, the cabinets can be stacked two or three units high using a steel structure on the back for support.

How do you display ultra-long videos on the perimeter screen?

We provide specialized software free of charge specifically designed to manage and create ultra-long video content.

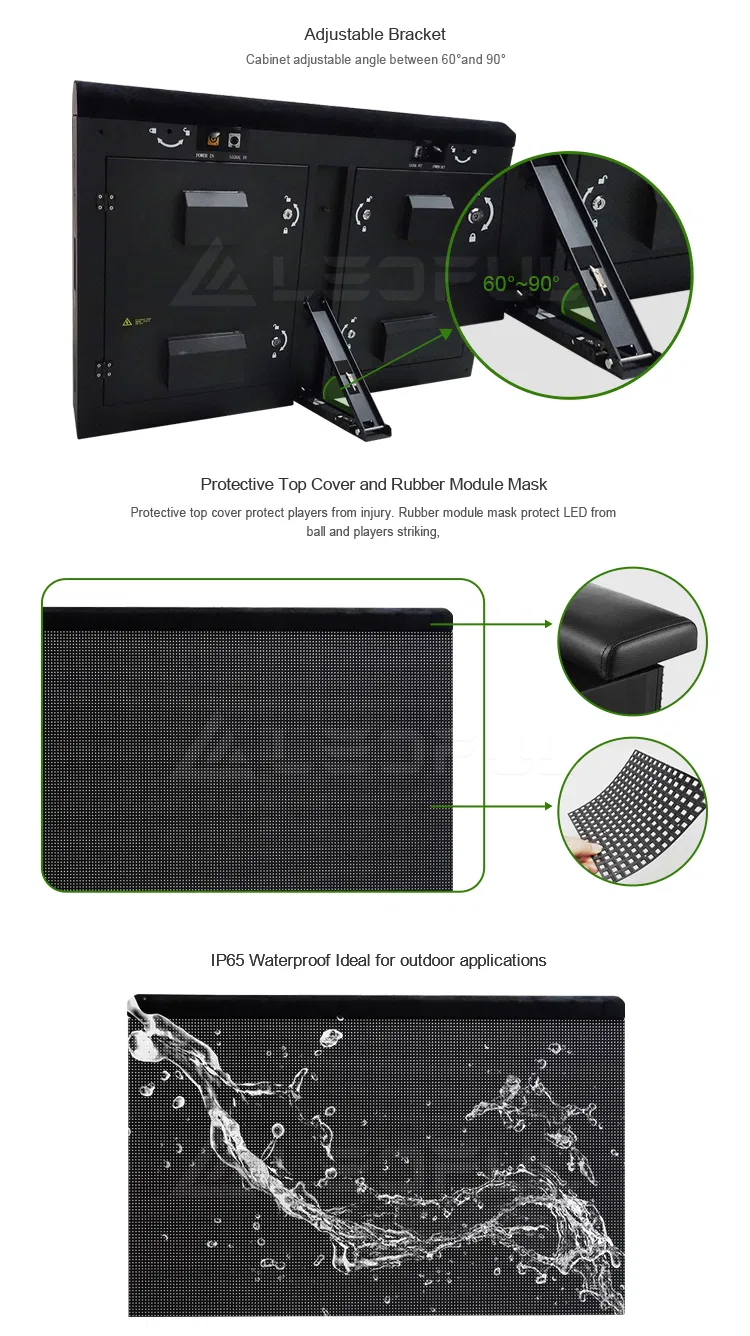

What kind of physical protection does the screen offer?

The PM series features a soft rubber facial mask and a soft top cover. This protects the LEDs from impacts and ensures player safety during sports events.

What control system is used for these displays?

We utilize the Taurus Series asynchronous control system, which supports cluster play, WIFI, Cloud control, and management via App, Phone, or PC.

What is the warranty period and after-sales support?

We offer a 3-year warranty. Our professional after-sales team and dedicated engineers are available to resolve any technical queries or installation issues.

Are the displays suitable for outdoor weather?

Yes, our outdoor series features an IP65 rating, ensuring full protection against dust and high-pressure water jets from any direction.
