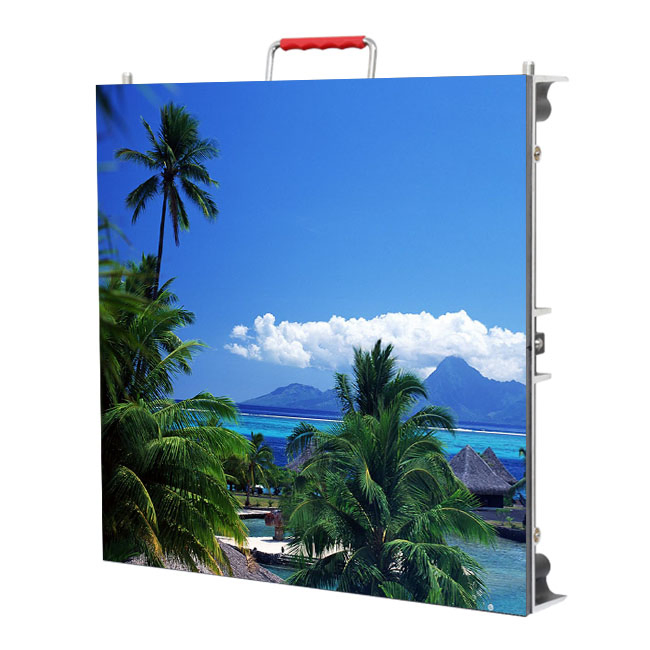

Indoor Rental HD 500A P4.81 Full Color LED Screen LED Display Advertising Video

Still deciding? Get samples of $ !
Request Sample

Product Description

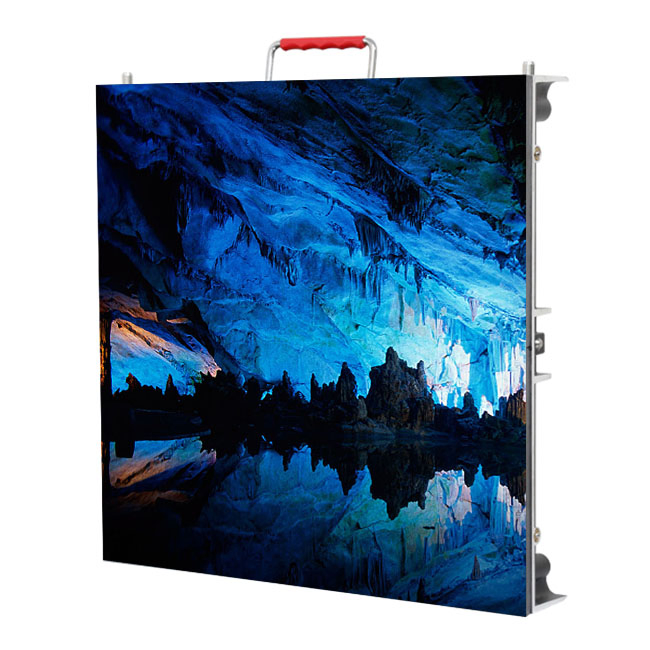

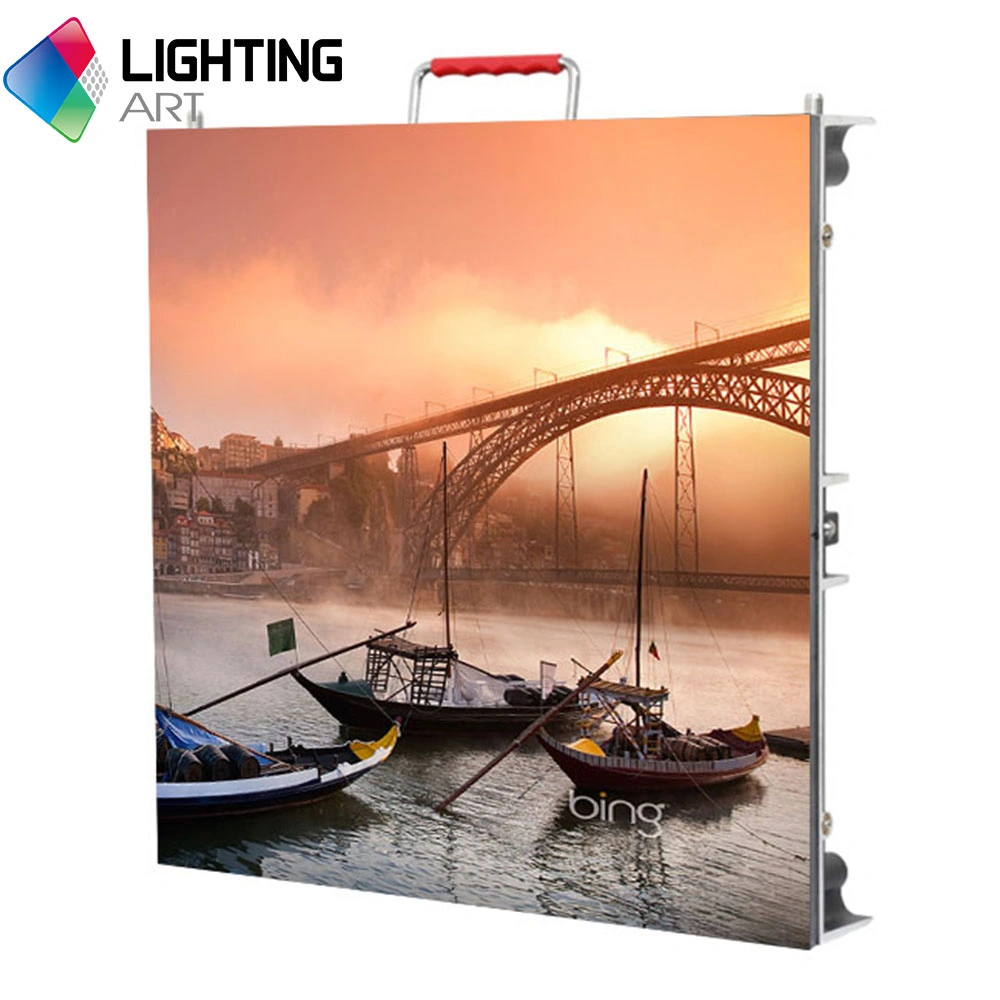

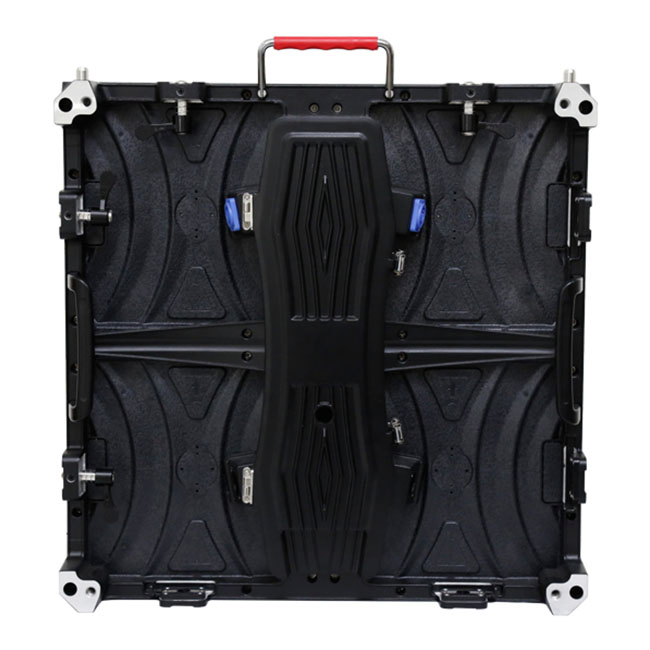

Indoor Rental HD 500A P4.81 Full Color LED Screen

Application Scope:

  • Indoor LED screen series optimized for professional rental services.
  • Ideal for indoor commercial advertising billboards, stages, banks, and stock exchange centers.
  • Perfect for theme parks, airports, schools, and government agencies.
  • Widely used in exhibitions, meeting rooms, cinemas, hotels, and various public facilities.

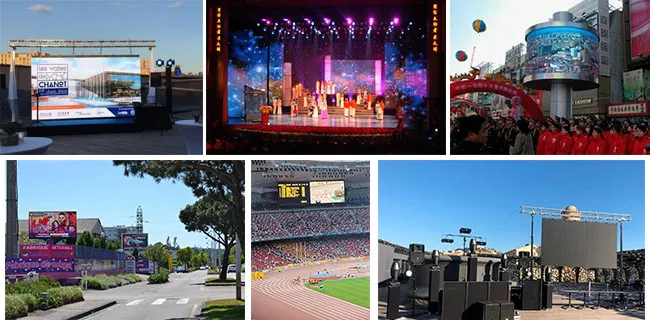

P4.81 LED Screen Display
Basic Product Information
Model NO.
500A
Pixel Pitch
4.81mm
Pixel Density
43264 DOT/M
Scanning Mode
1/13 Scan
Display Type
LED Video Display
IP Rating
IP30
Cabinet Material
Die Cast Aluminum
Cabinet Size
500x500x91mm
Certification
CE, FCC
Best Viewing Distance
>10m
Technical Specifications
No. Parameter Item Details
1Model No.500A
2Pixel Pitch (mm)4.81
3Module Size (mm)250x250x15
4Module Resolution (pixels)52x52
5Cabinet Size (mm)500x1000x88
6Cabinet Resolution (pixels)104x208
7Pixel configuration1RGB
8LED EncapsulationSMD2020
9Work Voltage (DC)5V
10Driver Mode (Scan)1/13
11Cabinet Weight (kg)15
12Brightness (NIT)800
13Refresh Rate (Hz)3840
14Viewing Angle (H/V)±140°/±140°
15Protection GradeIP30
16Max Power Consumption424 W/m²
17Average Power Consumption168 W/m²
Product Display & Details

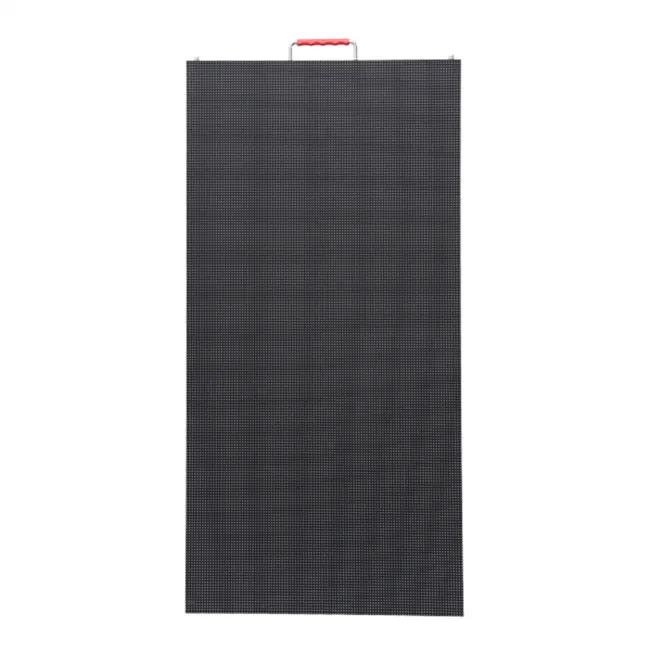

LED Module Rear View

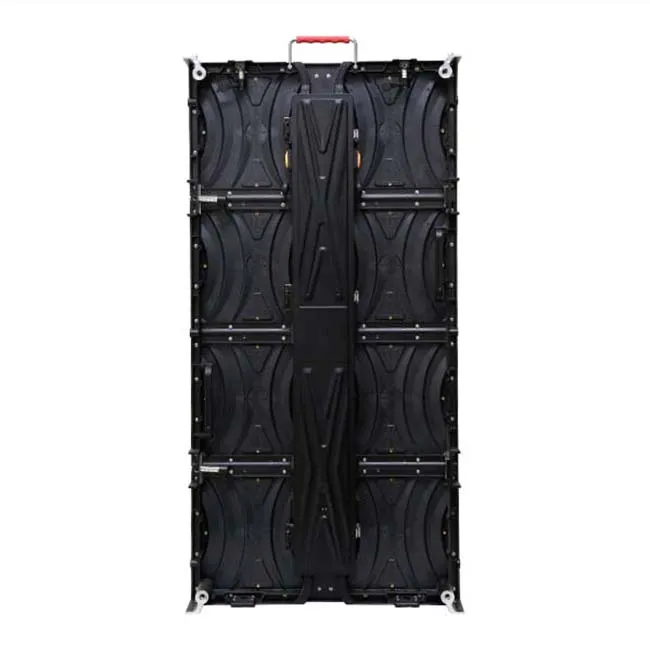

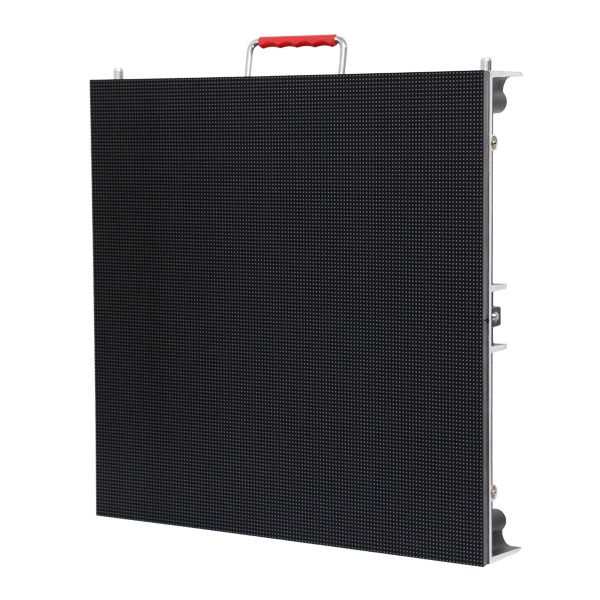

LED Cabinet Details

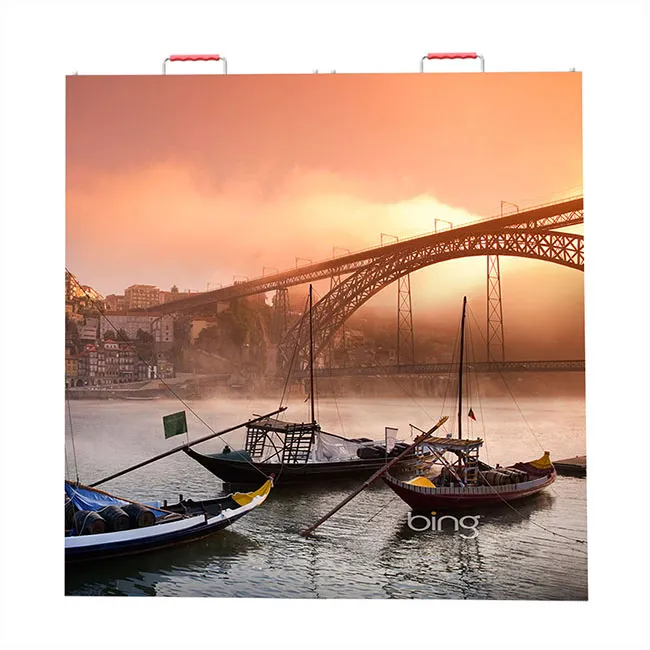

Full Screen Assembly
Development & Production

Professional Solutions:

  • Comprehensive accessories: hanging bars, sending cards, video processors, and software.
  • Full support gear: flight cases, power boxes, module masks, and heavy-duty cabling.
  • Experienced engineering team specializing in high-end rental designs.
  • Advanced automatic machinery and strict aging tests for every module.

Production & Logistics:

  • Standard production cycle: Approx 25 days (includes rigorous aging testing).
  • Global trade terms supported: FOB, CIF, DDU, DDP.
  • Flexible packaging: High-quality plywood cases or professional flight cases.
  • Payment terms: 30% advance, 70% balance prior to shipment.

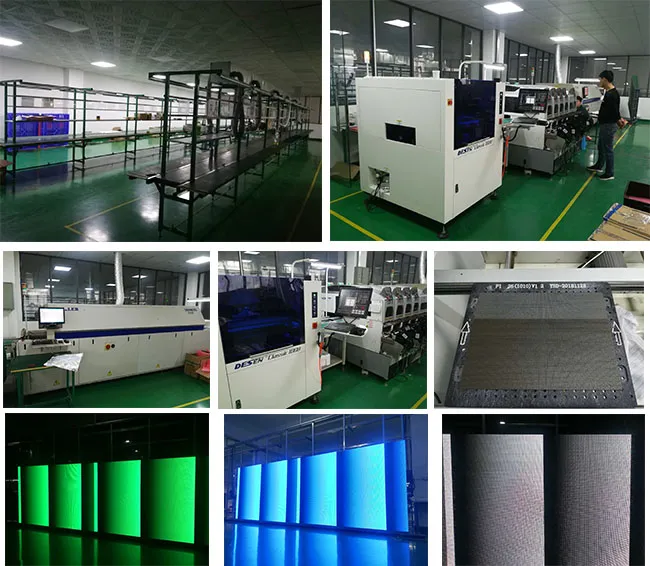

Production Factory Aging Test

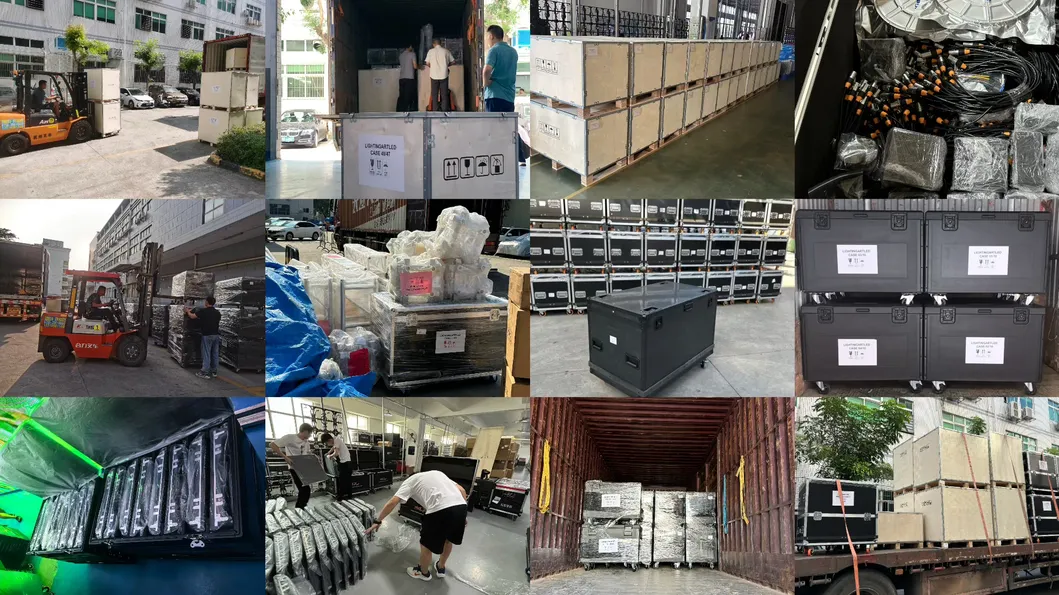

Packaging and Delivery
Frequently Asked Questions
Q1: What is the pixel pitch and best viewing distance for the 500A model?
A: The 500A model features a 4.81mm pixel pitch, providing an optimal viewing distance of 10 meters or more.
Q2: Can this screen be used for outdoor events?
A: This specific model is rated IP30, which is designed for indoor rental applications such as stages, exhibitions, and indoor advertising.
Q3: What material is the cabinet made of and how much does it weigh?
A: The cabinet is constructed from high-quality Die Cast Aluminum and weighs approximately 15kg, making it durable yet lightweight for rental use.
Q4: What are the key technical performance indicators?
A: It offers a high refresh rate of 3840Hz, a brightness of 800 NITs, and a wide viewing angle of ±140° both horizontally and vertically.
Q5: How long does production usually take?
A: For an LED screen up to 200 m², the production time is approximately 25 days, which includes essential aging and quality testing.
Q6: What accessories are included in a full project solution?
A: A complete setup typically includes hanging bars, sending/receiving cards, video processors, control software, power/data cables, and protective flight cases.
