Full Color Waterproof Indoor Outdoor Rental LED Display Screen for Stage Concert

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
Outdoor fixed screen
Pixel Pitch
5.95mm
Pixel Configuration
2R,1G,1B
Display Function
Video, Image & Text, Market Display
Power Consumption
Average 1000W
Pixel Density
27,777 dots/m²
Scanning Mode
1/8 Scan
Display Type
LED Video Display
Application
Advertising / Outdoors
Certification
CE, RoHS, CCC
Weight
20kgs
Origin
China
HS Code
8528591090
Capacity
5000sqm/Month

Product Description

Full Color Waterproof Indoor Outdoor Rental LED Display Screen for Stage Concert

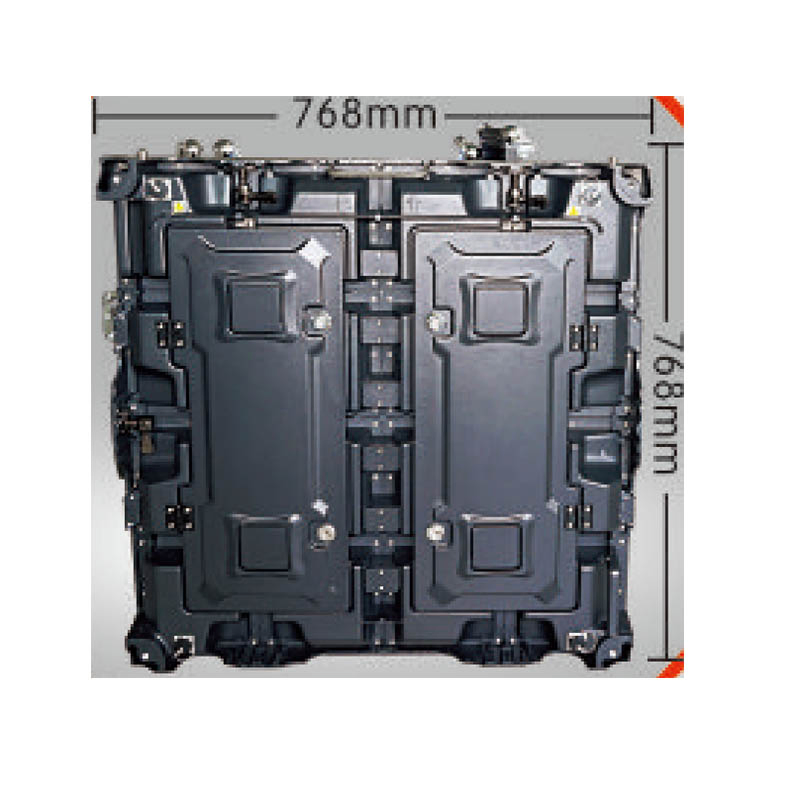

1. Outdoor Fixed Installation Display

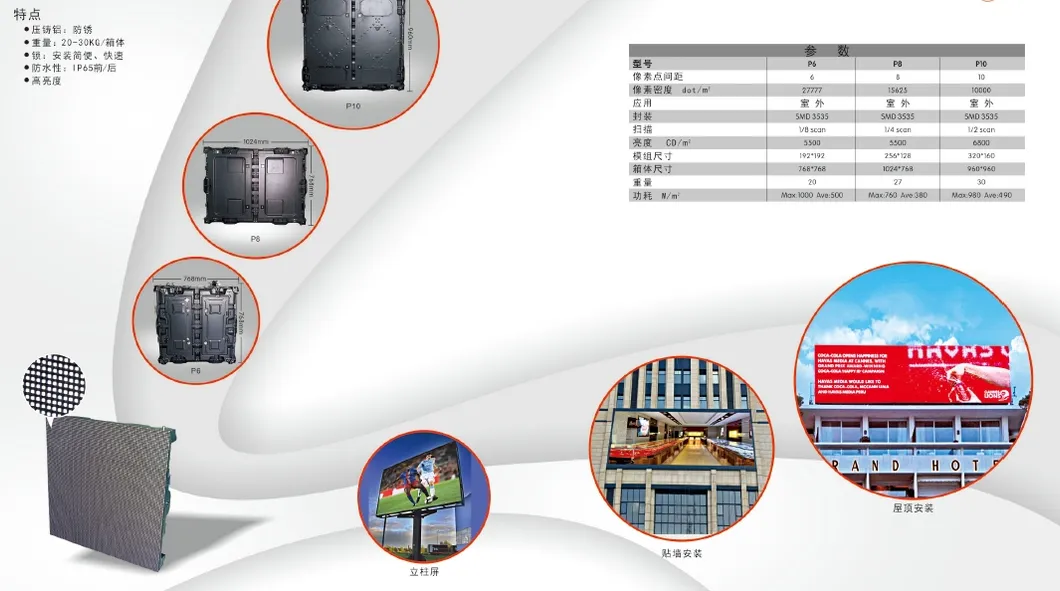

Outdoor fixed installation display
Key Features
MaterialDie-cast aluminum (Anti-rust)
Weight20-30KG per Cabinet
InstallationLock design for easy setup
ProtectionIP65 Waterproof
BrightnessHigh visibility in sunlight
Technical Parameters
ModelP6P8P10
Pixel pitch (mm)6810
Density (dot/m²)277771562510000
EncapsulationSMD3535SMD3535SMD3535
Scan1/8 scan1/4 scan1/2 scan
Brightness (CD/m²)550055006800
Module size (mm)192*192256*128320*160
Weight (kg)202730

2. Outdoor Dual Backup Display

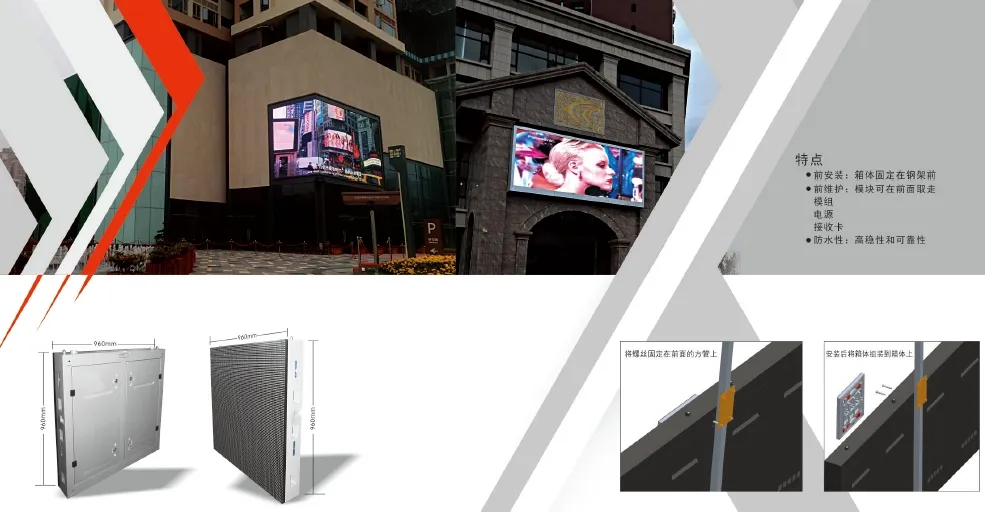

Outdoor dual backup display

Features:

  • Front installation: Box fixed in front of steel frame.
  • Front maintenance: Modules removable from the front side.
  • Components: Reliable module, power supply, and receiving cards.
  • High stability and waterproof reliability.

3. Front & Rear Maintenance

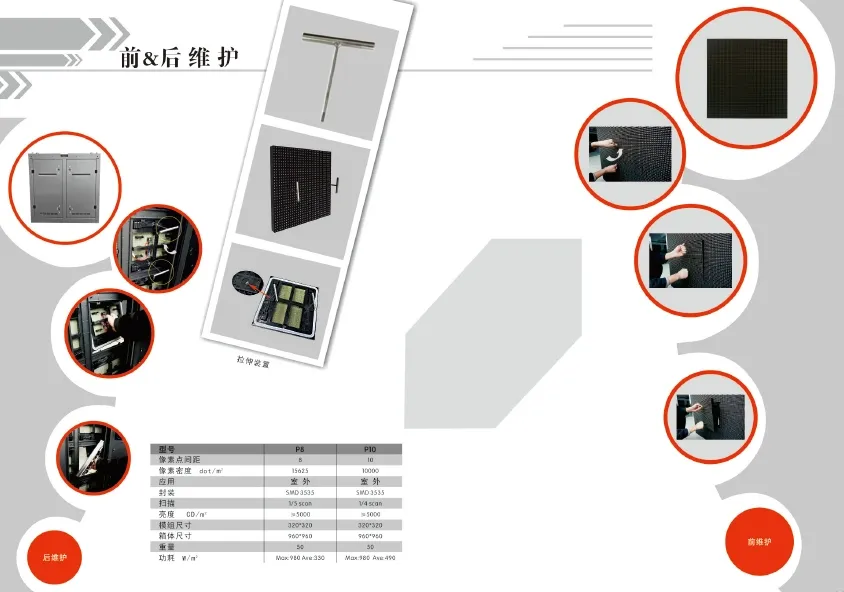

Front & rear maintenance display
ModelP8P10
Pixel density dot/m²1562510000
Scan1/5 scan1/4 scan
Brightness CD/m²50005000
Module size (mm)320*320320*320

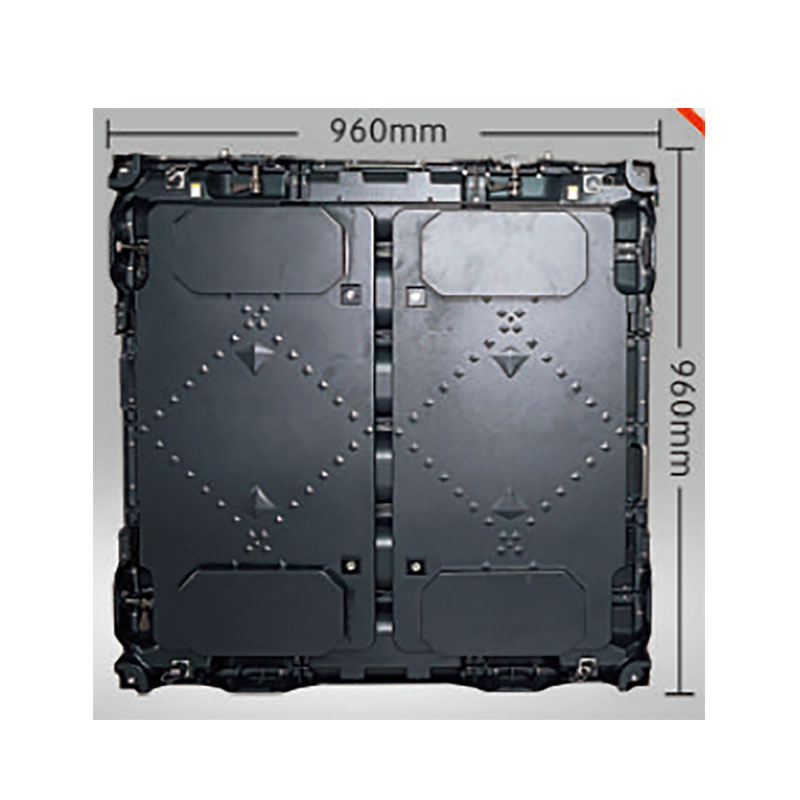

Box size (mm)960*960960*960

Installation & Production

Real-world Applications

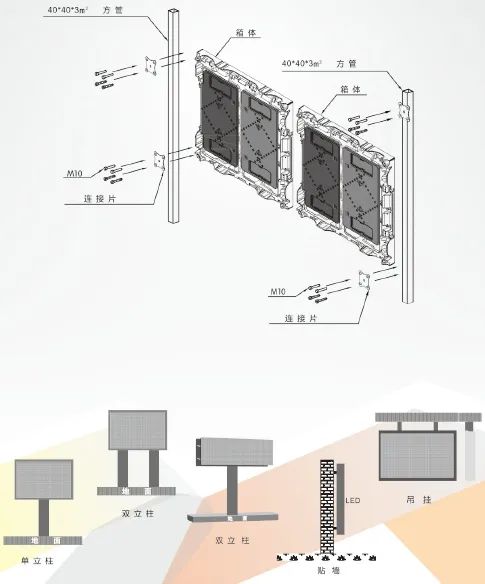

Installation Picture 1

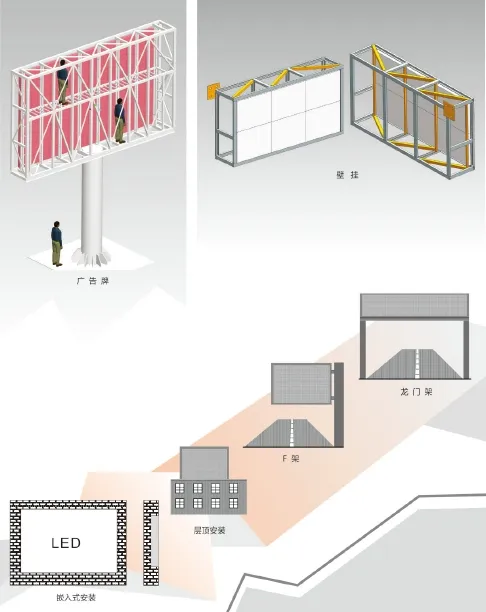

Installation Picture 2

Workshop Showcase

Workshop 1
Workshop 2
Workshop 3

Control Systems

Industrial Control System: Suitable for unmanned locations. Automatically schedules playback based on stored calendars. Management and content modifications are performed via the network.

Computer Control System: The most common control method. Offers simple, convenient, and practical operation for close-range usage under dedicated supervision.

Module assembly
Cabinet assembly
Light color test

Frequently Asked Questions

What is the waterproof rating for these outdoor screens?
The outdoor fixed screens are designed with an IP65 protection rating, ensuring reliable performance in waterproof and dusty environments.
Can these LED screens be maintained from the front?
Yes, we offer specific types (Type 2 and Type 3) that support front maintenance, allowing modules to be removed easily from the front side.
What are the available pixel pitch options?
Our outdoor solutions range from P6, P8, to P10, providing various resolutions to meet different viewing distance requirements.
What kind of packaging is used for transport?
Products are securely packed in high-quality Plywood Cases to ensure protection during international shipping.
What control systems do you support?
We support both Industrial Control Systems for remote/unmanned management and Computer Control Systems for localized, manual operation.
Are the screens certified for international markets?
Yes, our LED displays hold CE, RoHS, and CCC certifications, meeting global standards for quality and safety.
