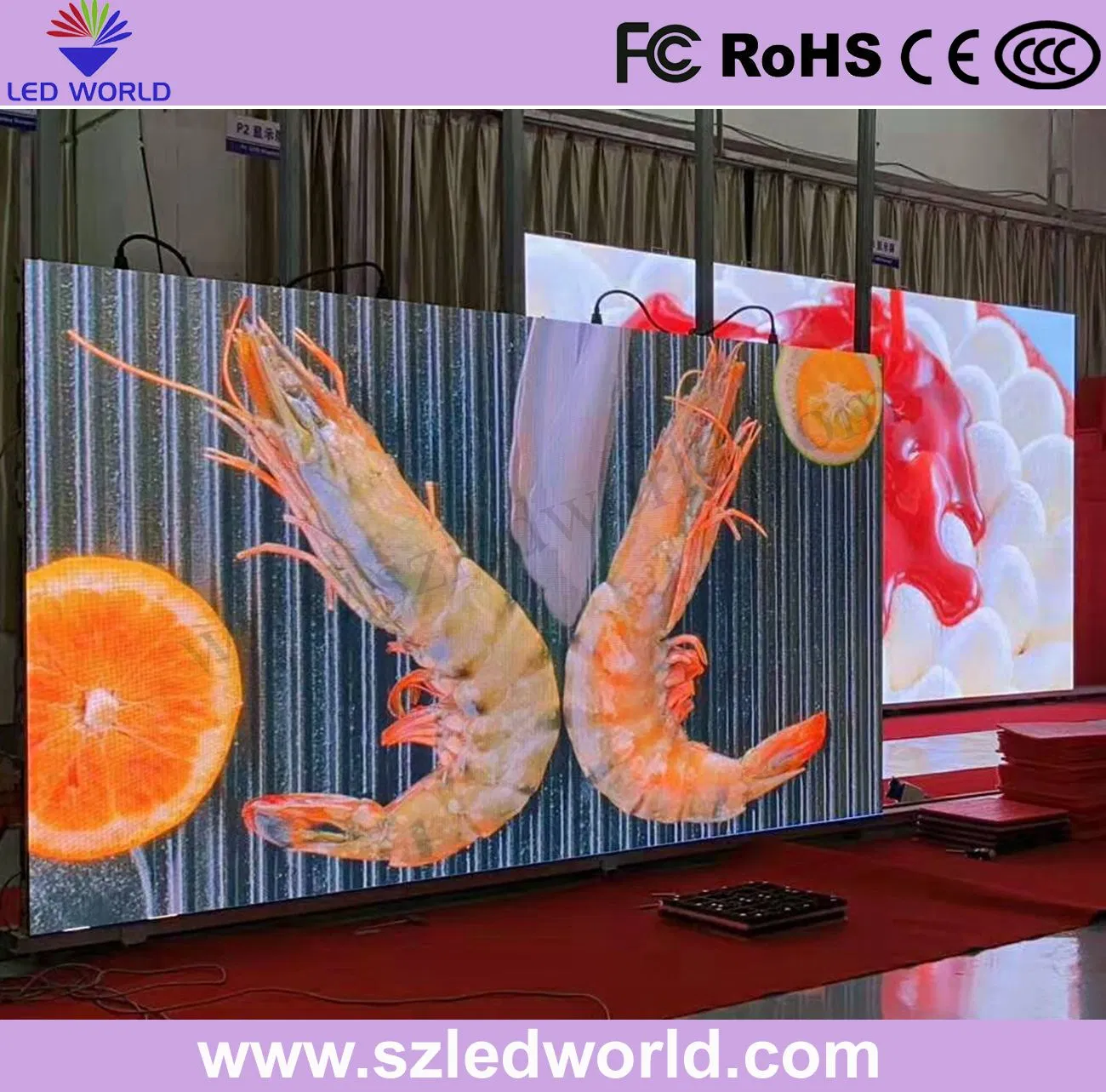

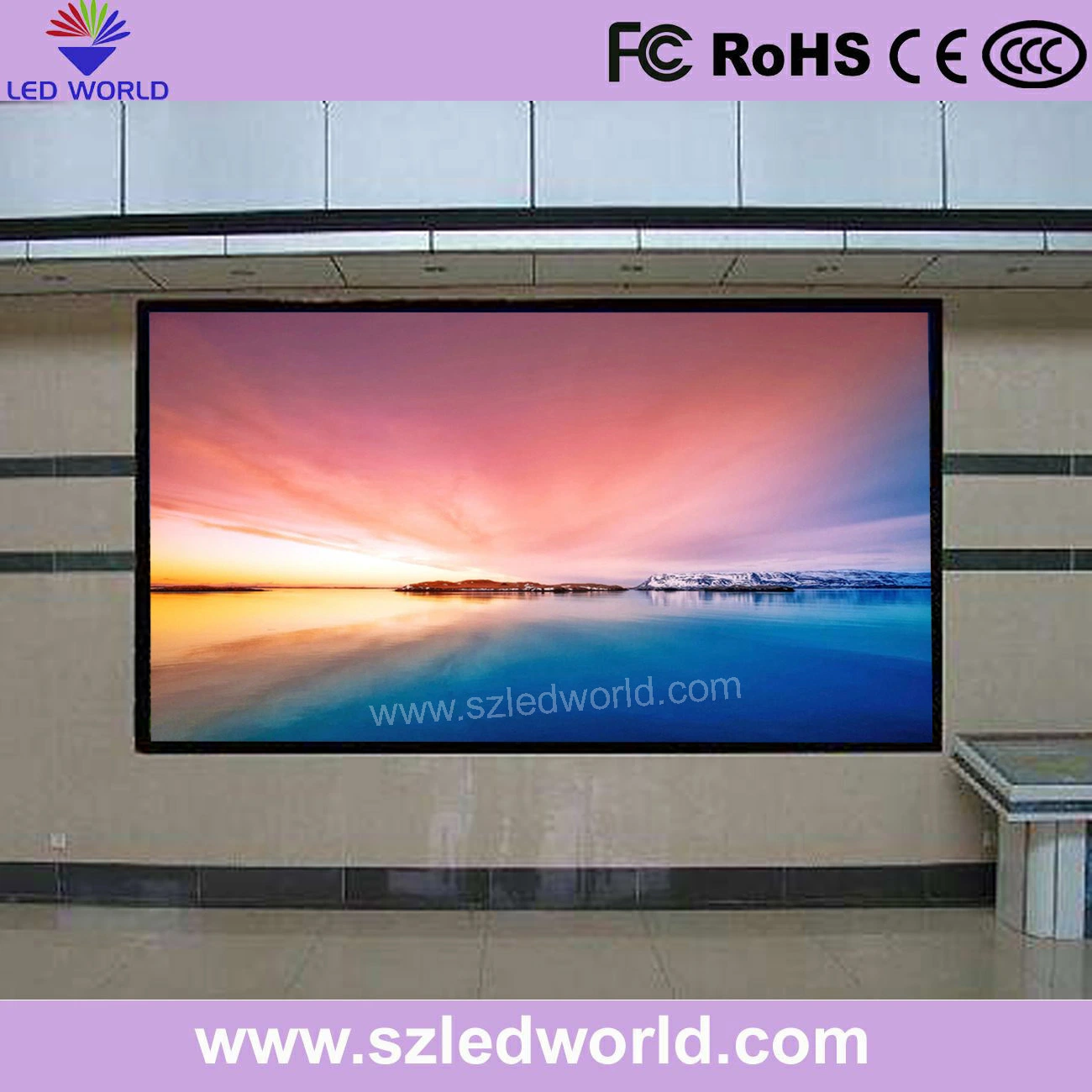

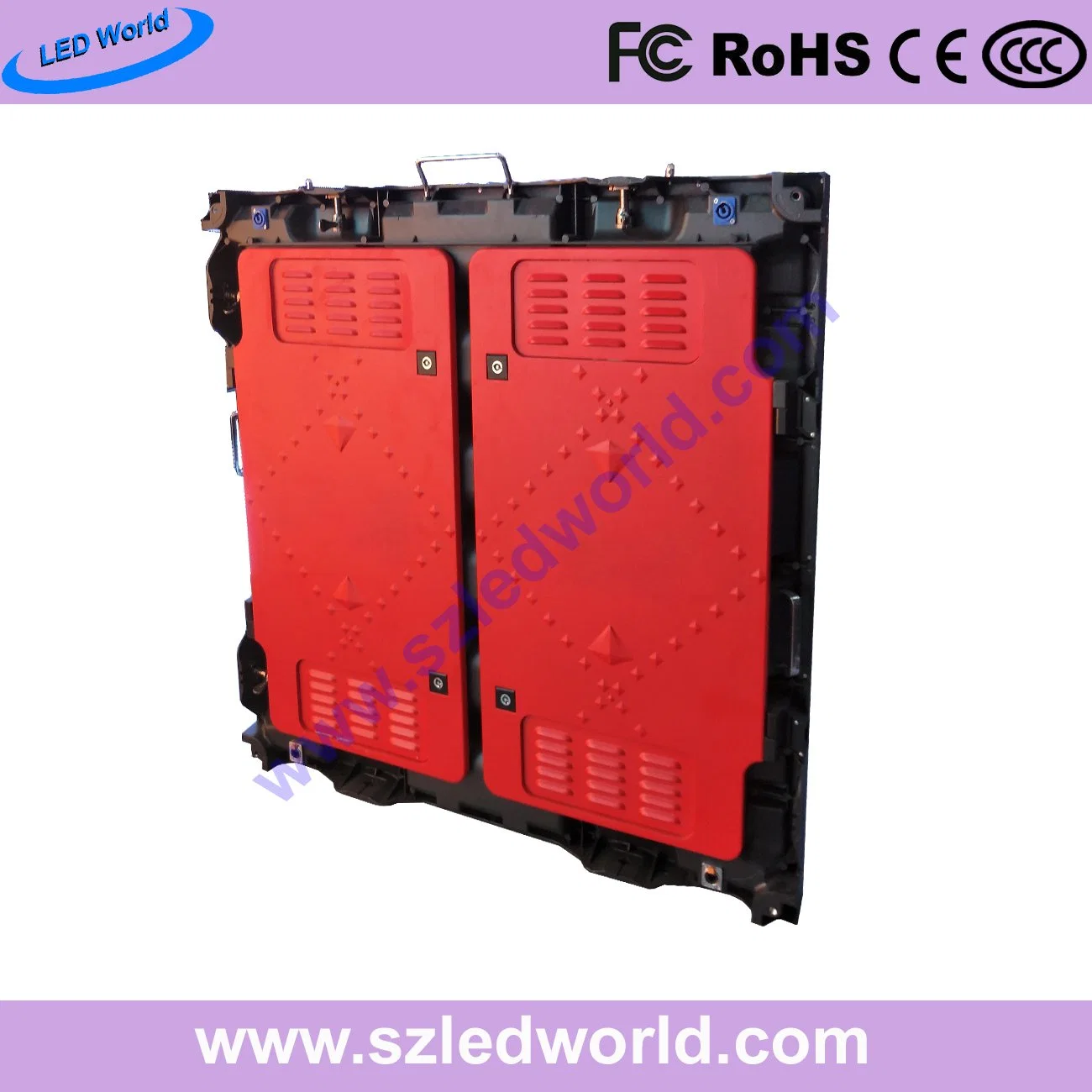

P2.5 P3 P4 P5 P6 Indoor Outdoor Full Color Rental RGB Advertising LED Display Panel Large Video Wall Screens Thin Waterproof Display Panel Billboard Module

1 / 5

P2.5 P3 P4 P5 P6 Indoor Outdoor Full Color Rental RGB Advertising LED Display Panel Large Video Wall Screens Thin Waterproof Display Panel Billboard Module

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Text Display, Market Display

Send Inquiry

Product Description

Basic Information

Model NO.

LW-FI 3

Pixel Pitch

3mm

Pixel Configuration

1R,1G,1B

Pixel Density

111111 / M²

Scanning Mode

1/16 Scan

System Platform

Win7 XP Vista

Application

Stage, Advertising, Shopping Guide

IP Rating

IP31

Certification

CE, RoHS, CCC, FCC

Cabinet Material

Aluminum

Cabinet Weight

9kg

Production Capacity

5000sq. M/Month

Core Features

High definition videos and pictures

Customizable cabinet dimensions

Front and rear service with magnets

Silent fan operation, no noise

High refresh rate up to 3840 HZ

Wide viewing angle (H:140°, V:140°)

Technical Parameters

Items	P2.5mm	P3mm	P4mm	P5mm	P6mm	P10mm
Pixel	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Configuration	SMD 3-in-1	SMD 3-in-1	SMD 3-in-1	SMD 3-in-1	SMD 3-in-1	SMD 3-in-1
Pixel Density	160,000	111,111	62,500	40,000	27,777	10,000
Module Size(mm)	160x160	192x192	256x128	320x160	192x192	320x160
Brightness	1300cd/㎡	1300cd/㎡	1300cd/㎡	1300cd/㎡	1300cd/㎡	1000cd/㎡
Refresh Rate	300-3000HZ adjustable
LED Life	100,000 hours

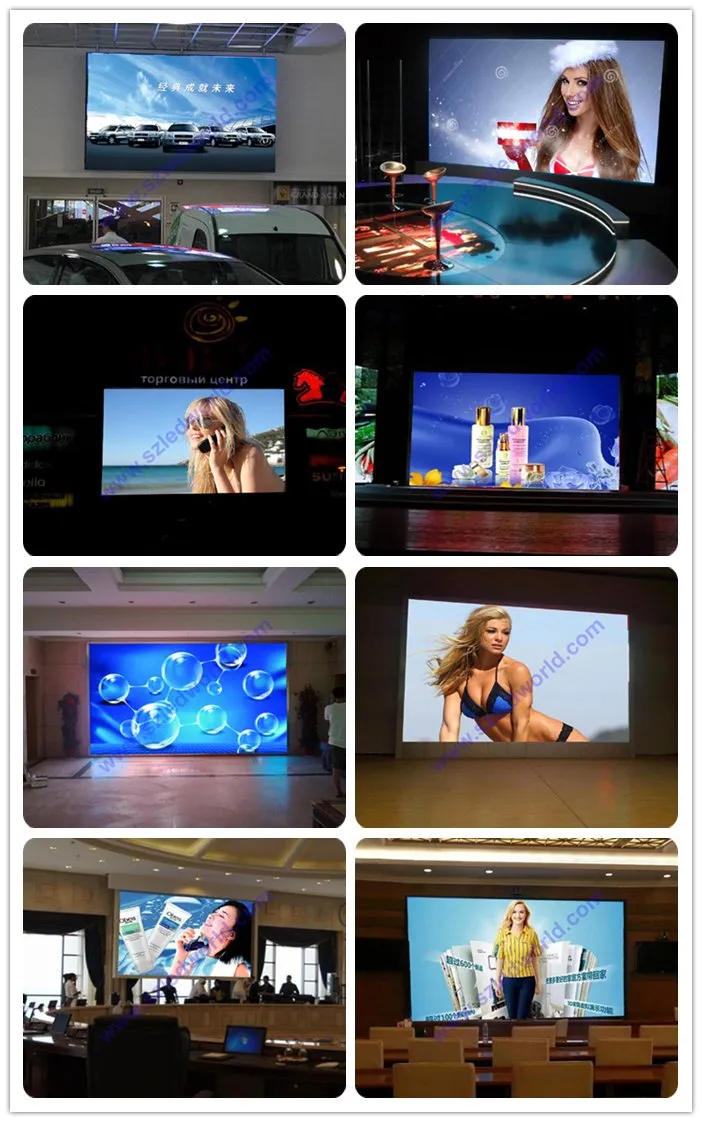

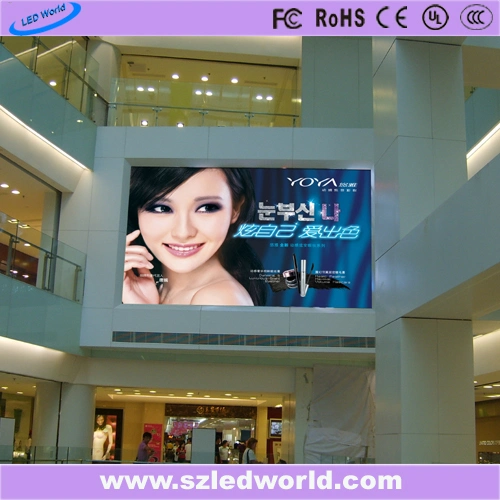

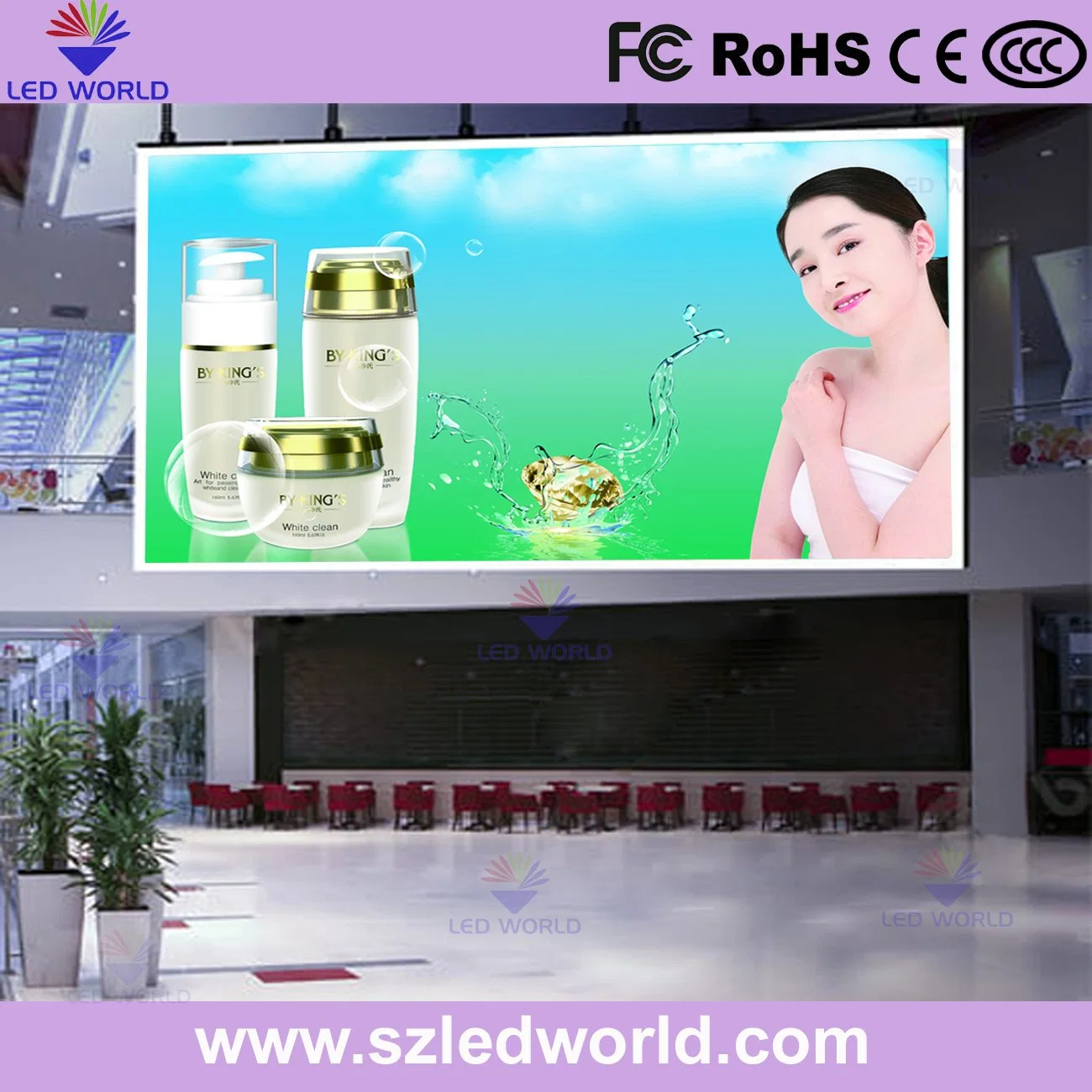

Project Showcase & Details

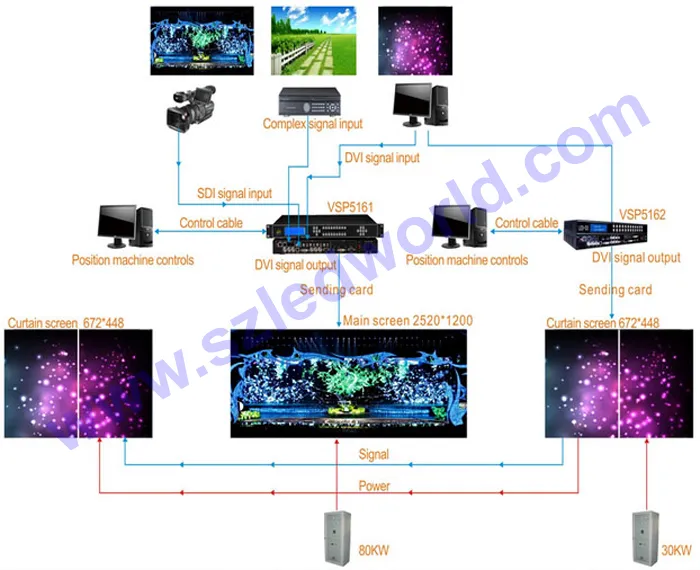

Control System & Related Products

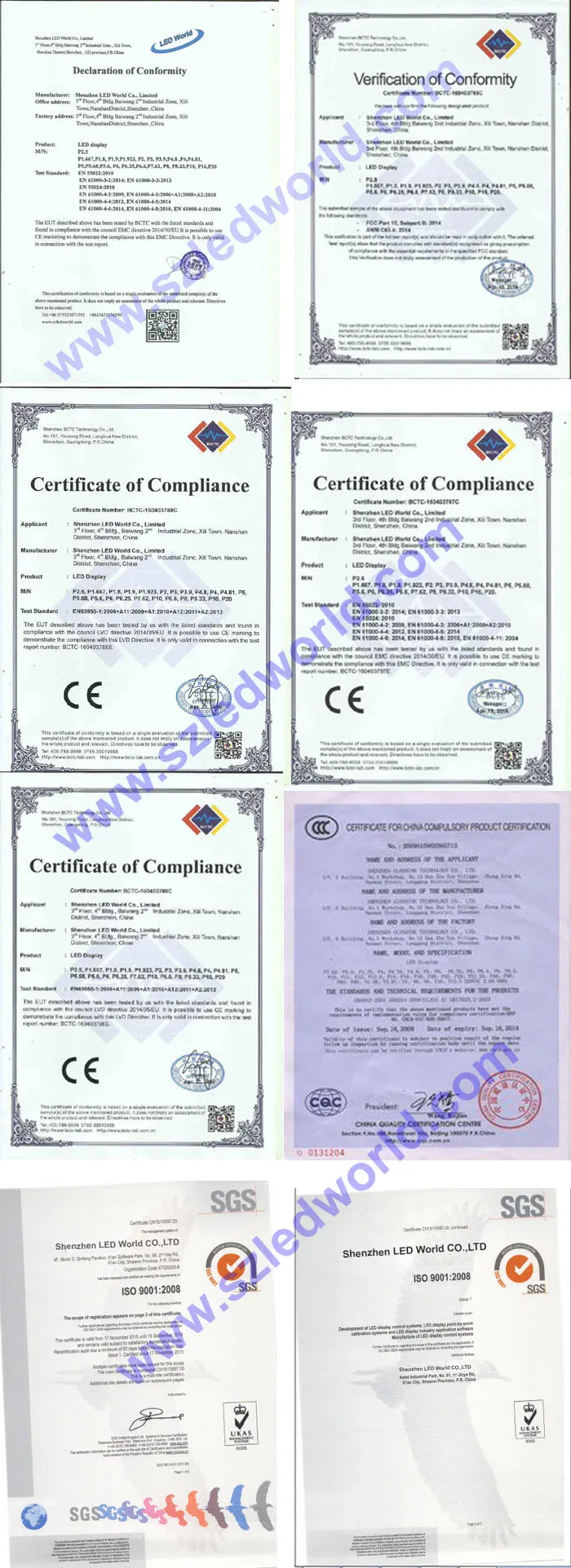

Certifications

Frequently Asked Questions

1. What is the typical production time for an order?

Production time generally ranges from 10 to 25 working days after receiving the deposit.

2. What types of LED displays are available?

We offer indoor, outdoor, rental, taxi top, mobile, and irregular LED displays to meet various application needs.

3. Can these screens play high-definition (HD) video?

Yes, with the Linsn or Novastar controlling systems, our displays can achieve full HD video functionality.

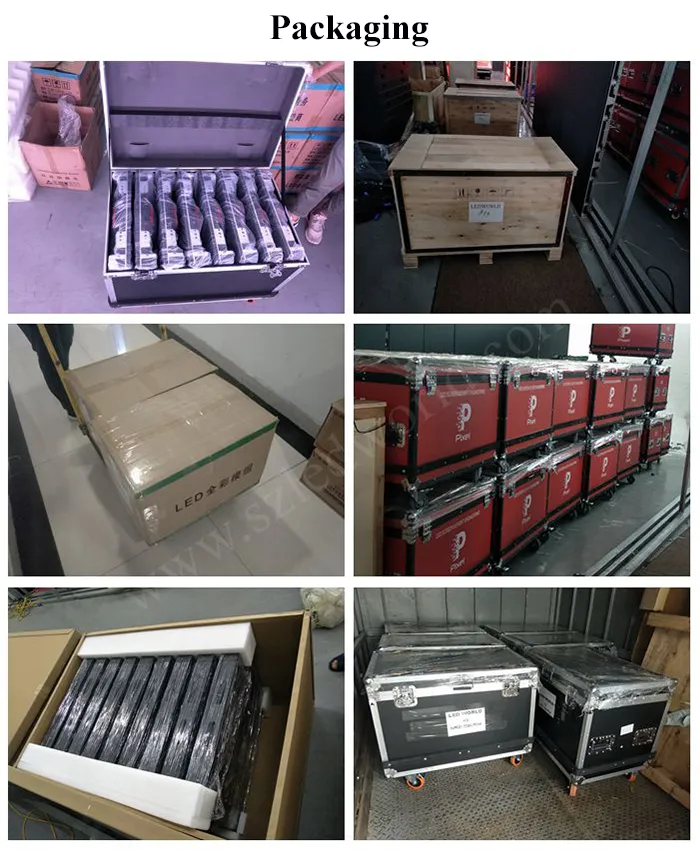

4. What are the packaging options for shipping?

For fixed installations, we use reinforced wooden cases. For the rental market, we suggest flight cases for better protection and mobility.

5. What is the difference between SMD and DIP technology?

SMD (3-in-1) reduces graininess and improves uniformity and viewing angles compared to traditional DIP, making it ideal for modern high-resolution displays.

6. What delivery terms do you accept?

We support various terms including EXW, FOB, CFR, CIF, DDU, and DDP to ensure the most convenient shipping method for you.

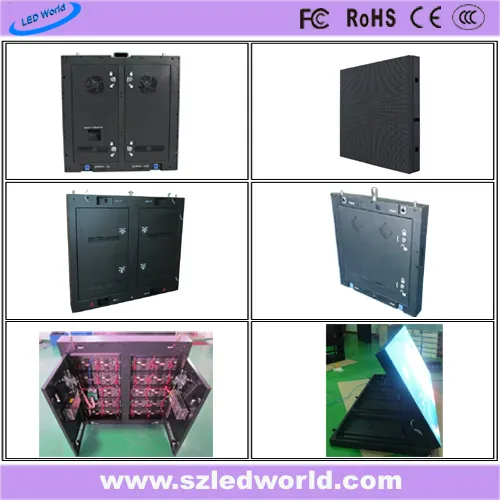

Product Detail
