Outdoor P2.6 Flexible Rental Screen LED Curved Soft Module Video LED Display

🟦 Basic Information

Model NO.

AB2.604

Pixel Pitch

2.604mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image & Text Display

Power Consumption

235W/M2 (Average)

Pixel Density

147456dots/M2

Scanning Mode

1/24s

Refresh Frequency

3840Hz

Color Processing

16bit

Lifespan

50,000 Hours

Maintenance

Front/Rear Maintenance

HS Code

8528591090

📦 Packaging & Delivery

Package Size

50.00cm * 8.50cm * 100.00cm

Gross Weight

16.000kg

⚡ Product Highlights

1. Four-level Energy-saving Technology Level I: Dynamic energy saving when signal is absent. Level II: Black screen current drops to 0.6mA. Level III: Static consumption drops to 0.5mA after 300ms. Level IV: Shunt power supply for lower conduction resistance.

2. True Color & HD Visuals Up to 3840Hz refresh rate and 16-bit grayscale. Realistic display without graininess. Wide viewing angles exceeding 140°.

3. Flexible Installation Supports floor, hanging, and wall mounting. Modular design for modules, case, and power box. Structureless installation saves costs.

4. Advanced Drive Solutions Includes column fading, darkening improvement for the first row, and pockmark improvement.

5. High Protection Grade IP66 rated. All-aluminum design for corrosion resistance and flame retardancy. Operates from -40ºC to 80ºC.

6. Reliable Performance Ultra-low temperature rise and high heat dissipation. No air conditioning required for operation, ensuring a long life span.

📊 Technical Specifications

Parameter Name	P1.95	P2.604	P2.97	P3.91	P4.81
Pixel Structure (SMD)	1415	1415	1415	1921	1921
Pixel Pitch (mm)	1.95	2.604	2.97	3.91	4.81
Module Res. (W×H)	128*128	96*96	84*84	64*64	52*52
Module Size (mm)	25025018
Cabinet Size (mm)	500100085 / 50075085 / 50050085
Pixel Density (dots/m²)	262144	147456	112896	65536	43264
IP Rating	IP66
Brightness (cd/m²)	4500
Refresh Rate (Hz)	3840
Gray Scale	65536 levels

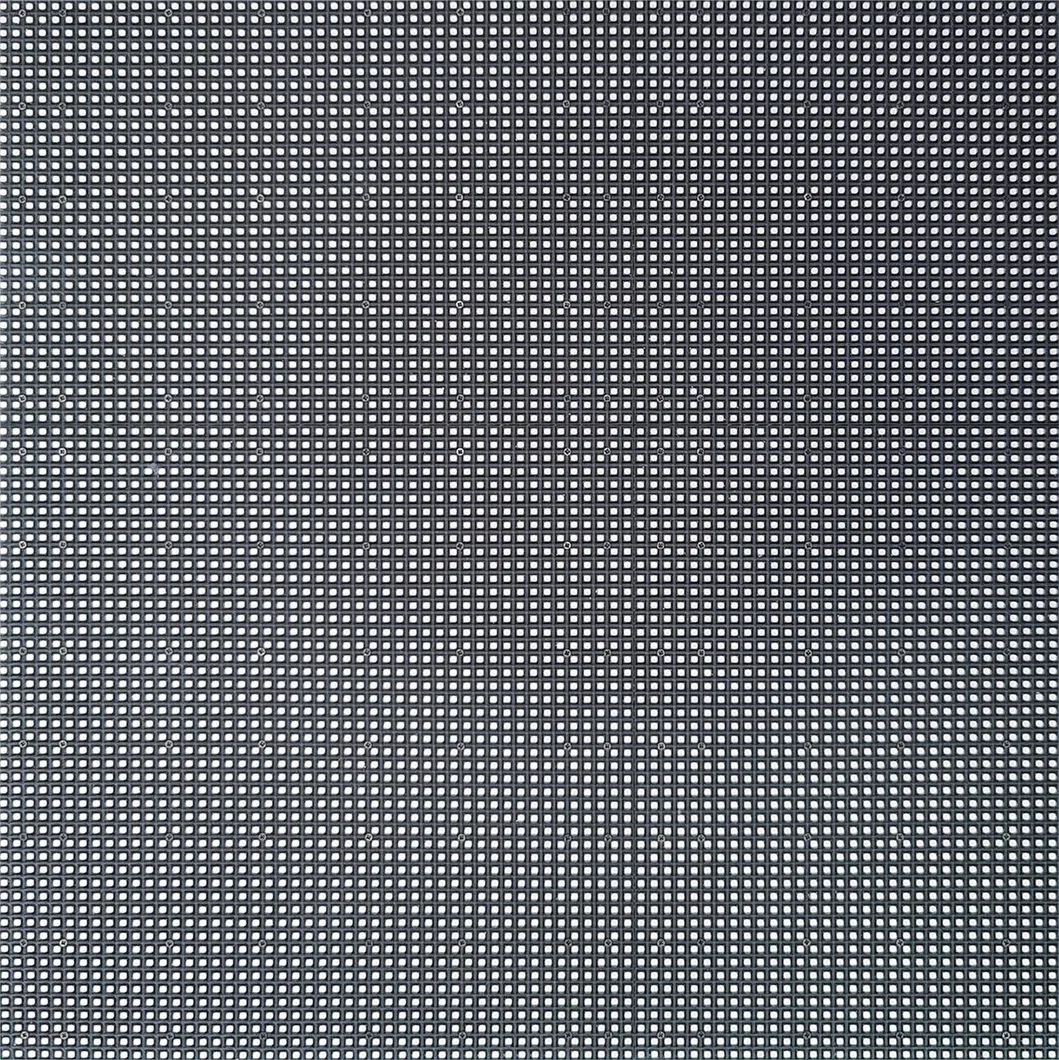

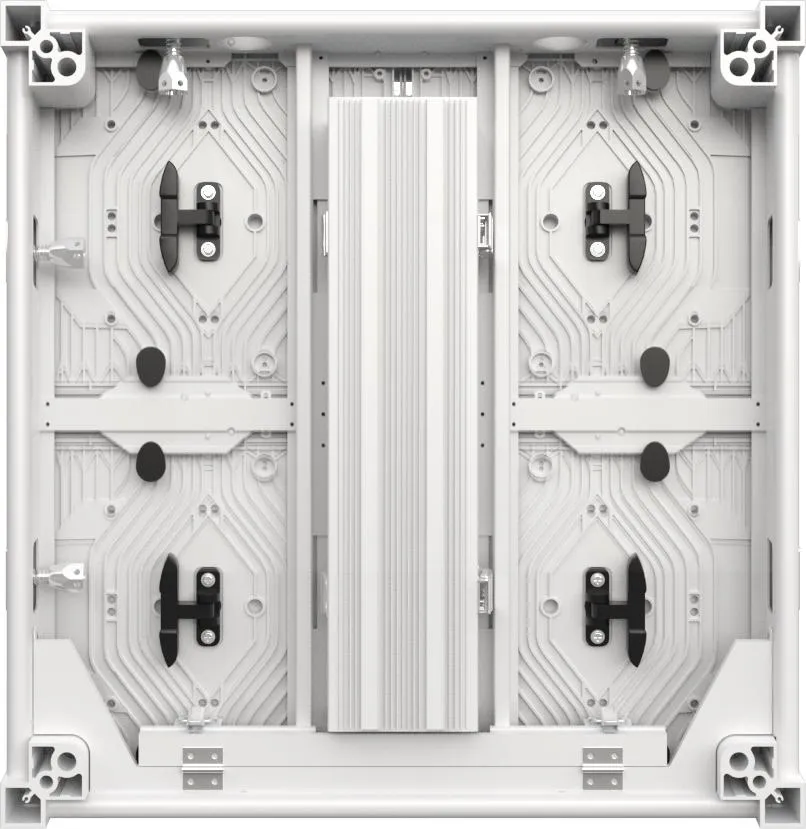

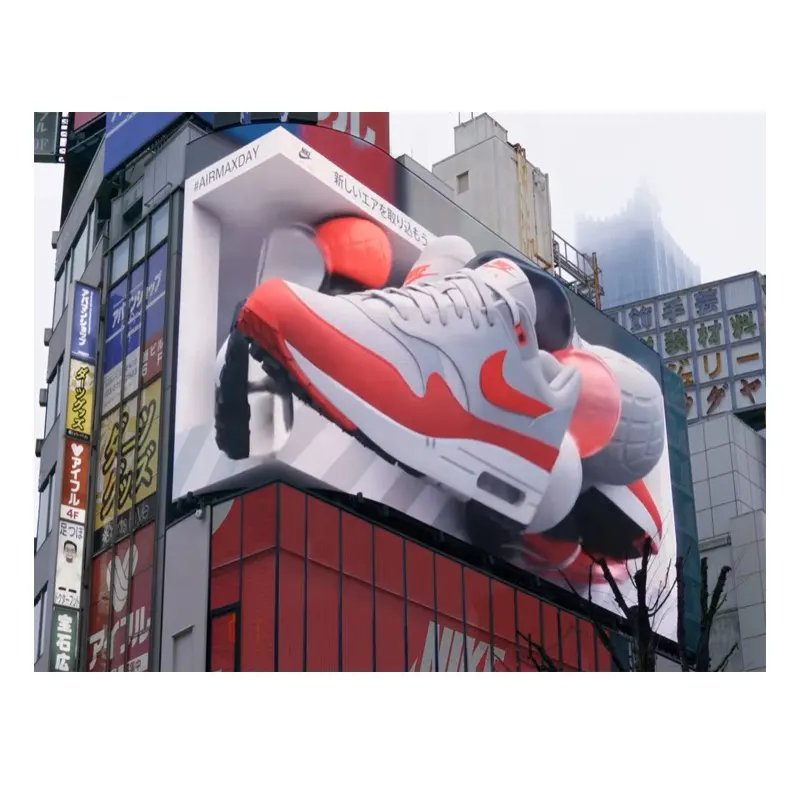

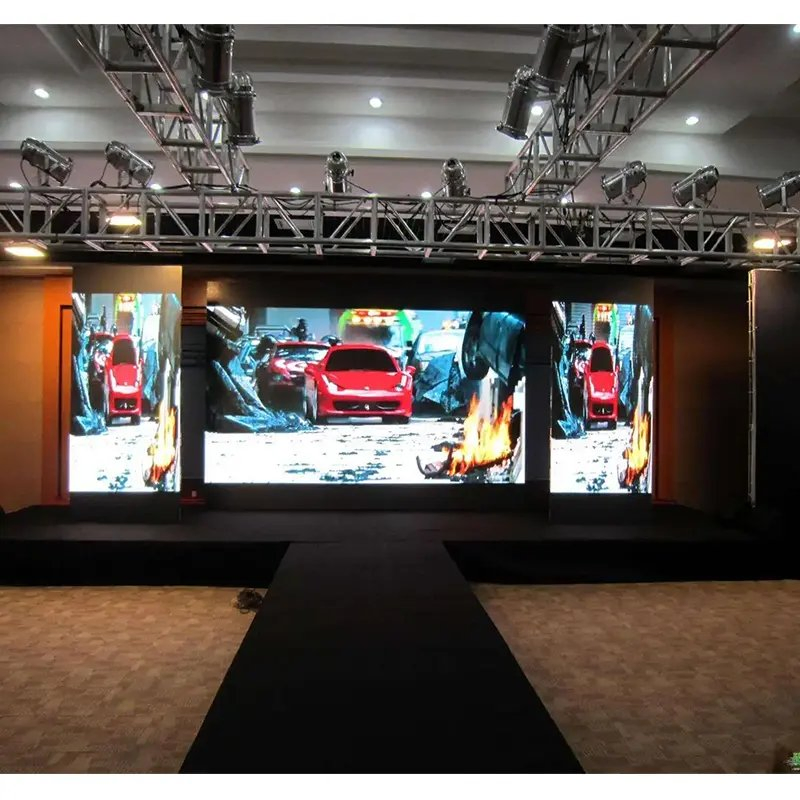

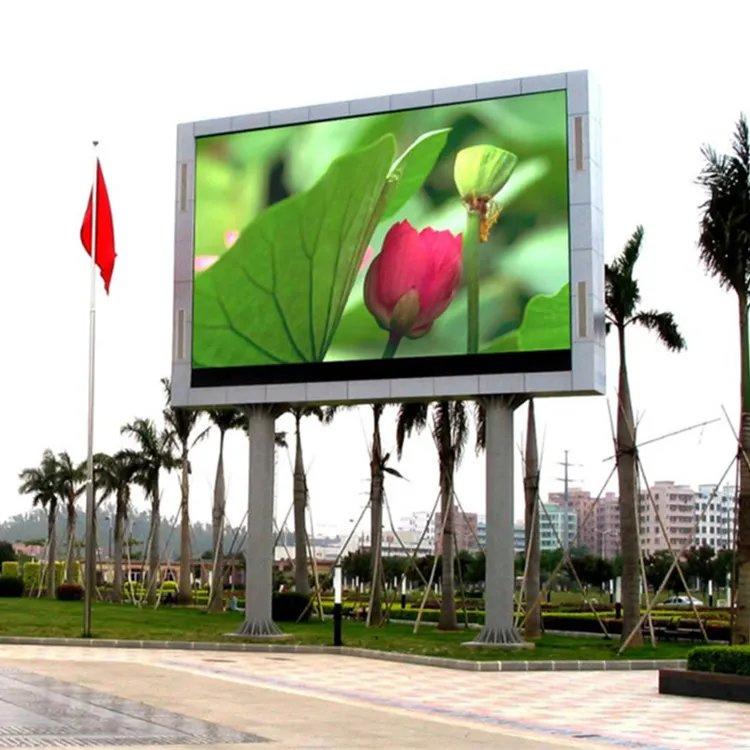

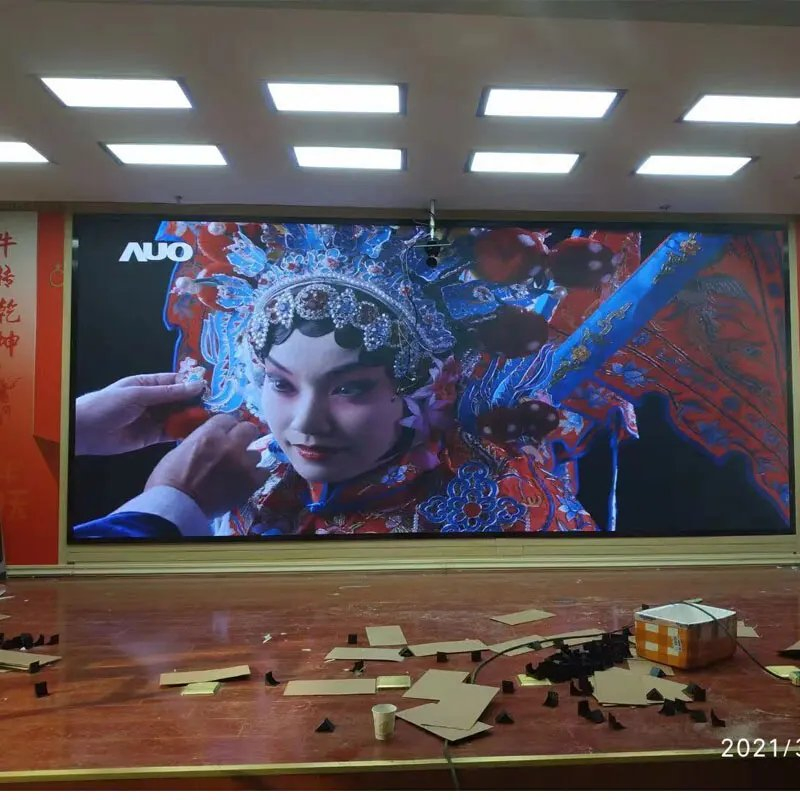

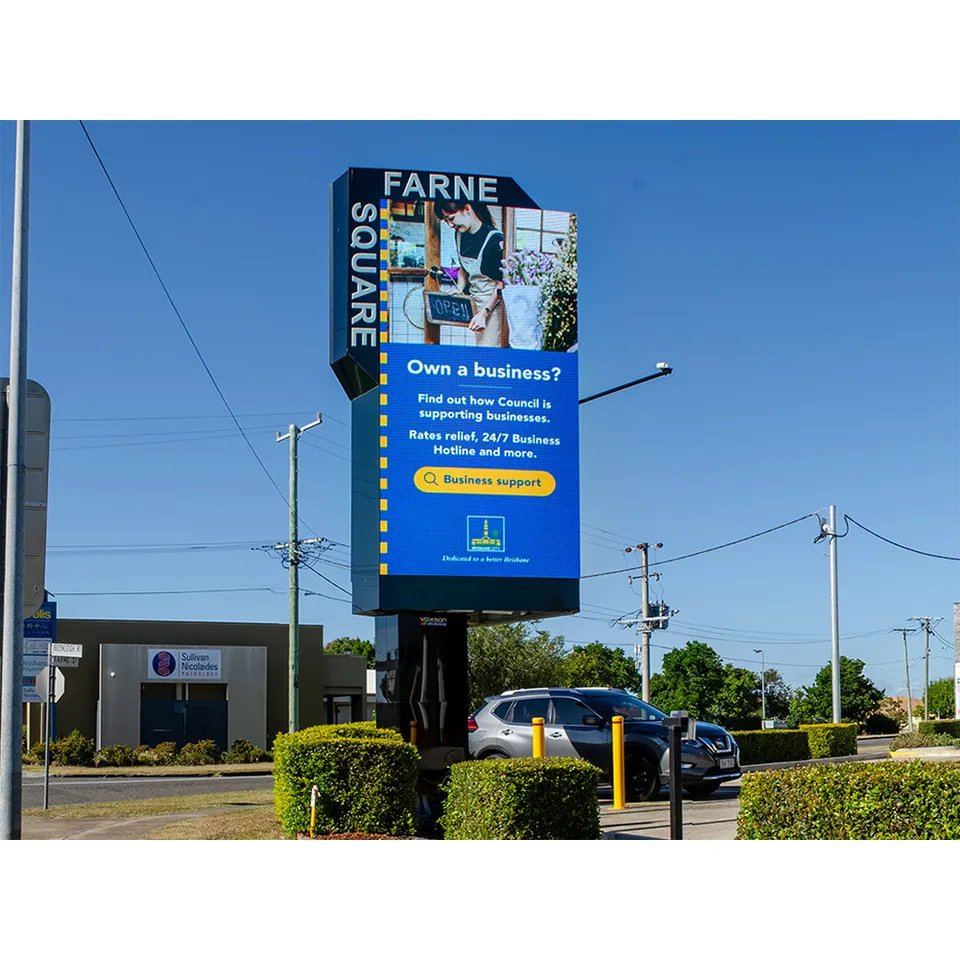

🖼️ Product Display

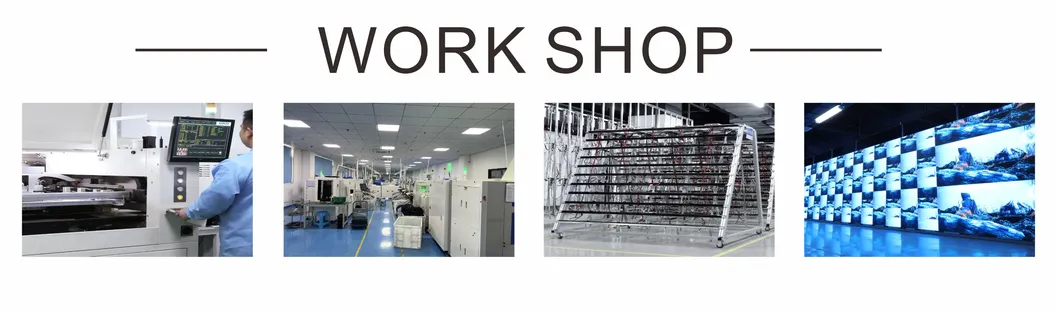

🏢 Production Showcase

❓ Frequently Asked Questions

What kind of LED display do you offer?

Our products cover LED full color display for indoor and outdoor, rental LED display, advertisement display, stage display, sports display, irregular-shape display, and customized solutions.

Can I have a sample order for LED screen?

Yes, sample orders are available for quality check and market testing, both for individual modules and whole screen assemblies.

How about the freight cost?

The shipping cost depends on the weight and volume. We choose the safest and most economical shipping method based on your order quantity.

What is the typical lead time for an order?

Standard production time is approximately 15-25 working days, depending on the project size and customization requirements.

Do you provide technical support?

Yes, we provide lifetime technical support including remote configuration assistance and online guidance for installation and maintenance.

What is the warranty policy for your LED displays?

We offer a standard 2-year warranty on our products, covering main components and technical performance under normal use.
